Low-Frequency Vibration Motor Low-Frequency Vibration Motor Stainless Steel EVSS 3 Series
Product Overview
This low-frequency vibration motor is ideally suited for food, pharmaceutical, and chemical processing environments where corrosion resistance is essential.
Its powerful vibration helps prevent material buildup and blockages in hoppers and tanks, while also providing reliable performance for filling and other processing equipment.
Key Features
All-Stainless-Steel Exterior
All external metal parts are made of stainless steel, making the motor ideal for environments exposed to water, steam, and other corrosive conditions.
This durable construction expands the range of applications for low-frequency vibration motors.
Dust and Water-Resistant Design
The vibration motor features a totally enclosed, drip-proof construction equivalent to IP66 protection, ensuring reliable operation even in outdoor environments.

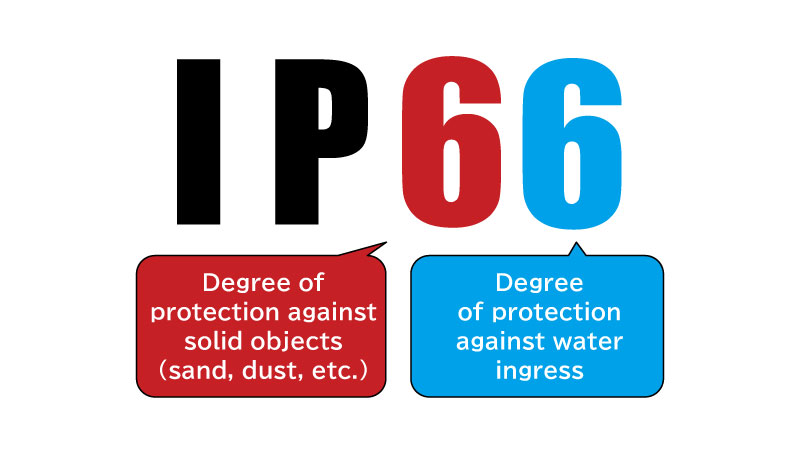

What is the IP (Ingress Protection) Code?
The IP Code is an international classification system that indicates the degree of protection provided by an enclosure against the ingress of dust, water, and other foreign matter.
Protection ratings are defined by IEC and JIS standards.
IP ratings are expressed as “IP” followed by two digits.
First numeral (6): Dust-tight protection against the ingress of solid foreign objects.
Second numeral (6): Protection against powerful water jets from any direction.
Molded Stator Construction
The stator is resin-molded to minimize the risk of winding disconnection due to vibration.
Specifications
Low-Frequency Vibration Motor Stainless Steel EVSS 3 Series
Metric
| Model | Output (W) | Voltage (V) | Input Frequency (Hz) | Current (A) | Frequency (Hz) | Centrifugal Force (kN) | Cable Length (m) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||

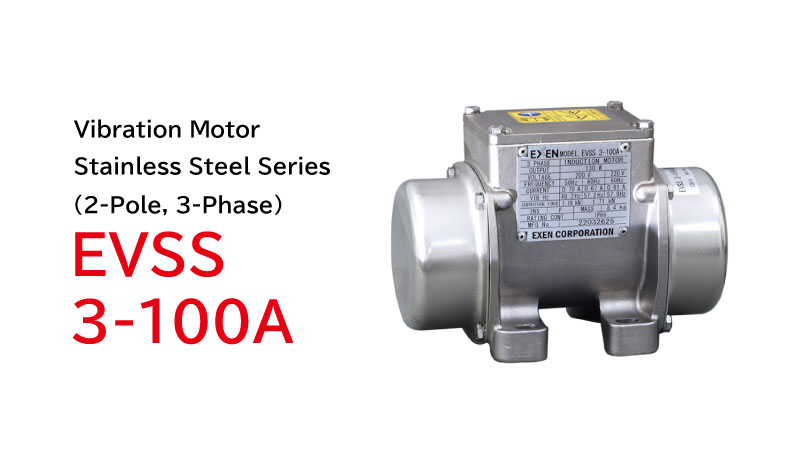

| EVSS 3-100A | 130 | 200-440 | 50 / 60 | 0.34-0.7 | 0.30-0.67 | 48.2-49.0 | 57.2-58.5 | 1.19 | 1.71 | 2 | 8.4 |

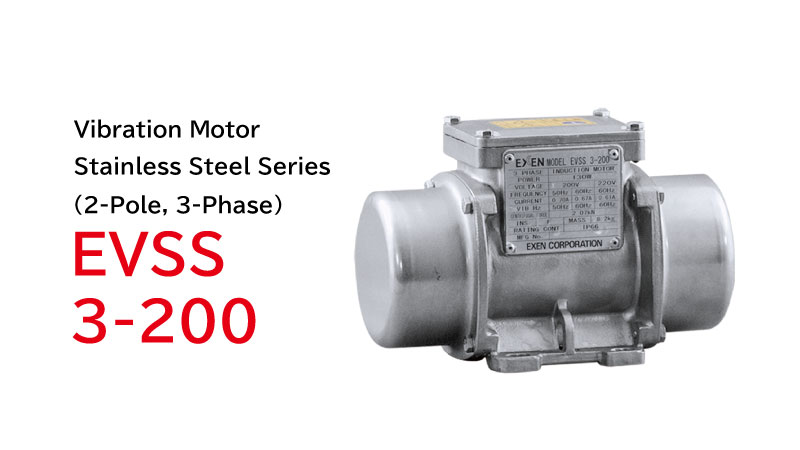

| EVSS 3-200 | 47.2-48.2 | 56.8-58.2 | 2.07 | 1.97 | 8.9 | ||||||

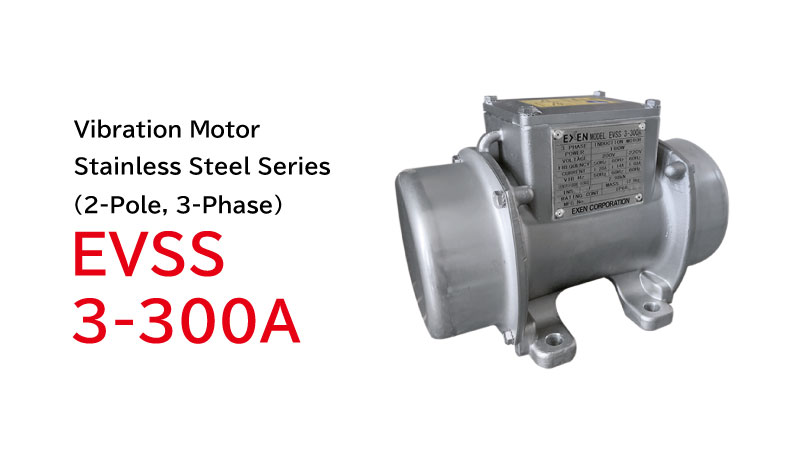

| EVSS 3-300A | 180 | 0.58-1.2 | 0.52-1.14 | 48.5-49.0 | 58.1-59.0 | 2.98 | 2.75 | 13.1 | |||

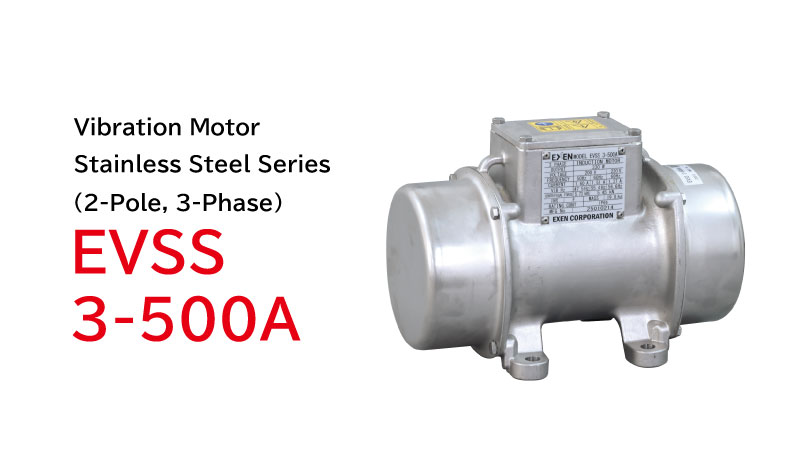

| EVSS 3-500A | 330 | 0.77-1.6 | 0.69-1.51 | 47.5-48.0 | 55.4-58.1 | 5.73 | 5.45 | 19.0 | |||
Imperial
| Model | Output (W) | Voltage (V) | Input Frequency (Hz) | Current (A) | Frequency (VPM) | Centrifugal Force (lbf) | Cable Length (ft) | Weight (lb) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| EVSS 3-100A | 130 | 200-440 | 50 / 60 | 0.34-0.7 | 0.30-0.67 | 2,892-2,940 | 3,432-3,510 | 267.52 | 384.43 | 6.56 | 18.52 |
| EVSS 3-200 | 2,832-2,892 | 3,408-3,492 | 465.36 | 442.88 | 19.62 | ||||||
| EVSS 3-300A | 180 | 0.58-1.2 | 0.52-1.14 | 2,910-2,940 | 3,486-3,540 | 669.93 | 618.23 | 28.88 | |||
| EVSS 3-500A | 330 | 0.77-1.6 | 0.69-1.51 | 2,850-2,880 | 3,324-3,486 | 1,288.16 | 1,225.21 | 41.89 | |||
