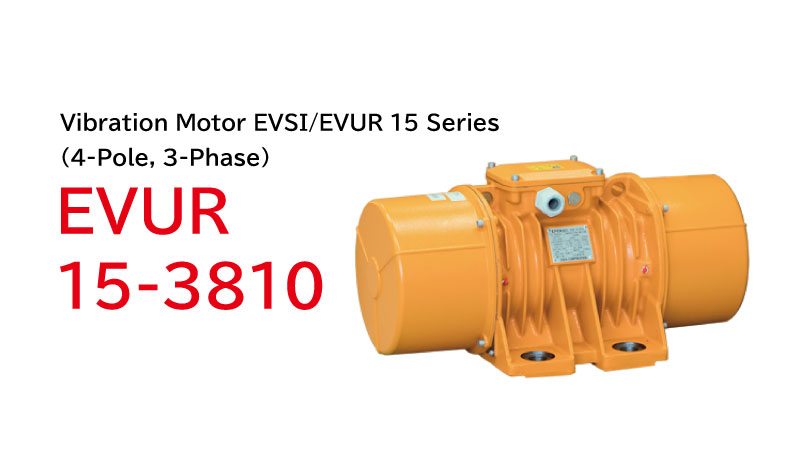

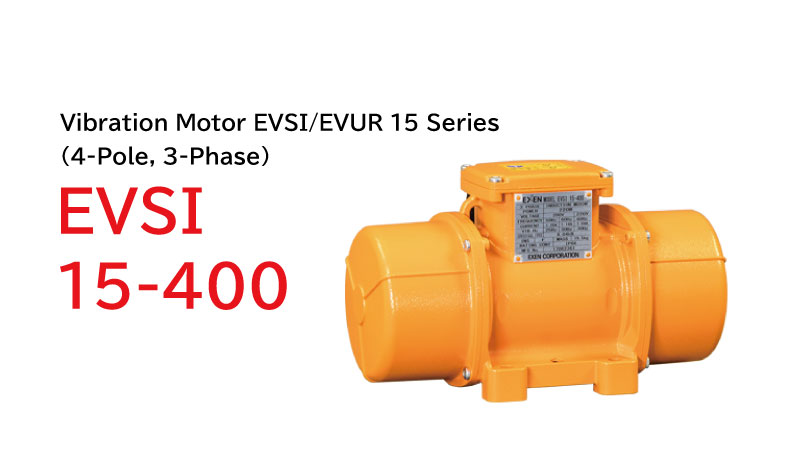

Low-Frequency Vibration Motor Low-Frequency Vibration Motor EVSI･EVUR 15 series (4-pole 3-phase 200 - 440V)

Product Overview

The powerful vibration effectively eliminates material buildup and blockages in hoppers, tanks, and other bulk material containers.
It is also widely used in filling systems and various industrial processing applications.

Key Features

Powerful Vibration

Powerful centrifugal vibration is generated by rotating eccentric weights mounted on both ends of the motor shaft.
This powerful vibration effectively eliminates material buildup and blockages in hoppers, tanks, and other bulk material containers, making it suitable for a wide range of filling and processing applications.
A broad lineup of models is available to meet a variety of application requirements.

Dust and Water-Resistant Design

The vibration motor features a totally enclosed, drip-proof construction equivalent to IP66 protection, ensuring reliable operation even in outdoor environments.

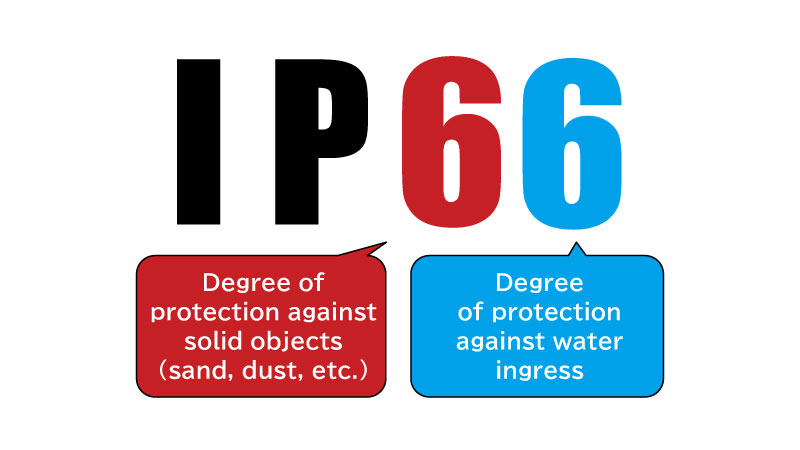

What is the IP (Ingress Protection) Code?
The IP Code is an international classification system that indicates the degree of protection provided by an enclosure against the ingress of dust, water, and other foreign matter.
Protection ratings are defined by IEC and JIS standards.
IP ratings are expressed as “IP” followed by two digits.

First numeral (6): Dust-tight protection against the ingress of solid foreign objects.
Second numeral (6): Protection against powerful water jets from any direction.

Molded Stator Construction

The stator is resin-molded to minimize the risk of winding disconnection due to vibration.

Models

Model	Item Code	Downloads
EVSI 15-80	001543000	Downloads
EVSI 15-200	001426000	Downloads
EVSI 15-400	001428000	Downloads
EVSI 15-550	001430000	Downloads
EVSI 15-700A	001432100	Downloads
EVSI 15-900B	001434200	Downloads
EVSI 15-1100A	001962000	―
EVSI 15-1410	001529000	―
EVUR 15-1410	001436000	―
EVSI 15-1710	001534000	―
EVUR 15-1710	001438000	―
EVUR 15-2410	001440000	Downloads
EVUR 15-3810	001530000	Downloads
EVUR 15-7000	―	―

Downloads include instruction manuals and drawings. Contents may vary depending on the model.

Specifications

EVSI 15-80

Metric

Model	Output （W）	Voltage （V）	Input Frequency （Hz）	Current(A）		Frequency（Hz）		Centrifugal Force（kN）		Cable Length (m)	Weight （kg）
Model	Output （W）	Voltage （V）	Input Frequency （Hz）	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	Cable Length (m)	Weight （kg）
EVSI 15-80	35	200 / 380, 400 / 415 (50Hz) 200 / 220, 400 / 440 (60Hz)	50 / 60	0.27 - 0.42	0.24 - 0.4	20.8 - 22.7	27.2 - 28.5	0.76	0.7	2	6.6

Imperial

Model	Output （W）	Voltage （V）	Input Frequency （Hz）	Current(A）		Frequency（VPM）		Centrifugal Force（lbf）		Cable Length (ft)	Weight （lb）
Model	Output （W）	Voltage （V）	Input Frequency （Hz）	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	Cable Length (ft)	Weight （lb）
EVSI 15-80	35	200 / 380, 400 / 415 (50Hz) 200 / 220, 400 / 440 (60Hz)	50 / 60	0.27–0.42	0.24–0.40	1,248–1,362	1,632–1,710	170.9	157.4	6.6	14.6

EVSI・EVUR 15 Series

Metric

Model	Output (W)	Voltage (V)	Input Frequency (Hz)	Current (A)		Frequency (Hz)		Centrifugal Force (kN)	Cable Length (m)	Weight (kg)
Model	Output (W)	Voltage (V)	Input Frequency (Hz)	50Hz	60Hz	50Hz	60Hz	Centrifugal Force (kN)	Cable Length (m)	Weight (kg)
EVSI 15-200	90	200 / 380, 400 / 415 (50Hz) 200 / 220, 400 / 440 (60Hz)	50 / 60	0.59-0.93	0.51-0.8	22.3-23.2	26.9-28.4	2.09	2	12.1
EVSI 15-400	220			0.76-1.25	0.67-1.26	22.7-23.4	27.0-28.4	4.04		19.5
EVSI 15-550	220			0.87-1.54	0.69-1.42	21.4-23.0	26.0-28.4	5.42		21.2
EVSI 15-700A	380			1.12-1.93	1.09-2.3	22.4-23.3	25.4-27.9	7.06		26.7
EVSI 15-900B	380			1.31-2.68	1.16-2.37	20.2-22.4	24.8-27.5	8.83		29.5
EVSI 15-1100A	400			1.25-2.37	0.95-2.09	22.7-23.5	27.7-29.0	10.3		33.5
EVSI 15-1410	740			1.65-3.5	1.37-2.76	22.1-23.0	27.5-28.3	13.9		42.0
EVUR 15-1410	740			1.54-2.9	1.37-2.89	22.5-23.2	26.9-28.3	13.9		53.0
EVSI 15-1710	830			2.36-4.08	2.20-4.65	23.1-23.8	27.3-28.7	17.6	N/A	48.0
EVUR 15-1710	830			2.45-4.8	2.20-4.65	23.2-23.7	27.7-28.8	17.6		57.0
EVUR 15-2410	1340			4.38-7.86	3.75-7.1	23.2-23.7	28.1-28.7	23.7		81.0
EVUR 15-3810	1780			6.00-10.6	4.70-9.7	23.9-24.2	28.8-29.4	37.7		119
EVUR 15-7000	4980			11.2-23.2	10.2-21.2	23.9-24.4	28.7-29.2	64.1		208

Imperial

Model	Output (W)	Voltage (V)	Input Frequency (Hz)	Current (A)		Frequency (VPM)		Centrifugal Force (lbf)	Cable Length (ft)	Weight (lb)
Model	Output (W)	Voltage (V)	Input Frequency (Hz)	50Hz	60Hz	50Hz	60Hz	Centrifugal Force (lbf)	Cable Length (ft)	Weight (lb)
EVSI 15-200	90	200 / 380, 400 / 415 (50Hz) 200 / 220, 400 / 440 (60Hz)	50 / 60	0.59-0.93	0.51-0.80	1,338-1,392	1,614-1,704	469.9	6.6	26.7
EVSI 15-400	220			0.76-1.25	0.67-1.26	1,362-1,404	1,620-1,704	908.2		43.0
EVSI 15-550	220			0.87-1.54	0.69-1.42	1,284-1,380	1,560-1,704	1218.5		46.7
EVSI 15-700A	380			1.12-1.93	1.09-2.30	1,344-1,398	1,524-1,674	1587.2		58.9
EVSI 15-900B	380			1.31-2.68	1.16-2.37	1,212-1,344	1,488-1,650	1985.1		65.0
EVSI 15-1100A	400			1.25-2.37	0.95-2.09	1,362-1,410	1,662-1,740	2315.5		73.9
EVSI 15-1410	740			1.65-3.50	1.37-2.76	1,326-1,380	1,650-1,698	3124.9		92.6
EVUR 15-1410	740			1.54-2.90	1.37-2.89	1,350-1,392	1,614-1,698	3124.9		116.8
EVSI 15-1710	830			2.36-4.08	2.20-4.65	1,386-1,428	1,638-1,722	3956.7	N/A	105.8
EVUR 15-1710	830			2.45-4.80	2.20-4.65	1,392-1,422	1,662-1,728	3956.7		125.7
EVUR 15-2410	1340			4.38-7.86	3.75-7.10	1,392-1,422	1,686-1,722	5328.0		178.6
EVUR 15-3810	1780			6.00-10.60	4.70-9.70	1,434-1,452	1,728-1,764	8476.7		262.4
EVUR 15-7000	4980			11.2-23.2	10.2-21.2	1,434-1,464	1,722-1,752	14411.4		458.6

* For products with an output of 750 W or higher, the cable weight is not included in the stated weight.
