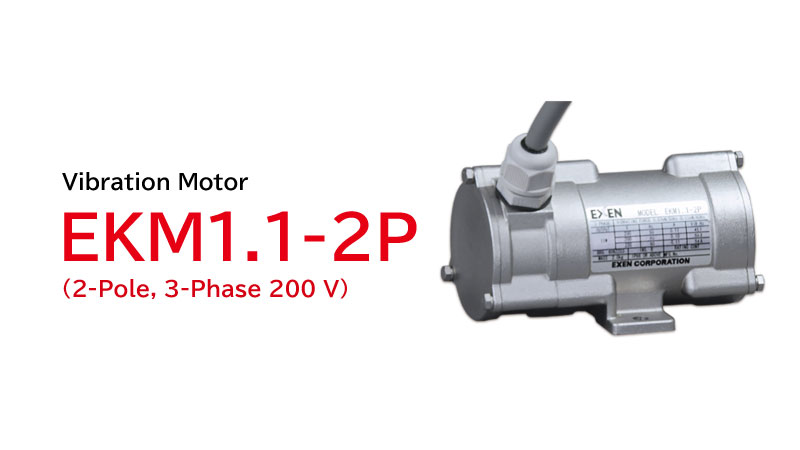

Low-Frequency Vibration Motor Low-Frequency Vibration Motor EKM1.1-2P (2-pole Three-phase 200V)
Product Overview
EKM1.1-2P is a compact vibration motor with a washable all-stainless-steel body, designed to prevent material buildup and blockages in small containers and chutes.
At just 128 mm in length and 2.0 kg in weight, it is the smallest model in the EKM series and can be easily installed using two M6 bolts.
The 2P Series is widely used to prevent material buildup and bridging in powder and bulk material containers, as well as for loosening material and providing vibration for filling tables.
When paired with an inverter, the 3-phase 200 V EKM1.1-2P allows vibration levels to be adjusted for different applications, making it a versatile solution for a wide range of industrial processes.
Key Features

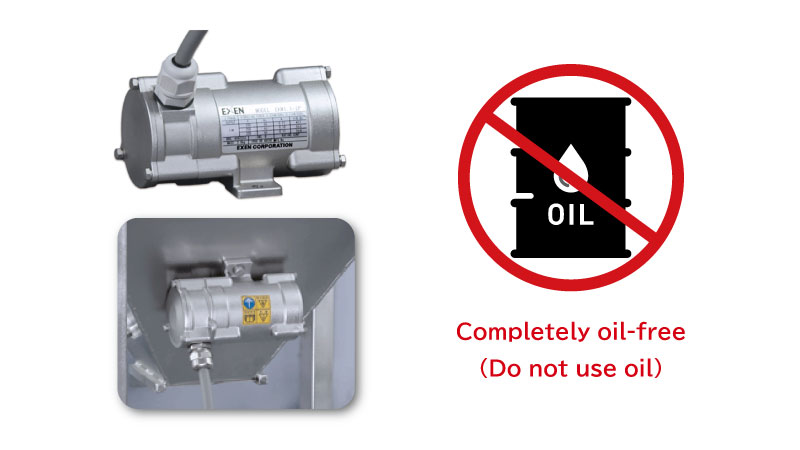

Compact and Completely Oil-Free
EKM1.1-2P is a compact, fully electric vibration motor that operates completely oil-free.
With no need for compressed air or other external utilities, it provides an energy-efficient, low-maintenance solution for a wide range of industrial applications.
Corrosion-Resistant Stainless Steel Body
EKM1.1-2P features an all-stainless-steel construction for excellent corrosion resistance.
Ideal for food, chemical, and other applications where superior corrosion resistance is required.
Washable Design
In addition to its all-stainless-steel construction, the vibration motor features an IP66-equivalent protection rating, allowing it to withstand washdown cleaning and making it suitable for sanitary applications.

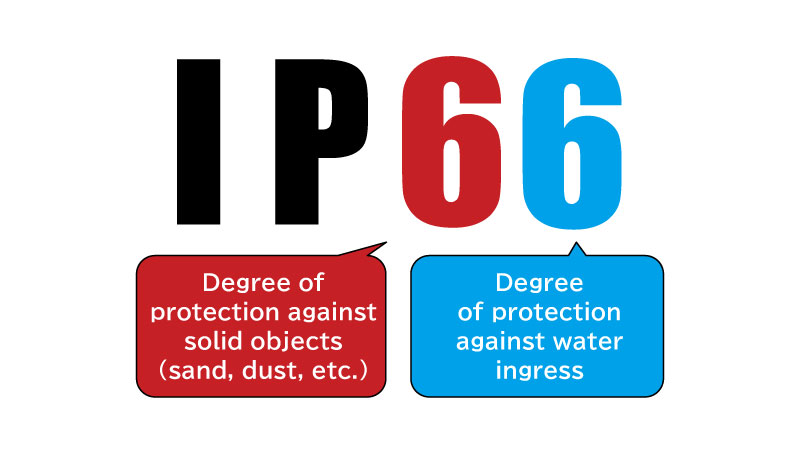

What is the IP (Ingress Protection) Code?
The IP Code is an international classification system that indicates the degree of protection provided by an enclosure against the ingress of dust, water, and other foreign matter.
Protection ratings are defined by IEC and JIS standards.
IP ratings are expressed as “IP” followed by two digits.
First numeral (6): Dust-tight protection against the ingress of solid foreign objects.
Second numeral (6): Protection against powerful water jets from any direction.

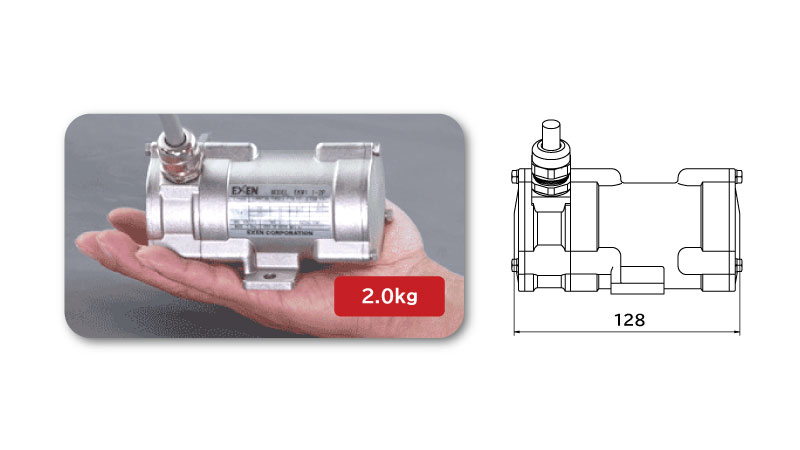

Compact and Lightweight for a Wider Range of Applications
With its compact body and simple two-bolt installation, EKM1.1-2P can be mounted on small containers, chutes, and other confined spaces.
Its versatile design helps prevent material blockages throughout a system and expands application possibilities.

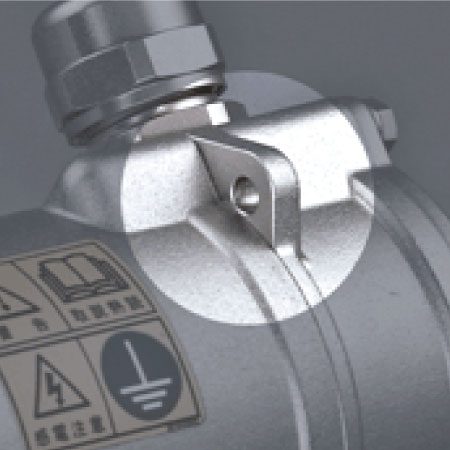

Provision for Safety Wire Installation
To help prevent the vibration motor from falling in the unlikely event of mounting bolt loosening or failure, an optional safety wire is available.
Adjustable Vibration Frequency
A standard 3-phase inverter enables easy adjustment of vibration frequency.
Set the optimum vibration level to suit your application and material characteristics.
Versatile Applications
In addition to preventing material buildup and blockages, the motor can be used as a vibration source for a wide range of applications, including screening, conveying, and filling equipment.
Models
| Model | Item Code | Downloads |
|---|---|---|
| EKM1.1-2P | 001115000 | Downloads |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Low-Frequency Vibration Motor EKM1.1-2P (2-pole Three-phase 200V)
Metric
| Model | Output (W) | Voltage (V) | Input Frequency (Hz) | Current (A) | Frequency (Hz) | Centrifugal Force (kN) | Cable Length (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| EKM1.1-2P | 11 | 3φ 200-440 | 50 | 0.06-0.12 | 45.5-46.5 | 0.07 | 1 | 2.0 |
| 60 | 0.05-0.11 | 56.7-57.0 | 0.11 |
Imperial
| Model | Output (W) | Voltage (V) | Input Frequency (Hz) | Current (A) | Frequency (VPM) | Centrifugal Force (lbf) | Cable Length (ft) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| EKM1.1-2P | 11 | 3φ 200-440 | 50 | 0.06-0.12 | 2,730-2,790 | 15.74 | 3.28 | 4.41 |
| 60 | 0.05-0.11 | 3,402-3,420 | 24.73 |
* Weight includes a 1 m (3.3 ft) cable.
* Since the weight angle cannot be adjusted, the centrifugal force is fixed.
