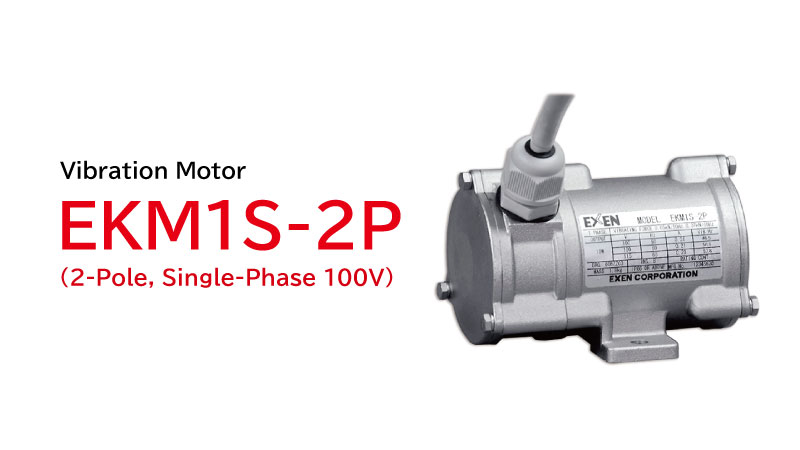

Low-Frequency Vibration Motor Low-Frequency Vibration Motor EKM1S-2P (2-pole Single-phase 100V)
Product Overview
EKM1S-2P is an ultra-compact vibration motor with a washable all-stainless-steel body designed to prevent material buildup and blockages in small containers and chutes.
At just 110 mm in length and 1.8 kg in weight, it is the smallest model in the series and can be easily installed using two M6 bolts.
The 2P Series is widely used to prevent material buildup and bridging in powder handling containers and as a vibration source for filling tables.
Its totally enclosed, drip-proof construction allows installation in virtually any orientation while providing excellent durability and low maintenance.
Key Features

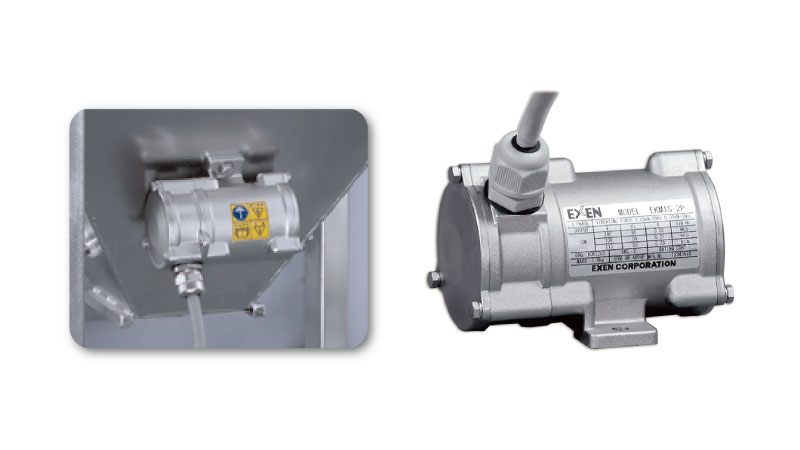

Operates on Standard 100V Power Supply
A standard AC 100V power supply is all that is needed to help prevent blockages in tanks, hoppers, and chutes, and improve material flow on production lines.
Simple installation and operation make it suitable for a wide range of industrial applications.

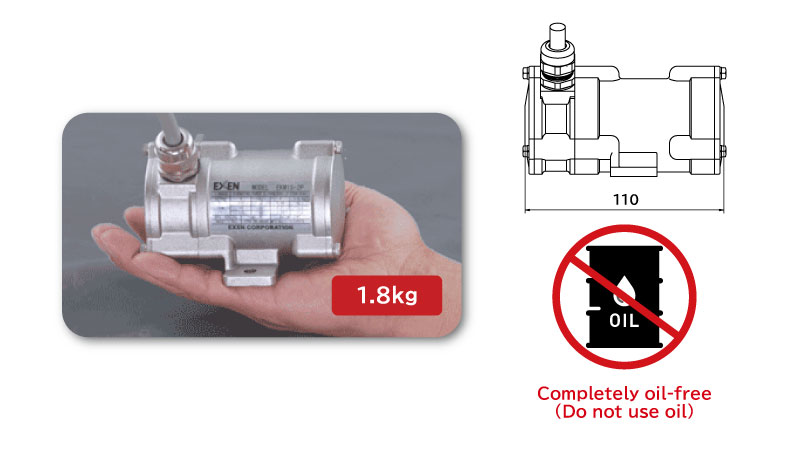

Compact and Completely Oil-Free
EKM1S-2P is a compact, fully electric vibration motor that operates completely oil-free.
With no need for compressed air or other external utilities, it provides an energy-efficient, low-maintenance solution for a wide range of industrial applications.
Corrosion-Resistant Stainless Steel Body
EKM1S-2P features an all-stainless-steel construction for excellent corrosion resistance.
Ideal for food, chemical, and other applications where superior corrosion resistance is required.
Washable Design
In addition to its all-stainless-steel construction, the vibration motor features an IP66-equivalent protection rating, allowing it to withstand washdown cleaning and making it suitable for sanitary applications.

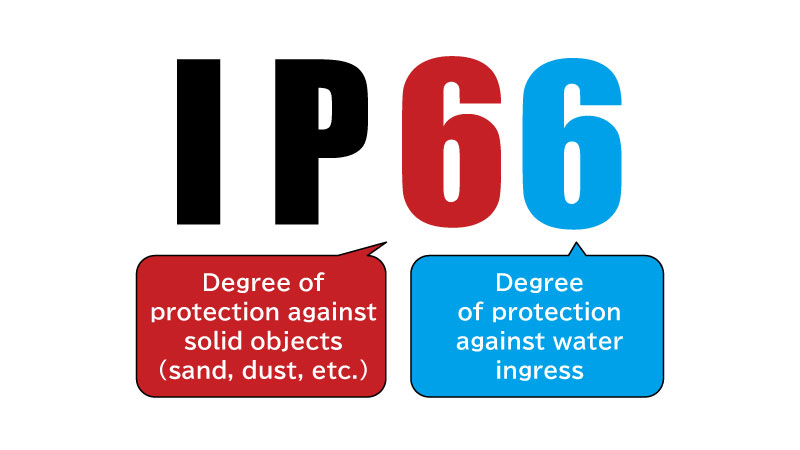

What is the IP (Ingress Protection) Code?
The IP Code is an international classification system that indicates the degree of protection provided by an enclosure against the ingress of dust, water, and other foreign matter.
Protection ratings are defined by IEC and JIS standards.
IP ratings are expressed as “IP” followed by two digits.
First numeral (6): Dust-tight protection against the ingress of solid foreign objects.
Second numeral (6): Protection against powerful water jets from any direction.

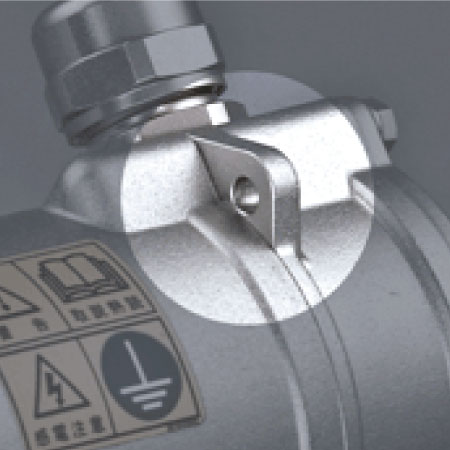

Provision for Safety Wire Installation
To help prevent the vibration motor from falling in the unlikely event of mounting bolt loosening or failure, an optional safety wire is available.
Versatile Applications
In addition to preventing material buildup and blockages, the motor can be used as a vibration source for a wide range of applications, including screening, conveying, and filling equipment.
Models
| Model | Item Code | Downloads |
|---|---|---|
| EKM1S-2P | 001116000 | Downloads |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Low-Frequency Vibration Motor EKM1S-2P (2-pole Single-phase 100V)
Metric
| Model | Output (W) | Voltage (V) | Input Frequency (Hz) | Current (A) | Frequency (Hz) | Centrifugal Force (kN) | Condenser (μF) | Cable Length (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| EKM1S-2P | 10 | 1φ 100-115 | 50 | 0.26 | 46.5 | 0.05 | 2.5 (250V) | 1 | 1.8 |
| 60 | 0.21-0.23 | 56.9-57.8 | 0.07 |
Imperial
| Model | Output (W) | Voltage (V) | Input Frequency (Hz) | Current (A) | Frequency (VPM) | Centrifugal Force (lbf) | Condenser (μF) | Cable Length (ft) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| EKM1S-2P | 10 | 1φ 100-115 | 50 | 0.26 | 2,790 | 11.24 | 2.5 (250V) | 3.28 | 3.97 |
| 60 | 0.21 | 3,414 | 15.74 |
* Weight includes a 1 m (3.3 ft) cable.
* Since the weight angle cannot be adjusted, the centrifugal force is fixed.
