Low-Frequency Vibration Motor Low-Frequency Vibration Motor EVSI･EVUR 10 series (6-pole 3-phase 200 - 440V)

Product Overview

The powerful vibration enables a wide range of applications, including conveying and sorting applications.

Key Features

Ideal Drive Source for Vibratory Equipment

Its large vibration amplitude makes it an ideal vibration motor for driving conveying, sorting, and other vibratory equipment.

Dust and Water-Resistant Design

The vibration motor features a totally enclosed, drip-proof construction equivalent to IP66 protection, ensuring reliable operation even in outdoor environments.

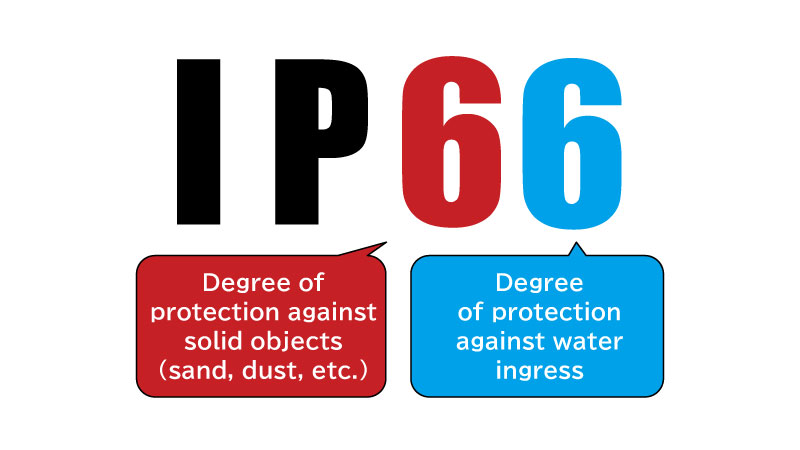

What is the IP (Ingress Protection) Code?
The IP Code is an international classification system that indicates the degree of protection provided by an enclosure against the ingress of dust, water, and other foreign matter.
Protection ratings are defined by IEC and JIS standards.
IP ratings are expressed as “IP” followed by two digits.

First numeral (6): Dust-tight protection against the ingress of solid foreign objects.
Second numeral (6): Protection against powerful water jets from any direction.

Molded Stator Construction

The stator is resin-molded to minimize the risk of winding disconnection due to vibration.

Models

ModelItem CodeDownloads
EVSI 10-310A001450100―

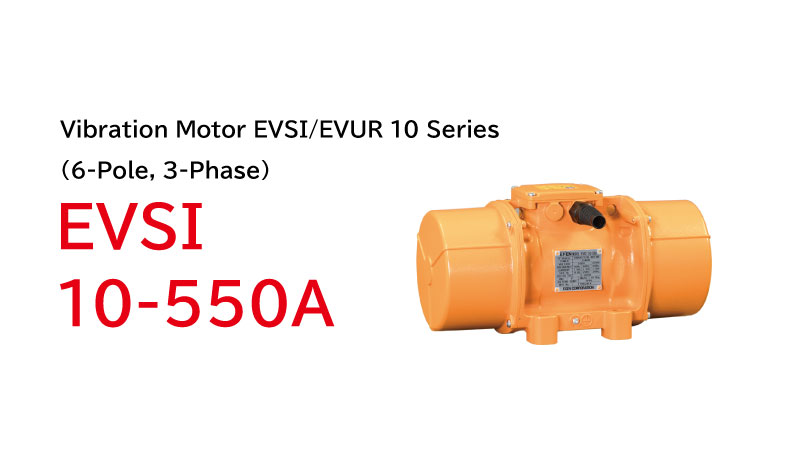

EVSI 10-550A001452100Downloads
EVSI 10-1110001531000Downloads
EVUR 10-1110001454000―
EVUR 10-1400A001456100―
EVUR 10-1610001458000Downloads

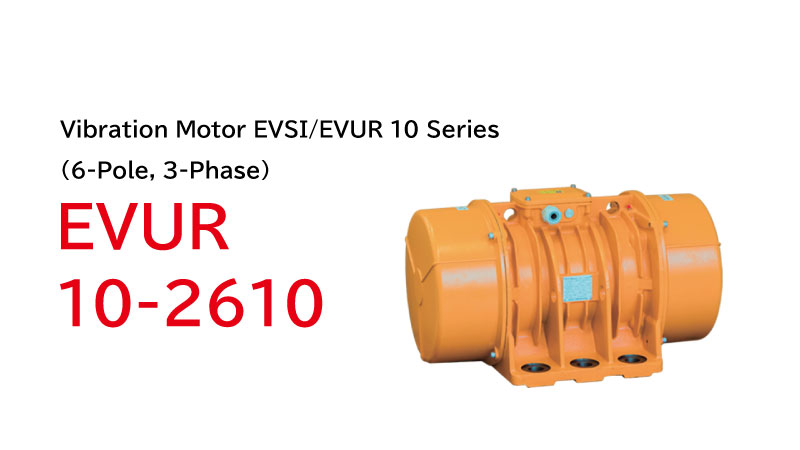

EVUR 10-2610001460000Downloads
EVUR 10-3810001462000―
EVUR 10-4700001464000―
EVUR 10-5200001532000―

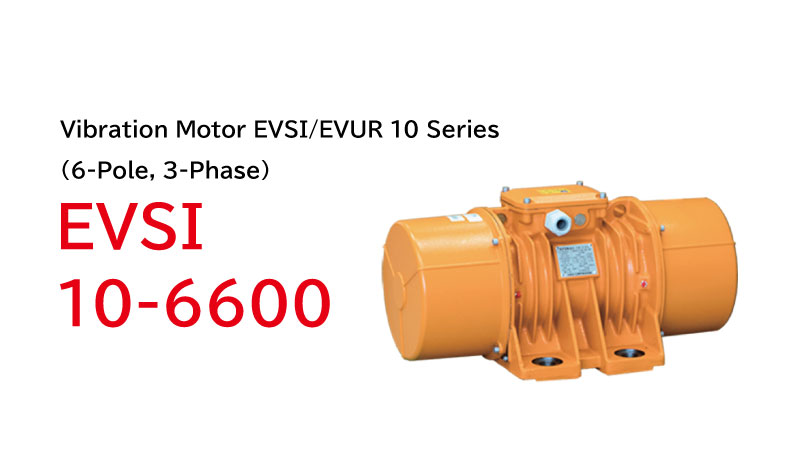

EVSI 10-6600001533000Downloads

Downloads include instruction manuals and drawings. Contents may vary depending on the model.

Specifications

Low-Frequency Vibration Motor EVSI･EVUR 10 series (6-pole 3-phase 200 - 440V)

Metric

ModelOutput
(W)		Voltage
(V)		Input Frequency
(Hz)		Current (A)Frequency (Hz)Centrifugal Force
(kN)		Cable Length
(m)		Weight
(kg)
50Hz60Hz50Hz60Hz
EVSI 10-310A220200 / 380,
400 / 415
(50Hz)

200 / 220,
400 / 440
(60Hz)		50 / 600.95-1.500.81-1.3715.5-16.018.7-19.33.15226.2
EVSI 10-550A2400.85-1.620.71-1.4214.5-15.518.4-19.15.0233.6
EVSI 10-11105502.45-3.652.06-3.8914.7-14.917.6-18.411.156.0
EVUR 10-11102.25-4.301.95-3.6014.3-15.318.0-18.864.0
EVUR10-1400A6502.70-4.902.20-4.5013.6-15.016.9-18.51477.2
EVUR 10-16108302.84-5.022.50-4.2015.4-15.918.8-19.316.1N/A93.0
EVUR 10-261015905.02-8.704.03-7.7516.0-16.219.3-19.425.5130
EVUR 10-381019306.95-13.75.42-10.415.7-16.119.3-19.637.5188
EVUR 10-470026009.30-18.88.30-17.015.5-15.918.6-19.446.1204
EVUR 10-520028908.60-15.87.55-14.815.7-16.018.7-19.451.1238
EVSI 10-6600415012.9-23.09.95-17.716.2-16.319.5-19.766.7285

Imperial

ModelOutput
(W)		Voltage
(V)		Input Frequency
(Hz)		Current (A)Frequency (VPM)Centrifugal Force
(lbf)		Cable Length
(ft)		Weight
(lb)
50Hz60Hz50Hz60Hz
EVSI 10-310A220200 / 380,
400 / 415
(50Hz)

200 / 220,
400 / 440
(60Hz)		50 / 600.95-1.500.81-1.37930-9601,122-1,158708.26.657.8
EVSI 10-550A2400.85-1.620.71-1.42870-9301,104-1,1461128.574.1
EVSI 10-11105502.45-3.652.06-3.89882-8941,056-1,1042495.4123.5
EVUR 10-11102.25-4.301.95-3.60858-9181,080-1,128141.1
EVUR10-1400A6502.70-4.902.20-4.50816-9001,014-1,1103147.3170.2
EVUR 10-16108302.84-5.022.50-4.20924-9541,128-1,1583619.4N/A205.0
EVUR 10-261015905.02-8.704.03-7.75960-9721,158-1,1645732.7286.6
EVUR 10-381019306.95-13.75.42-10.4942-9661,158-1,1768431.0414.5
EVUR 10-470026009.30-18.88.30-17.0930-9541,116-1,16410364.0449.7
EVUR 10-520028908.60-15.87.55-14.8942-9601,122-1,16411488.0524.7
EVSI 10-6600415012.9-23.09.95-17.7972-9781,170-1,18214994.8628.3

* For products with an output of 750 W or higher, the cable weight is not included in the stated weight.
