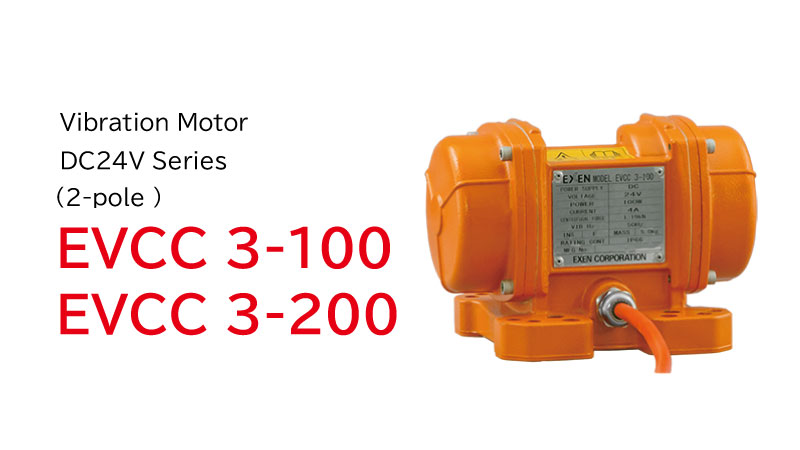

Low-Frequency Vibration Motor Low-Frequency Vibration Motor EVCC DC24V Series
Product Overview
The powerful vibration effectively eliminates material buildup and blockages in hoppers, tanks, and other bulk material containers.
It is also widely used in filling systems and various industrial processing applications.
Key Features
Operates on 24V DC Power
Powered by a 24 V DC battery, the motor can be used in locations where a 3-phase 200 V AC power supply is unavailable.
It effectively helps prevent material buildup and blockages in hoppers, tanks, and other powder handling equipment.
Dust and Water-Resistant Design
The vibration motor features a totally enclosed, drip-proof construction equivalent to IP66 protection, ensuring reliable operation even in outdoor environments.

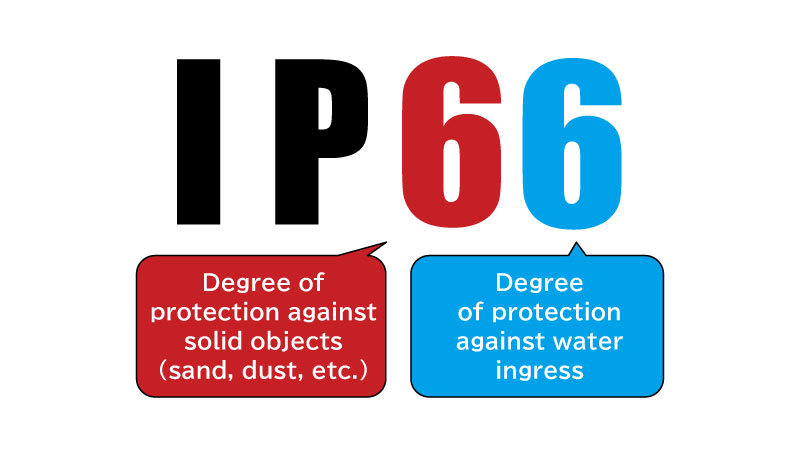

What is the IP (Ingress Protection) Code?
The IP Code is an international classification system that indicates the degree of protection provided by an enclosure against the ingress of dust, water, and other foreign matter.
Protection ratings are defined by IEC and JIS standards.
IP ratings are expressed as “IP” followed by two digits.
First numeral (6): Dust-tight protection against the ingress of solid foreign objects.
Second numeral (6): Protection against powerful water jets from any direction.
Flexible Mounting Options
Multiple mounting hole configurations are provided, allowing installation even in applications with limited mounting space.
Molded Stator Construction
The stator is resin-molded to minimize the risk of winding disconnection due to vibration.
Specifications
Low-Frequency Vibration Motor EVCC DC24V Series
Metric
| Model | Voltage (V) | Output (W) | Current (A) | Input Frequency (Hz) | Centrifugal Force (kN) | Cable Length (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| EVCC 3-100 | DC24 | 116 | 4 | 50 | 1.19 | 2 | 6.1 |
| EVCC 3-200 | 2.07 | 6.7 |
Imperial
| Model | Voltage (V) | Output (W) | Current (A) | Input Frequency (Hz) | Centrifugal Force (lbf) | Cable Length (ft) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| EVCC 3-100 | DC24 | 116 | 4 | 50 | 267.52 | 6.56 | 13.45 |
| EVCC 3-200 | 465.36 | 14.77 |
* This product is polarity sensitive. Connect the brown wire to the positive (+) side.
* It takes approximately 5 seconds from power-on until operation starts.
