Hand-Held Vibrator Surfacer (Perforated)
Product Overview
The perforated vibrator is a compact yet powerful concrete vibrator with the vibrator unit directly connected to the motor.
Its powerful vibration is transmitted through a perforated plate, making it ideal for air removal and surface finishing on sloped concrete surfaces.
Ideal for casting a wide range of concrete products, including retaining panels, shelf panels, U-shaped drains, revetment products, and sloped civil engineering structures.
The durable double-insulated motor and rugged aluminum die-cast housing provide reliable performance, while the lightweight 5 kg design ensures easy handling.
Key Features
Ideal for Thin Concrete Products in Narrow Formwork and Slope Applications
Ideal for removing trapped air from sloped concrete surfaces where air is likely to become trapped.
The vibration generated through the perforated plate draws trapped air to the surface for easy release, resulting in a smoother and more attractive concrete finish.
Lightweight and Easy to Operate
With a standard weight of approximately 5 kg, the portable vibrator series is lightweight, easy to handle, and ideal for efficient operation. With a variety of lengths and diameters available, the ideal model can be selected for each application, ensuring excellent work efficiency and versatility.
Durable Aluminum Die-cast Motor Housing

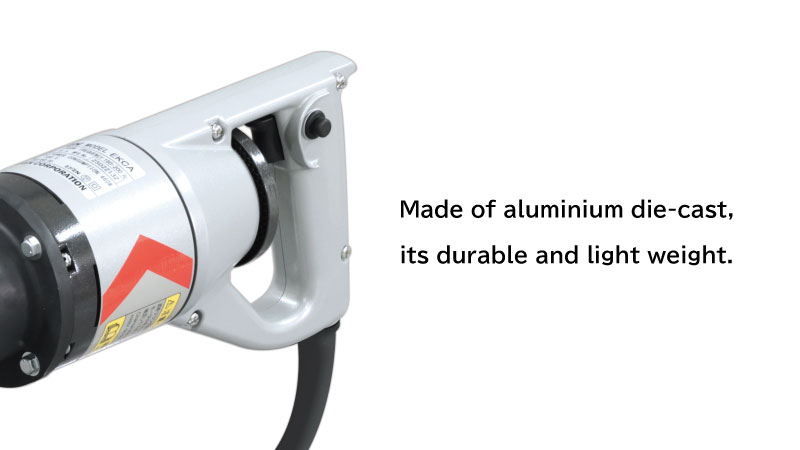

The E motor features a lightweight, high-strength aluminum die-cast housing.
Easy Vibrator Head Replacement

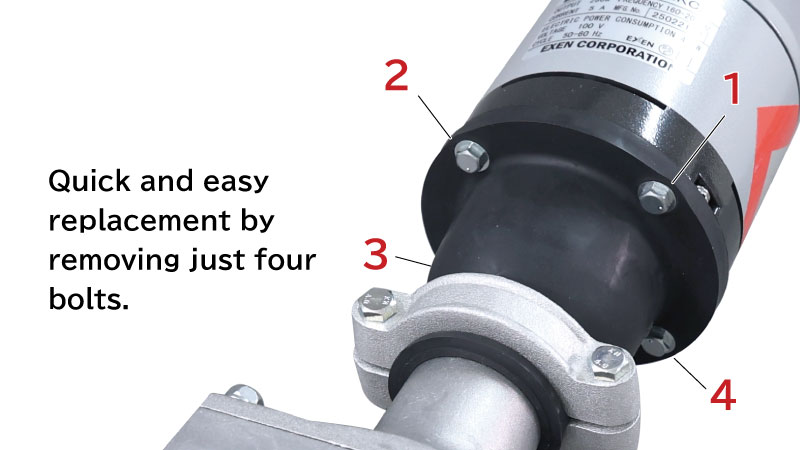

The vibrator head can be replaced quickly and easily when worn, reducing maintenance time and keeping downtime to a minimum. Replacing the vibrator head is easy. Simply remove the 4 bolts that secure the vibration head assembly to the motor.
Double-Insulated Design – No Grounding Required

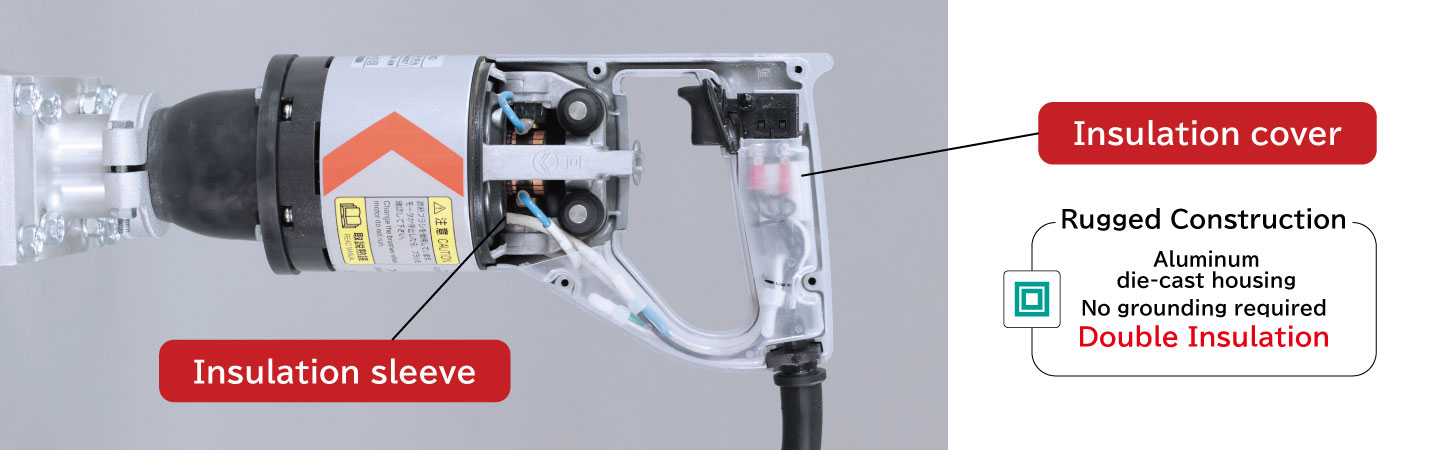

The Hand-held vibrator series features a robust aluminum die-cast motor housing with a double-insulated design, eliminating the need for grounding and ensuring safe, user-friendly operation. Double insulation is provided by resin insulation between the armature shaft and winding core, and between the motor housing and field core. Resin-covered internal lead wires further enhance electrical safety.
Easy-to-Clean Design

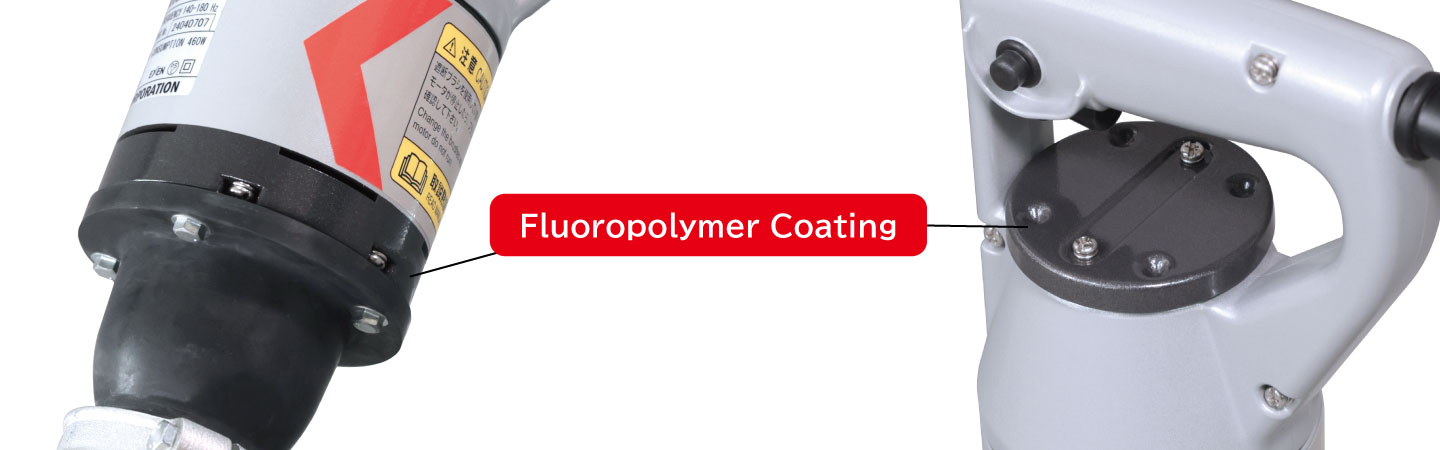

In concrete and mortar applications, buildup around the motor can obstruct air intake and exhaust openings, and removing hardened material can be labor-intensive. The air intake cover and bearing case are coated with fluoropolymer resin, preventing concrete and mortar from adhering and making cleaning and maintenance easier.
High-Performance Anti-Vibration Rubber
Application-specific anti-vibration rubber provides excellent vibration damping for improved comfort and ease of use.
Double Anti-Vibration Handle Design

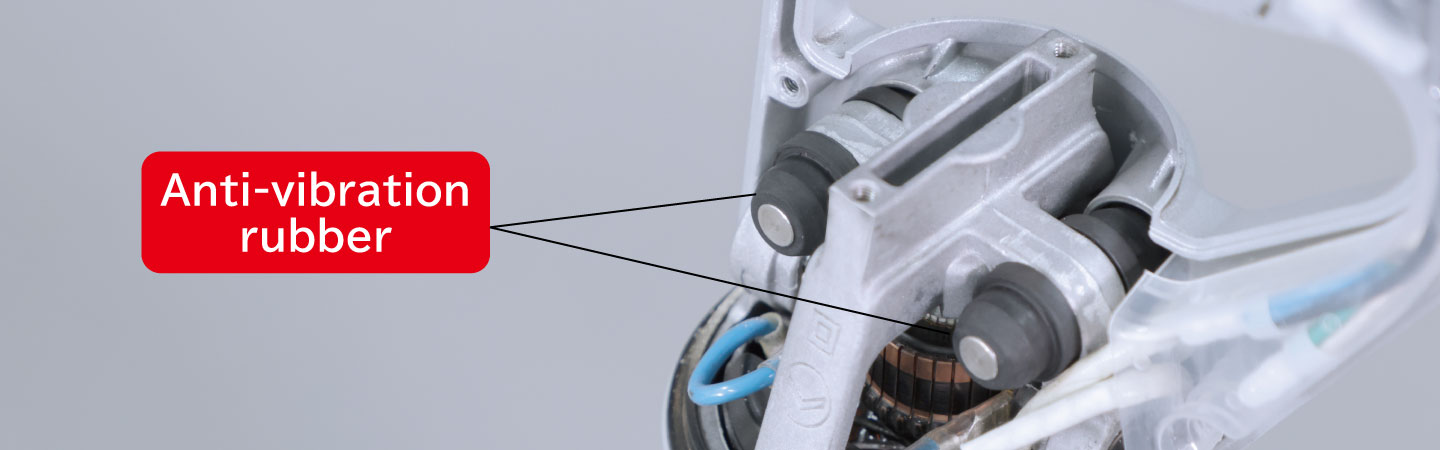

The E motor features a double anti-vibration design using 4 compact anti-vibration rubber mounts between the handle and motor frame to reduce vibration transmission and improve operator comfort.
Reduced Motor Exhaust Noise

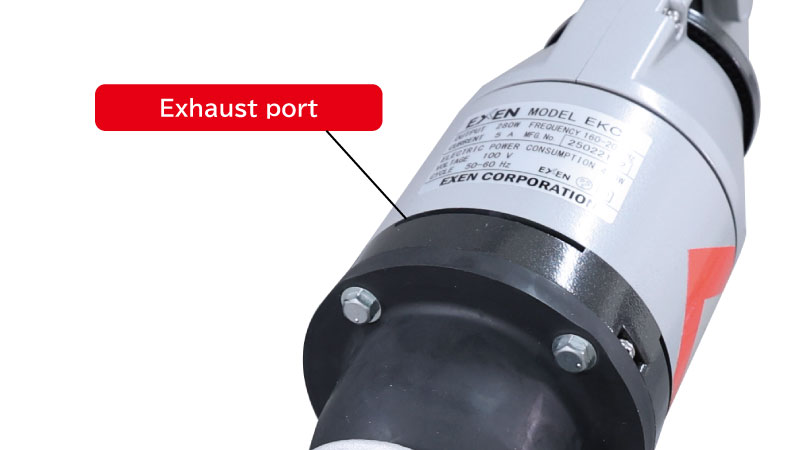

The Hand-held vibrator series is designed to reduce motor noise during operation, helping create a quieter and more comfortable work environment. To minimize exhaust noise from the high-speed universal motor, the cooling fins and exhaust outlet have been specially designed for quieter operation, achieving a noise reduction of up to 5 dB compared with our previous models.
Dust Filter on Motor Air Intake

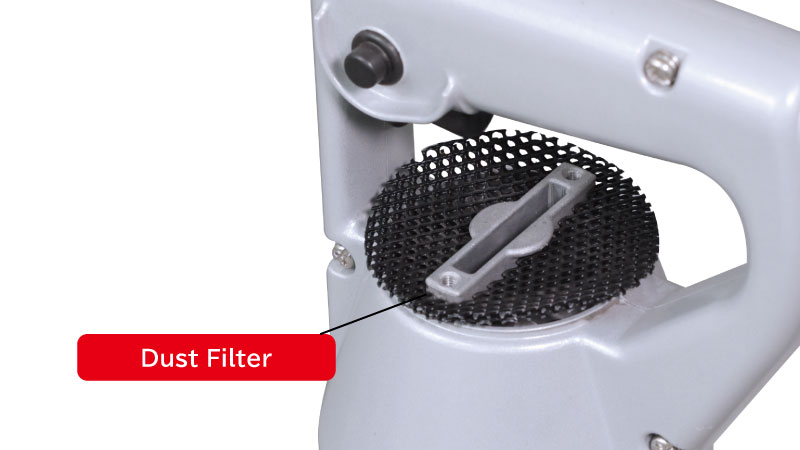

Designed for harsh construction environments, the hand-held vibrator features a dual-filter air intake system that helps prevent dust and concrete particles from entering the motor, improving durability and reliability. The dual-filter system helps prevent dust, sand, small stones, and concrete particles from entering the motor, reducing the risk of motor lock-up and improving the reliability and service life of the concrete vibrator.
Safety Cut-Off Carbon Brushes

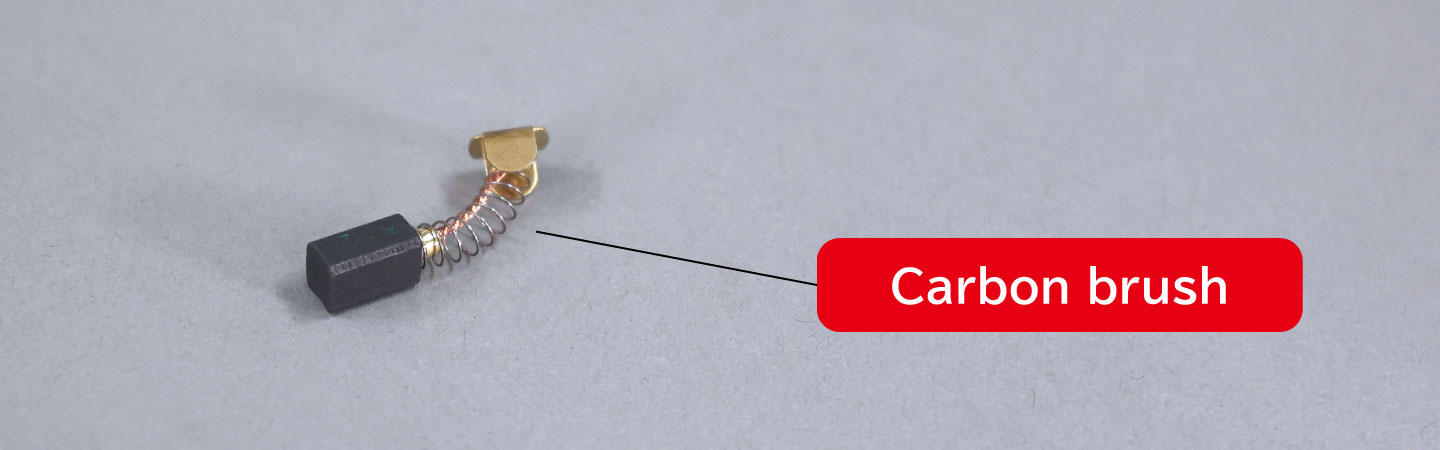

The motor is equipped with safety cut-off carbon brushes that help prevent motor burnout, improving reliability, reducing maintenance, and extending motor service life. Safety cut-off carbon brushes automatically disconnect power before the wear limit is reached, helping prevent commutator damage, motor burnout, and costly downtime while extending motor life and reliability.
Specifications

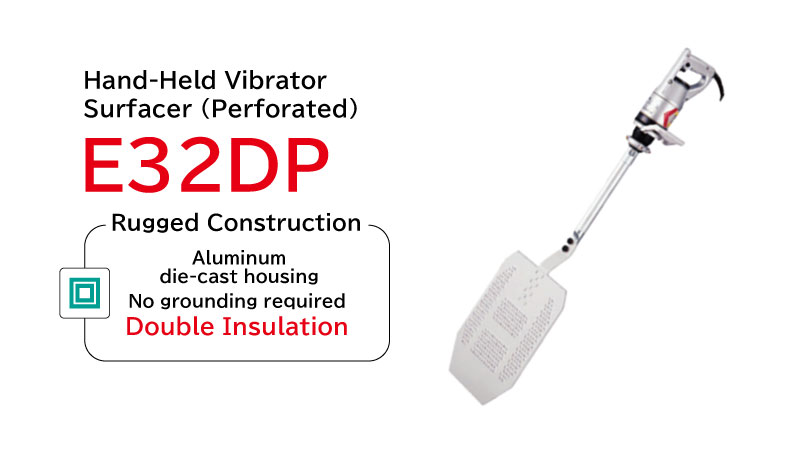

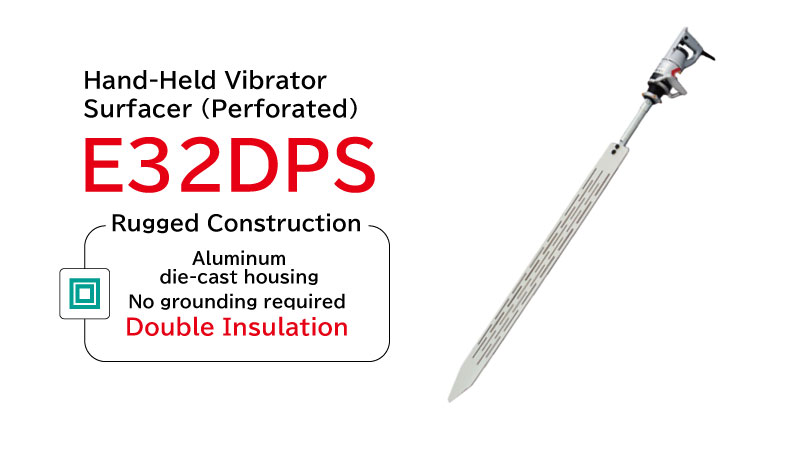

Surfacer (Perforated)
Metric
| Model | Output (W) | Voltage (V) | Current (A) | Frequency (Hz) | Total Length (mm) | Head (dia. × Length) (mm) | Shaft Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| E32DP | 280 | 100 110 115 200 220 230 240 | 5.0 4.5 4.3 2.5 2.3 2.2 2.1 | 225-275 | 1,138 | 300 × 400 | 829 | 7.5 |
| E32DPS | 205-280 | 1,739 | 120 × 1,219 | 1,430 | 7.8 |
Imperial
| Model | Output (W) | Voltage (V) | Current (A) | Frequency (VPM) | Total Length (ft) | Head (dia. × Length) (in × ft) | Shaft Length (ft) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| E32DP | 280 | 100 110 115 200 220 230 240 | 5.0 4.5 4.3 2.5 2.3 2.2 2.1 | 13,500-16,500 | 3.73 | 11.81 × 1.31 | 2.7 | 16.5 |
| E32DPS | 12,300-16,800 | 5.71 | 4.72 × 4.00 | 4.7 | 17.2 |
