Hand-Held Vibrator Surfacer (Scraper)
Product Overview

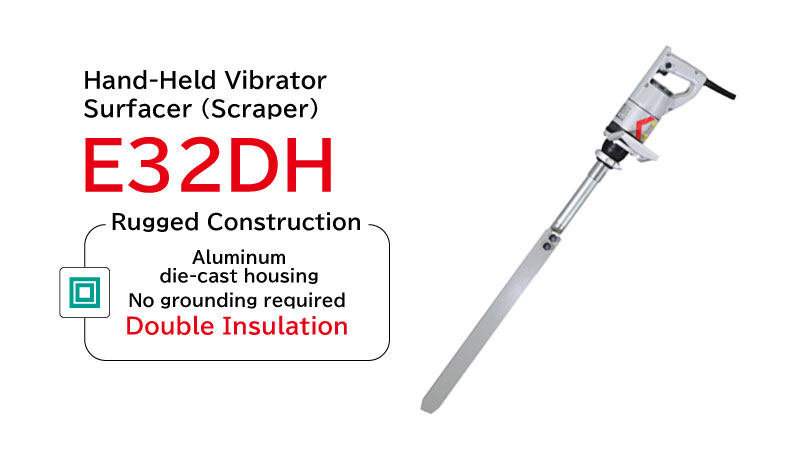

The scraper type vibrator is a compact yet powerful concrete vibrator featuring a vibrator head directly coupled to the motor.
Its powerful vibration is transmitted through a vibrating blade, making it ideal for thin concrete products and surface finishing applications where conventional round vibrators cannot be used.
Ideal for casting thin concrete products such as retaining panels, shelf panels, and U-shaped drains.
The durable double-insulated motor and rugged aluminum die-cast housing provide reliable performance, while the lightweight 5 kg design ensures easy handling.
Key Features
Ideal for Narrow Formwork and Thin Concrete Sections
Suitable for areas where conventional vibrators cannot reach.
Ideal for concrete placement in extremely narrow formwork and thin-section products such as U-shaped drains, flat panels, retaining panels, and shelf panels.
Lightweight and Easy to Operate
With a standard weight of approximately 5 kg, the portable vibrator series is lightweight, easy to handle, and ideal for efficient operation. With a variety of lengths and diameters available, the ideal model can be selected for each application, ensuring excellent work efficiency and versatility.
Durable Aluminum Die-cast Motor Housing

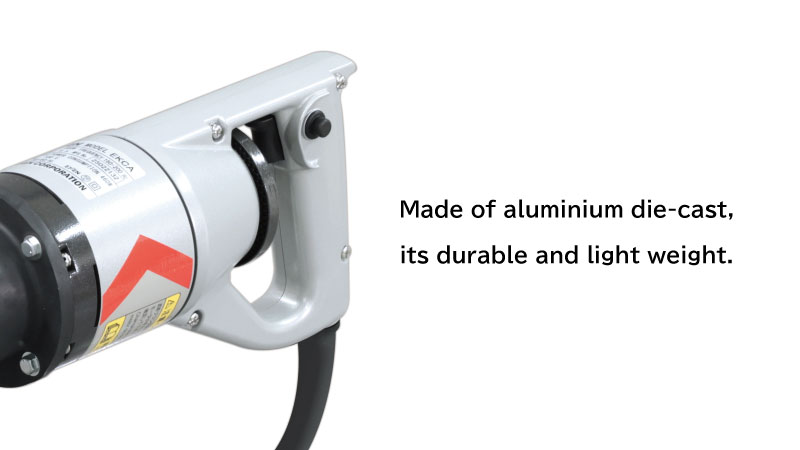

The E motor features a lightweight, high-strength aluminum die-cast housing.
Easy Vibrator Head Replacement

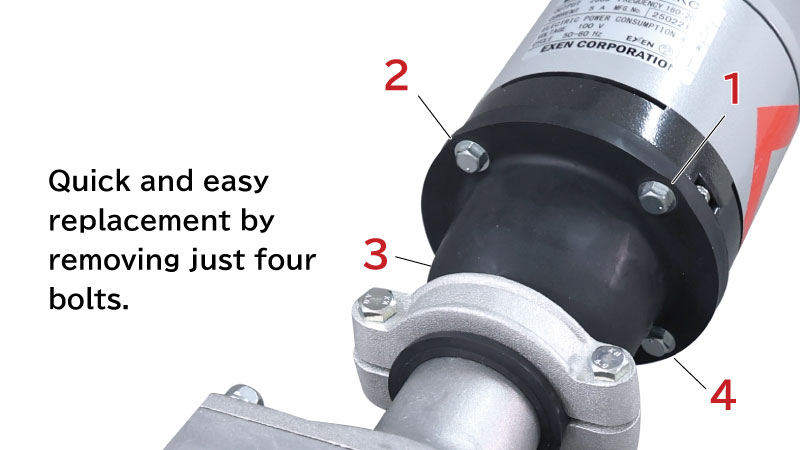

The vibrator head can be replaced quickly and easily when worn, reducing maintenance time and keeping downtime to a minimum. Replacing the vibrator head is easy. Simply remove the 4 bolts that secure the vibration head assembly to the motor.
Double-Insulated Design – No Grounding Required

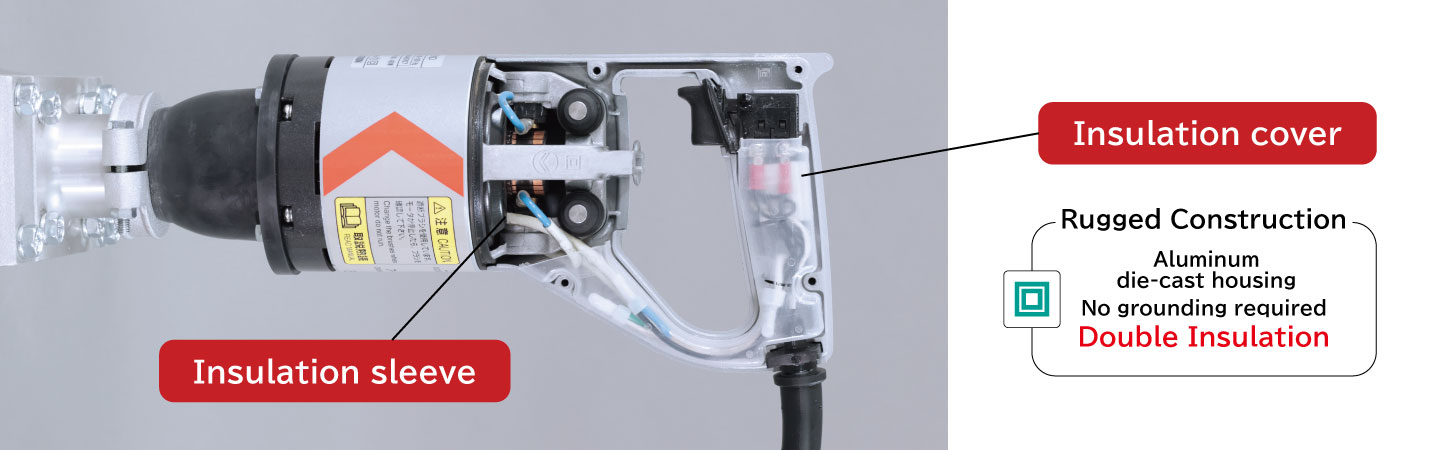

The Hand-held vibrator series features a robust aluminum die-cast motor housing with a double-insulated design, eliminating the need for grounding and ensuring safe, user-friendly operation. Double insulation is provided by resin insulation between the armature shaft and winding core, and between the motor housing and field core. Resin-covered internal lead wires further enhance electrical safety.
Easy-to-Clean Design

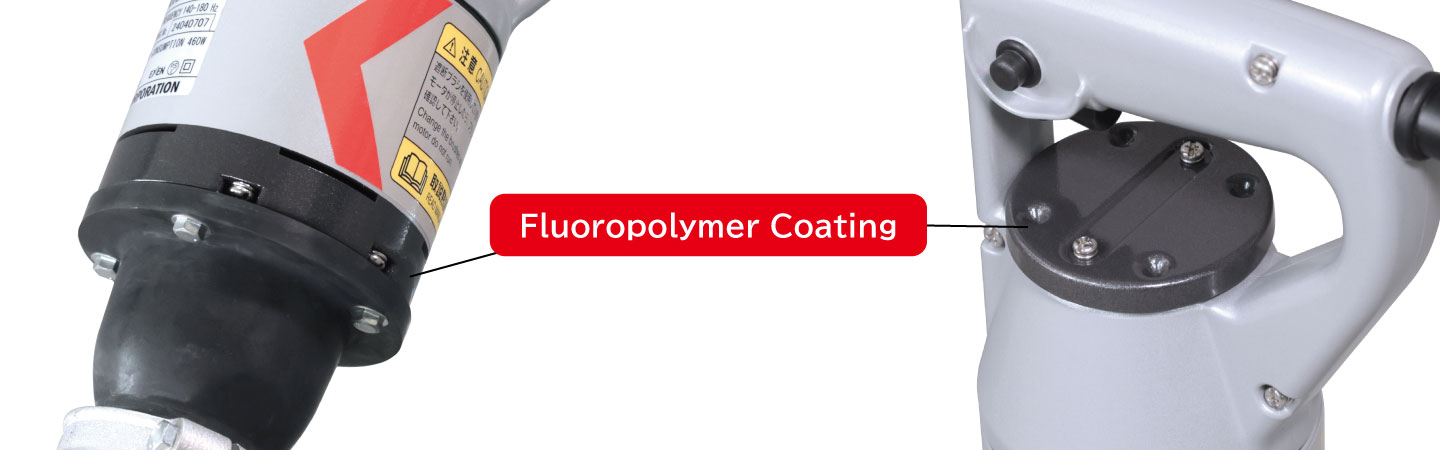

In concrete and mortar applications, buildup around the motor can obstruct air intake and exhaust openings, and removing hardened material can be labor-intensive. The air intake cover and bearing case are coated with fluoropolymer resin, preventing concrete and mortar from adhering and making cleaning and maintenance easier.
High-Performance Anti-Vibration Rubber
Application-specific anti-vibration rubber provides excellent vibration damping for improved comfort and ease of use.

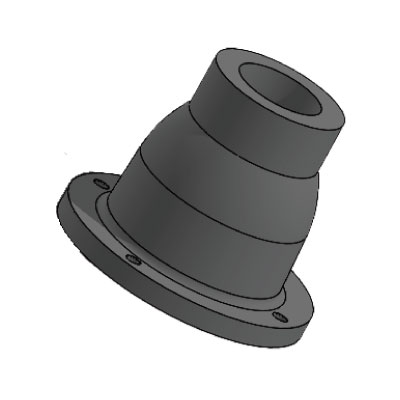

Double Anti-Vibration Handle Design

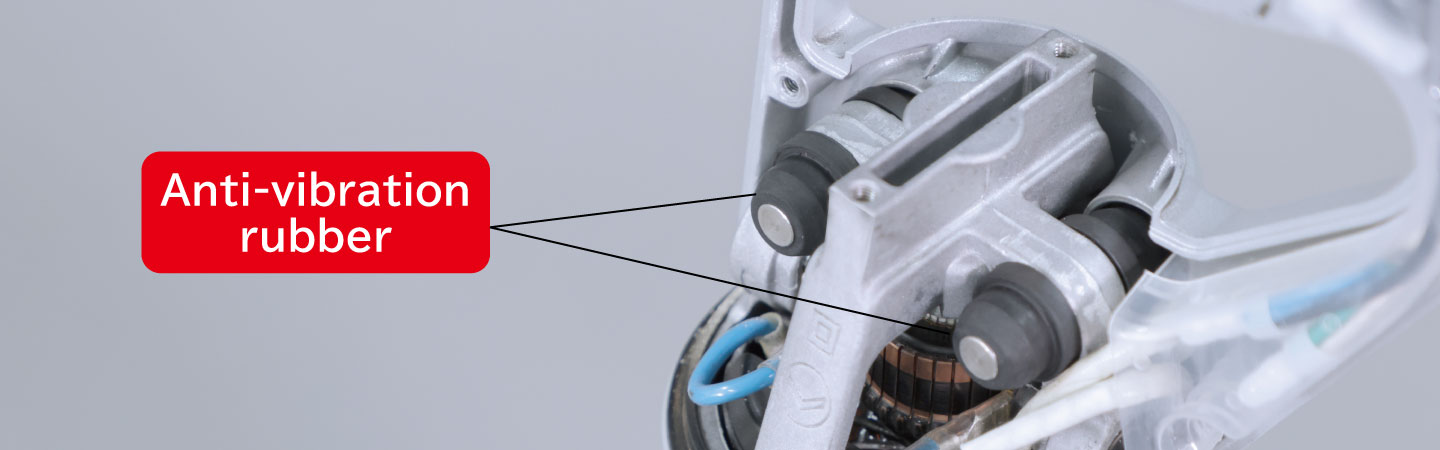

The E motor features a double anti-vibration design using 4 compact anti-vibration rubber mounts between the handle and motor frame to reduce vibration transmission and improve operator comfort.
Reduced Motor Exhaust Noise

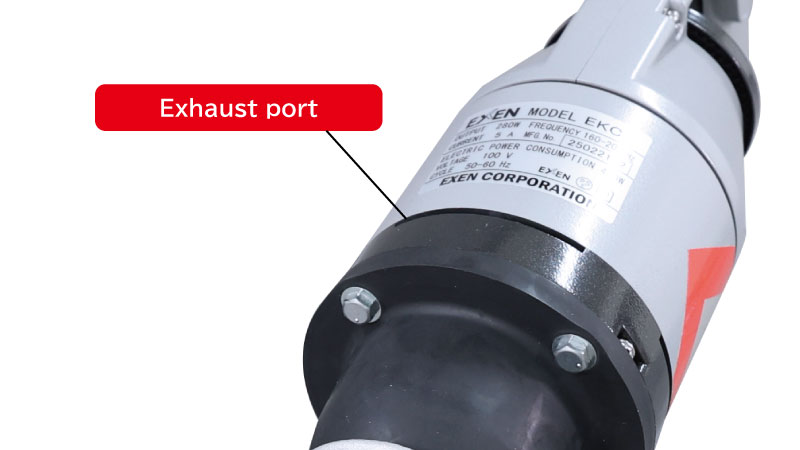

The Hand-held vibrator series is designed to reduce motor noise during operation, helping create a quieter and more comfortable work environment. To minimize exhaust noise from the high-speed universal motor, the cooling fins and exhaust outlet have been specially designed for quieter operation, achieving a noise reduction of up to 5 dB compared with our previous models.
Dust Filter on Motor Air Intake

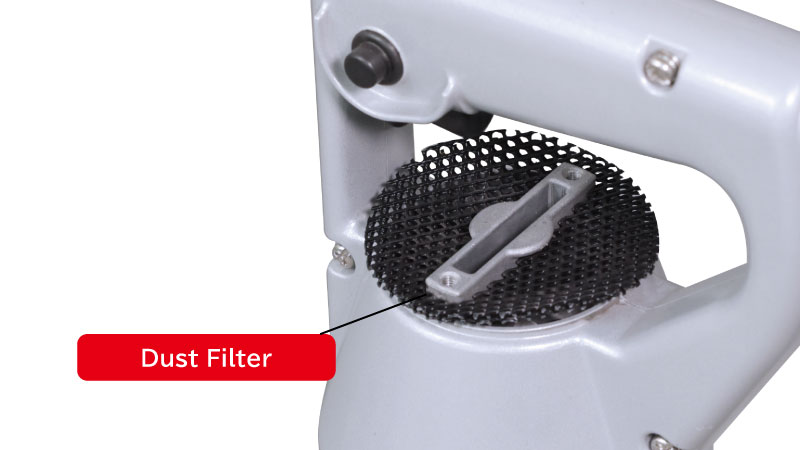

Designed for harsh construction environments, the hand-held vibrator features a dual-filter air intake system that helps prevent dust and concrete particles from entering the motor, improving durability and reliability. The dual-filter system helps prevent dust, sand, small stones, and concrete particles from entering the motor, reducing the risk of motor lock-up and improving the reliability and service life of the concrete vibrator.
Safety Cut-Off Carbon Brushes

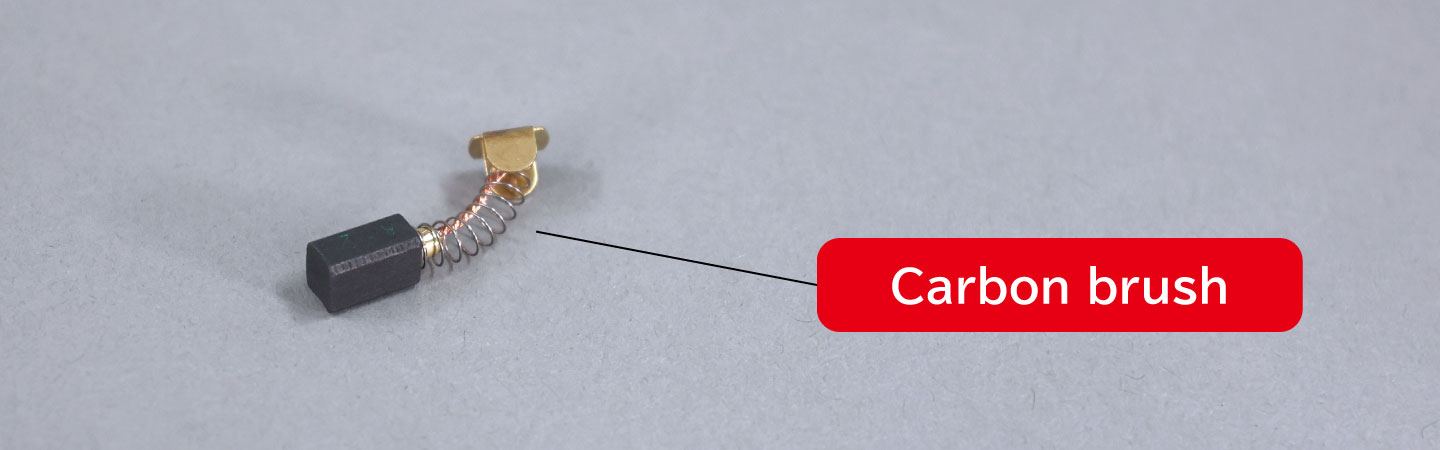

The motor is equipped with safety cut-off carbon brushes that help prevent motor burnout, improving reliability, reducing maintenance, and extending motor service life. Safety cut-off carbon brushes automatically disconnect power before the wear limit is reached, helping prevent commutator damage, motor burnout, and costly downtime while extending motor life and reliability.
Models
| Model | Item Code | Downloads |
|---|---|---|
| E32DH | 000718000 | Downloads |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Surfacer (Scraper)
Metric
| Model | Output (W) | Input (V) | Input (A) | Frequency (Hz) | Total Length (mm) | Head (dia. × Length) (mm) | Shaft Length (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| E32DH | 280 | 100 | 5.0 | 225-275 | 1,070 | 50 × 550 | 761 | 5.6 |
Imperial
| Model | Output (W) | Input (V) | Input (A) | Frequency (VPM) | Total Length (ft) | Head (dia. × Length) (in × ft) | Shaft Length (ft) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| E32DH | 280 | 100 | 5.0 | 13,500-16,500 | 3.51 | 1.97 × 1.80 | 2.5 | 12.4 |
* Weight includes the power cable (0.6 kg / 1.3 lb).
