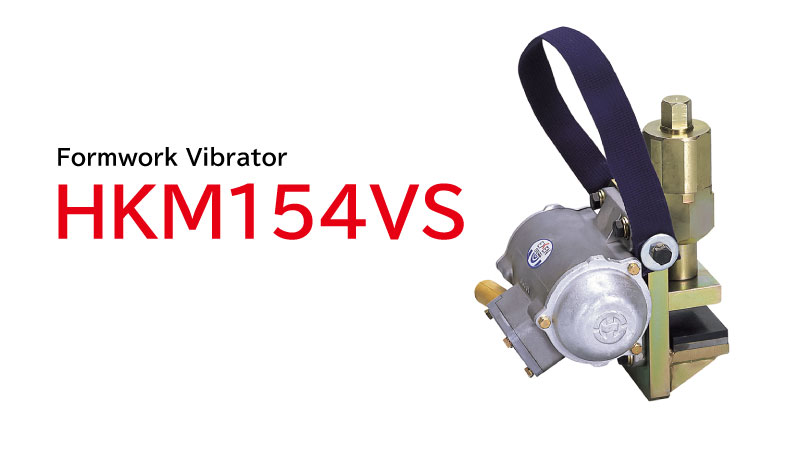

High-Frequency Vibrator Woodpecker HKM154VS
Product Overview
This external vibrator is the ideal solution for concrete placement in areas such as columns, beams, and half walls, where relying solely on rod-type vibrators and/or manual hammering has traditionally been necessary to ensure proper consolidation. In addition to improving concrete placement in challenging conditions, it also enhances the quality of standard concrete casting operations while reducing labor requirements, helping lower overall construction costs.
The vibration motor is securely fixed in place with a vise-type mounting system.
Key Features

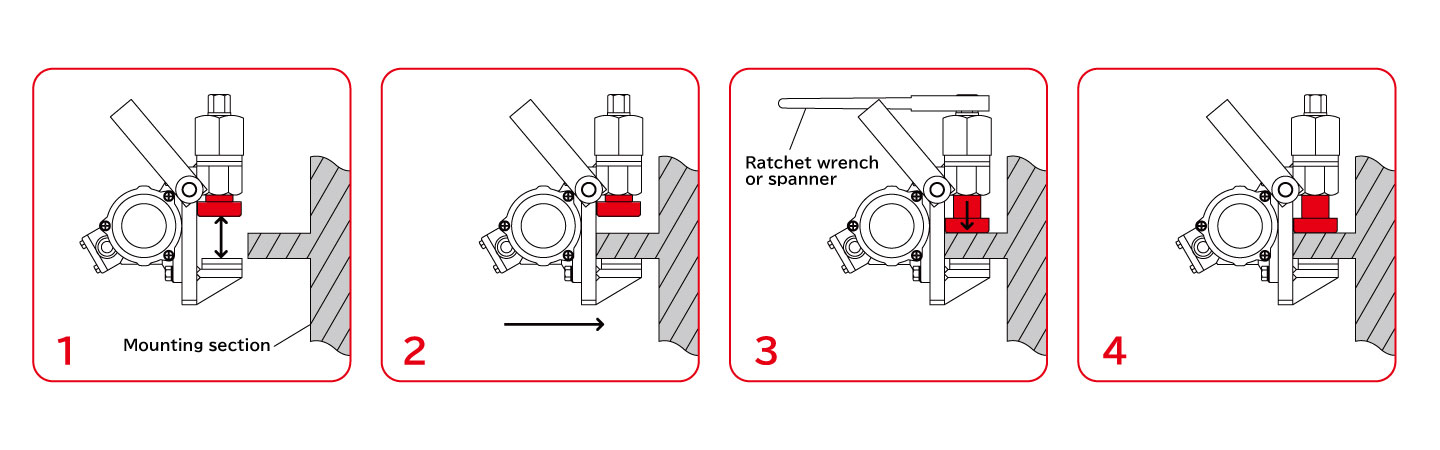

Easy Attachment and Removal
The clamp handle allows for quick and easy attachment and removal while ensuring secure and reliable fixation. Repositioning the unit is also simple and efficient.
Compact Yet Powerful Vibration
The powerful centrifugal force generated by the compact high-frequency motor enables effective vibration transmission over a wide area. Secure clamp mounting ensures reliable transfer of vibration to the formwork, promoting uniform concrete consolidation and improved quality during concrete placement.
Prevents Cold Joints
Cold joints occur when successive layers of freshly placed concrete fail to bond properly. Effective vibration helps prevent cold joints and honeycombing, ensuring better concrete consolidation and higher-quality concrete.
Higher Productivity with Reduced Labor
Even on projects that traditionally rely on a large number of workers for manual formwork tapping, this formwork vibrator helps mechanize concrete placement, delivering consistent concrete quality, reduced construction time, and improved on-site productivity.
Models
| Model | Item Code | Downloads |
|---|---|---|
| HKM154VS | 042007150 | Downloads |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Woodpecker HKM154VS
Metric
| Model | Output (W) | Voltage (V) | Current (A) | Cycle (Hz) | Frequency (Hz) | Centrifugal Force (kN) 100–240Hz | Weight （kg） |
|---|---|---|---|---|---|---|---|
| HKM154VS | 150 | 48 | 3.6 | 100–240 | 50–120 | 0.32–1.86 | 10 |
Imperial
| Model | Output (W) | Voltage (V) | Current (A) | Cycle (Hz) | Frequency (VPM) | Centrifugal Force (lbf) 100–240Hz | Weight （lb） |
|---|---|---|---|---|---|---|---|
| HKM154VS | 150 | 48 | 3.6 | 100–240 | 3,000–7,200 | 72.0–418.2 | 22.1 |
* Weight includes the cable (1.0 kg / 2.2 lb) and the in-line switch (0.7 kg / 1.5 lb).
* Please refer to each page for "Extension Cable Selection Chart" and "High-Frequency Vibrator Available Units Table".
