Features
Utilizing strong vibration, it is widely used for eliminating clogging and adhesion inside powder and bulk container (hopper and tank) and for filling equipment.
Vibration motor operates with DC 24V or single-phase AC 100V
Allows operation with a single-phase AC100V or DC24V battery in an environment where commercial power (3-phase AC200V) cannot be used.
Designed for water resistant structure
It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.
Multiple motor mounting holes

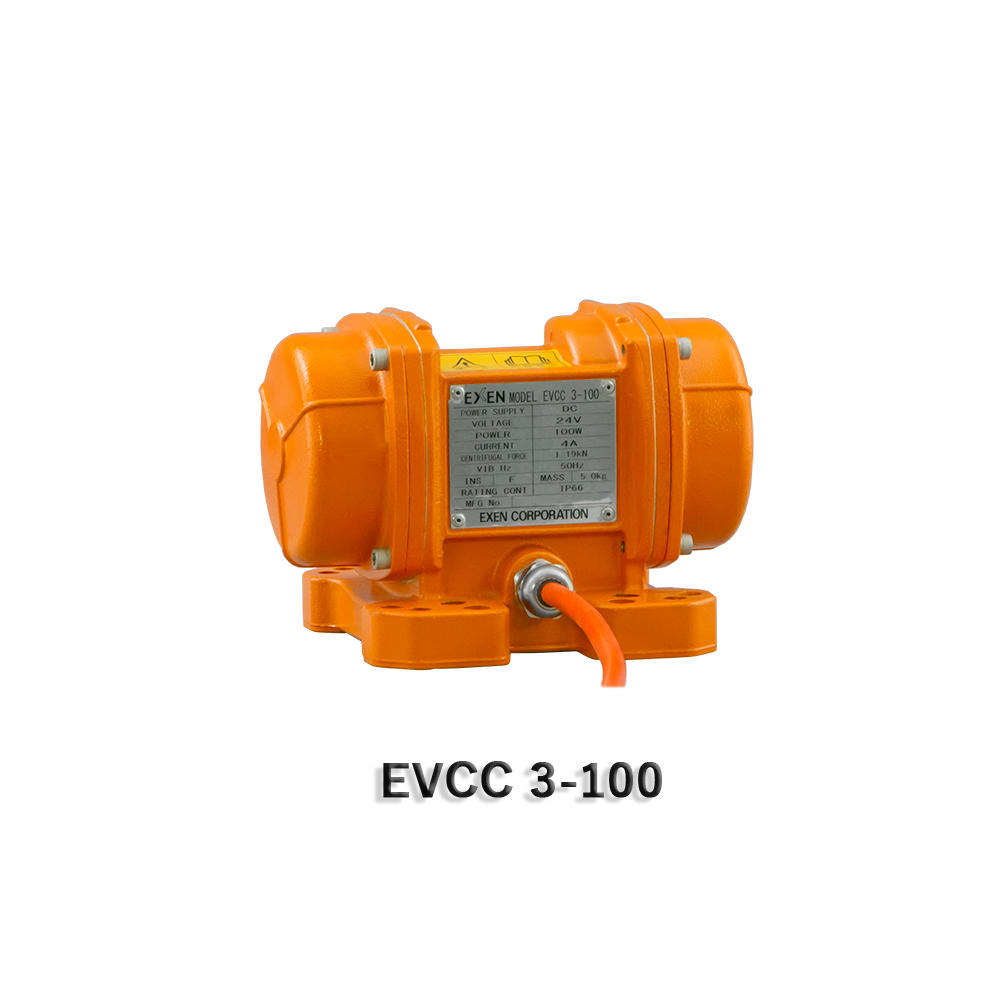

By providing multiple mounting holes on the main unit, installation in a narrow space is possible.EVCC 3-100 - EVCC 3-200
Molded stator
By fixing the motor stator to the mold, the risk of wire breakage due to vibration is reduced.EVCC 3-100 - EVCC 3-200
List of models
| Model | Code Number |
|---|---|
| EVCC 3-100 | 001398000 |
| EVCC 3-200 | 001494000(*1) |
| EKM1S-2P | 001116000 |
| KM3S-2PD | 000924100 |
| KM10S-2PD | 001250000 |
*1 Order made product. For the lead time, please contact.
Specification
EVCC＜DC24V＞
| Model | Voltage (V） |
Output （W） |
Current (A） |
Input Frequency （Hz） |
Centrifugal Force （kN） |
Cable Length (m) |
Weight (kg） |
|---|---|---|---|---|---|---|---|
| EVCC 3-100 | DC24 | 116 | 4.0 | 50 | 1.19 | 2 | 6.1 |
| EVCC 3-200 | 116 | 2.07 | 6.7 |
(Imperial System)
| Model | Voltage (V） |
Output （W） |
Current (A） |
Input Frequency （Hz） |
Centrifugal Force （lbf） |
Cable Length (ft) |
Weight (lb） |
|---|---|---|---|---|---|---|---|
| EVCC 3-100 | DC24 | 116 | 4.0 | 50 | 267.5 | 6.56 | 13.4 |
| EVCC 3-200 | 465.4 | 15.4 |
*This product has polarity. Connect the brown wire to the plus (+) side.
*This product takes about 5 seconds from turning on the power to starting operation.

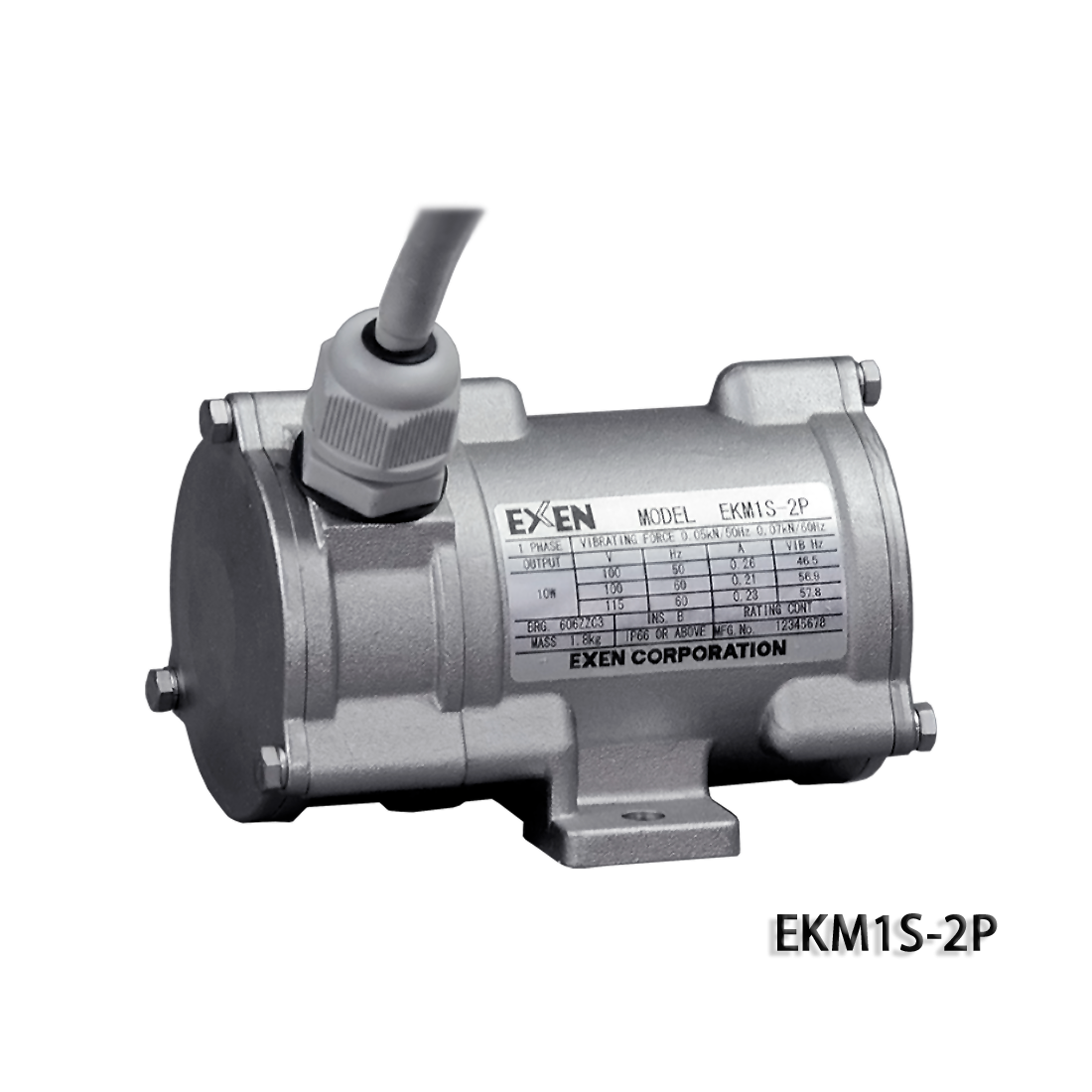

EKM1S-2P
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current （A） |
Frequency （Hz） |
Centrifugal Force （kN） |
Condenser (μF) |
Cable Length (m) |
Weight （kg） |
|---|---|---|---|---|---|---|---|---|---|
| EKM1S-2P | 10 | 1φ 100 - 115 | 50 | 0.26 | 46.5 | 0.05 | 2.5 （250V） |
1m付 | 1.8 |
| 60 | 0.21 - 0.23 | 56.9 - 57.8 | 0.07 |
(Imperial System)
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current （A） |
Frequency （Hz） |
Centrifugal Force （lbf） |
Condenser (μF) |
Cable Length (ft) |
Weight （lb） |
|---|---|---|---|---|---|---|---|---|---|
| EKM1S-2P | 10 | 1φ 100 - 115 | 50 | 0.26 | 46.5 | 11.2 | 2.5 （250V） |
3.28 | 3.97 |
| 60 | 0.21 - 0.23 | 56.9 - 57.8 | 15.7 |
*Total weight includes cable weight.
*The centrifugal force is fixed because the eccentric weight angle cannot be adjusted.

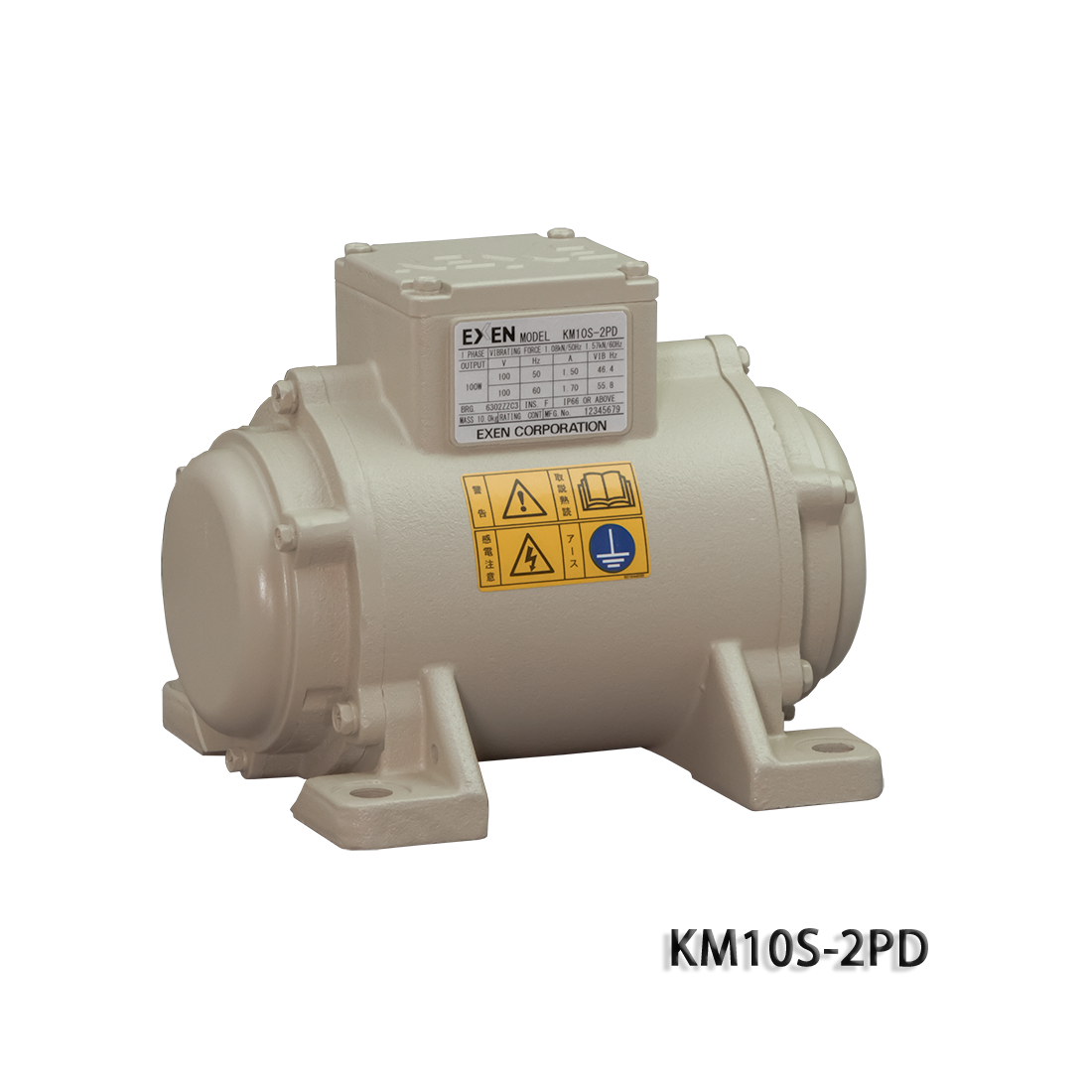

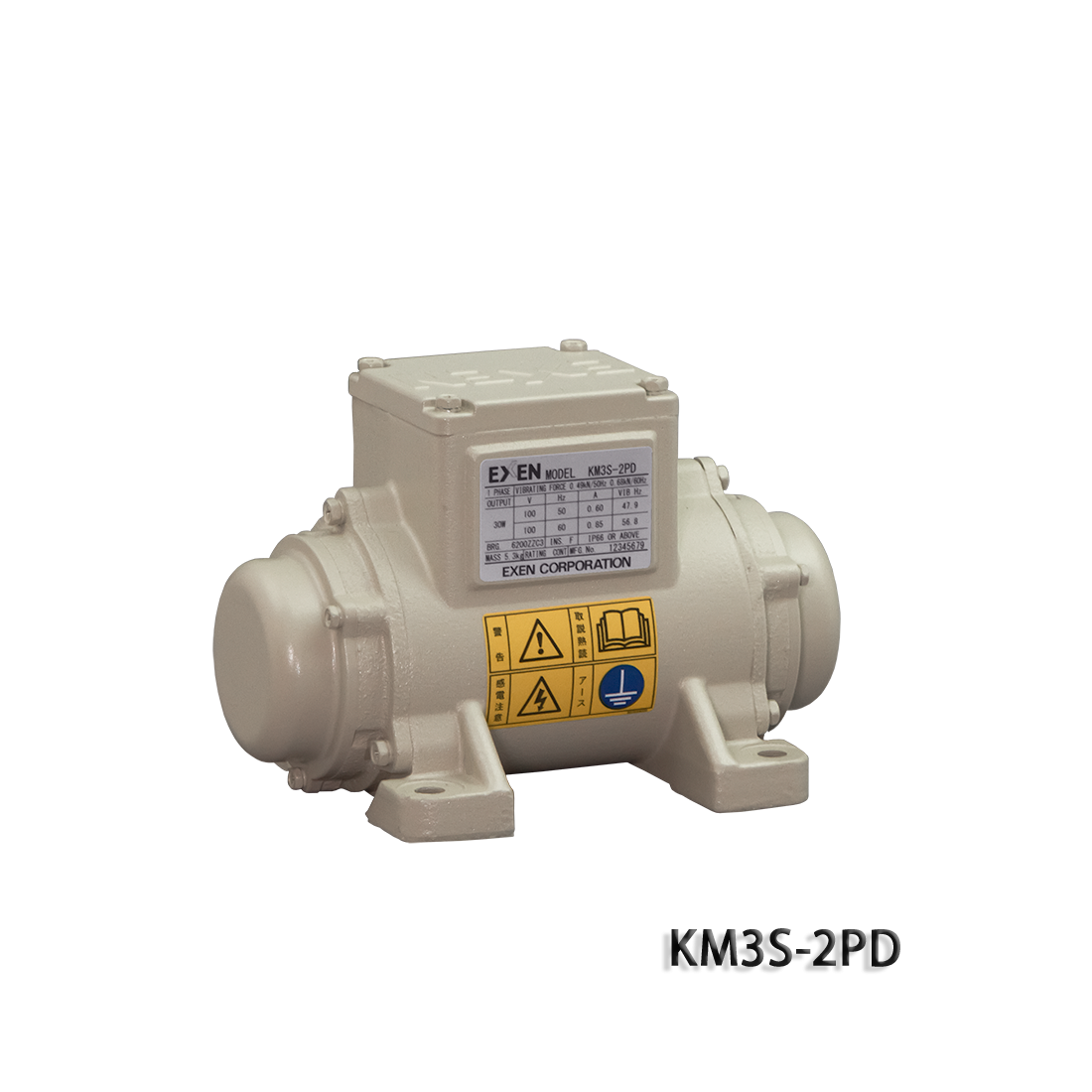

KMS-2PD
| Model | Output （Ｗ） |
Voltage （Ｖ） |
Input Frequency (Hz) |
Current (Ａ) |
Frequency （Hz） |
Centrifugal Force （kN） |
Condenser (μF) |
Cable Length (m) |
Weight （kg） |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| KM3S-2PD | 30 | 100 | 50/60 | 0.60 | 0.85 | 47.9 | 56.8 | 0.50 | 0.72 | 6.5 | 2 | 5.3 |
| KM10S-2PD | 100 | 1.50 | 1.70 | 46.4 | 55.8 | 1.10 | 1.58 | 12 | 10.0 | |||
(Imperial System)
| Model | Output （Ｗ） |
Voltage （Ｖ） |
Input Frequency (Hz) |
Current (Ａ) |
Frequency （Hz） |
Centrifugal Force （lbf） |
Condenser (μF) |
Cable Length (ft) |
Weight （lb） |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| KM3S-2PD | 30 | 100 | 50/60 | 0.60 | 0.85 | 47.9 | 56.8 | 112.40 | 161.86 | 6.5 | 6.6 | 11.7 |
| KM10S-2PD | 100 | 1.50 | 1.70 | 46.4 | 55.8 | 247.90 | 355.2 | 12 | 22.0 | |||
*Total weight includes cable weight.
Dimensions, installation, control panel

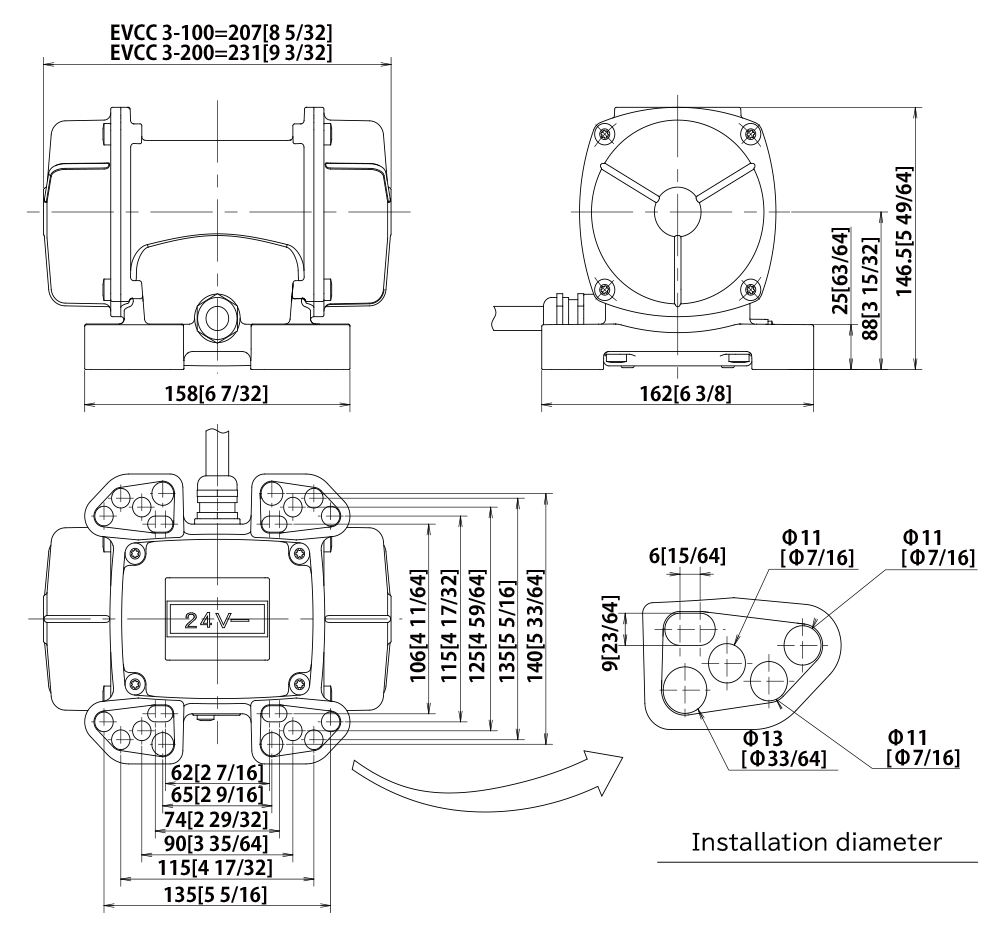

EVCC 3-100 / EVCC 3-200 dimensional drawings
EKM1S-2P dimensional drawings
KMS-2PD dimensional drawings
KMS-2PD dimensional table
| Model | E | F | G | H | J | K | L | M | N | W | C | Φd |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KM3S-2PD | 120 | 120 | 15 | 136 | 35 | 37 | 201 | 144 | 144 | 176 | 47 | 10 |
| KM10S-2PD | 160 | 160 | 170 | 50 | 50 | 218 | 190 | 190 | 199 | 65 | 14 |
(Imperial System)
| Model | E | F | G | H | J | K | L | M | N | W | C | φd |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KM3S-2PD | 4 23/32 | 4 23/32 | 19/32 | 5 23/64 | 1 3/8 | 1 29/64 | 7 29/32 | 5 43/64 | 5 43/64 | 6 59/64 | 1 27/32 | 25/64 |
| KM10S-2PD | 6 19/64 | 6 19/64 | 6 11/16 | 1 31/32 | 1 31/32 | 8 37/64 | 7 31/64 | 7 31/64 | 7 53/64 | 2 9/16 | 35/64 |
