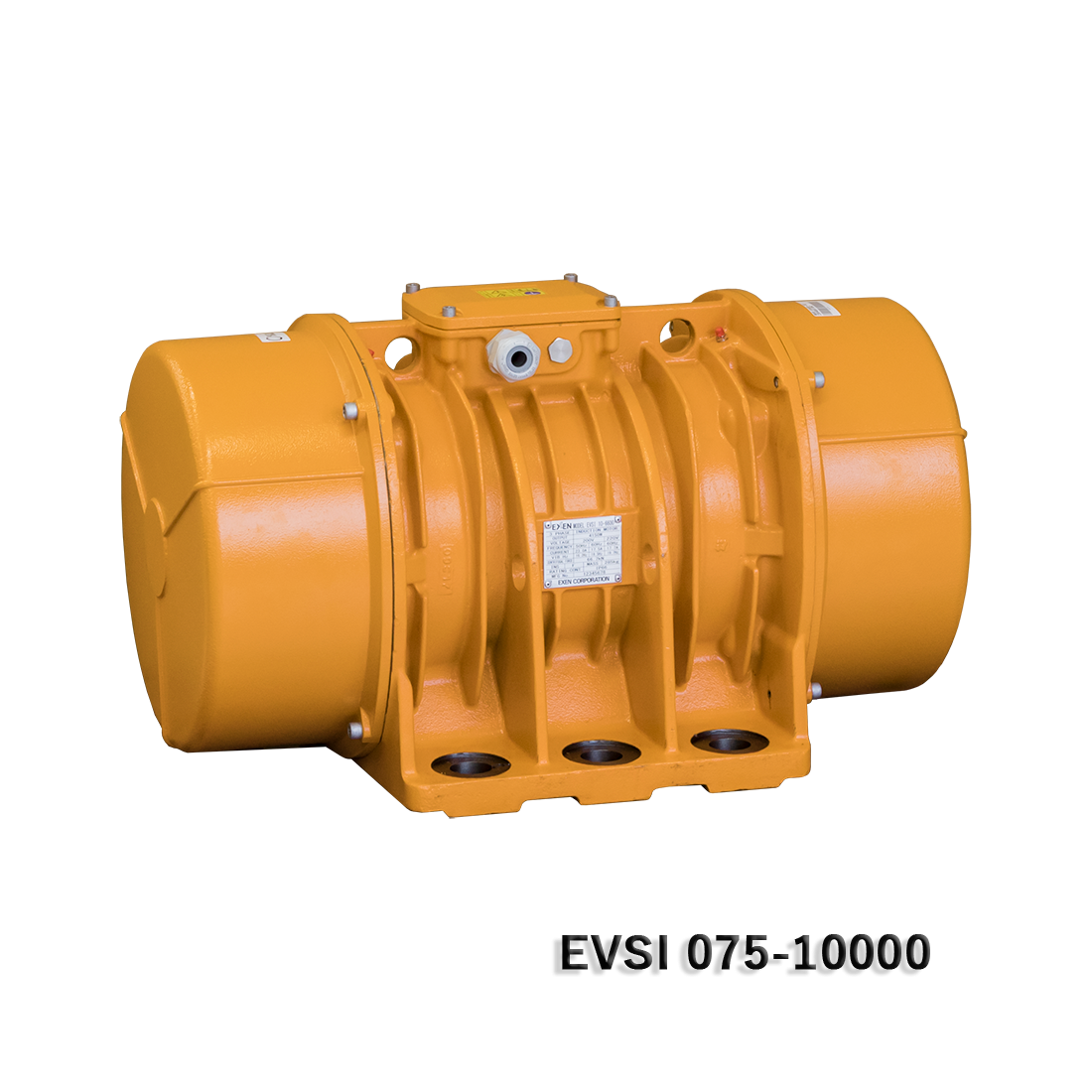

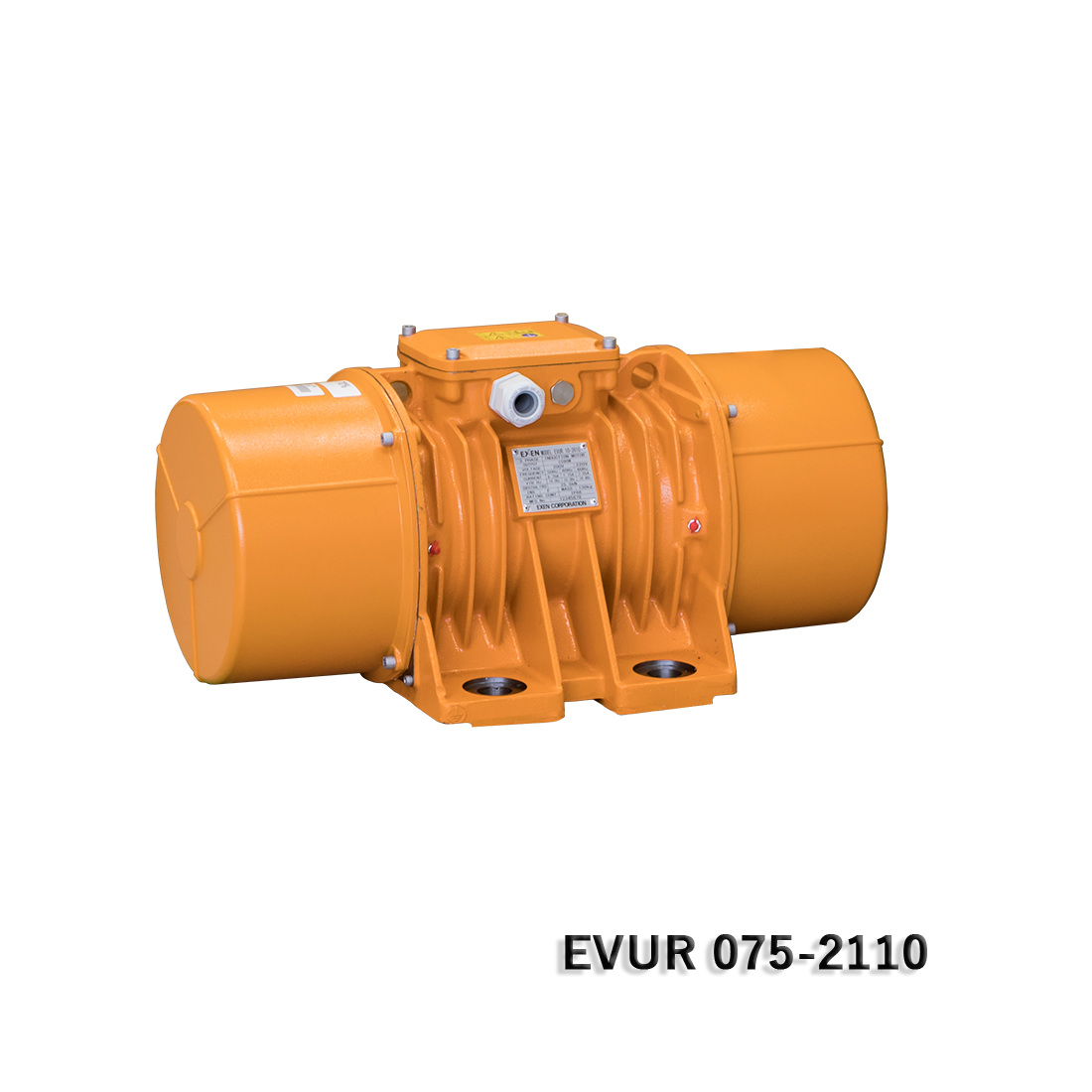

Vibration motor EVSI ･ EVUR 075 series (8-pole 3-phase 200 -440V)

Features

It is widely used for transportation and sorting equipment by utilizing strong vibration.

Ideal as a drive source for various vibration devices

This motor has a large amplitude and is suitable as a drive source for transportation and sorting equipment.

Designed for water resistant structure

It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.

List of models

Model	Code Number
EVUR 075-2110	001549000(*1)
EVUR 075-3110	001480000(*1)
EVUR 075-5300	001482000(*1)
EVSI 075-10000	001547000(*1)
EVSI 075-12000	001484000(*1)
EVSI 075-14000	001487000(1)(2)
EVSI 075-17000	001489000(1)(2)
EVSI 075-22000	001491000(1)(2)
EVSI 075-30000	001492000(1)(2)

*1 Order made product. For the lead time, please contact.
*2 Available voltage is AC400V.
*3 Available voltage is AC380/ 400/ 415V(50Hz), AC400/ 440V (60Hz).

Specification

EVSI EVUR 075

Model	Output （W）	Voltage （V）	Input Frequency （Hz）	Current (A）		Frequency （Hz）		Centrifugal Force （kN）	Cable Length (m)	Weight （kg）
Model	Output （W）	Voltage （V）	Input Frequency （Hz）	50Hz	60Hz	50Hz	60Hz	Centrifugal Force （kN）	Cable Length (m)	Weight （kg）
EVUR 075-2110	1060	200/380/ 400/415 (50Hz) 200/220/ 400/440 (60Hz)	50/60	5.60 - 8.20	4.40 - 8.17	12.1 - 12.3	14.5	14.4	N/A	130
EVUR 075-3110	1460			6.00 - 10.8	5.18 - 10.3	12.0 - 12.2	14.5	21.1		188
EVUR 075-5300	2960			10.8 - 19.0	8.80 - 16.3	11.6 - 11.9	14.0	36.0		268
EVSI 075-10000	5300			12.7 - 26.4	11.5 - 25.2	12.5	15.0	76.4		438
EVSI 075-12000	5700			13.5 - 28.0	12.5 - 27.4			85.2		540
EVSI 075-14000	7640	380/400/415 (50Hz) 400/440 (60Hz)		20.2 - 22.1	16.9 - 18.6			111		702
EVSI 075-17000	8940			21.2 - 23.2	19.0 - 20.9			132		755
EVSI 075-22000	11000			25.5 - 26.5	22.9 - 25.2			177		1015
EVSI 075-30000	17000			32.8 - 34.0	29.4 - 32.4			207		1125

(Imperial System)

Model	Output （W）	Voltage （V）	Input Frequency （Hz）	Current (A）		Frequency （Hz）		Centrifugal Force （lbf）	Cable Length (ft)	Weight （lb）
Model	Output （W）	Voltage （V）	Input Frequency （Hz）	50Hz	60Hz	50Hz	60Hz	Centrifugal Force （lbf）	Cable Length (ft)	Weight （lb）
EVUR 075-2110	1060	200/380/ 400/415 (50Hz) 200/220/ 400/440 (60Hz)	50/60	5.60 - 8.20	4.40 - 8.17	12.1 - 12.3	14.5	3,237	N/A	287
EVUR 075-3110	1460			6.00 - 10.8	5.18 - 10.3	12.0 - 12.2	14.5	4,743		414
EVUR 075-5300	2960			10.8 - 19.0	8.80 - 16.3	11.6 - 11.9	14.0	8,093		591
EVSI 075-10000	5300			12.7 - 26.4	11.5 - 25.2	12.5	15.0	17,175		966
EVSI 075-12000	5700			13.5 - 28.0	12.5 - 27.4			19,154		1,190
EVSI 075-14000	7640	380/400/415 (50Hz) 400/440 (60Hz)		20.2 - 22.1	16.9 - 18.6			24,954		1,548
EVSI 075-17000	8940			21.2 - 23.2	19.0 - 20.9			29,675		1,664
EVSI 075-22000	11000			25.5 - 26.5	22.9 - 25.2			39,791		2,238
EVSI 075-30000	17000			32.8 - 34.0	29.4 - 32.4			46,535		2,480

*Over 750 W vibration motor does not include a cable.

Dimensions, installation, control panel

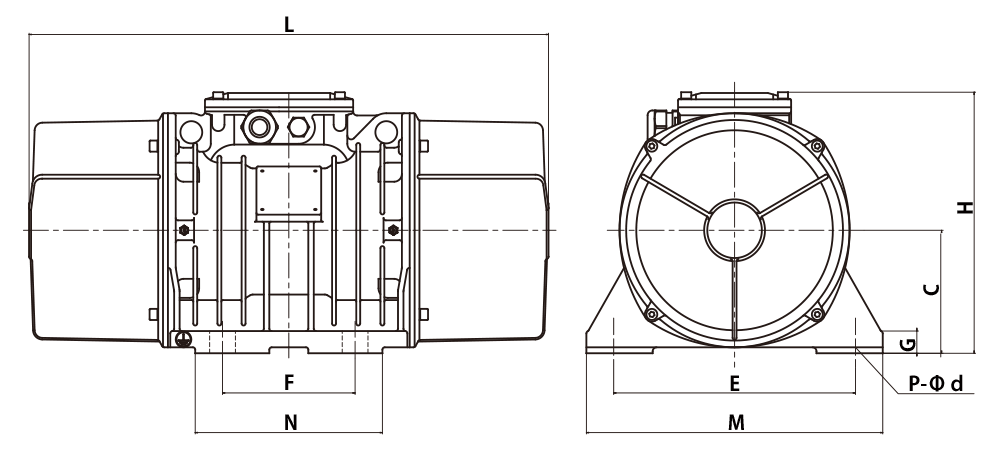

EVUR 075-2110 / 3110 dimensional drawings

EVUR 075-2110 / 3110 dimensional table

Model	E	F	G	C	H	L	N	M	P	φd
EVUR 075-2110	310	170	28	155	329	666	240	380	4	33
EVUR 075-3110	350	220	33	166	361	734	300	430	4	38

(Imperial System)

Model	E	F	G	C	H	L	N	M	P	φd
EVUR 075-2110	12 13/64	6 11/16	1 7/64	6 7/64	12 61/64	26 7/32	9 29/64	14 61/64	5/32	1 19/64
EVUR 075-3110	13 25/32	8 21/32	1 19/64	6 17/32	14 7/32	28 57/64	11 13/16	16 59/64	5/32	1 1/2

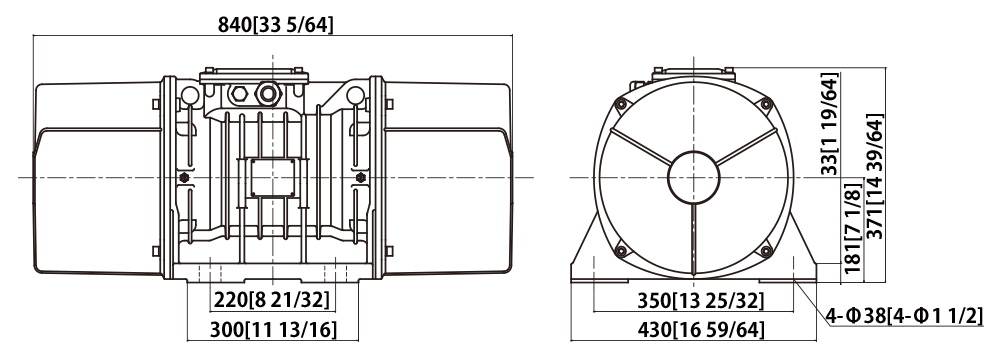

EVUR 075-5300 dimensional drawings

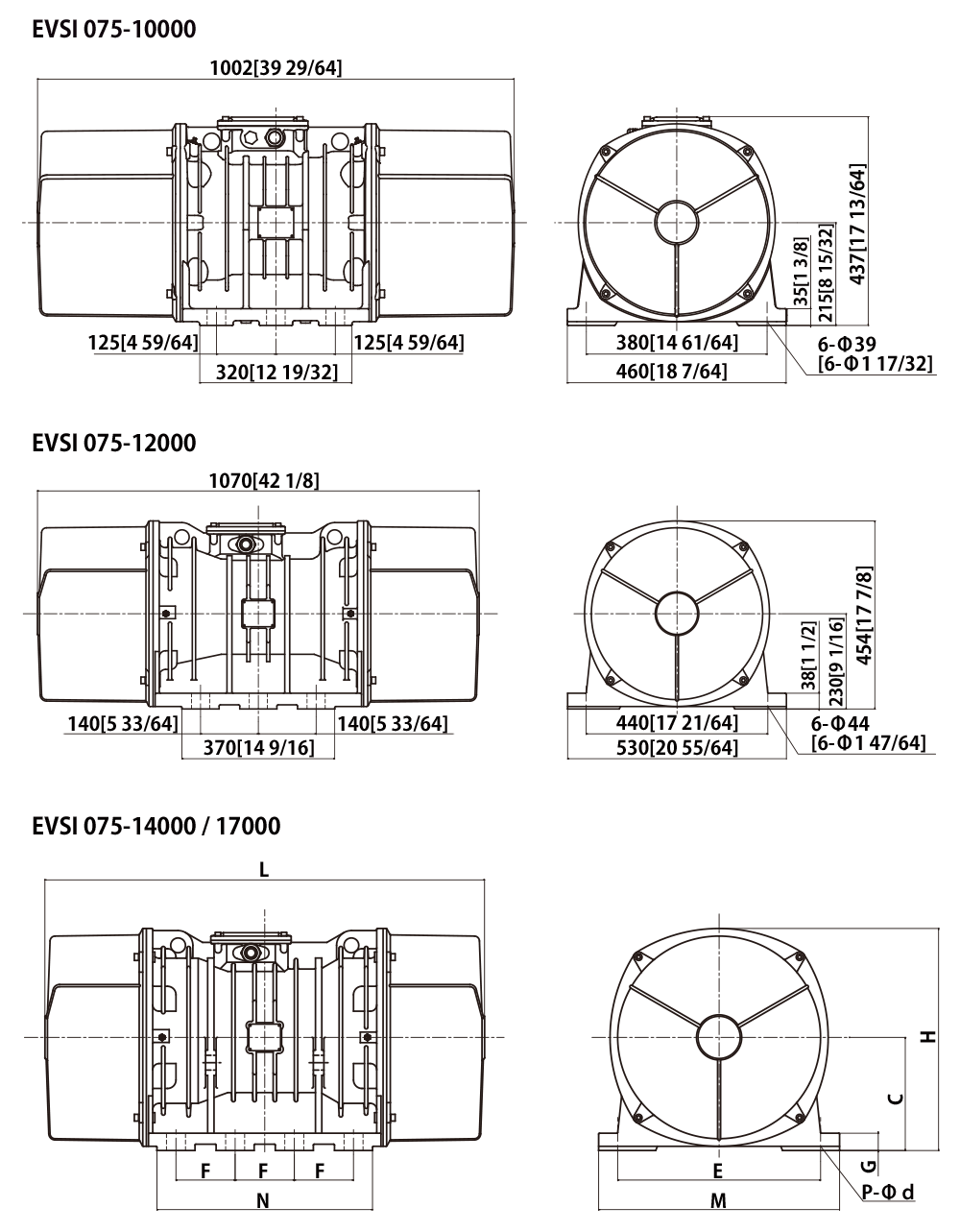

EVSI 075-10000 / 12000 / 14000 / 17000 dimensional drawings

EVSI 075-14000 / 17000 dimensional table

Model	E	F	G	C	H	L	N	M	P	φd
EVSI 075-14000	480	140	41	268	526	1040	510	570	8	45
EVSI 075-17000	480	140	41	268	526	1120	510	570	8	45

(Imperial System)

Model	E	F	G	C	H	L	N	M	P	φd
EVSI 075-14000	18 57/64	5 33/64	1 39/64	10 35/64	20 45/64	40 15/16	20 5/64	22 7/16	5/16	1 49/64
EVSI 075-17000	18 57/64	5 33/64	1 39/64	10 35/64	20 45/64	44 3/32	20 5/64	22 7/16	5/16	1 49/64
