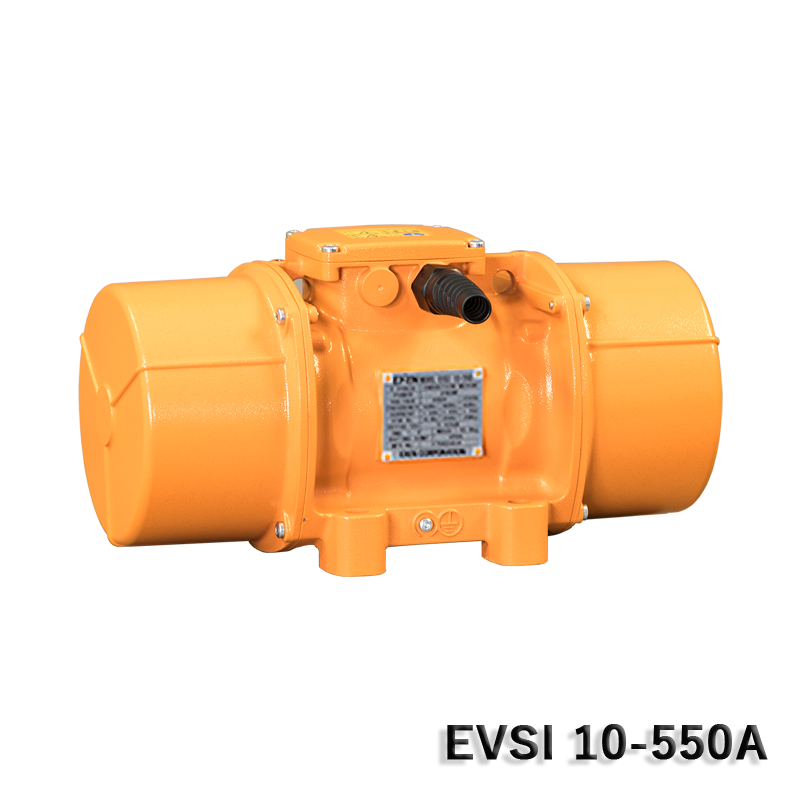

Vibration motor EVSI ･ EVUR 10 series (6-pole 3-phase 200 - 440V) - ration motors

Features

It is widely used for transportation and sorting equipment by utilizing strong vibration.

Ideal as a drive source for various vibration devices

This motor has a large amplitude and is suitable as a drive source for transportation and sorting equipment.

Designed for water resistant structure

It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.

Molded stator

By fixing the motor stator to the mold, the risk of wire breakage due to vibration is reduced.

List of models

Model	Code Number
EVSI 10-310A	001450100
EVSI 10-550	001452000
EVSI 10-1110	001531000
EVUR 10-1110	001454000(*1)
EVUR 10-1400	001456000(*1)
EVUR 10-1610	001458000

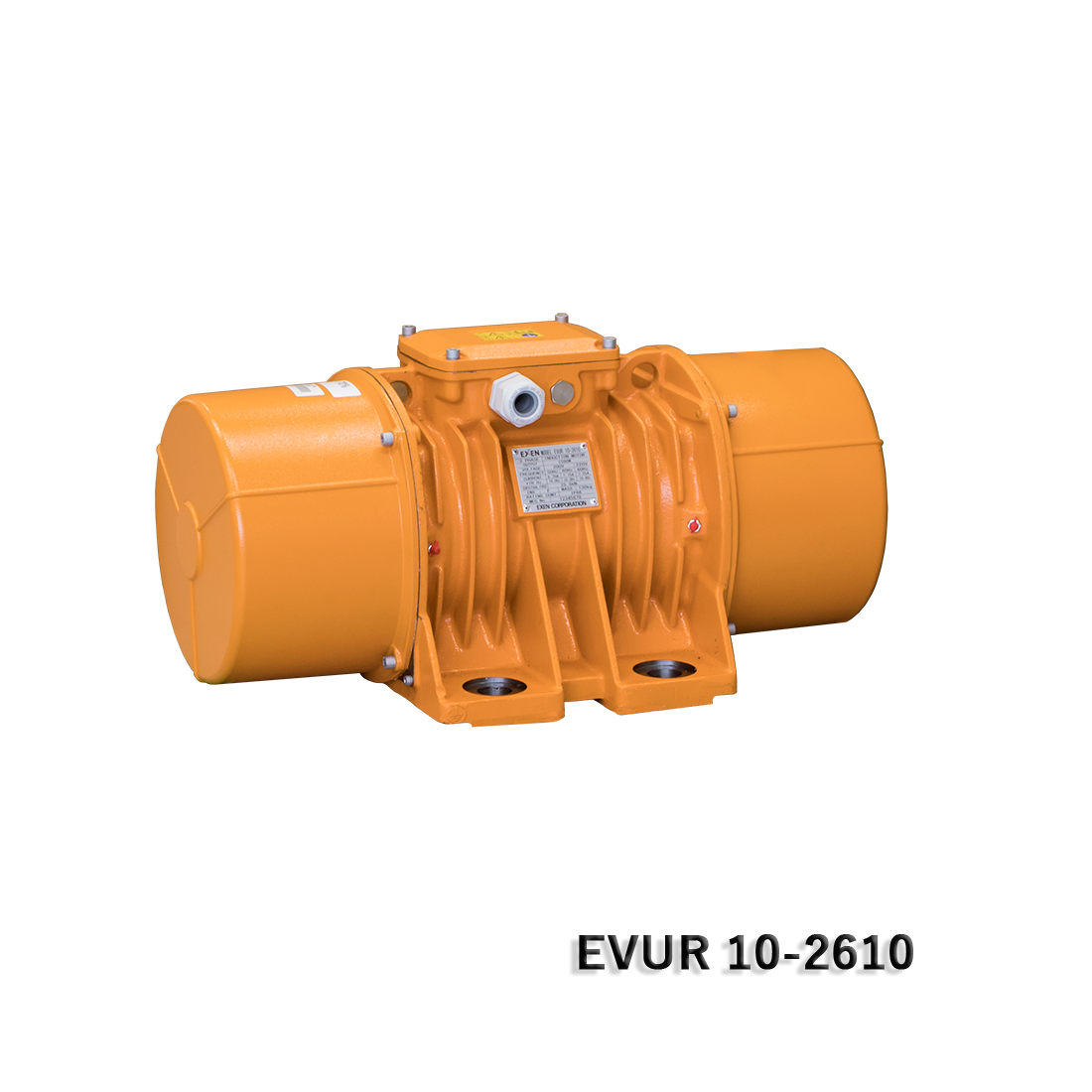

EVUR 10-2610	001460000(*1)
EVUR 10-3810	001462000(*1)
EVUR 10-4700	001464000(*1)

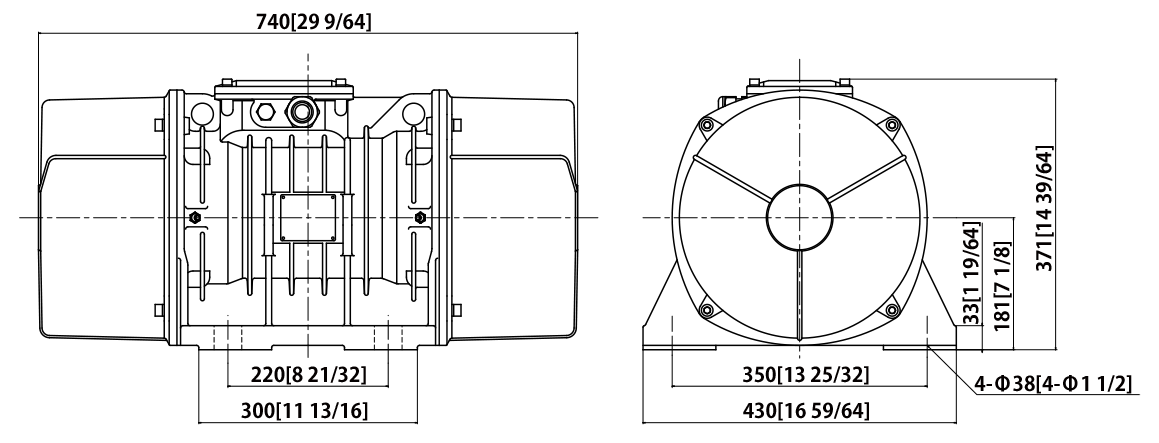

EVUR 10-5200	001532000(*1)

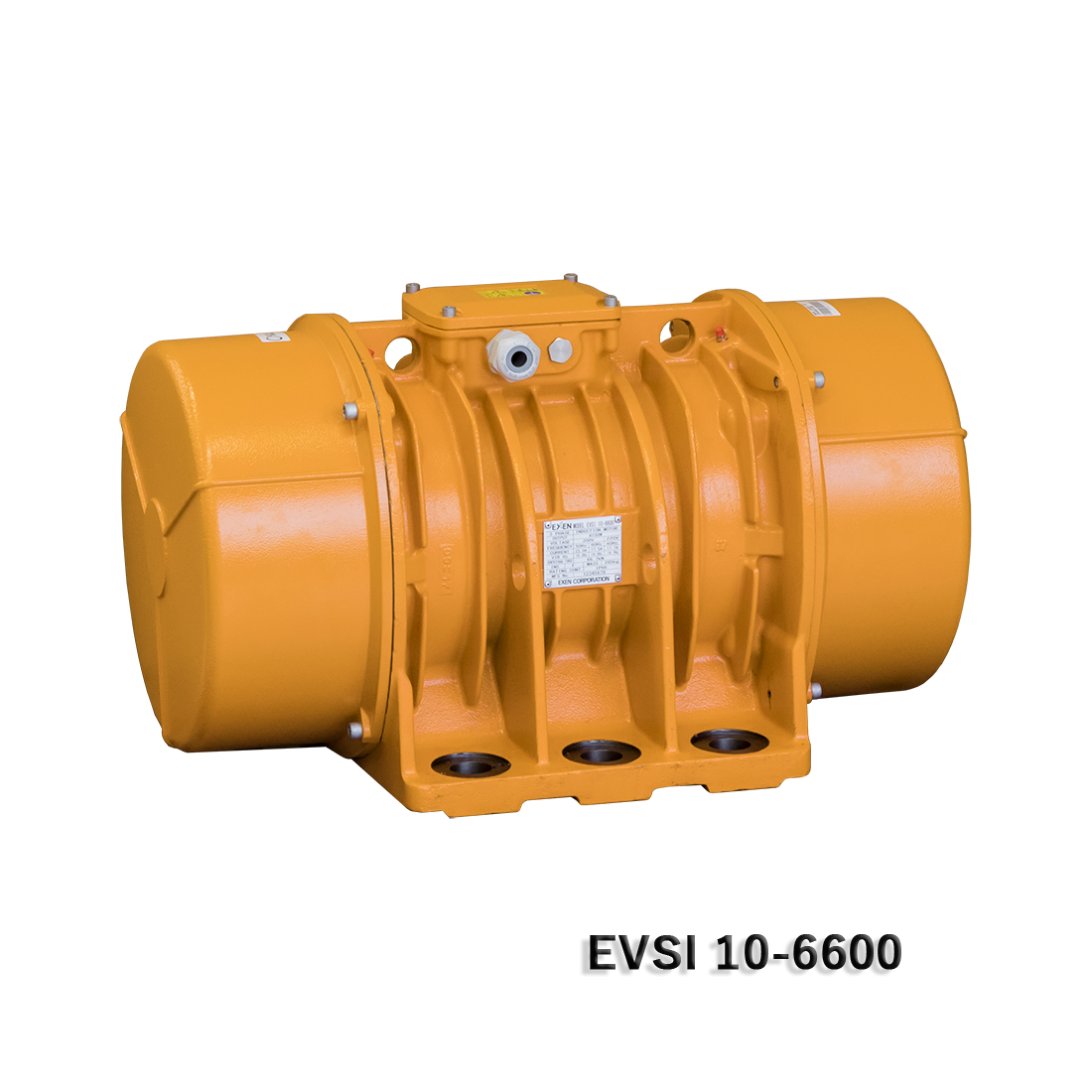

EVSI 10-6600	001533000(*1)
EVSI 10-10000	001545000(*1)
EVSI 10-11200	001468000(*1)
EVSI 10-15000	001471000(1)(2)
EVSI 10-17500	001473000(1)(2)

*1 Order made product. For the lead time, please contact.
*2 Available voltage is AC400V.
*3 Available voltage is AC380/ 400/ 415V (50Hz), AC400/ 440V (60Hz).

Specification

EVSI・EVUR 10

Model	Output （W）	Voltage （V）	Input Frequency （Hz）	Current (A）		Frequency （Hz）		Centrifugal Force （kN）	Cable Length (m)	Weight （kg）
Model	Output （W）	Voltage （V）	Input Frequency （Hz）	50Hz	60Hz	50Hz	60Hz	Centrifugal Force （kN）	Cable Length (m)	Weight （kg）
EVSI 10-310A	220	200/380 400/415 (50Hz) 200/220 400/440 (60Hz)	50/60	0.95 - 1.50	0.81 - 1.37	15.5 - 16.0	18.7 - 19.3	3.15	2	26.2
EVSI 10-550	240			0.85 - 1.62	0.71 - 1.42	14.5 - 15.5	18.4 - 19.1	5.02		33.0
EVSI 10-1110	550			2.45 - 3.65	2.06 - 3.89	14.7 - 14.9	17.6 - 18.4	11.1		56.0
EVUR 10-1110	550			2.25 - 4.30	1.95 - 3.60	14.3 - 15.3	18.0 - 18.8	11.1		64.0
EVUR 10-1400	690			2.70 - 4.90	2.20 - 4.50	13.6 - 15.0	16.9 - 18.5	14.0		78.0
EVUR 10-1610	830			2.84 - 5.02	2.50 - 4.20	15.4 - 15.9	18.8 - 19.3	16.1	N/A	93.0
EVUR 10-2610	1590			5.02 - 8.70	4.03 - 7.75	16.0 - 16.2	19.3 - 19.4	25.5		130
EVUR 10-3810	1930			6.95 - 13.7	5.42 - 10.4	15.7 - 16.1	19.3 - 19.6	37.5		188
EVUR 10-4700	2600			9.30 - 18.8	8.30 - 17.0	15.5 - 15.9	18.6 - 19.4	46.1		204
EVUR 10-5200	2890			8.60 - 15.8	7.55 - 14.8	15.7 - 16.0	18.7 - 19.4	51.1		238
EVSI 10-6600	4150			12.9 - 23.0	9.95 - 17.7	16.2 - 16.3	19.5 - 19.7	66.7		285
EVSI 10-10000	6300			13.0 - 27.0	11.6 - 25.5	16.6	20.0	95.1		381
EVSI 10-11200	6300			13.0 - 27.0	11.6 - 25.5			109		405
EVSI 10-15000	9000	380/400/415 (50Hz) 400/440 (60Hz)		18.3 - 20.0	16.4 - 18.1			139		643
EVSI 10-17500	11000	380/400/415 (50Hz) 400/440 (60Hz)		23.6 - 25.8	21.1 - 23.3			170		705

(Imperial System)

Model	Output （W）	Voltage （V）	Input Frequency （Hz）	Current (A）		Frequency （Hz）		Centrifugal Force （lbf）	Cable Length (ft)	Weight （lb）
Model	Output （W）	Voltage （V）	Input Frequency （Hz）	50Hz	60Hz	50Hz	60Hz	Centrifugal Force （lbf）	Cable Length (ft)	Weight （lb）
EVSI 10-310A	220	200/380 400/415 (50Hz) 200/220 400/440 (60Hz)	50/60	0.95 - 1.50	0.81 - 1.37	15.5 - 16.0	18.7 - 19.3	708	2	57.8
EVSI 10-550	240			0.85 - 1.62	0.71 - 1.42	14.5 - 15.5	18.4 - 19.1	1,129		72.8
EVSI 10-1110	550			2.45 - 3.65	2.06 - 3.89	14.7 - 14.9	17.6 - 18.4	2,495		123.5
EVUR 10-1110	550			2.25 - 4.30	1.95 - 3.60	14.3 - 15.3	18.0 - 18.8	2,495		141.1
EVUR 10-1400	690			2.70 - 4.90	2.20 - 4.50	13.6 - 15.0	16.9 - 18.5	3,147		172.0
EVUR 10-1610	830			2.84 - 5.02	2.50 - 4.20	15.4 - 15.9	18.8 - 19.3	3,619	N/A	205.1
EVUR 10-2610	1590			5.02 - 8.70	4.03 - 7.75	16.0 - 16.2	19.3 - 19.4	5,733		286.7
EVUR 10-3810	1930			6.95 - 13.7	5.42 - 10.4	15.7 - 16.1	19.3 - 19.6	8,430		414.5
EVUR 10-4700	2600			9.30 - 18.8	8.30 - 17.0	15.5 - 15.9	18.6 - 19.4	10,364		449.8
EVUR 10-5200	2890			8.60 - 15.8	7.55 - 14.8	15.7 - 16.0	18.7 - 19.4	11,488		524.8
EVSI 10-6600	4150			12.9 - 23.0	9.95 - 17.7	16.2 - 16.3	19.5 - 19.7	14,995		628.4
EVSI 10-10000	6300			13.0 - 27.0	11.6 - 25.5	16.6	20.0	21,379		840.1
EVSI 10-11200	6300			13.0 - 27.0	11.6 - 25.5			24,504		893.0
EVSI 10-15000	9000	380/400/415 (50Hz) 400/440 (60Hz)		18.3 - 20.0	16.4 - 18.1			31,248		1417.8
EVSI 10-17500	11000	380/400/415 (50Hz) 400/440 (60Hz)		23.6 - 25.8	21.1 - 23.3			38,218		1554.5

*Over 750 W vibration motor does not include a cable.

Dimensions, installation, control panel

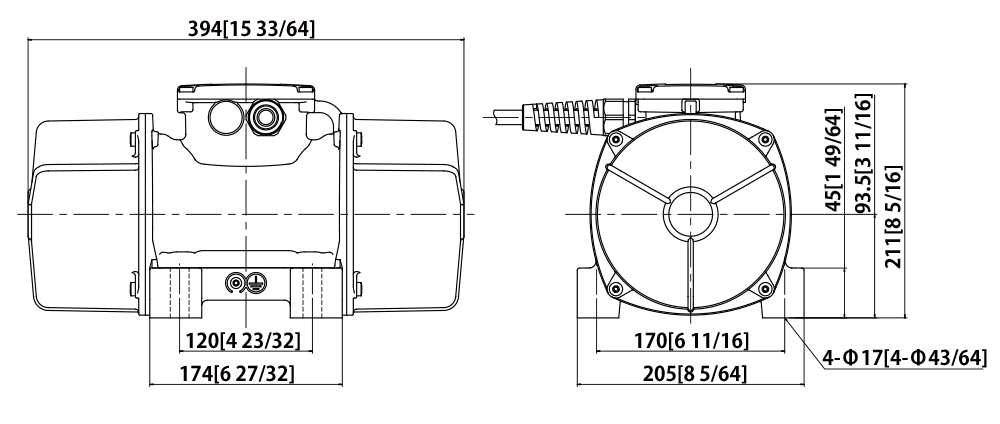

EVSI 10-310A dimensional drawings

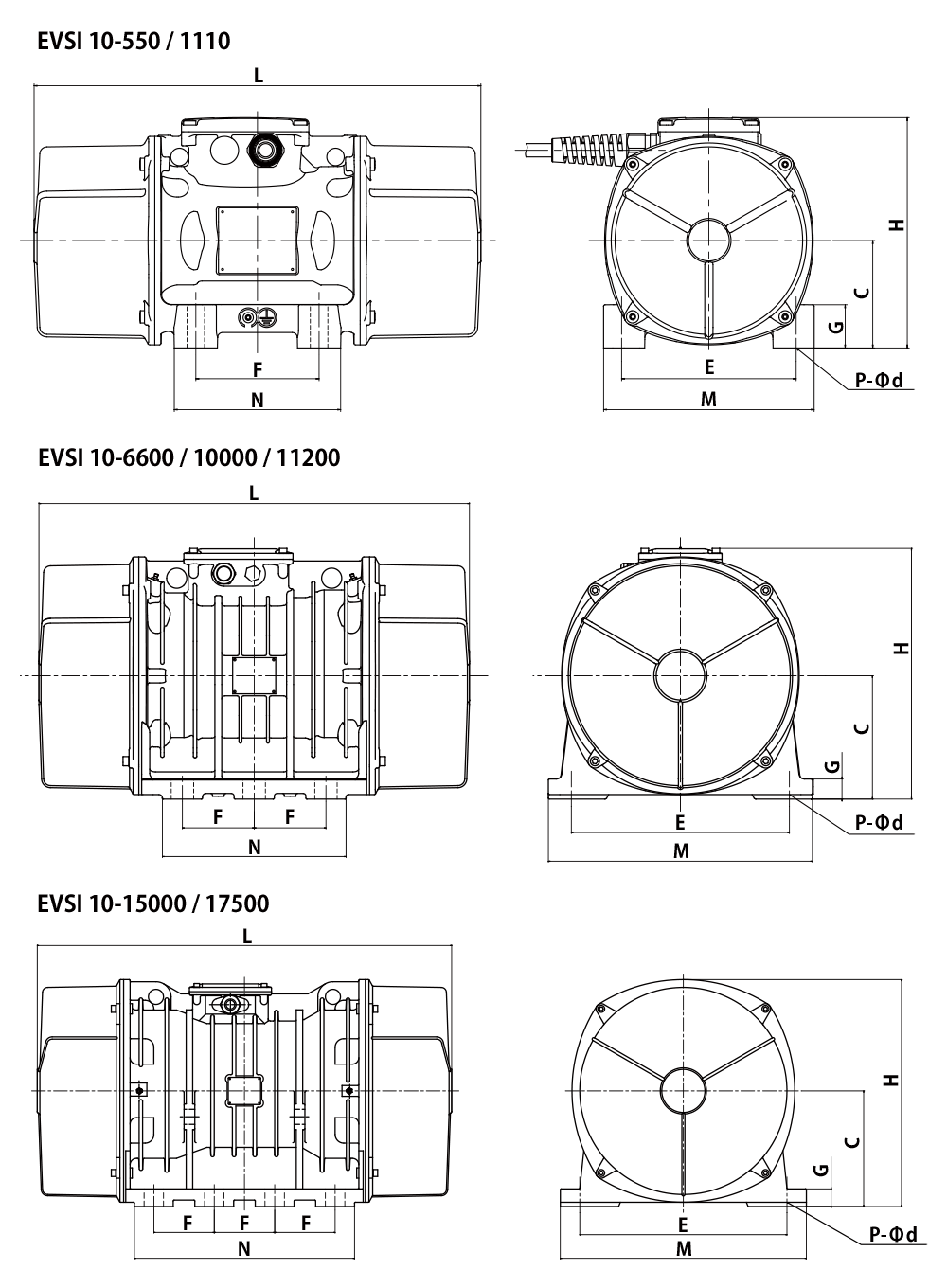

EVSI 10-550 / 1110 / 6600 / 10000 / 11200 / 15000 / 17500 dimensional drawings

EVSI 10-550 / 1110 / 6600 / 10000 / 11200 / 15000 / 17500 dimensional table

Model	E	F	G	C	H	L	N	M	P	Φd
EVSI 10-550	170	120	42	105	224	435	162	205	4	17
EVSI 10-1110	190	140	45	116	244	574	190	230	4	17
EVSI 10-6600	380	125	35	215	437	750	320	460	6	39
EVSI 10-10000						862
EVSI 10-11200						912
EVSI 10-15000	480	140	41	268	526	960	510	570	8	45
EVSI 10-17500	480	140	41	268	526	1040	510	570	8	45

(Imperial System)

Model	E	F	G	C	H	L	N	M	P	φd
EVSI 10-550	6 11/16	4 23/32	1 21/32	4 9/64	8 13/16	17 1/8	6 3/8	8 5/64	5/32	43/64
EVSI 10-1110	7 31/64	5 33/64	1 49/64	4 9/16	9 39/64	22 19/32	7 31/64	9 1/16	5/32	43/64
EVSI 10-6600	14 61/64	4 59/64	1 3/8	8 15/32	17 13/64	29 17/32	12 19/32	18 7/64	15/64	1 17/32
EVSI 10-10000						33 15/16
EVSI 10-11200						35 29/32
EVSI 10-15000	18 57/64	5 33/64	1 39/64	10 35/64	20 45/64	37 51/64	20 5/64	22 7/16	5/16	1 49/64
EVSI 10-17500	18 57/64	5 33/64	1 39/64	10 35/64	20 45/64	40 15/16	20 5/64	22 7/16	5/16	1 49/64

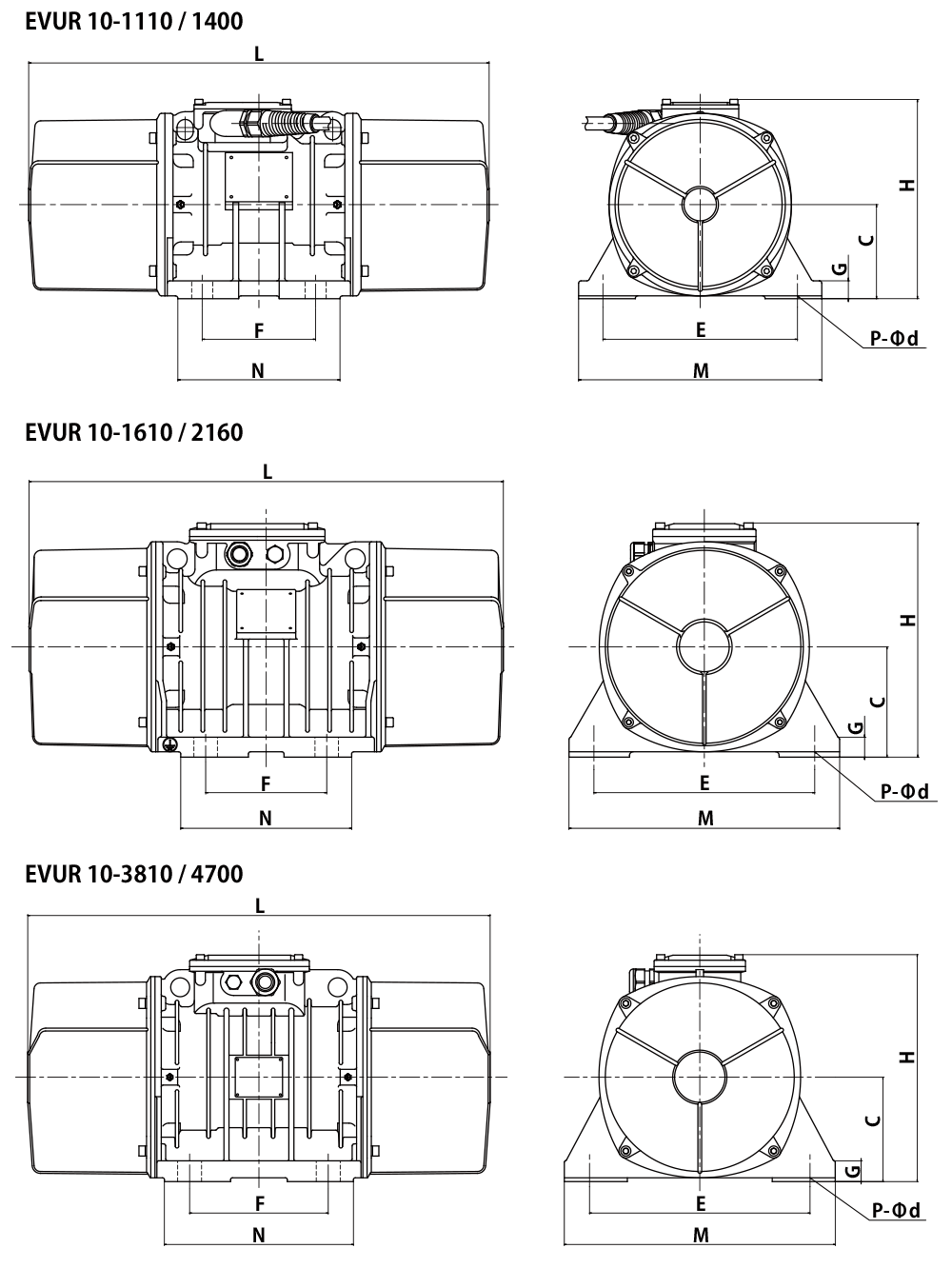

EVUR 10-1110 / 1400 / 1610 / 2160 / 3810 / 4700 dimensional drawings

EVUR 10-1110 / 1400 / 1610 / 2160 / 3810 / 4700 dimensional table

Model	E	F	G	C	H	L	N	M	P	Φd
EVUR 10-1110	240	140	22	116	246	568	200	300	4	26
EVUR10-1400	240	140		116	246	568	200	300
EVUR 10-1610	260	150		132.5	271	617	210	320
EVUR 10-2610	310	170	28	155	329	666	240	380		33
EVUR 10-3810	350	220	33	166	361	734	300	430		38
EVUR 10-4700	350	220	33	166	361	796	300	430		38

(Imperial System)

Model	E	F	G	C	H	L	N	M	P	φd
EVUR 10-1110	9 29/64	5 33/64	55/64	4 9/16	9 11/16	22 23/64	7 7/8	11 13/16	5/32	1 1/32
EVUR10-1400	9 29/64	5 33/64		4 9/16	9 11/16	22 23/64	7 7/8	11 13/16
EVUR 10-1610	10 15/64	5 29/32		5 7/32	10 43/64	24 19/64	8 17/64	12 19/32
EVUR 10-2610	12 13/64	6 11/16	1 7/64	6 7/64	12 61/64	26 7/32	9 29/64	14 61/64		1 19/64
EVUR 10-3810	13 25/32	8 21/32	1 19/64	6 29/64	14 7/32	28 57/64	11 13/16	16 59/64		1 1/2
EVUR 10-4700	13 25/32	8 21/32	1 19/64	6 29/64	14 7/32	31 11/32	11 13/16	16 59/64		1 1/2
