Features
Utilizing strong vibration, it is widely used for eliminating clogging and adhesion inside powder and bulk container (hopper and tank) and for filling equipment.
Generates strong vibration
The rotation of the eccentric weights attached to both ends of the rotor shaft inside the motor causes strong centrifugal vibration. Utilizing strong vibration, it is widely used for eliminating clogging and adhesion inside powder and bulk container (hopper and tank) and for filling equipment. The most suitable one can be selected from various models according to the application.
Designed for water resistant structure
It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.
Molded stator
By fixing the motor stator to the mold, the risk of wire breakage due to vibration is reduced.EVSI 15-80 - EVSI 15-1100A
List of models
| Model | Code Number |
|---|---|
| EVSI 15-80 | 001543000 (*1) |
| EVSI 15-200 | 001426000 |
| EVSI 15-400 | 001428000 |
| EVSI 15-550 | 001430000 |
| EVSI 15-700A | 001432100 |
| EVSI 15-900B | 001434200 |
| EVSI 15-1100A | 001962000(*1) |
| EVUR 15-1410 | 001436000(*1) |
| EVSI 15-1410 | 001529000(*1) |
| EVSI 15-1710 | 001534000(*1) |
| EVUR 15-1710 | 001438000(*1) |
| EVUR 15-2410 | 001440000(*1) |
| EVUR 15-3810 | 001530000(*1) |
| EVUR 15-5010 | 001442000(*1) |
| EVUR 15-7000 | 001444000(*1) |
| EVSI 15-9500 | 001446000(*1) |
| EVSI 15-11500 | 001449000(*1)(*2) |
*1 Order made product. For the lead time, please contact. *2 Available voltage is AC400V. *3 Available voltage is AC380/ 400/ 415V (50Hz), AC400/ 440V(60Hz).
Specification
EVSI 15-80
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current (A） |
Frequency （Hz） |
Centrifugal Force （kN） |
Cable Length |
Weight （kg） |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| EVSI 15-80 | 35 | 200/380 400/415 (50Hz) 200/220 400/440 (60Hz) |
50/60 | 0.27 - 0.42 | 0.24 - 0.4 | 20.8 - 22.7 | 27.2 - 28.5 | 0.76 | 0.70 | 2m | 6.6 |
(Imperial System)
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current (A） |
Frequency （Hz） |
Centrifugal Force （lbf） |
Cable Length |
Weight （lb） |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| EVSI 15-80 | 35 | 200/380 400/415 (50Hz) 200/220 400/440 (60Hz) |
50/60 | 0.27 - 0.42 | 0.24 - 0.4 | 20.8 - 22.7 | 27.2 - 28.5 | 170.85 | 157.37 | 6.56 ft | 14.6 |
EVSI・EVUR 15
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current （A） |
Frequency （Hz） |
Centrifugal Force （kN） |
Cable Length |
Weight （kg） |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| EVSI 15-200 | 90 | 200/380 400/415 (50Hz) 200/220 400/440 (60Hz) |
50/60 | 0.59 - 0.93 | 0.51 - 0.8 | 22.3 - 23.2 | 26.9 - 28.4 | 2.09 | 2m | 12.1 |
| EVSI 15-400 | 220 | 0.76 - 1.25 | 0.67 - 1.26 | 22.7 - 23.4 | 27.0 - 28.4 | 4.04 | 19.5 | |||
| EVSI 15-550 | 0.87 - 1.54 | 0.69 - 1.42 | 21.4 - 23.0 | 26.0 - 28.4 | 5.42 | 21.2 | ||||
| EVSI 15-700A | 380 | 1.12 - 1.93 | 1.09 - 2.3 | 22.4 - 23.3 | 25.4 - 27.9 | 7.06 | 26.7 | |||
| EVSI 15-900B | 1.31 - 2.68 | 1.16 - 2.37 | 20.2 - 22.4 | 24.8 - 27.5 | 8.83 | 29.5 | ||||
| EVSI 15-1100A | 400 | 1.25 - 2.37 | 0.95 - 2.09 | 22.7 - 23.5 | 27.7 - 29.0 | 10.3 | 33.5 | |||
| EVSI 15-1410 | 740 | 1.65 - 3.5 | 1.37 - 2.76 | 22.1 - 23.0 | 27.5 - 28.3 | 13.9 | 42.0 | |||
| EVUR 15-1410 | 1.54 - 2.9 | 1.37 - 2.89 | 22.5 - 23.2 | 26.9 - 28.3 | 53.0 | |||||
| EVSI 15-1710 | 830 | 2.36 - 4.08 | 2.20 - 4.65 | 23.1 - 23.8 | 27.3 - 28.7 | 17.6 | N/A | 48.0 | ||
| EVUR 15-1710 | 2.45 - 4.8 | 23.2 - 23.7 | 27.7 - 28.8 | 57.0 | ||||||
| EVUR 15-2410 | 1340 | 4.38 - 7.86 | 3.75 - 7.1 | 23.2 - 23.7 | 28.1 - 28.7 | 23.7 | 81.0 | |||
| EVUR 15-3810 | 1780 | 6.00 - 10.6 | 4.70 - 9.7 | 23.9 - 24.2 | 28.8 - 29.4 | 37.7 | 119 | |||
| EVUR 15-5010 | 2950 | 5.78 - 12.0 | 5.27 - 11.5 | 25.0 | 30.0 | 49.1 | 161 | |||
| EVUR 15-7000 | 4980 | 11.2 - 23.2 | 10.2 - 21.2 | 23.9 - 24.4 | 28.7 - 29.2 | 64.1 | 208 | |||
| EVSI 15-9500 | 6000 | 11.8 - 24.4 | 11.0 - 24.1 | 25.0 | 30.0 | 82.6 | 317 | |||
| EVSI 15-11500 | 8600 | 380/400/415 (50Hz) 400/440 (60Hz) |
16.9 - 18.4 | 15.1 - 16.7 | 25.0 | 30.0 | 112.0 | 433 | ||
(Imperial System)
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current (A） |
Frequency （Hz） |
Centrifugal Force （lbf） |
Cable Length |
Weight （lb ） |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| EVSI 15-200 | 90 | 200/380 400/415 (50Hz) 200/220 400/440 (60Hz) |
50/60 | 0.59 - 0.93 | 0.51 - 0.8 | 22.3 - 23.2 | 26.9 - 28.4 | 469.85 | 6.56 ft | 26.7 |
| EVSI 15-400 | 220 | 0.76 - 1.25 | 0.67 - 1.26 | 22.7 - 23.4 | 27.0 - 28.4 | 908.23 | 43.0 | |||
| EVSI 15-550 | 0.87 - 1.54 | 0.69 - 1.42 | 21.4 - 23.0 | 26.0 - 28.4 | 1218.46 | 46.7 | ||||
| EVSI 15-700A | 380 | 1.12 - 1.93 | 1.09 - 2.3 | 22.4 - 23.3 | 25.4 - 27.9 | 1587.15 | 58.9 | |||
| EVSI 15-900B | 1.31 - 2.68 | 1.16 - 2.37 | 20.2 - 22.4 | 24.8 - 27.5 | 1985.06 | 65.0 | ||||
| EVSI 15-1100A | 400 | 1.25 - 2.37 | 0.95 - 2.09 | 22.7 - 23.5 | 27.7 - 29.0 | 2315.5 | 73.9 | |||
| EVSI 15-1410 | 740 | 1.65 - 3.5 | 1.37 - 2.76 | 22.1 - 23.0 | 27.5 - 28.3 | 3124.8 | 92.6 | |||
| EVUR 15-1410 | 1.54 - 2.9 | 1.37 - 2.89 | 22.5 - 23.2 | 26.9 - 28.3 | 116.9 | |||||
| EVSI 15-1710 | 830 | 2.36 - 4.08 | 2.20 - 4.65 | 23.1 - 23.8 | 27.3 - 28.7 | 3956.6 | N/A | 105.8 | ||
| EVUR 15-1710 | 2.45 - 4.8 | 23.2 - 23.7 | 27.7 - 28.8 | 125.7 | ||||||
| EVUR 15-2410 | 1340 | 4.38 - 7.86 | 3.75 - 7.1 | 23.2 - 23.7 | 28.1 - 28.7 | 5328.0 | 178.6 | |||
| EVUR 15-3810 | 1780 | 6.00 - 10.6 | 4.70 - 9.7 | 23.9 - 24.2 | 28.8 - 29.4 | 8475.3 | 262 | |||
| EVUR 15-5010 | 2950 | 5.78 - 12.0 | 5.27 - 11.5 | 25.0 | 30.0 | 11038.1 | 355 | |||
| EVUR 15-7000 | 4980 | 11.2 - 23.2 | 10.2 - 21.2 | 23.9 - 24.4 | 28.7 - 29.2 | 14410.3 | 459 | |||
| EVSI 15-9500 | 6000 | 11.8 - 24.4 | 11.0 - 24.1 | 25.0 | 30.0 | 18569.2 | 699 | |||
| EVSI 15-11500 | 8600 | 380/400/415 (50Hz) 400/440 (60Hz) |
16.9 - 18.4 | 15.1 - 16.7 | 25.0 | 30.0 | 25178.6 | 955 | ||
*Over 750 W vibration motor does not include a cable.
Dimensions, installation, control panel

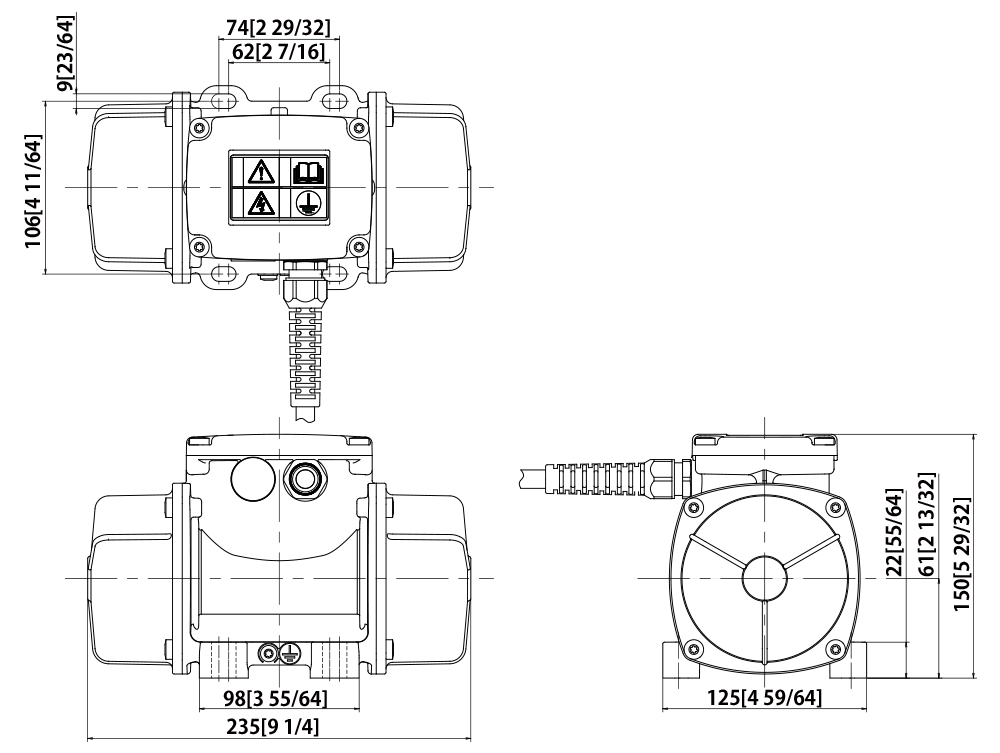

EVSI 15-80 dimensional drawings

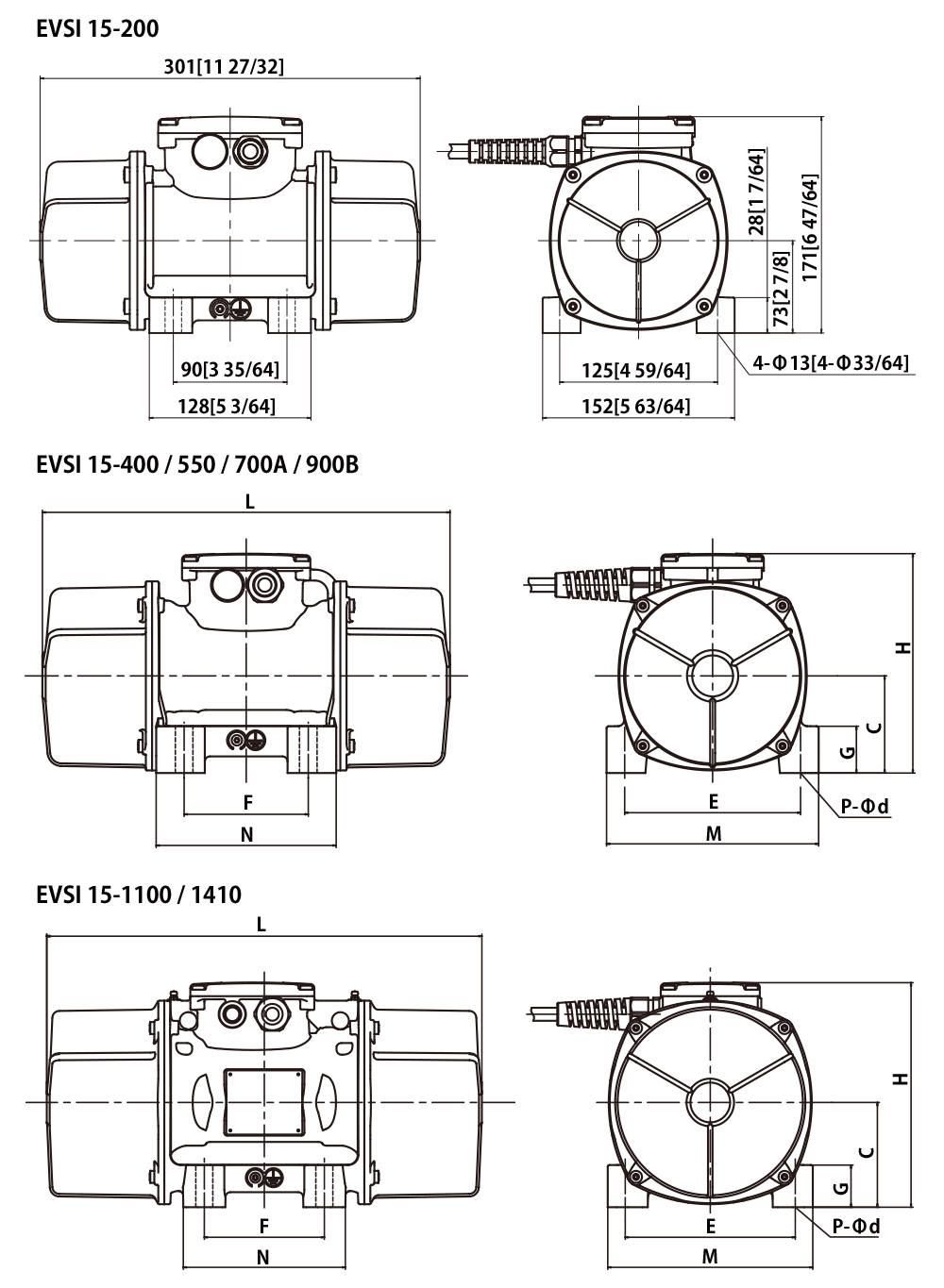

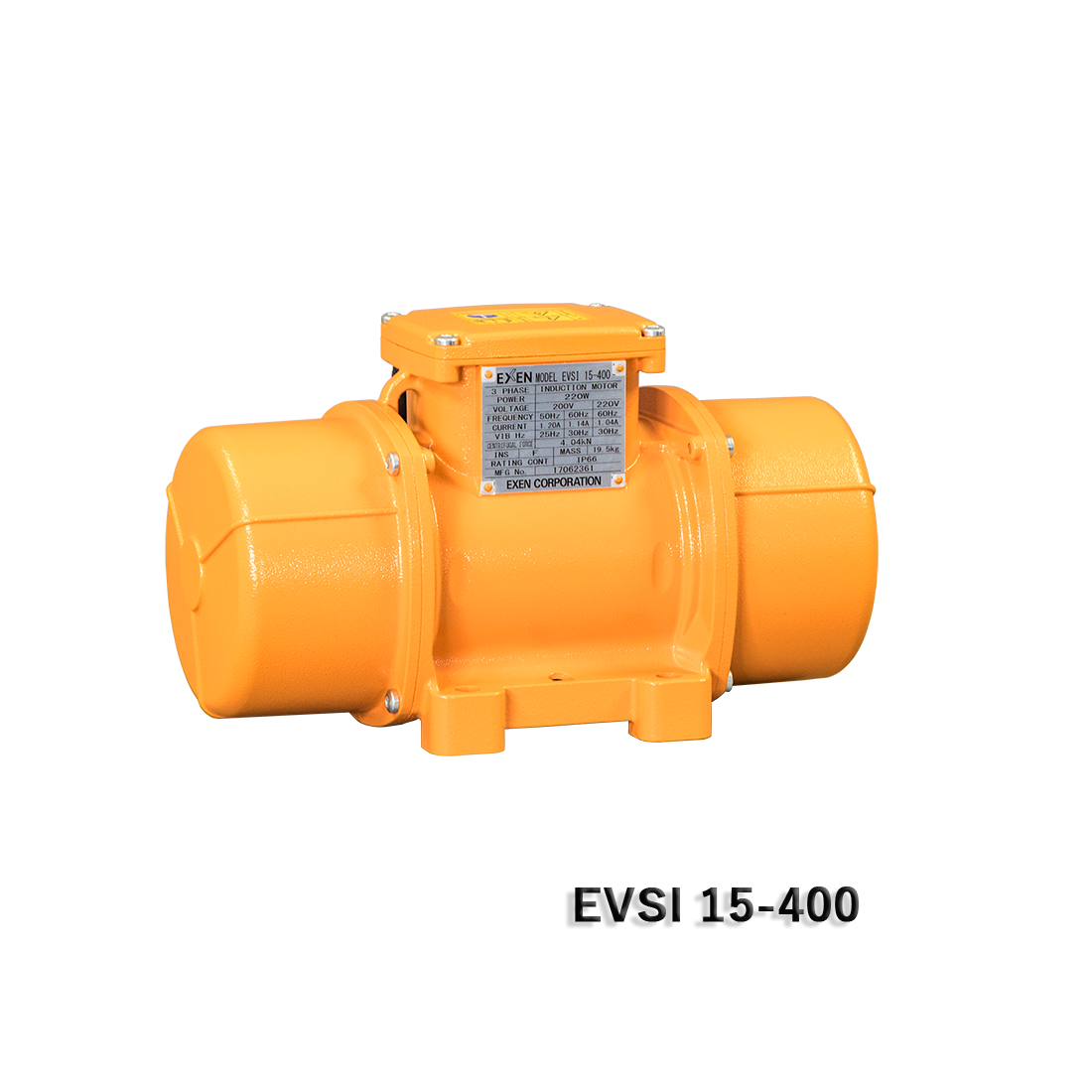

EVSI 15-200 / 400 / 550 / 700A / 900B / 1100A / 1410 dimensional drawings
EVSI 15-400 / 550 / 700A / 900B / 1100A / 1410 dimensional table
| Model | E | F | G | C | H | L | N | M | P | φd |
|---|---|---|---|---|---|---|---|---|---|---|
| EVSI 15-400 | 140 | 105 | 30 | 82.5 | 203 | 344 | 146 | 167 | 4 | 13 |
| EVSI 15-550 | 386 | |||||||||
| EVSI 15-700A | 170 | 120 | 45 | 93.5 | 211 | 394 | 174 | 205 | 17 | |
| EVSI 15-900B | ||||||||||
| EVSI 15-1100A | 42 | 104.5 | 224 | 435 | 162 | |||||
| EVSI 15-1410 | 190 | 140 | 45 | 116 | 448 | 190 | 230 |
(Imperial System)
| Model | E | F | G | C | H | L | N | M | P | φd |
|---|---|---|---|---|---|---|---|---|---|---|
| EVSI 15-400 | 5 33/64 | 4 9/64 | 1 3/16 | 3 1/4 | 7 63/64 | 13 35/64 | 5 3/4 | 6 37/64 | 5/32 | 33/64 |
| EVSI 15-550 | 15 13/64 | |||||||||
| EVSI 15-700A | 6 11/16 | 4 23/32 | 1 49/64 | 3 11/16 | 8 5/16 | 15 33/64 | 6 27/32 | 8 5/64 | 43/64 | |
| EVSI 15-900B | ||||||||||
| EVSI 15-1100 | 1 21/32 | 4 7/64 | 8 13/16 | 17 1/8 | 6 3/8 | |||||
| EVSI 15-1410 | 7 31/64 | 5 33/64 | 1 49/64 | 4 9/16 | 17 41/64 | 7 31/64 | 9 1/16 |

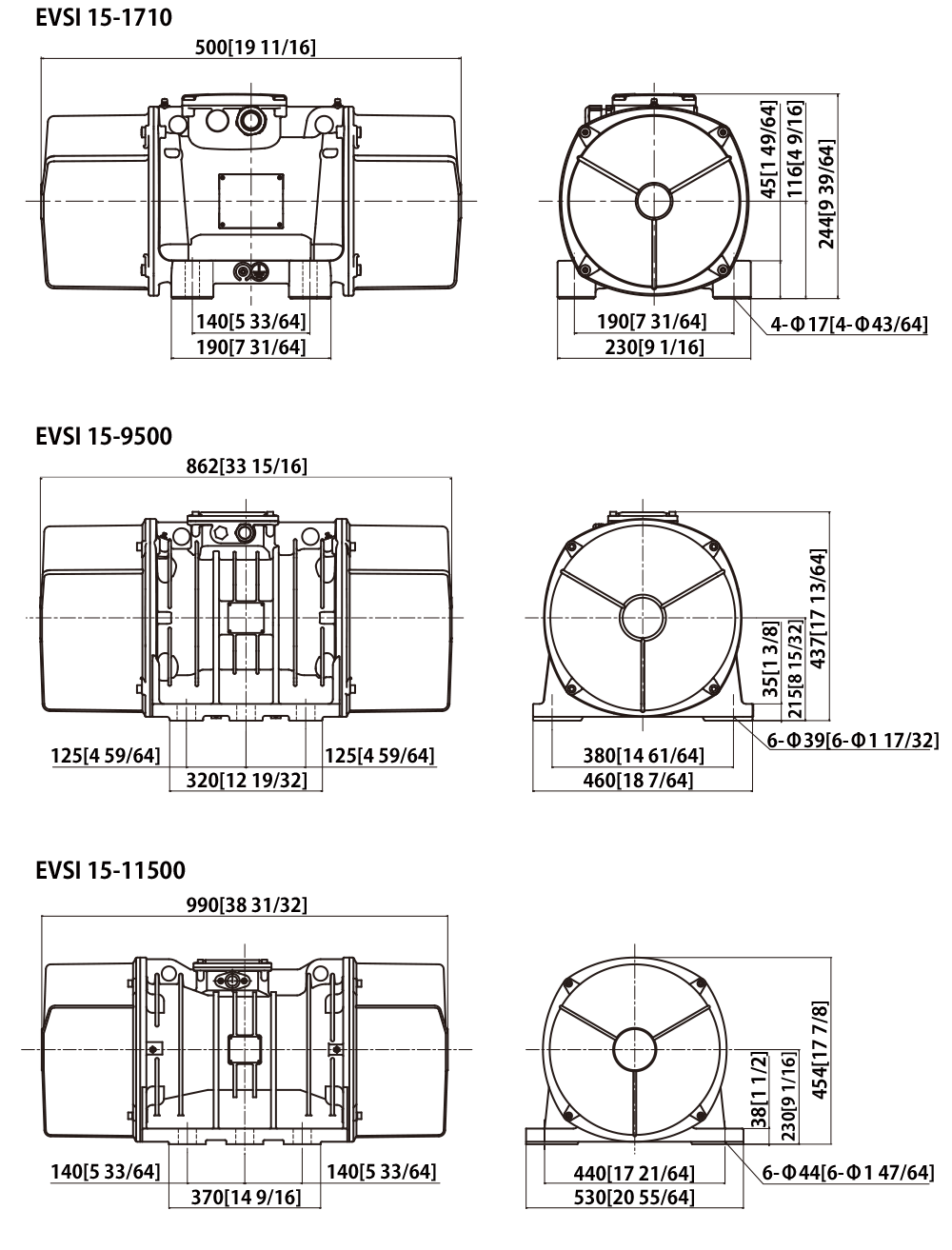

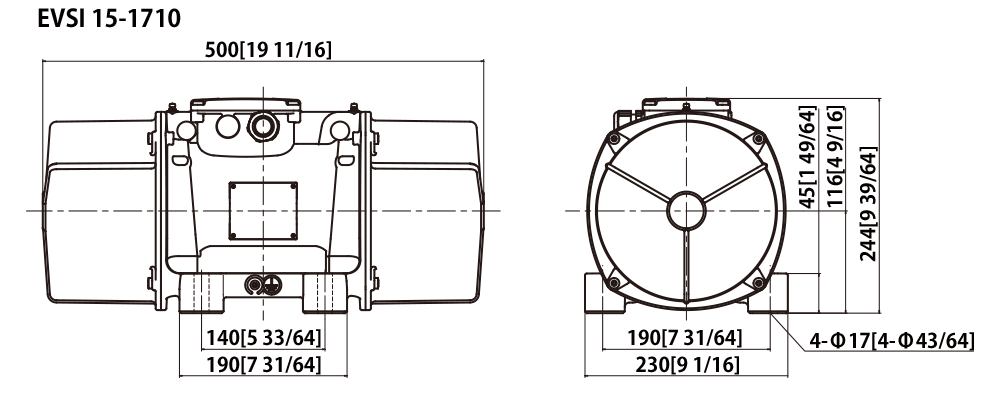

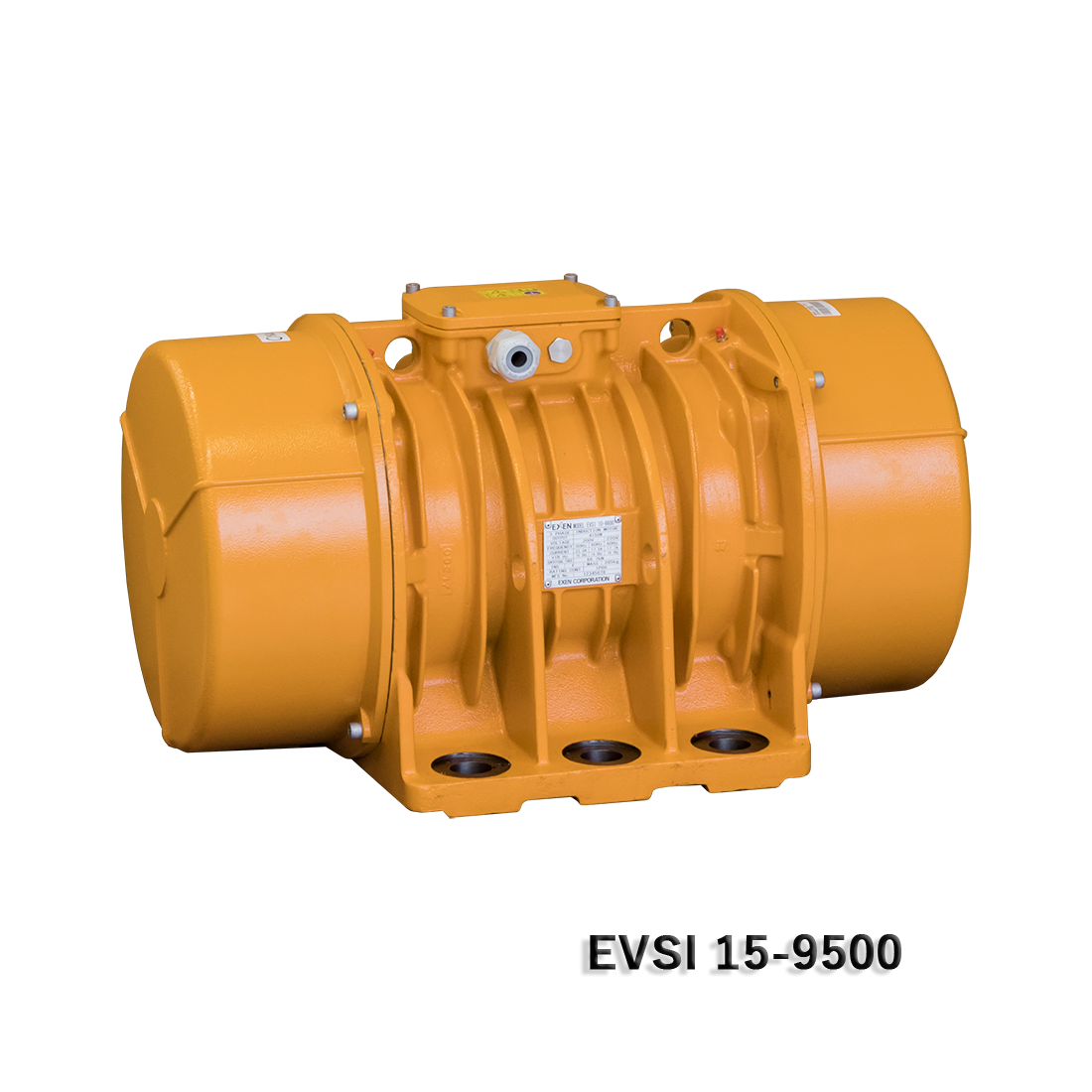

EVSI 15-1710 / 9500 / 11500 dimensional drawings

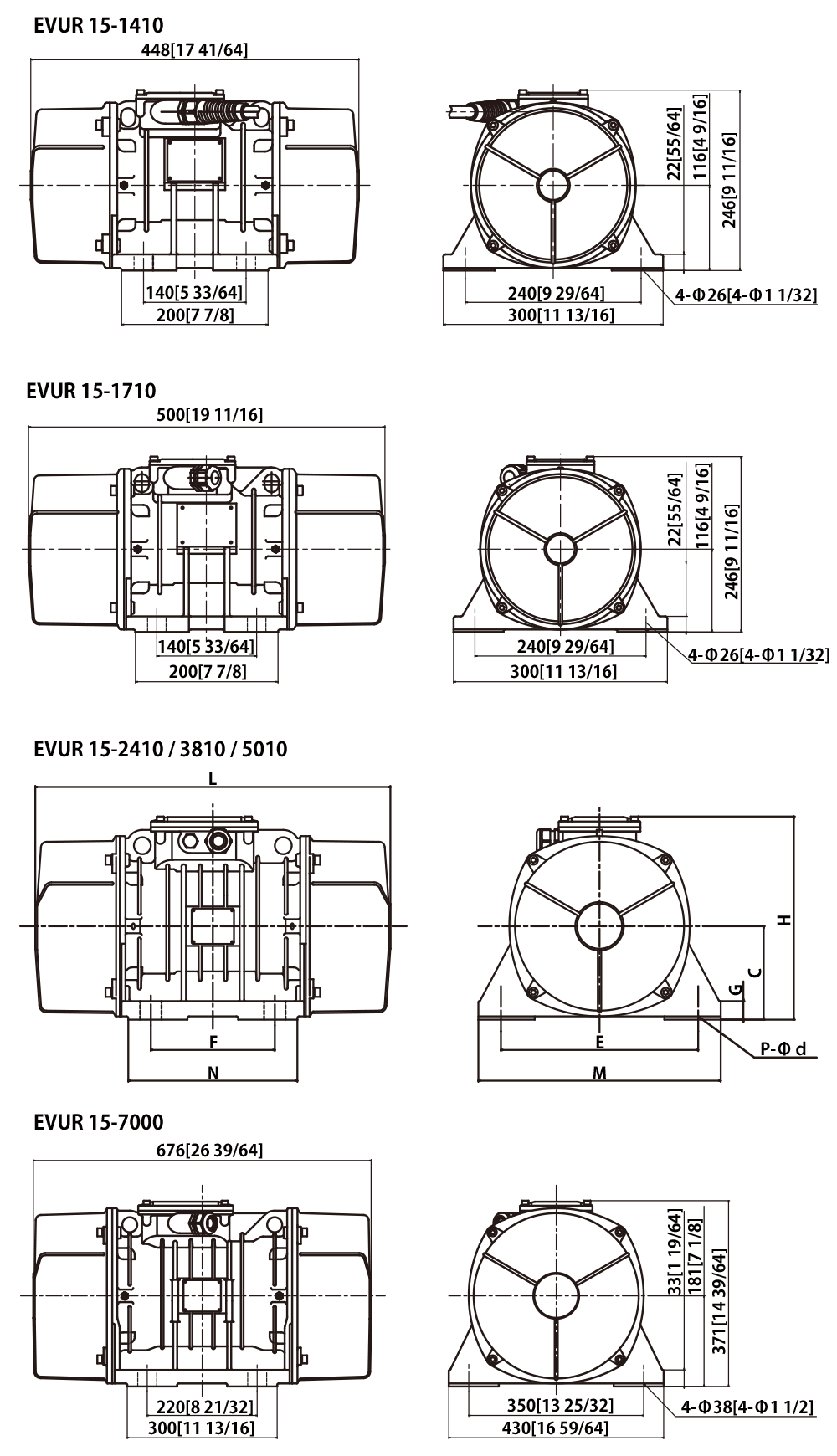

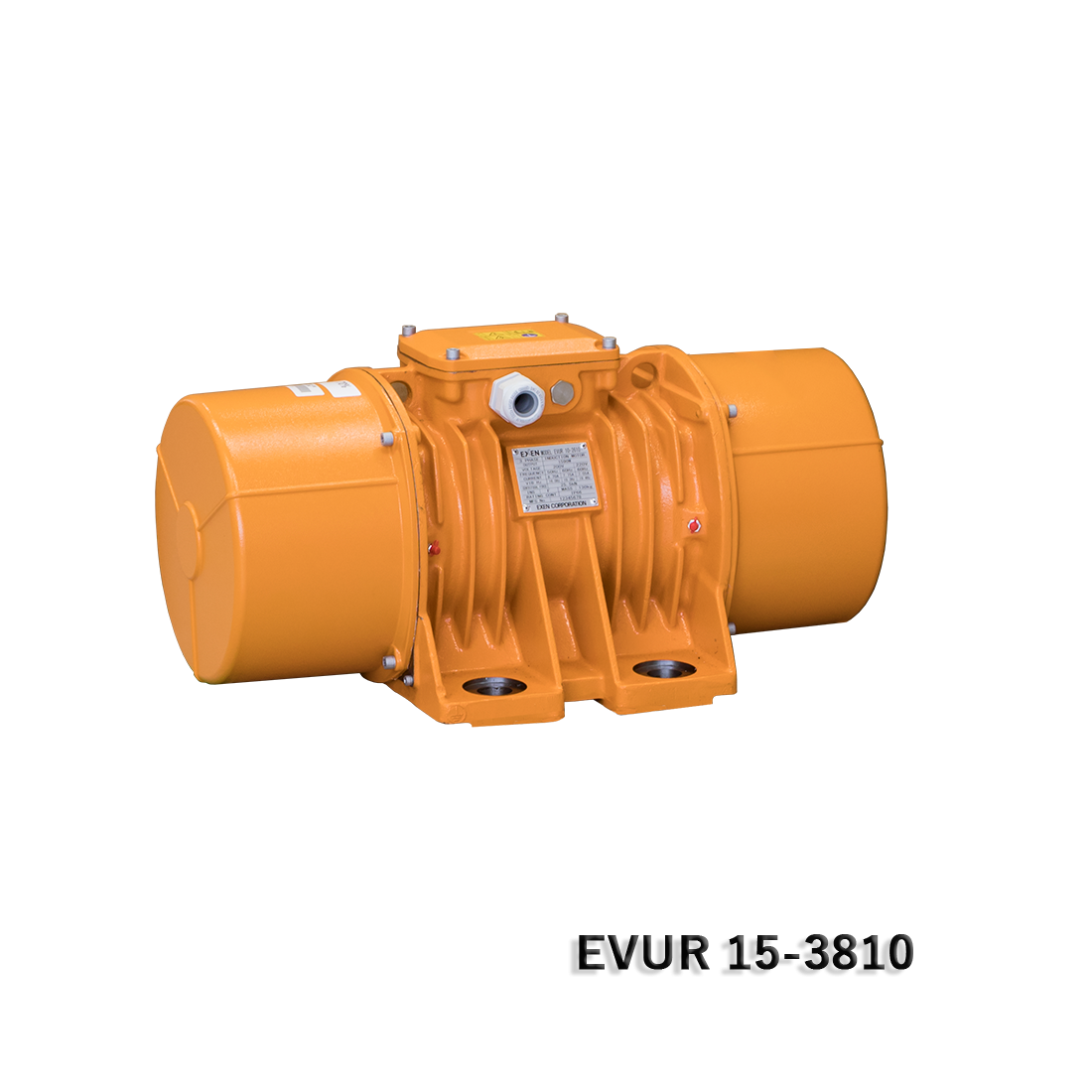

EVUR 15series dimensional drawings
EVUR 15-2410 / 3810 / 5010 dimensional table
| Model | E | F | G | C | H | L | N | M | P | Φd |
|---|---|---|---|---|---|---|---|---|---|---|
| EVUR 15-2410 | 260 | 150 | 22 | 132.5 | 271 | 537 | 210 | 320 | 4 | 26 |
| EVUR 15-3810 | 310 | 170 | 28 | 155 | 329 | 584 | 240 | 380 | 33 | |
| EVUR 15-5010 | 350 | 220 | 33 | 166 | 361 | 630 | 300 | 430 | 38 |
(Imperial System)
| Model | E | F | G | C | H | L | N | M | P | φd |
|---|---|---|---|---|---|---|---|---|---|---|
| EVUR 15-2410 | 10 15/64 | 5 29/32 | 55/64 | 5 7/32 | 10 43/64 | 21 9/64 | 8 17/64 | 12 19/32 | 5/32 | 1 1/32 |
| EVUR 15-3810 | 12 13/64 | 6 11/16 | 1 7/64 | 6 7/64 | 12 61/64 | 22 63/64 | 9 29/64 | 14 61/64 | 1 19/64 | |
| EVUR 15-5010 | 13 25/32 | 8 21/32 | 1 19/64 | 6 17/32 | 14 7/32 | 24 51/64 | 11 13/16 | 16 59/64 | 1 1/2 |
