Fin Head
Product Overview
The fin head is designed to transmit powerful vibrations that remove trapped air bubbles from concrete, increase concrete density, and ensure uniform distribution of aggregate, resulting in stronger and higher-quality concrete. Its specially designed fin-shaped tip provides superior vibration transmission for efficient concrete consolidation.
Key Features

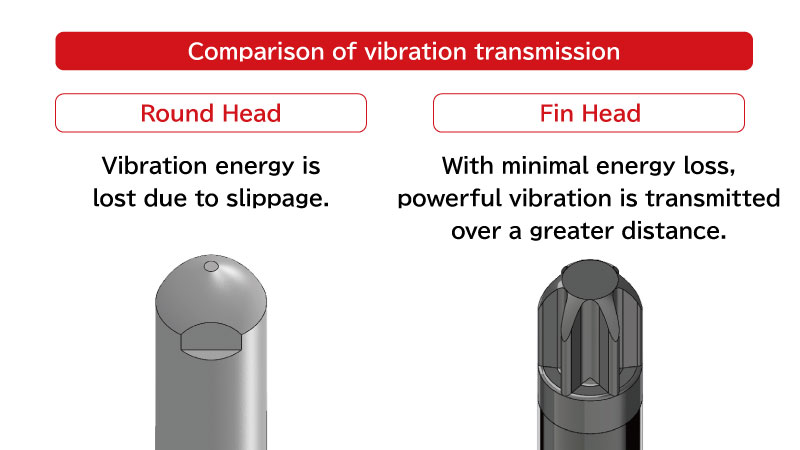

Fin Head Design for Enhanced Compaction Performance
The six-fin design minimizes energy loss caused by slippage, enabling more efficient vibration transmission than conventional round types. The improved tip shape also helps reduce concrete scattering during placement.

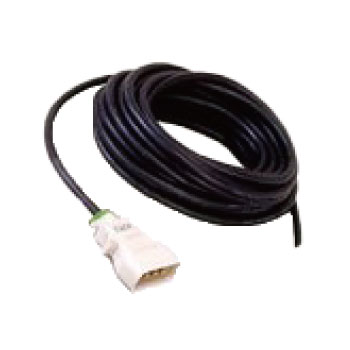

Eco-Friendly Product
HBM Series features an eco-friendly cabtyre cable made from environmentally responsible materials. Compared with our previous models, the cable is approximately 10% lighter, improving handling and ease of use.
* Environmentally friendly materials refer to materials that do not contain halogen elements such as chlorine, which can generate harmful substances during incineration or landfill disposal, or lead components that may pose risks to the human body.
They also include materials that are easy to recycle.
Easy Maintenance
ZX type features an integrated rotor and shaft structure (excluding 30ZX). VF type uses separate rotor and shaft components to improve maintainability.
Both types can be disassembled with the bearings retained on the rotor and shaft assemblies, ensuring excellent serviceability. Proven long-life, grease-filled bearings are used for enhanced durability and reliability.

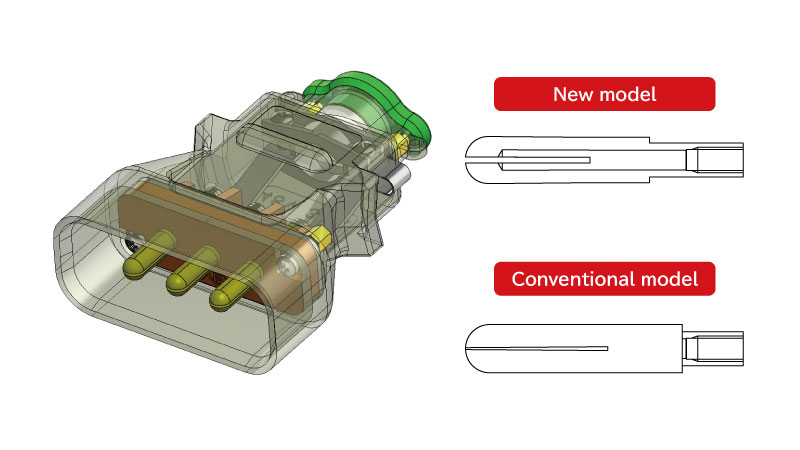

Newly Designed Plug
To reduce the risk of motor burnout caused by poor contact at the plug connection, a newly developed plug equipped with a Super Tough Pin has been adopted. The Super Tough Pin maintains its elasticity semi-permanently, preventing poor contact at the plug connection.
Stable Vibration Performance
HBM is equipped with a high-output three-phase AC motor that delivers smooth rotation and reliable performance. Unlike single-phase motors, which can suffer from uneven rotation and lower output, the three-phase motor provides powerful and stable vibration for consistent results.
Improved Durability
The tip and vibrator head are made of highly wear-resistant materials, delivering exceptional durability, reduced wear, and longer service life in demanding concrete vibration applications.
Reduced Hand-Transmitted Vibration
The vibration balance of HBM series has been optimized to minimize vibration transmitted to the operator. In addition, the newly designed hose absorbs part of the vibration, further reducing hand-transmitted vibration.
Models
| Model | Item Code | Downloads |
|---|---|---|

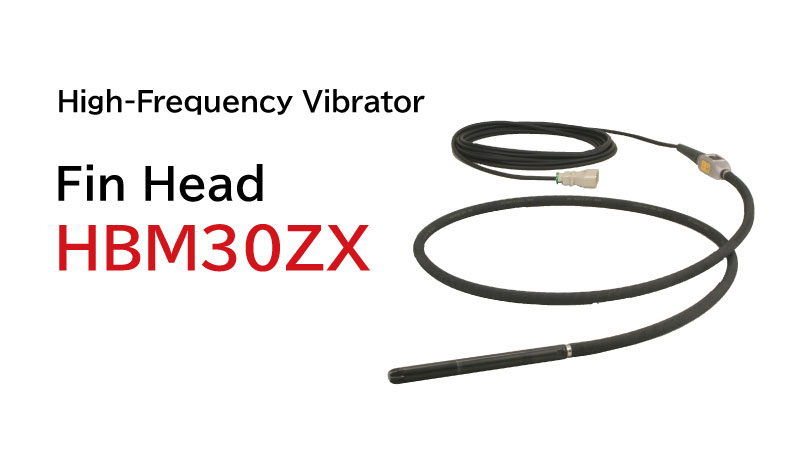

| HBM30ZX 1.5m | 000081000 (*1) | Downloads |
| HBM30ZX 4m | 000156000 | |
| HBM30ZX 5m | 000269000 (*1) | |
| HBM30ZX 6m | 000270000 | |
| HBM30ZX 8m | 000272000 (*1) | |

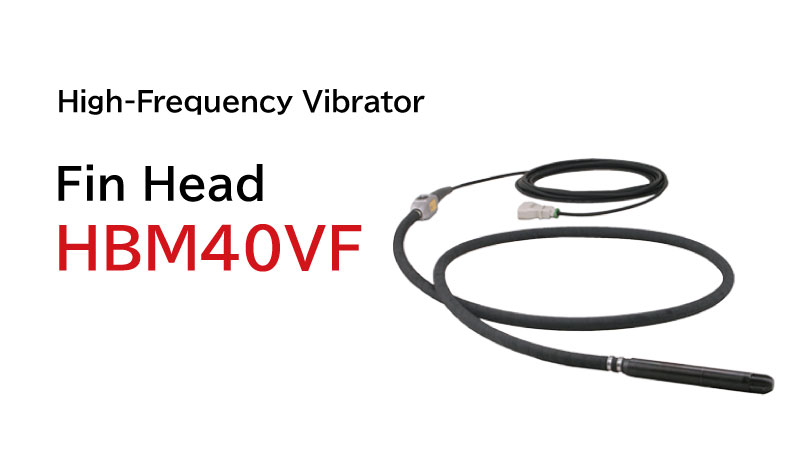

| HBM40VF 4m | 001165000 | Downloads |
| HBM40VF 6m | 001166000 | |

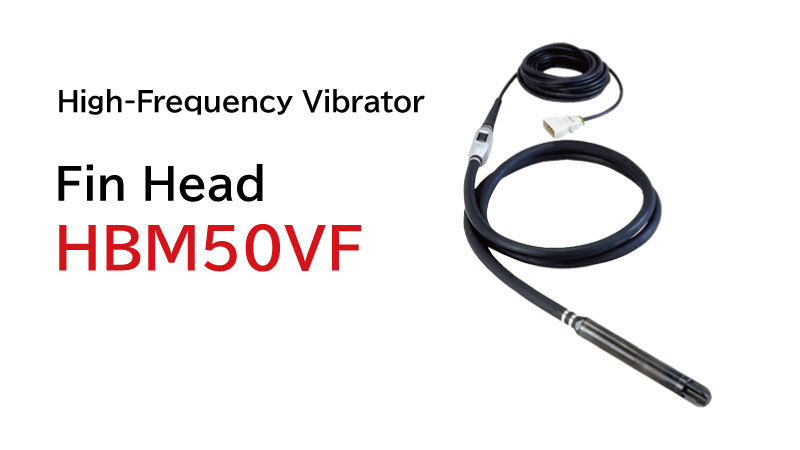

| HBM50VF 4m | 001175000 | Downloads |
| HBM50VF 6m | 001176000 |
*1 This product is made to order. Please contact us for delivery time.
* All models include a 15 m cable as standard.
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Fin Head
Metric
| Model | Output (W) | Voltage (V) | Current (A) | Frequency (Hz) | Total Length (mm) | Head Length (Dia. × Length) (mm) | Hose Length (Dia. × Length) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HBM30ZX | 130 | 48 | 3.5 | 200 / 400 | 6530 | 31 × 376 | 28 × 6，000 | 9.6 |
| HBM40VF | 250 | 5.5 | 6502 | 43 × 340 | 33 × 6，000 | 12.1 | ||
| HBM50VF | 400 | 9 | 6552 | 52 × 390 | 36 × 6，000 | 16.1 |
Imperial
| Model | Output (W) | Voltage (V) | Current (A) | Frequency (Hz) | Frequency (VPM) | Total Length (ft) | Head Length (Dia. × Length) (in × ft) | Hose Length (Dia. × Length) (in × ft) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| HBM30ZX | 130 | 48 | 3.5 | 200 / 400 | 12,000 / 24,000 | 21.5 | 1.2 × 1.3 | 1.1 × 19.7 | 21.2 |
| HBM40VF | 250 | 5.5 | 21.4 | 1.7 × 1.2 | 1.3 × 19.7 | 26.7 | |||
| HBM50VF | 400 | 9 | 21.5 | 2.0 × 1.3 | 1.4 × 19.7 | 35.5 |
* Weight includes the external cable of 15 m (49.2 ft) (3.8 kg / 8.4 lb for 30ZX to 40VF, 4.9 kg / 10.8 lb for 50VF).
* Please refer to each page for "Extension Cable Selection Chart" and "High-Frequency Vibrator Available Units Table".
