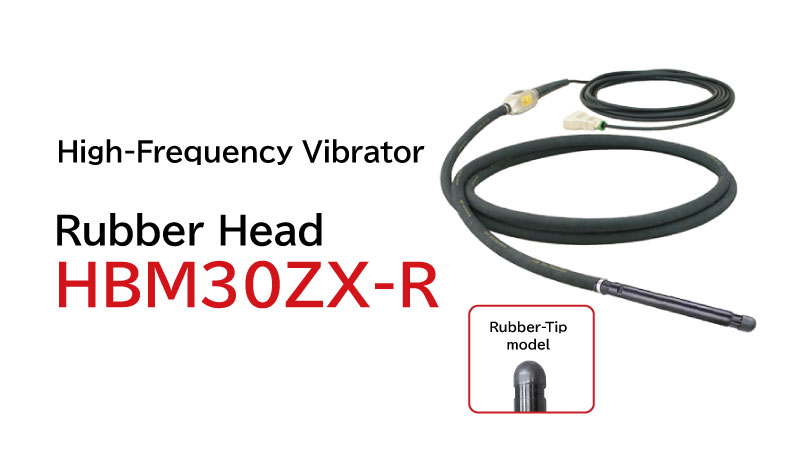

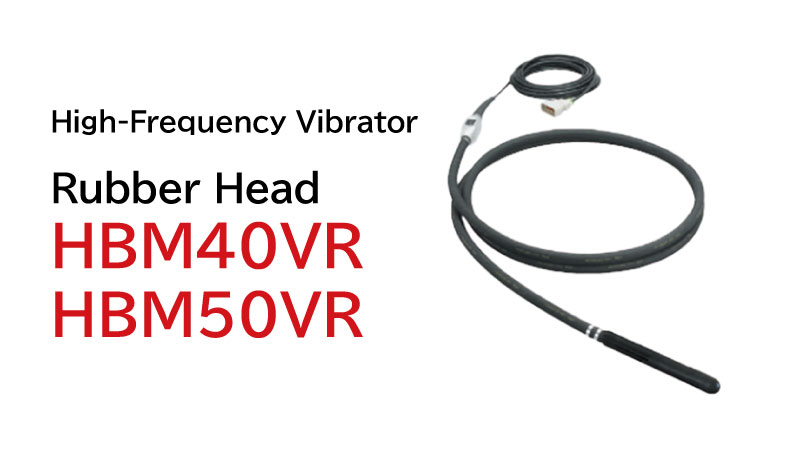

High-Frequency Vibrator Rubber Head
Product Overview
The rubber head is designed to deliver powerful vibration for high-strength concrete placement, eliminating air voids, increasing concrete density, and promoting uniform aggregate distribution for improved concrete quality. When fitted to the vibrator tip, it also helps reduce placement noise and prevents damage to tile formwork.
Key Features
Rubber Head

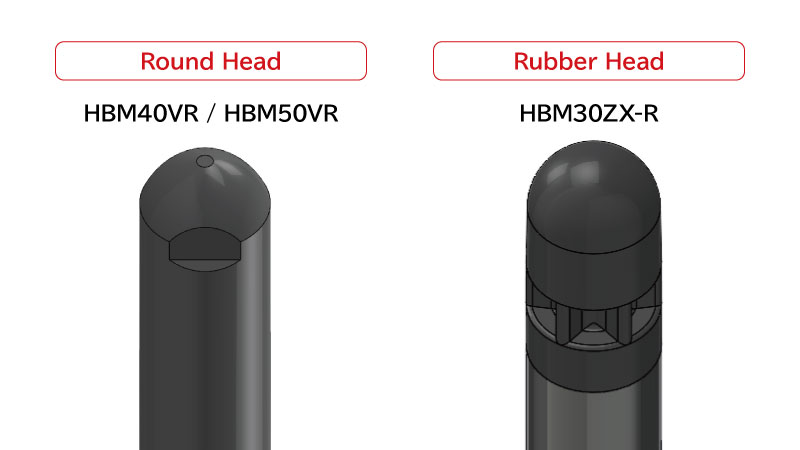

The rubber head reduces noise during concrete placement and helps protect formwork, reinforcing bars, and tile surfaces from damage caused by contact with the vibrator tip.
Eco-Friendly Product

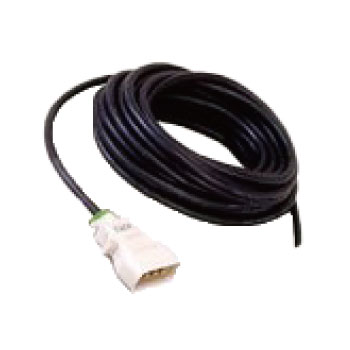

HBM Series features an eco-friendly cabtyre cable made from environmentally responsible materials. Compared with our previous models, the cable is approximately 10% lighter, improving handling and ease of use.
* Environmentally friendly materials refer to materials that do not contain halogen elements such as chlorine, which can generate harmful substances during incineration or landfill disposal, or lead components that may pose risks to the human body. They also include materials that are easy to recycle.
Easy Maintenance
ZX type features an integrated rotor and shaft structure (excluding 30ZX). VF type uses separate rotor and shaft components to improve maintainability.
Both types can be disassembled with the bearings retained on the rotor and shaft assemblies, ensuring excellent serviceability. Proven long-life, grease-filled bearings are used for enhanced durability and reliability.
Newly Designed Plug

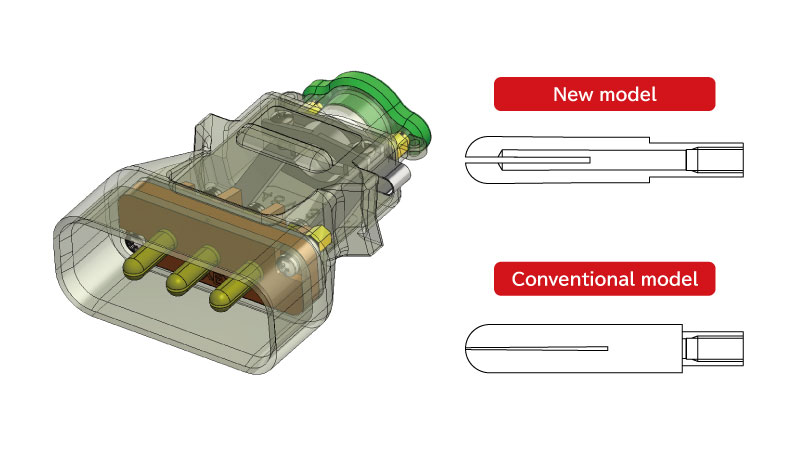

To reduce the risk of motor burnout caused by poor contact at the plug connection, a newly developed plug equipped with a Super Tough Pin has been adopted. The Super Tough Pin maintains its elasticity semi-permanently, preventing poor contact at the plug connection.
Stable Vibration Performance
HBM is equipped with a high-output three-phase AC motor that delivers smooth rotation and reliable performance. Unlike single-phase motors, which can suffer from uneven rotation and lower output, the three-phase motor provides powerful and stable vibration for consistent results.
Improved Durability
The tip and vibrator head are made of highly wear-resistant materials, delivering exceptional durability, reduced wear, and longer service life in demanding concrete vibration applications.
Reduced Hand-Transmitted Vibration
The vibration balance of HBM series has been optimized to minimize vibration transmitted to the operator. In addition, the newly designed hose absorbs part of the vibration, further reducing hand-transmitted vibration.
Specifications
Rubber Head
Metric
| Model | Output （W） | Voltage （V） | Current （A） | Cycle (Hz) | Frequency （Hz） | Total Length （mm） | Head Length (dia. × length) （mm） | Hose Length (dia. × length) （mm） | Weight （kg） |
|---|---|---|---|---|---|---|---|---|---|
| HBM30ZX-R | 130 | 48 | 3.5 | 200 / 240 | 200 / 240 | 6,554 | 31 × 400 | 28 × 6000 | 9.6 |
| HBM40VR | 250 | 5.5 | 6,520 | 43 × 366 | 33 × 6000 | 12.2 | |||
| HBM50VR | 400 | 9.0 | 6,571 | 52 × 417 | 36 × 6000 | 16.3 |
Imperial
| Model | Output （W） | Voltage （V） | Current （A） | Cycle (Hz) | Frequency （VPM） | Total Length （ft） | Head Length (dia. × length) (in × ft) | Hose Length (dia. × length) (in × ft) | Weight （lb） |
|---|---|---|---|---|---|---|---|---|---|
| HBM30ZX-R | 130 | 48 | 3.5 | 200 / 240 | 12,000 / 14,400 | 21.5 | 1.2 × 1.4 | 1.1 × 19.7 | 21.2 |
| HBM40VR | 250 | 5.5 | 21.4 | 1.7 × 1.3 | 1.3 × 19.7 | 26.9 | |||
| HBM50VR | 400 | 9 | 21.6 | 2.1 × 1.4 | 1.4 × 19.7 | 36 |
* Weight includes the external cable of 15 m (49.2 ft) (3.8 kg / 8.4 lb for 30ZX-R to 40VR, 4.9 kg / 10.8 lb for 50VR).
* All models are equipped with a 15 m (49.2 ft) external cable as standard.
* Please refer to each page for "Extension Cable Selection Chart" and "High-Frequency Vibrator Available Units Table".

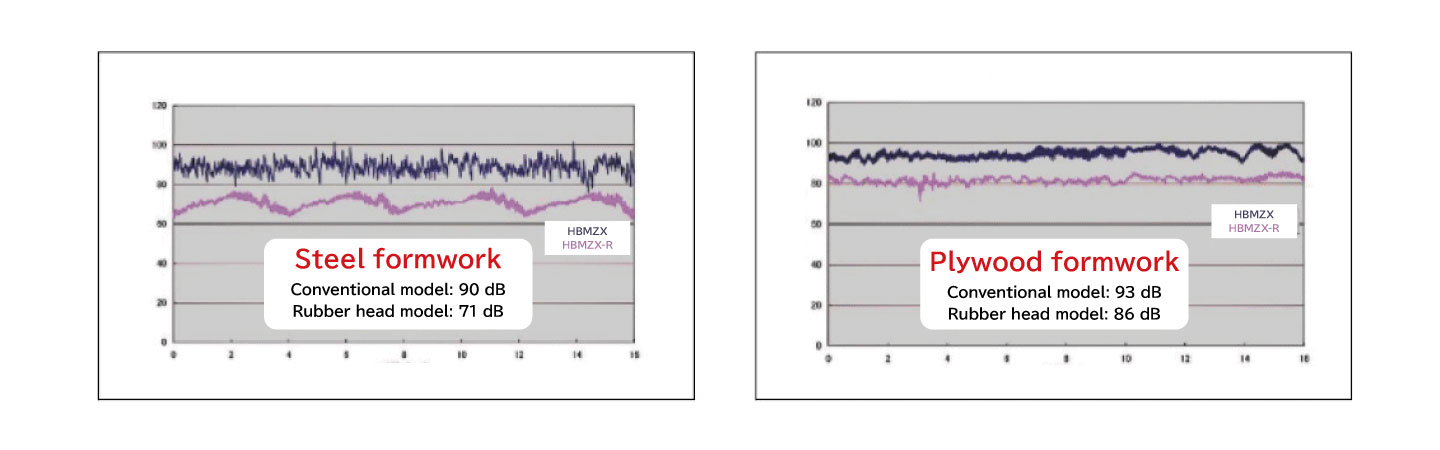

Equivalent Noise Level (dB) / Reference Value [When Using 40 mm]
