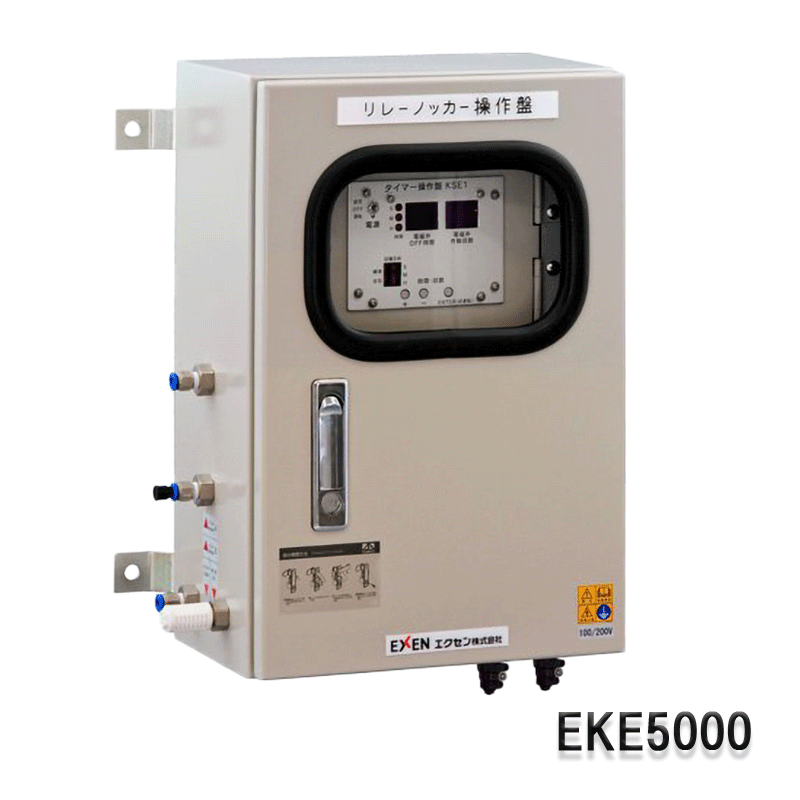

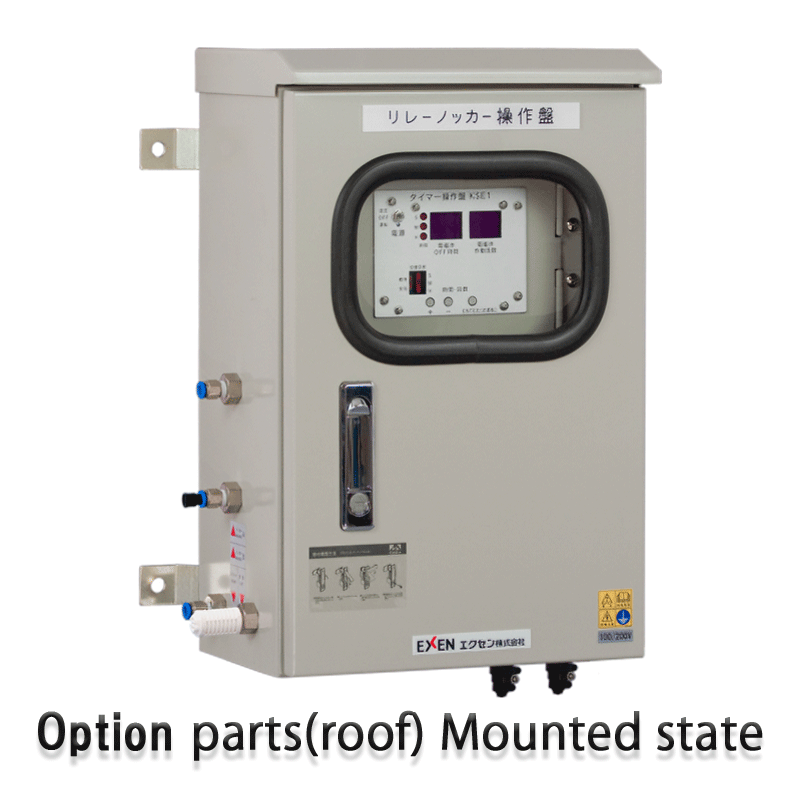

EKE5000 model is a control panel for indoor and outdoor use that can controls the operation interval of air knocker, Mini Mini Blaster, and soft disk blaster and that can operate two lines of A and B with the solenoid valve included. （IP code 44 draining waterproof) The input power voltage is 100ＶAC to 240ＶAC. （Input power voltage of 24VDC can be supported: built-to-order product) The timer can be set in wide range of time from 1 second to 99 hours, and the timer display employing LED is easily viewable. In addition to the timer control, the control of the number of times of operations is also possible.
The product can be adapted to almost all fields because one control panel supports the input power with single-phase 100VAC to 240VAC voltage. The output voltage is the same as the input voltage. (The product supporting the input of 24VDC is a built-to-order product.)

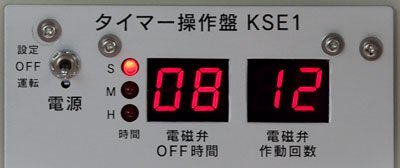

The timer is displayed in bright and clear LED display, which allows the setting time to be checked even in a dark site.
The timer is set by opening the cover and then flipping the switches of second, minute, and hour with a finger to easily set second, minute, and hour to 0.5, 1 to 99 seconds, 1 to 99 minutes, and 1 to 99 hours, respectively.
After the interval time of operation is set, the number of times of operations can also be set easily. The setting number is 1 to 99, and infinite. It is convenient that the remaining number of times from start to end is also displayed.
When using the knockers divided into two lines by use of the port solenoid valve, select "Alternation" mode to perform the alternating operation of two lines of A and B. （the same as the function of knocker control panel HKE series) If only A line is used with the timer setting time long, select "Standard" mode. The product is factory-set to "Alternation" mode.
The number of knockers that can be used (RKV, RKD, and RKVS, under standard piping) by EKE5000 model.15:10 sets, 20 and 30: 8 sets, 40 and 60: 6 sets, 80 and 100: 4 sets, 120: 2 sets (simultaneous control per line) (When the relay piping is used, up to 10 knockers can be used per line regardless of model)
With a structure complying with IP code IP44 draining waterproof and dustproof, EKE5000 model can be used both indoors and outdoors. It can be installed to any site where there is a large amount of dust or outdoors.
The use of external contact (a-contact) of terminal block in control panel allows the knocker to start striking upon receiving the hopper opening-closing valve signal or the conveyance line signal, which is convenient to remote operation during automatic control.
After the operation interval time is set in timer setup, if the number of times of operations is set to infinite, the knocker continues operation while external signal is received.
Before the timer is set, it is possible to check whether the relay knocker or blaster installed operates correctly, by setting the power switch on the panel to "Setup" and then pressing "Enter" key.

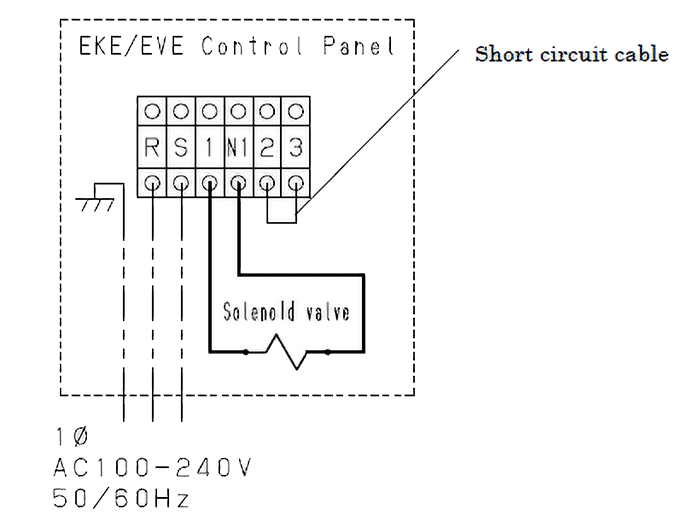

"2" and "3" of terminal block are used when the control panel is controlled externally. Use the control panel with a switch is connected between "2" and "3" of terminal block.
| Model | Code Number | Product Drawing Download |
|---|---|---|
| EKE5000 | 001057000 | Product Drawing Download |
| Model | Protection Class |
Input Voltage (V) |
Timer's Set Time |
Stroke Cycle |
Working Pressure (MPa) |
Number Of The Units Can Be Operated |

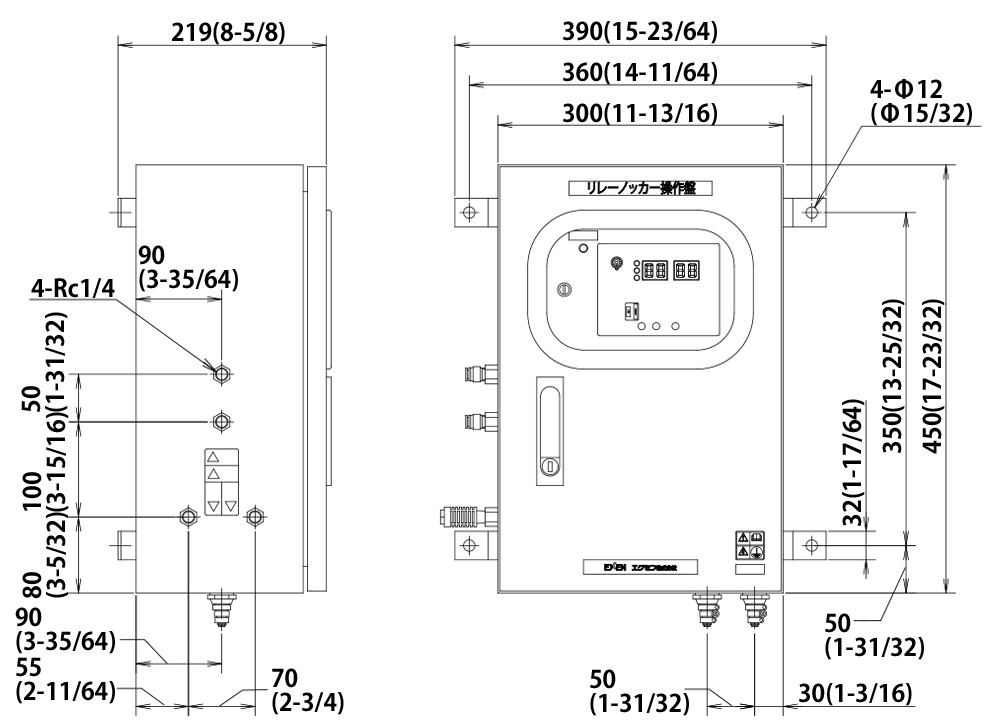

Approx dimensions (L×W×H) (mm) |
Weight （kg) |
|---|---|---|---|---|---|---|---|---|
| EKE5000 | IP44 | Single Phase AC100-240 |
On Setting 0.5sec |
1-99. Infinity |
0.3-0.7 | RKVS15 10units. RKV/RKVS20 8units. RKV/RKD/RKVS30 8units. RKV/RKD/RKVS40 6units. RKV/RKD/RKVS60 6units. RKV/RKD80 4units. RKV/RKD100 4units. RKV/RKD120 2units. (Normal piping per system) |
450×390x219 | 13.7 |
| Off Setting 1sec-pphrs |
（Imperial System）
| Model | Protection Class |
Input Voltage (V) |
Timer's Set Time |
Stroke Cycle |
Working Pressure (PSI) |
Number Of The Units Can Be Operated |
Approx dimensions (L×W×H) (inch) |
Weight （lb) |
|---|---|---|---|---|---|---|---|---|
| EKE5000 | IP44 | Single Phase AC100-240 |
On Setting 0.5sec |
1-99. Infinity |
44-102 | RKVS15 10units. RKV/RKVS20 8units. RKV/RKD/RKVS30 8units. RKV/RKD/RKVS40 6units. RKV/RKD/RKVS60 6units. RKV/RKD80 4units. RKV/RKD100 4units. RKV/RKD120 2units. (Normal piping per system) |
17-1/32x15-1/64x8-5/8 | 30.20 |
| Off Setting 1sec-pphrs |
