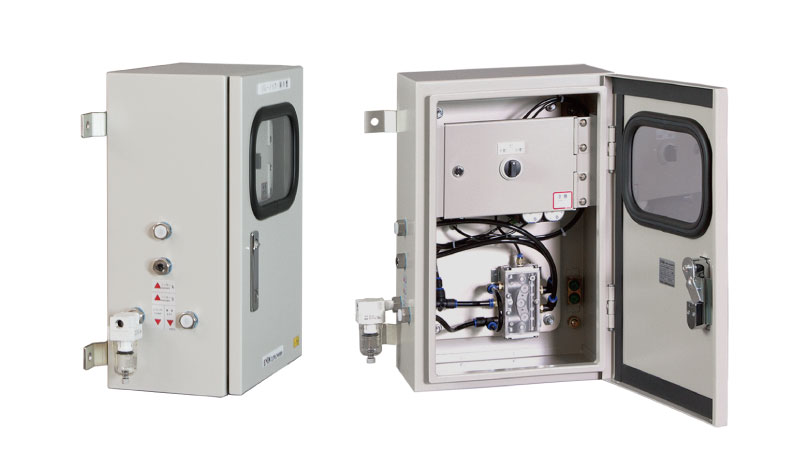

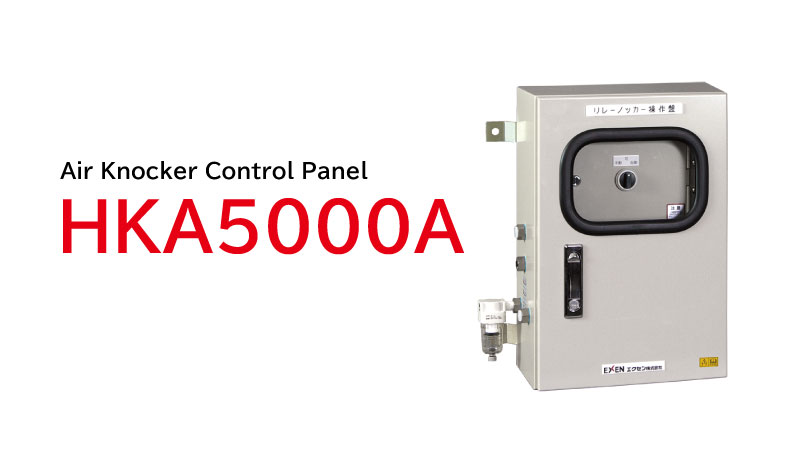

Air Knocker Pneumatic Control Box (Indoor / Outdoor)
Product Overview
The control panel requires only a compressed air supply to operate and control Air Knocker operating intervals.
With no electrical power required, it is ideal for applications where power is unavailable or in hazardous areas.
Key Features
Air-Powered Control with No Electrical Supply Required

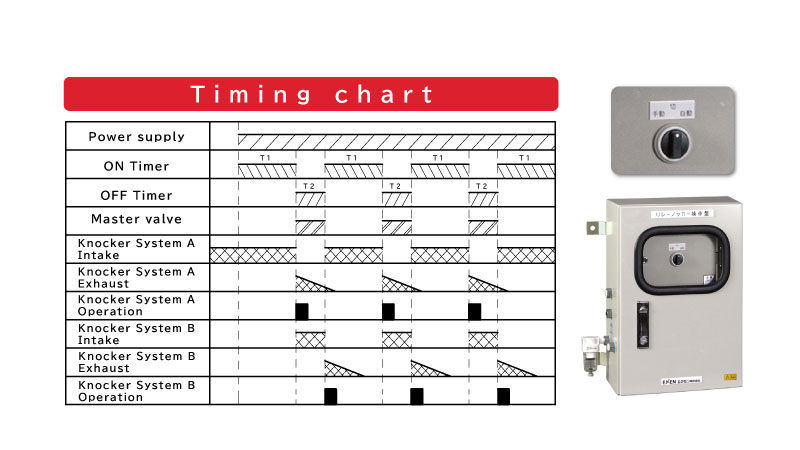

The controller operates using only compressed air, with no electrical power required, and controls both timer operation and manual/automatic mode selection.
Operating intervals can be adjusted up to 180 seconds.

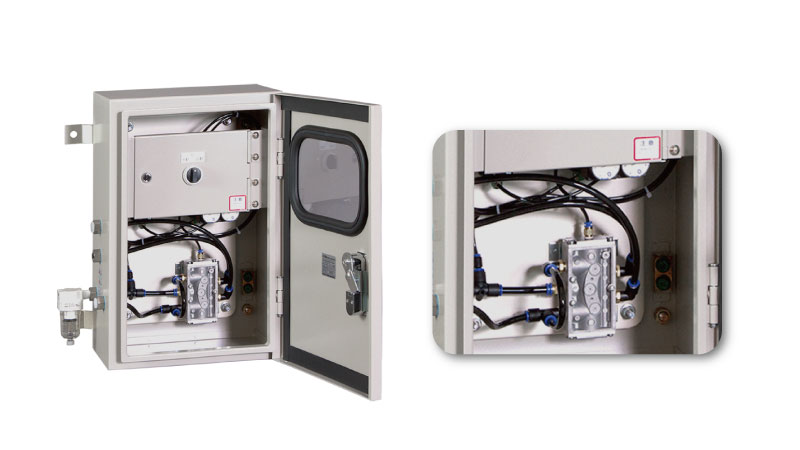

IP44 Protection for Harsh Environments
HKA5000A features IP44-rated protection, making it suitable for both indoor and outdoor applications.
It provides reliable operation even in dusty and demanding environments.
Ideal for Hazardous Area Applications
This control panel is designed for Air Knocker operation in areas where dust explosions or ignition may occur. By using N₂ (nitrogen) instead of air, it helps reduce the risk of explosions and improve workplace safety.
It is ideal for applications handling combustible powders and materials that require enhanced safety measures.
Selectable Manual or Automatic Operation
Manual or automatic operation can be easily selected using the selector switch.

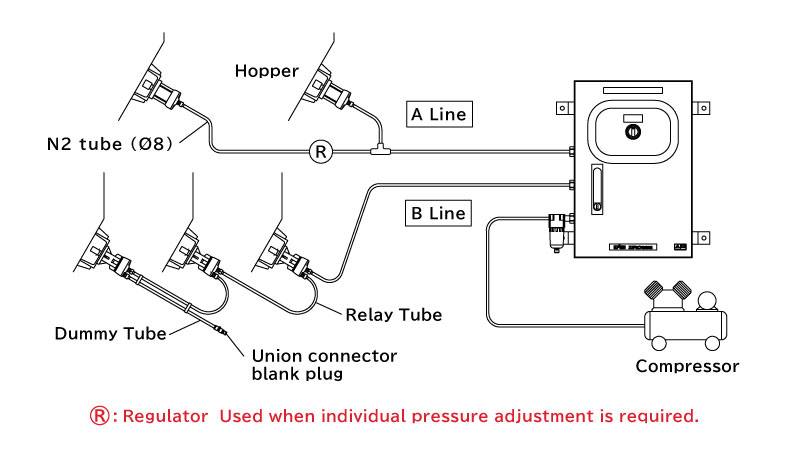

Control Multiple Air Knockers with One Control Panel (HKA5000A)
Models
| Model | Item Code | Downloads |
|---|---|---|
| HKA5000A | 000929000 | Downloads |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Pneumatic Control Box (Indoor / Outdoor)
Metric
| Model | Protection Class | Power Supply | Timer's Set Time | Working Pressure (MPa) | Number of the units can be operated | Weight （kg） |
|---|---|---|---|---|---|---|
| HKA5000A | IP44 | Air control | ＯＮ : 10-180sec ＯＦＦ : 0.1-30sec | 0.3-0.7 | RKVS15 10 units RKV / RKVS20 8 units RKV / RKD / RKVS30 8 units RKV / RKD / RKVS40 6 units RKV / RKD / RKVS60 6 units RKV / RKD80 4 units RKV / RKD100 4 units RKV / RKD120 2 units (Normal piping per system） | 12.0 |
Imperial
| Model | Protection Class | Power Supply | Timer's Set Time | Working Pressure (PSI) | Number of the units can be operated | Weight （lb） |
|---|---|---|---|---|---|---|
| HKA5000A | IP44 | Air control | ＯＮ : 10-180sec ＯＦＦ : 0.1-30sec | 44-102 | RKVS15 10 units RKV / RKVS20 8 units RKV / RKD / RKVS30 8 units RKV / RKD / RKVS40 6 units RKV / RKD / RKVS60 6 units RKV / RKD80 4 units RKV / RKD100 4 units RKV / RKD120 2 units (Normal piping per system） | 26.4 |
* Please contact us for custom control panels other than those listed above.
