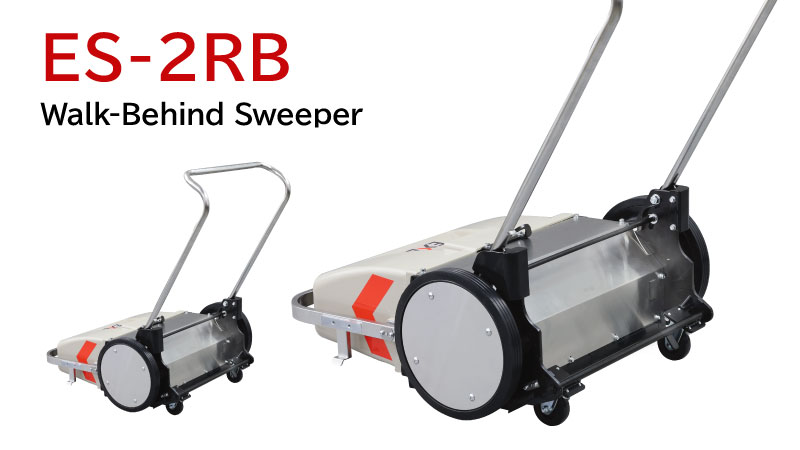

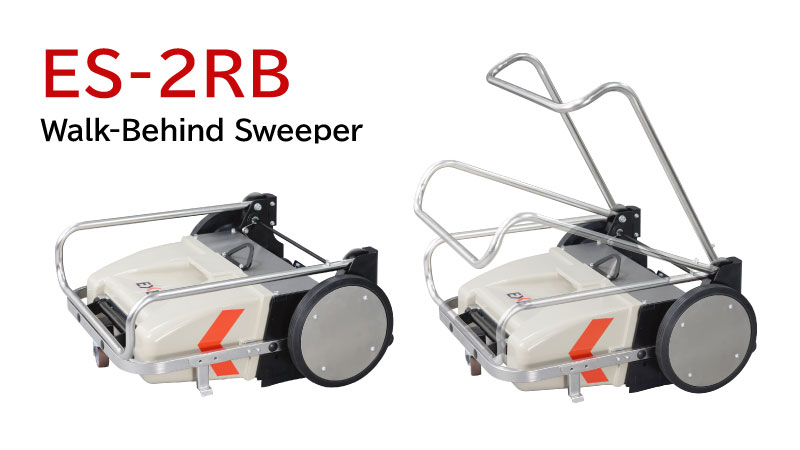

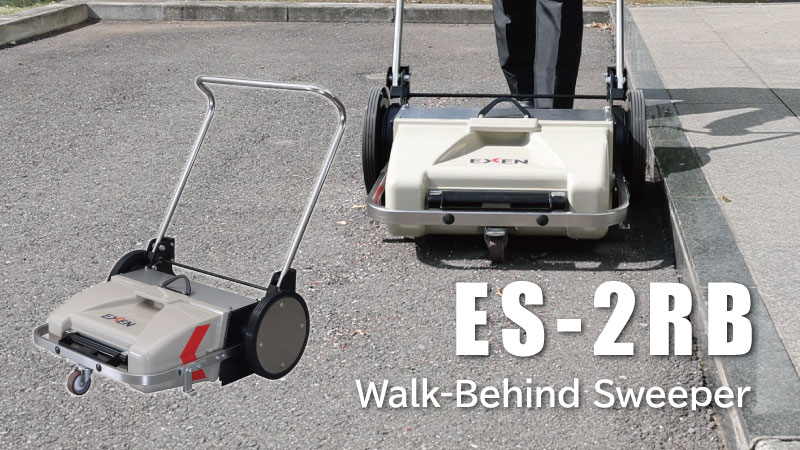

Sweeper Walk-Behind Sweeper
Product Overview
Clean large areas in a short time with minimal effort—just push and walk. The dust box is made of ABS plastic, offering excellent resistance to rust and dirt. Ideal for a wide range of indoor and outdoor applications, including factories, warehouses, parking lots, construction sites, and station premises and platforms.
Key Features
Captures Fine Dust Efficiently, Large Dust Case Capacity
The rotating brush is driven by the two large wheels, collecting even fine dust and debris into a large-capacity dust box. Optional side brushes are available for even more efficient debris collection.

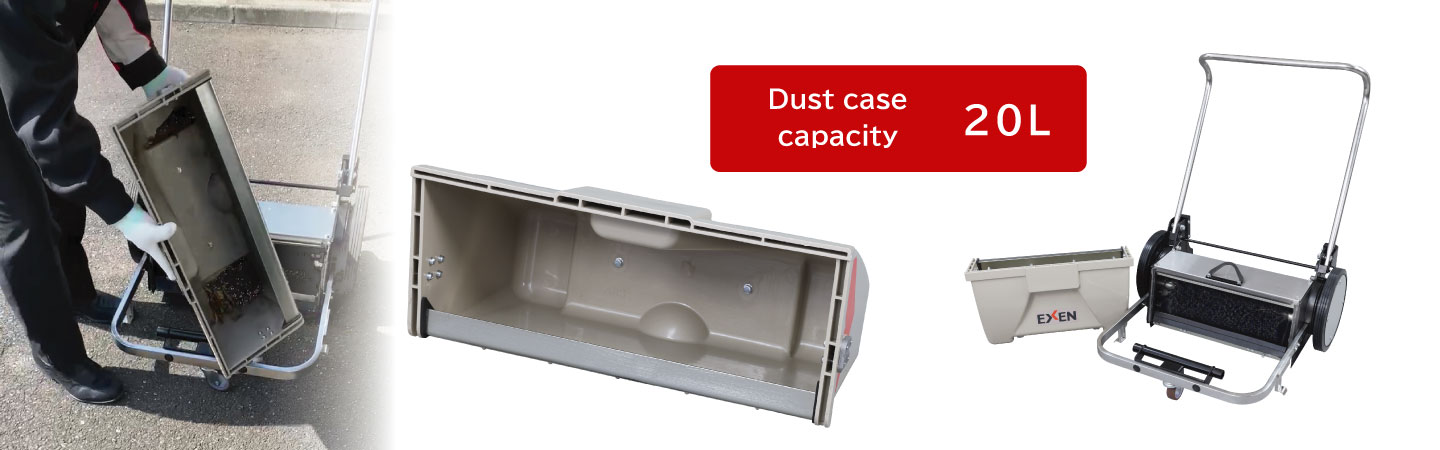

Highly Impact-Resistant Dust Case
The 20L large-capacity dust case is made from ABS resin, providing excellent impact resistance and durability. Suitable for large-area cleaning in a wide range of environments, including parks, parking lots, warehouses, and commercial facilities. The removable dust box lifts out easily for quick debris disposal and can be washed with water, ensuring clean and hygienic operation at all times.

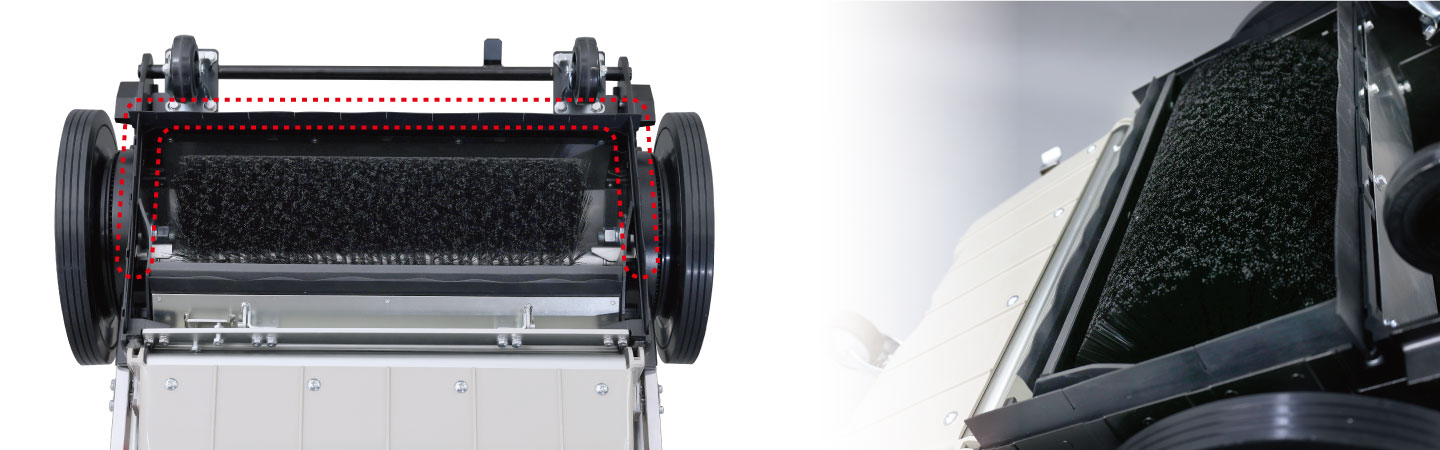

Captures Even Fine Dust and Debris Without Escape
Sheets (flaps) attached to the sides and rear of the roller brush prevent dust and debris stirred up by the brush from scattering.

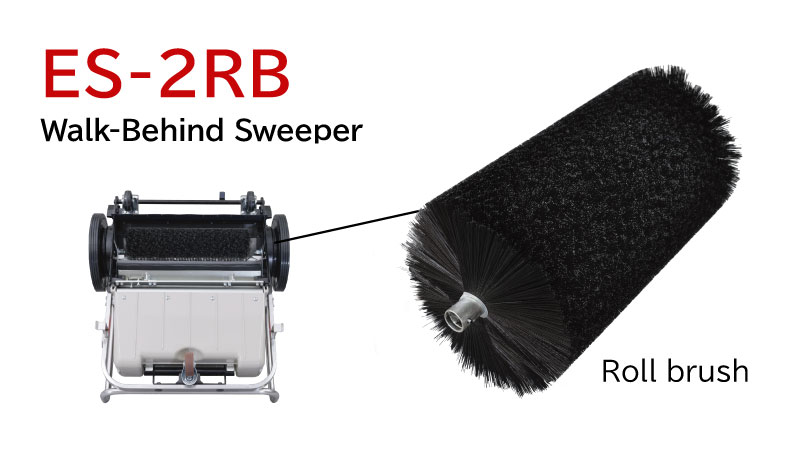

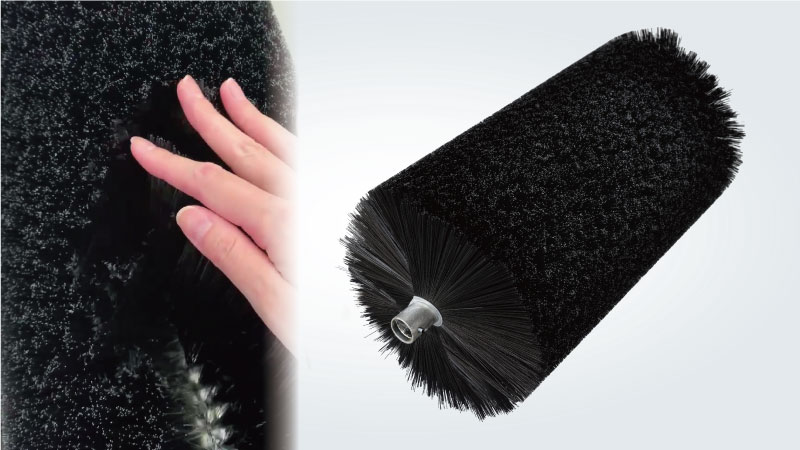

High-Density Roller Brush
The high-density, soft bristles of the polypropylene roller brush—featuring excellent abrasion resistance, flex recovery, elasticity, and heat resistance—are designed to capture even fine debris and direct it into the dust case.

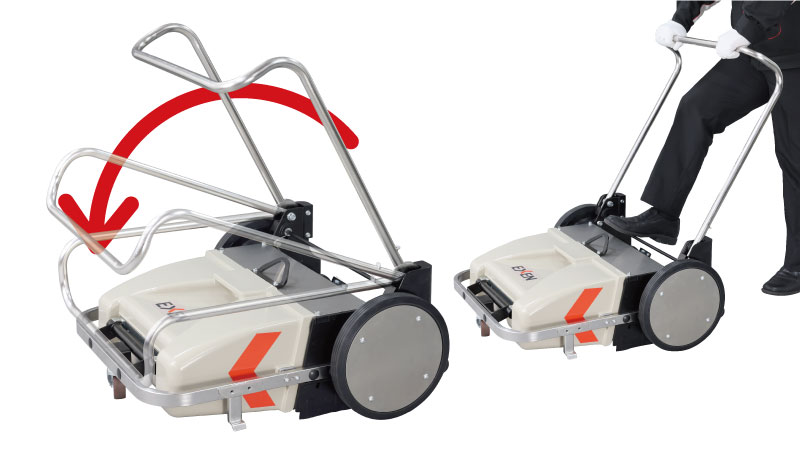

Stainless Steel Handle Designed to Minimize Rattling During Movement
The stainless steel handle is resistant to scratches and rust, and is designed for a comfortable grip, minimizing rattling for smooth operation. The handle lock can be released by stepping on the lock bar, allowing the handle to be easily folded.

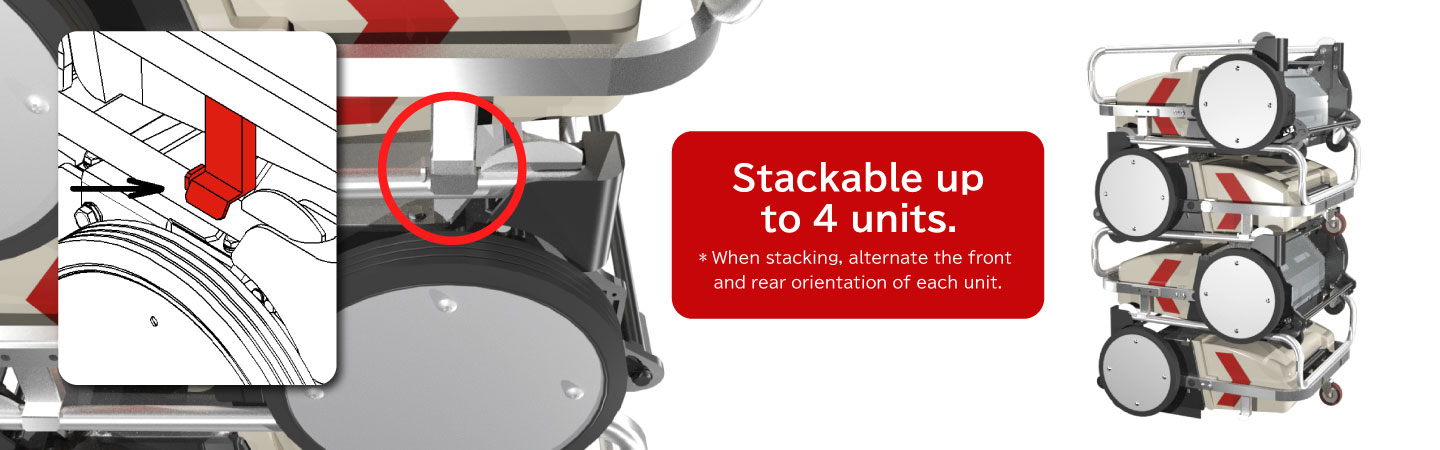

Stackable for Compact Storage
Up to 4 units can be stacked for compact storage. When stacking, place the frame legs between the handle fittings and the semicircular protrusions.

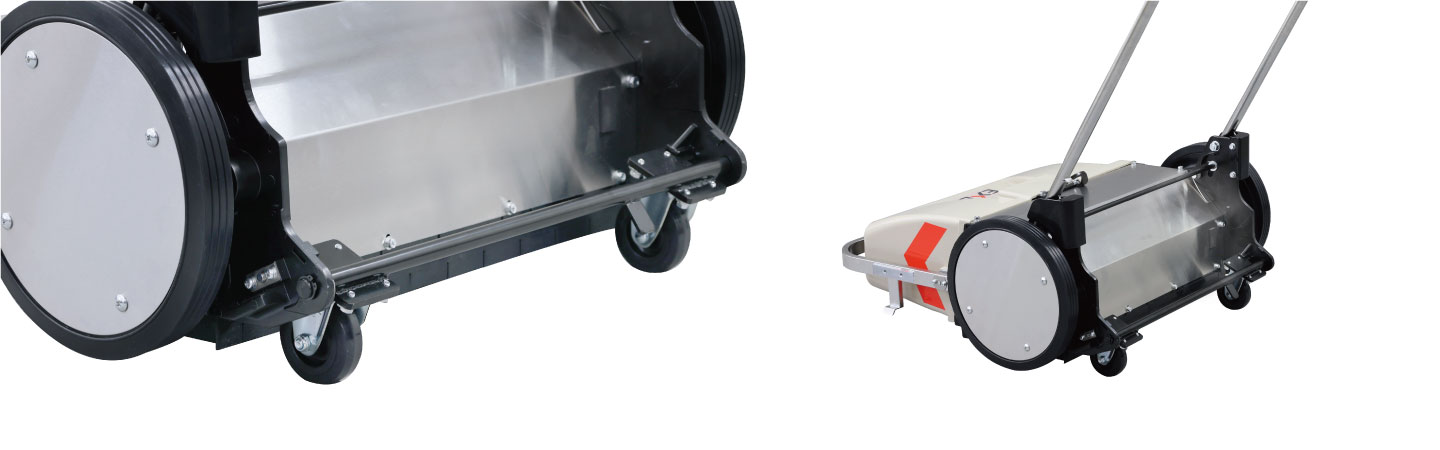

Optional Casters for Easy Mobility
Using casters makes it easier to move the unit to the cleaning area and ensures smooth maneuverability. They also help prevent deformation of the roller brush during storage by keeping it off the ground.

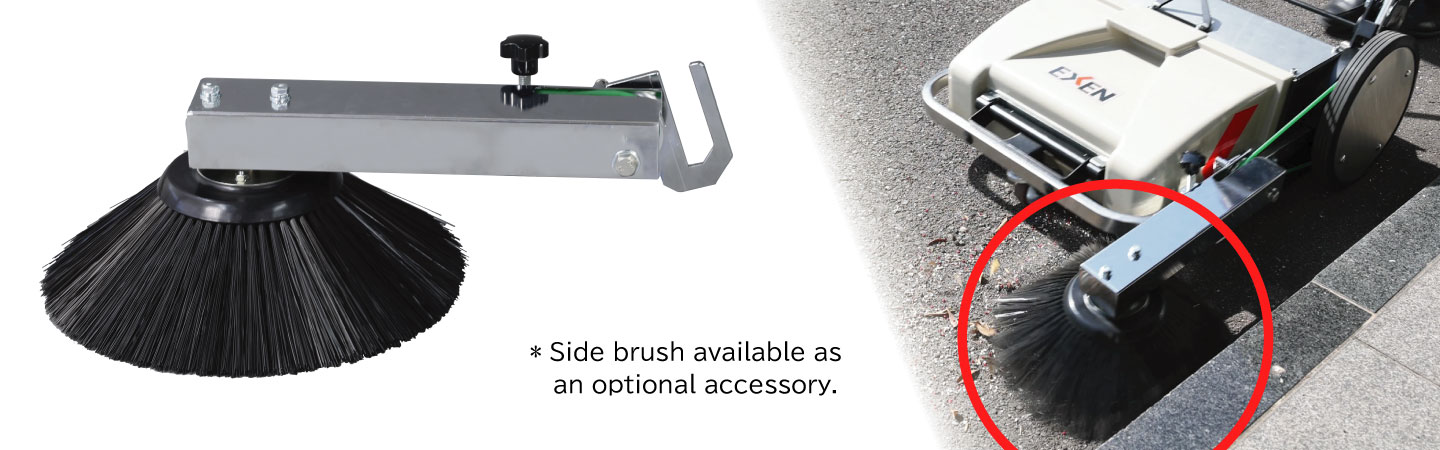

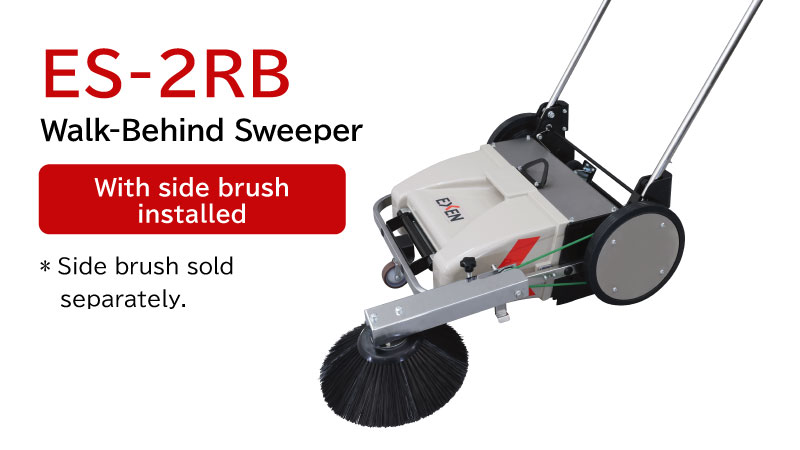

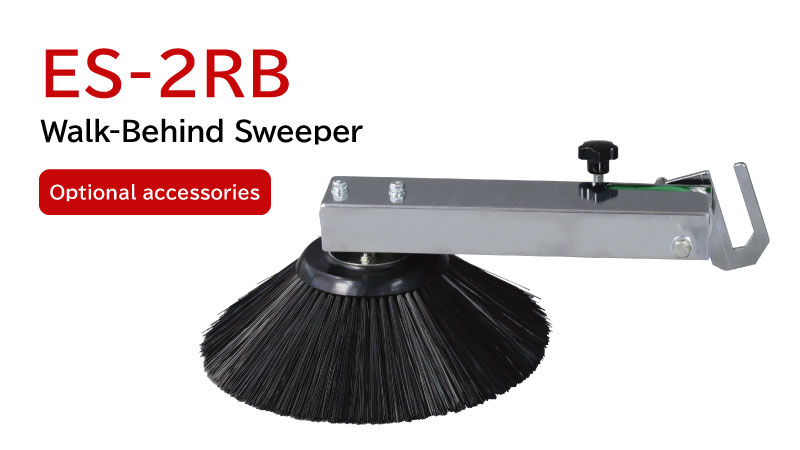

Effectively Collects Dust and Debris Along Walls
The side brush effectively collects dust and debris along walls. The side brush can also be installed easily without tools.
How to Attach the ES-2RB Side Brush

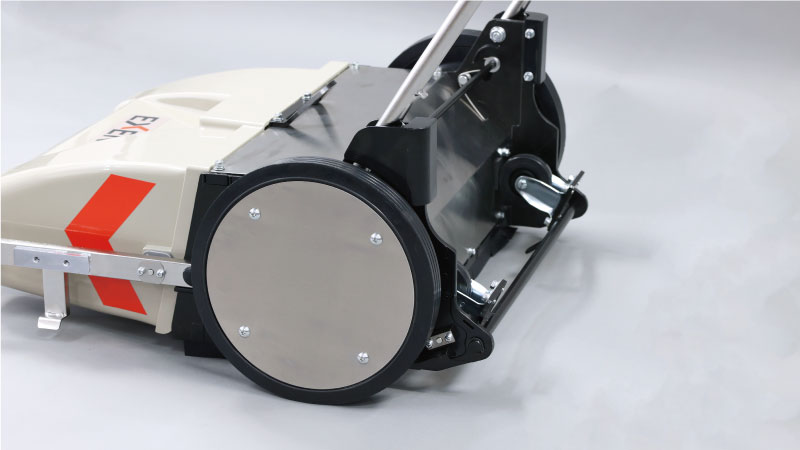

Stable Drive Wheels
The Φ280 mm wheels and tires offer excellent durability and support smooth, stable operation.
Models
| Model | Item Code | Downloads |
|---|---|---|
| ES-2RB | 001884000 | Downloads |
| ES-2SB (Side brush) | 001883000 | ― |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.

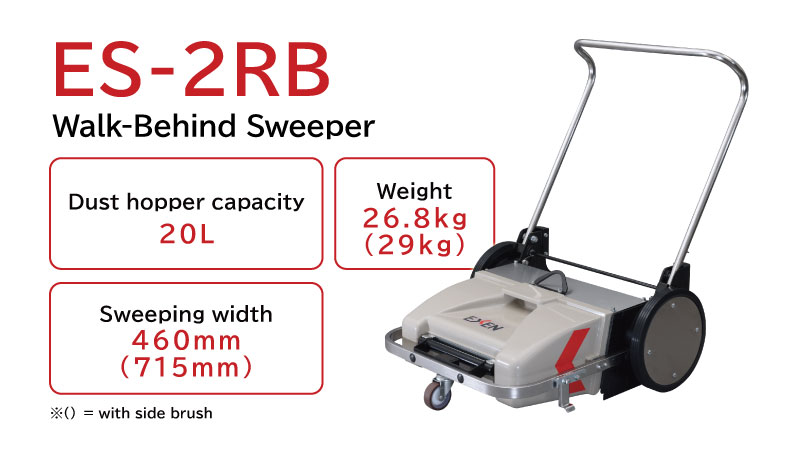

Specifications
Walk-Behind Sweeper
Metric
| Model | ES-2RB (With side brush) |
|---|---|
| Sweeping width | 460 mm (715 mm) |
| Sweeping performance (At 3.5 km/h) | 1,600 m2/h (2,500 m2/h) |
| Dust case capacity | 20 L |

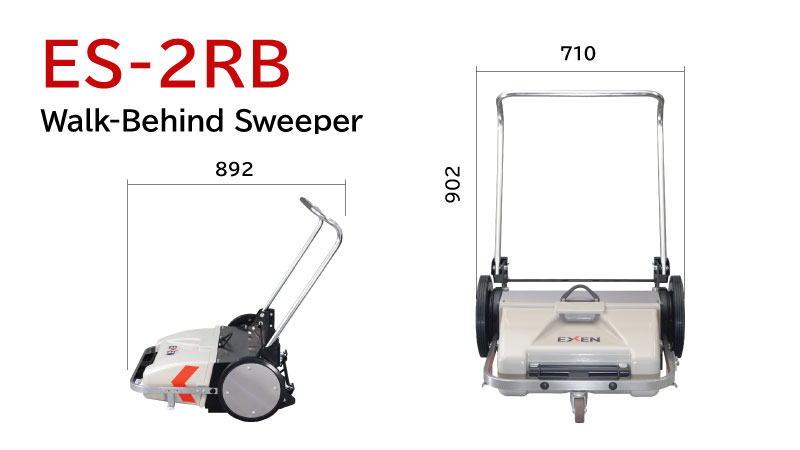

| Dimensions (L × W × H) | 892 (1132) × 710 (864) × 902 mm |
| Dimensions (Folded, L × W × H) | 741 (981) × 710 (864) × 337 mm |
| Weight | 26.8 (29.0) kg |
Imperial
| Model | ES-2RB (With side brush) |
|---|---|
| Sweeping width | 18.1 in (28.1 in) |
| Sweeping performance (At 3.5 km/h) | 1,914 yd2/h (2,990 yd2/h) |
| Dust case capacity | 5.3 gal |
| Dimensions (L × W × H) | 35.1 (44.6) × 28.0 (34.0) × 35.5 in |
| Dimensions (Folded, L × W × H) | 29.2 (38.6) × 28.0 (34.0) × 13.3 in |
| Weight | 59.1 (63.9) lb |
