Hand-Held Vibrator Surfacer (Wedge)
Product Overview

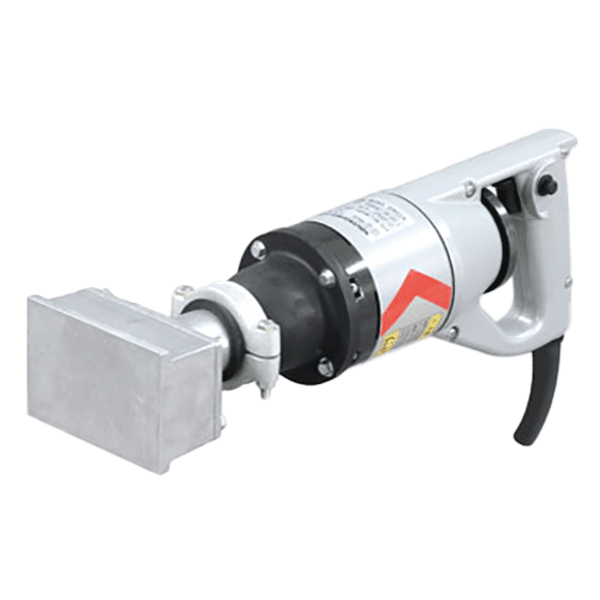

The wedge-type vibrator is a powerful vibrator with a wedge-shaped vibrator head directly connected to the motor. Ideal for air removal on sloped concrete surfaces, it also improves surface finish quality.
The wedge-type vibrator can be inserted from either the top or bottom of scaffold pipes for easy handling. The external concrete vibrator is ideal for surface finishing of concrete columns, walls, and other structures.
Key Features
Advantages of the Wedge-Shaped Design
The wedge-shaped design ensures effective vibration transfer with minimal pressing force, helping achieve a smooth concrete surface free from bugholes and honeycombing.
Compatible with both round and square pipes.

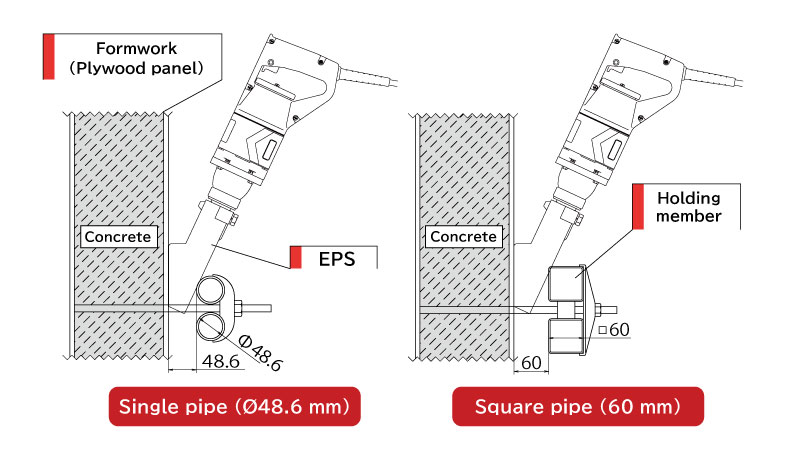

Designed for use with both Ø48.6 mm round pipes and 60 mm square pipes. The vibrator is easily installed by simply inserting it between the form panel and the pipe.
Reduced Hand-Transmitted Vibration

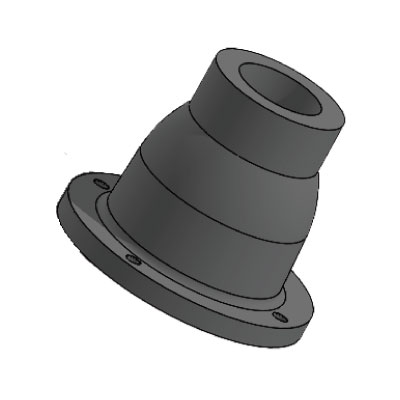

Our specially designed rubber flange reduces vibration transmitted from the vibrating unit, improving operator comfort.
Reduced Hand-Transmitted Vibration
Our specially designed rubber flange reduces vibration transmitted from the vibrating unit, improving operator comfort.
Easy to Operate
The vibrator can be moved while operating, allowing easy repositioning and enhanced productivity. With a compact and lightweight body of only 5.3 kg, the vibrator is easy to handle even in challenging jobsite conditions.
Easy Maintenance
Even if the wedge section is worn or damaged, it can be easily replaced by simply connecting the motor-side joint to the hexagonal shaft of the wedge section.
Durable Aluminum Die-cast Motor Housing

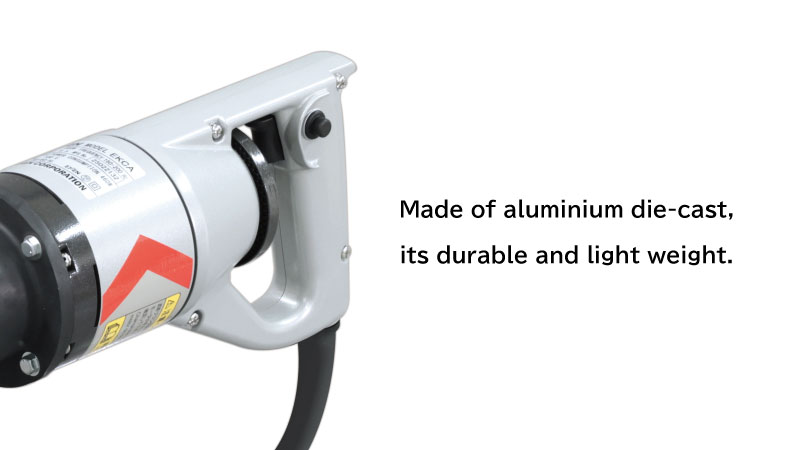

The E motor features a lightweight, high-strength aluminum die-cast housing.
Double-Insulated Design – No Grounding Required

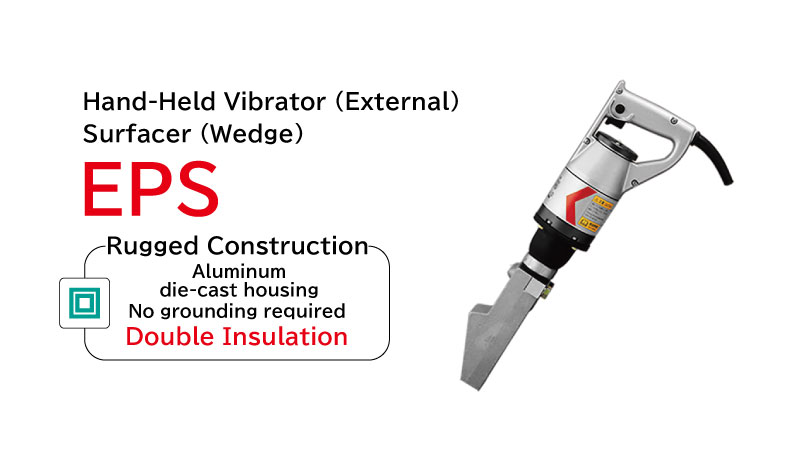

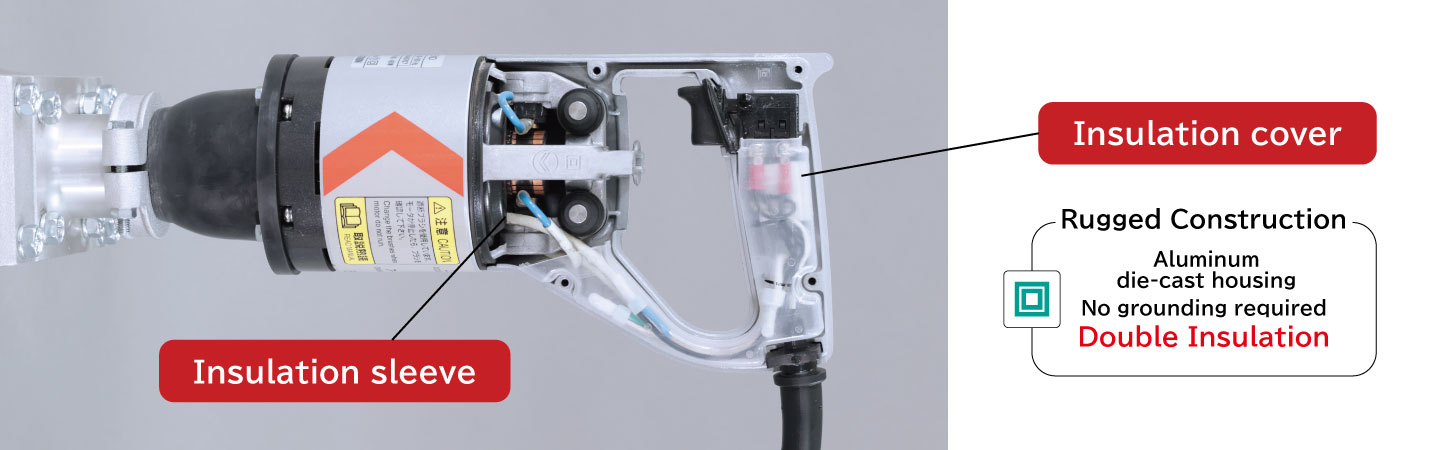

Hand-held vibrator series features a robust aluminum die-cast motor housing with a double-insulated design, eliminating the need for grounding and ensuring safe, user-friendly operation. Double insulation is provided by resin insulation between the armature shaft and winding core, and between the motor housing and field core. Resin-covered internal lead wires further enhance electrical safety.
Easy-to-Clean Design
In concrete and mortar applications, buildup around the motor can obstruct air intake and exhaust openings, and removing hardened material can be labor-intensive.

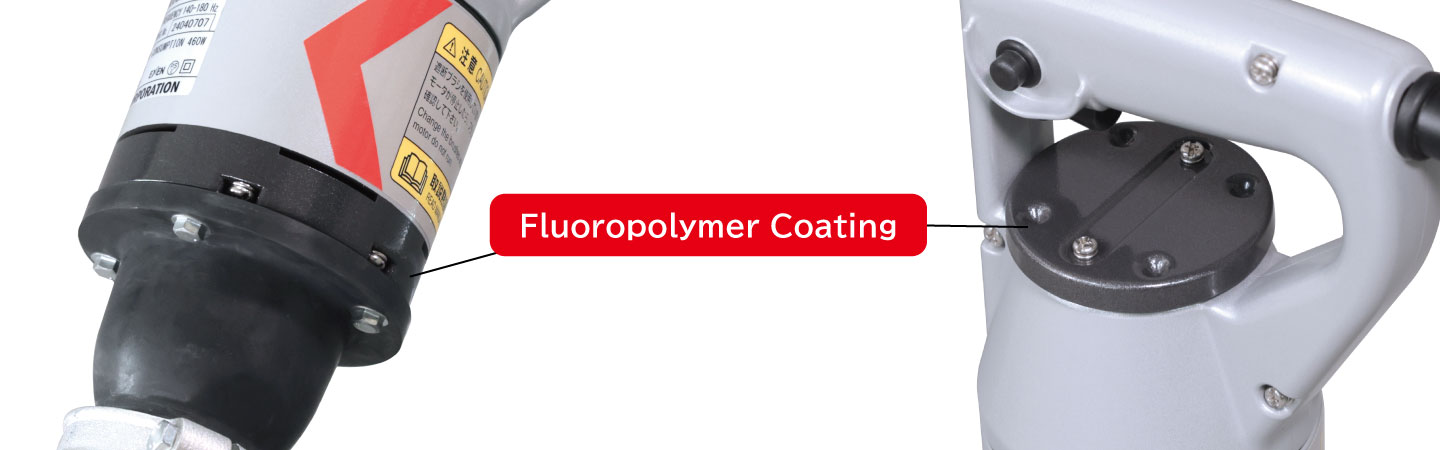

The air intake cover and bearing case are coated with fluoropolymer resin, preventing concrete and mortar from adhering and making cleaning and maintenance easier.
Double Anti-Vibration Handle Design

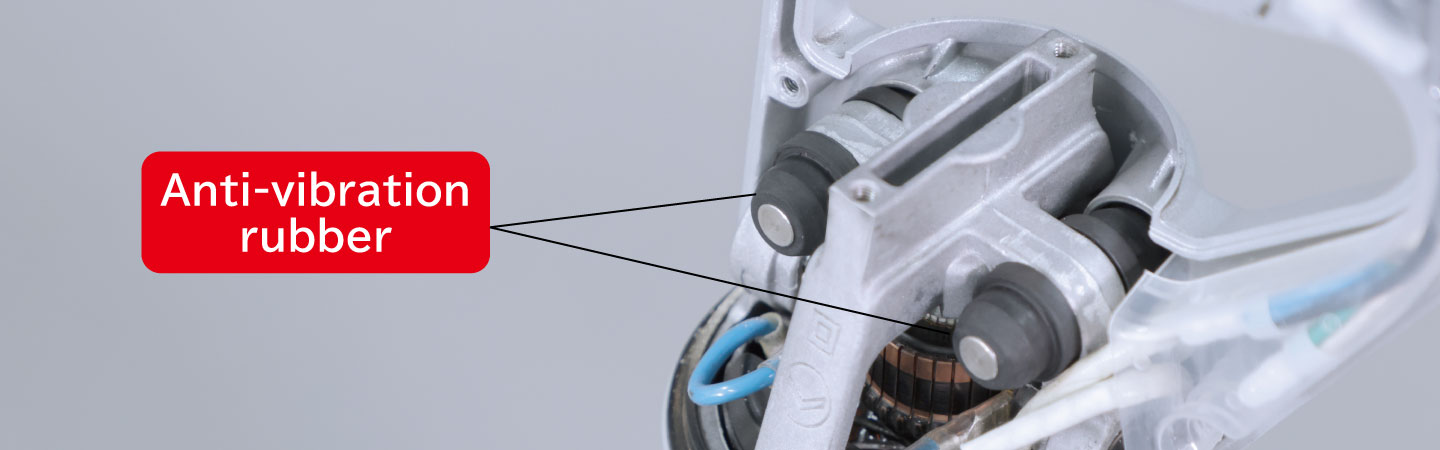

The E motor features a double anti-vibration design using 4 compact anti-vibration rubber between the handle and motor frame to reduce vibration transmission and improve operator comfort.
Reduced Motor Exhaust Noise

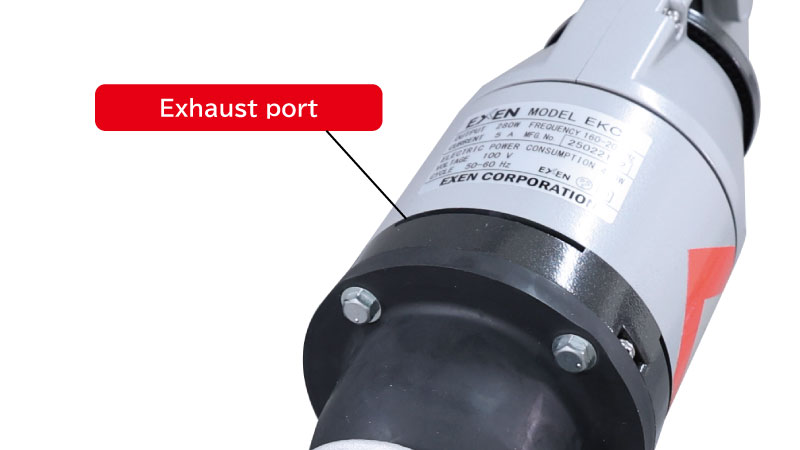

Hand-held vibrator series is designed to reduce motor noise during operation, helping create a quieter and more comfortable work environment. To minimize exhaust noise from the high-speed universal motor, the cooling fins and exhaust outlet have been specially designed for quieter operation, achieving a noise reduction of up to 5 dB compared with our previous models.
Dust Filter on Motor Air Intake

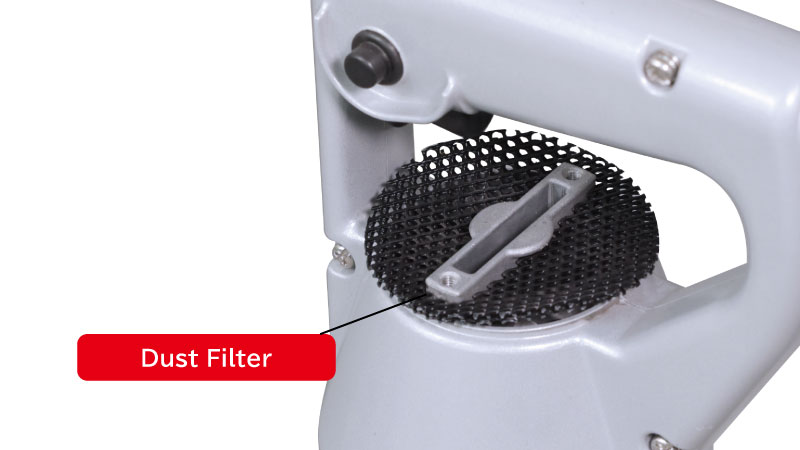

Designed for harsh construction environments, the hand-held vibrator features a dual-filter air intake system that helps prevent dust and concrete particles from entering the motor, improving durability and reliability. The dual-filter system helps prevent dust, sand, small stones, and concrete particles from entering the motor, reducing the risk of motor lock-up and improving the reliability and service life of the concrete vibrator.
Safety Cut-Off Carbon Brushes

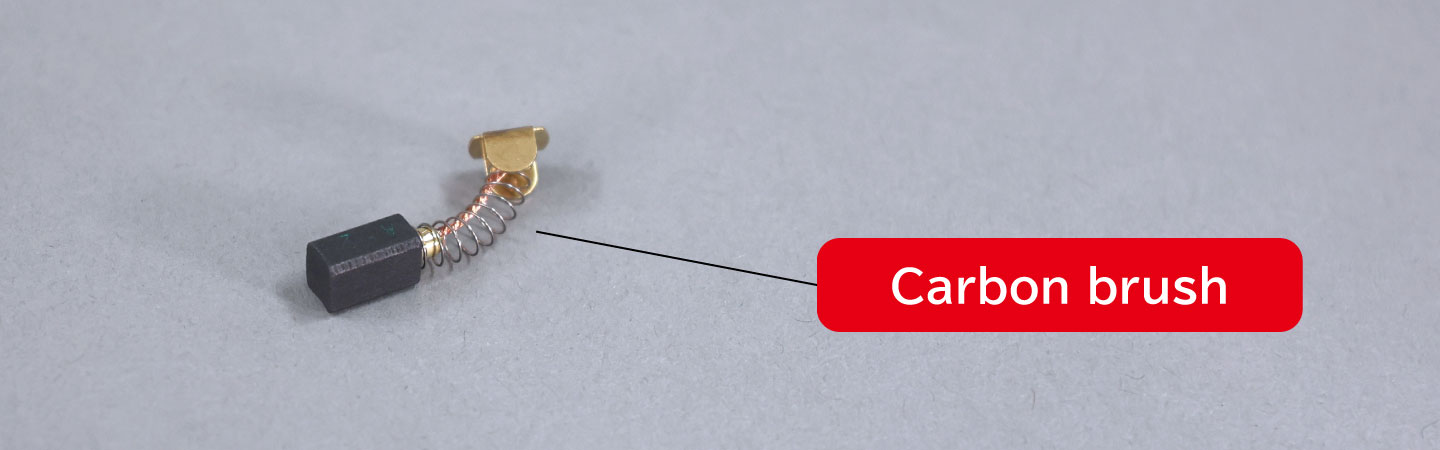

The motor is equipped with safety cut-off carbon brushes that help prevent motor burnout, improving reliability, reducing maintenance, and extending motor service life. Safety cut-off carbon brushes automatically disconnect power before the wear limit is reached, helping prevent commutator damage, motor burnout, and costly downtime while extending motor life and reliability.
Models
| Model | Item Code | Downloads |
|---|---|---|
| EPS | 000737000 | Downloads |
Downloads include instruction manuals and drawings. Contents may vary depending on the model.
Specifications
Surfacer (Wedge)
Metric
| Model | Output (W) | Input (V) | Input (A) | Frequency （Hz） | Total Length (mm) | Face/Head Dimensions （mm） | Weight （kg） |
|---|---|---|---|---|---|---|---|
| EPS | 280 | 100 110 115 200 220 230 240 | 5.0 4.5 4.3 2.5 2.3 2.2 2.1 | 250-300 | 496 | 80 × 190 | 5.3 |
Imperial
| Model | Output (W) | Input (V) | Input (A) | Frequency （VPM） | Total Length (ft) | Face/Head Dimensions (in × in) | Weight （lb） |
|---|---|---|---|---|---|---|---|
| EPS | 280 | 100 110 115 200 220 230 240 | 5.0 4.5 4.3 2.5 2.3 2.2 2.1 | 15,000-18,000 | 1.63 | 3.2 × 7.5 | 11.68 |
* Weight includes the power cable of 5 m (16.4 ft).
