Delivers powerful and reliable concrete consolidation with a pendulous head design.
Key Features
Powerful Consolidation for Low-Slump Concrete
The pendulous vibration mechanism generates strong impact force and large amplitude vibration, making it ideal for consolidating stiff and low-slump concrete.
Extended Service Life with Reduced Wear
Because the shaft rotates at only about one-third of the vibration frequency, wear on the shaft and bearing holes is significantly reduced, resulting in longer service life and lower maintenance costs.
Flexible Power Source Selection
Choose the power source that best suits your application. Engine-driven units are ideal for remote locations without electricity, while electric motor units are well suited for environmentally conscious job sites.
Quick One-Touch Connection
The flexible shaft can be attached to or detached from the drive unit in a single motion without the need for tools, reducing setup time and improving job site productivity.
Durable Self-Aligning Bearing
A specially designed self-aligning bearing between the flexible shaft and vibration shaft provides stable vibration performance, improved durability, and reliable operation under demanding conditions.
Lightweight and Easy to Operate
The compact and lightweight design improves maneuverability and reduces operator fatigue, making daily operation easier and more efficient.
Configurable Engine Unit
The engine drive unit is available with either a protective frame or a rotary table configuration, allowing users to select the most suitable setup for their working environment.
Multi-Purpose Drive Unit
The HVE engine unit can also drive EXEN submersible pumps through a flexible shaft connection, providing greater versatility and improved equipment utilization on the job site.
Specifications

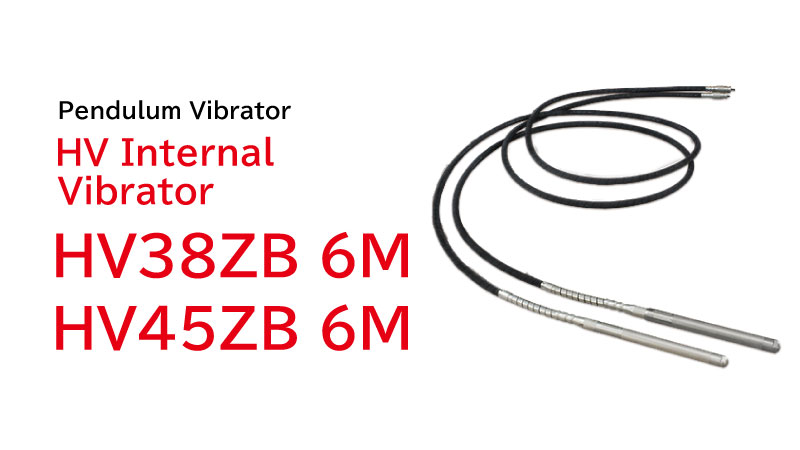

Pendulum Vibrator
Metric
| Model | Hose Length (m) | Frequency (Hz) | Overall Length (mm) | Head (Dia. × Length) （mm) | Weight (kg) |
|---|---|---|---|---|---|
| HV28ZB | 6 | 158–200 | 6559 | 28 × 420 | 14.1 |
| HV32ZB | 6562 | 32 × 423 | |||
| HV38ZB | 6585 | 38 × 440 | 15.2 | ||
| HV45ZB | 6596 | 45 × 451 | 16.1 | ||
| HV60ZB | 150–200 | 6593 | 60 × 448 | 19.1 |
Imperial
| Model | Hose Length (ft) | Frequency (VPM) | Overall Length (ft) | Head (Dia. × Length) (in × ft) | Weight (lb) |
|---|---|---|---|---|---|
| HV28ZB | 19.7 | 9,480–12,000 | 21.6 | 1.1 × 1.4 | 31.1 |
| HV32ZB | 1.3 × 1.4 | ||||
| HV38ZB | 1.5 × 1.5 | 33.6 | |||
| HV45ZB | 9,000–12,000 | 21.7 | 1.8 × 1.5 | 35.5 | |
| HV60ZB | 2.4 × 1.5 | 42.2 |

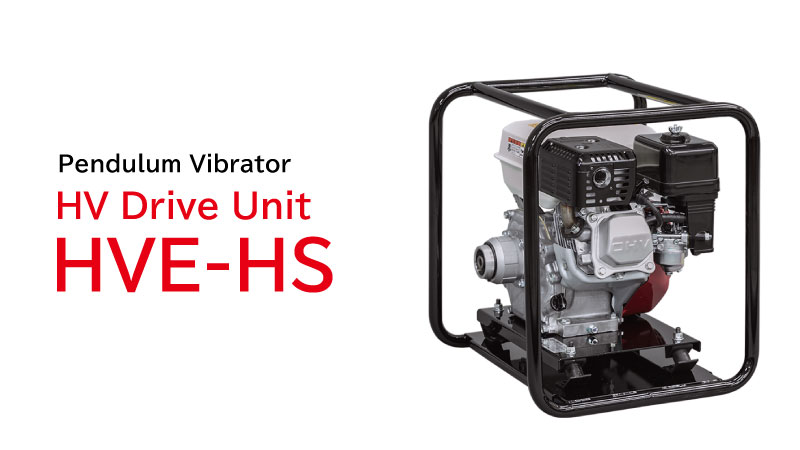

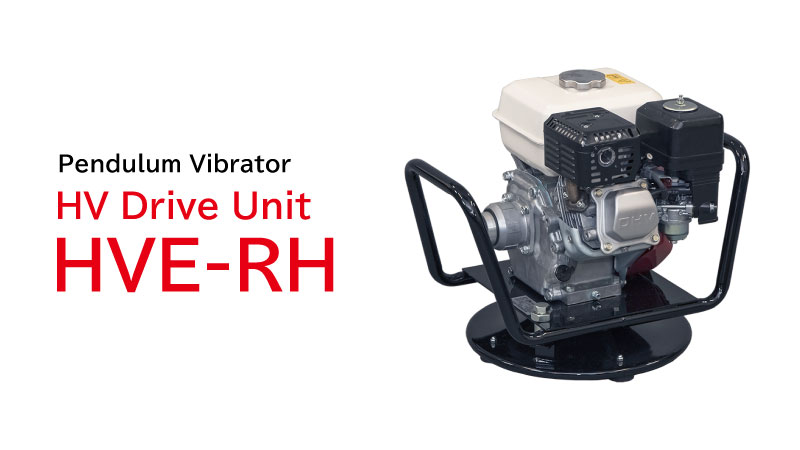

HVEｰHS / HVEｰRH
Metric
| Model | Engine model | Output (max) (kW) | Continuous Rated Output (kW/min⁻¹) | Weight (kg) |
|---|---|---|---|---|
| HVE-HS | GX160H2 KHJE | 3.6 | 2.8 / 3,400 | 25 |
| HVE-RH |
Imperial
| Model | Engine model | Output (max) (kW) | Continuous Rated Output (kW/min⁻¹) | Weight （lb） |
|---|---|---|---|---|
| HVE-HS | GX160H2 KHJE | 3.6 | 2.8 / 3,400 | 55.2 |
| HVE-RH |
* Weight excludes engine oil.
