The vibrational principle of table vibrator is that external vibrating machine (e.g., vibration motor, air vibrator) is mounted on the table upper frame and the workpiece loaded on the head is vibrated together with the container. The purpose is to produce a vibration for filling into the container, defoaming, demolding, penetration enhancement, diffusion, mixing, vibration tester, and others of workpiece. In the case of industrial machinery industries, there are various types of workpieces to be filled, such as ceramic powder, resin pellet, carbon, iron powder, silica sand, cosmetic mascara. As for the necessary vibration force, the basic standard load is set for the weight of loading item, but minor vibration is enough for some of workpieces and there are various vibration frequencies effective for moving the workpiece. (An appropriate vibration condition can be checked in the demonstration machine.)
As vibrating sources, electric compact vibration motor (single-phase 100V/three-phase 200V) and pneumatic piston vibrator series are available. The feature of single-phase 100V type is convenience provided anywhere. The feature of three-phase 200V type is that the use of inverter control panel MFC1 model allows an appropriate vibration to be applied to a workpiece. In addition, the feature of pneumatic type is that adjustment of air pressure allows an appropriate vibration to be applied. Although compact model series are introduced in compact table vibrator series, table vibrator for heavy load can also be designed and manufactured. Please contact EXEN.
*Compact table vibrator is estimated each time and is built-to-order.
*The product with the top surface of table resinated is optional.(Extra cost)

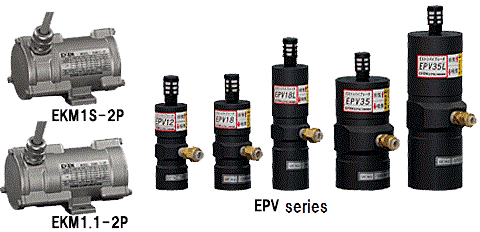

As vibrating sources for compact table vibrator series, electric single-phase 100V vibration motor and three-phase 200V vibration motor, and pneumatic piston vibrator are available.
Electric or pneumatic type can be selected depending on the power supply conditions of equipment location. For the electric vibration motor, compact vibration motor with stainless steel body is adopted.
Single-phase 100V type is EKM1S-2P model and three-phase 200V type is EKM1.1-2P model.
Both of them comply with IP code 66, and are washable and excellent in corrosion-resistance.

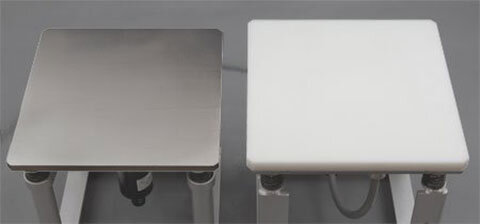

The table upper frame is prepared for manufacture according to the specification that defines dimensions of table head of compact table vibrato to 200mm in length and 300mm in width.
Also, the material of upper frame is specified to stainless steel SUS304 and とpolyacetal resin as standard specification. Selection can be made depending on the application. (polyacetal resin is an additional option)
The product with different dimensions or other material specified can be manufactured. (Ask for details)
Because the combination with inverter enables the vibration frequency to be changed, the electric three-phase 200V type allows the vibration frequency to be selected depending on the property of loading workpiece, which will achieve the high-efficient workability.
The pneumatic vibrator allows the vibration force and vibration frequency to be changed by changing the air pressure, which will expand the application.
Also, the pneumatic type can be used safely in an explosion-proof area.

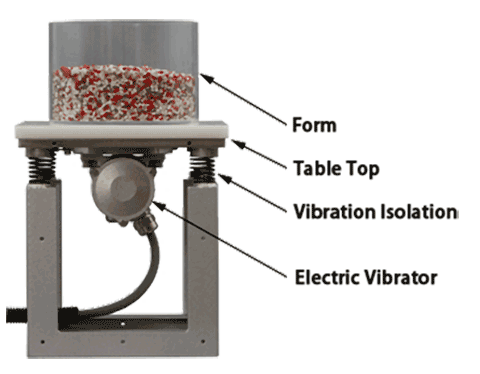

The vibration condition when one vibration motor is mounted on the table upper frame is the circular vibration.
This is used for workpiece in which the circular vibration by one motor is more effective.
This has an advantage that the price is lower than the table with two motors.
Also, if the pneumatic piston vibrator is used, the vertical vibration can be secured with one motor.

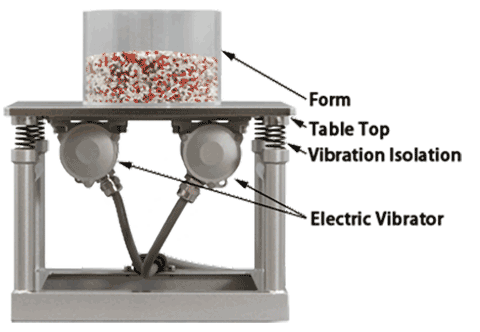

The vibration condition when two vibration motor is mounted on the table upper frame is the vertical vibration.
The vertical vibration provides a stable vibration because of less movement of the workpiece container, which has shown the field-proven performance.
Also, because this is one face type, the mold can be fixed to the top surface of table and the molds with various shapes can be loaded.
If the pneumatic piston vibrator is used, the vertical vibration can be secured with one motor.

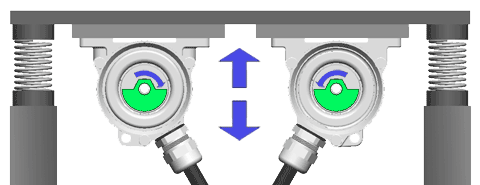

Mounting tow vibration motors to the upper frame allows vertical vibration to be produced.
Rotating two vibration motors in opposite direction each other to synchronize the rotational frequency of two vibration motors will offset the centrifugal force in a horizontal direction, which produces the centrifugal force only in a vertical direction to provide the vertical vibration.
If there is a large difference in rotational frequencies, the vertical vibration is not provided because of no synchronization.

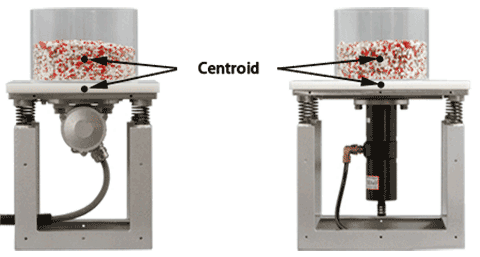

The arrangement of correct loading position is the position where the gravity center of table is matched with that of loading item in the resultant force axis of centrifugal force of vibrator.
Table vibrator is used for various applications in industrial machinery field. In addition to the following filling, diffusion, penetration enhancement, defrosting, desalination, defoaming, and demolding, there are other unknown fields for vibration applications, which raises expectations.
1. Filling of powder: silica sand, ceramic powder, resin pellet, carbon, iron powder, mascara, powder
2. Diffusion of powder: removal of dust on lens, adhesive agent, diffusion of powder
3. Penetration enhancement: table for pickles, pickles of Chinese cabbage, pickles of radish
4. Desalination enhancement: desalination of fish egg
5. Defrosting enhancement: defrosting enhancement of fish
6. Demolding aid: demolding of form
7. For various testers: mixing tester, concrete tester, conveyance tester, medical tester
For TV-MW series (three-phase, 200V), use the MFC-1 equipped with inverter. (optionally available)
| Model | Code Number |
|---|---|
| TV200-P | (*1) |
| TV200C-P | (*1) |
| TV200-M | (*1) |
| TV200C-M | (*1) |
| TV300-P | (*1) |

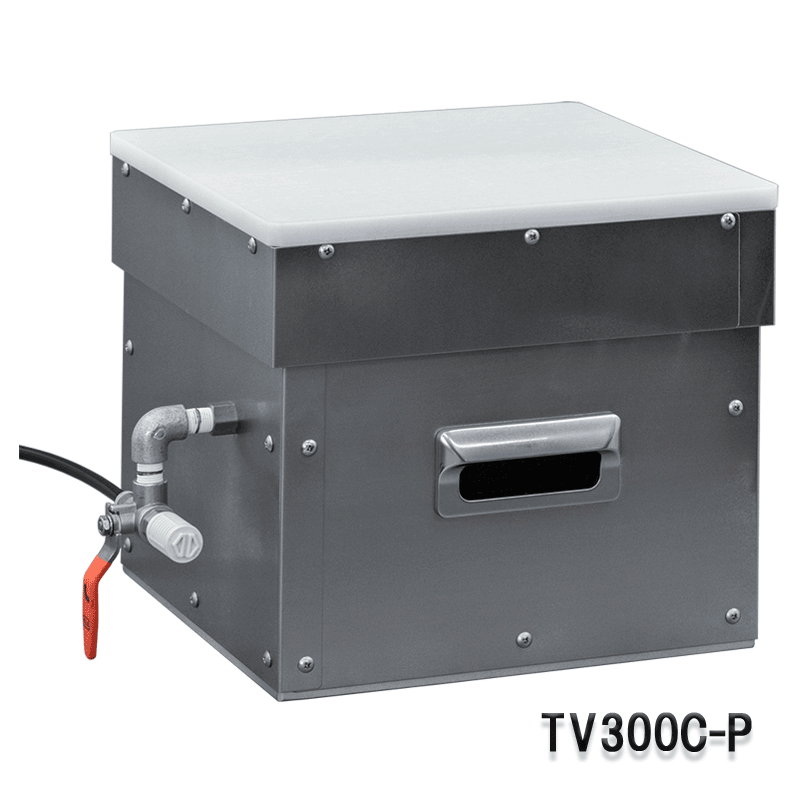

| TV300C-P | (*1) |

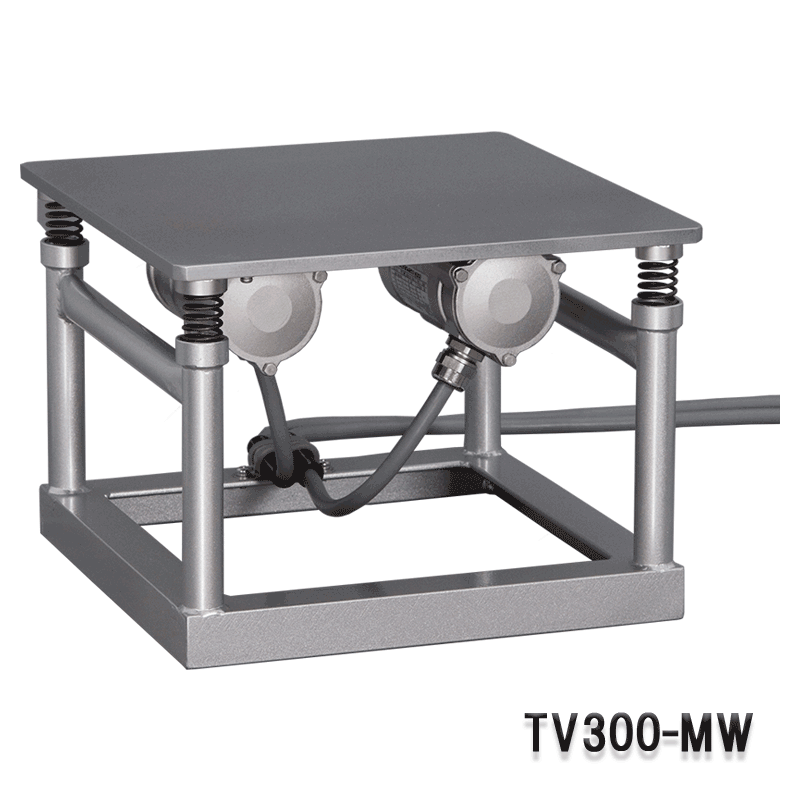

| TV300-MW | (*1) |
| TV300C-MW | (*1) |
| MFC-1 | (*1) |
*1 Because this product is a built-to-order product, contact EXEN for information on price and delivery time.
| Table Model | Vibrator | Permission Load (kg) |
Dimentions (W×L×H) |
Weight (kg) |
Note | |
|---|---|---|---|---|---|---|
| Model | Unit | |||||
| TV200-P | EPV18L | 1 | 10 | 200×200×215 | 6.5 | Open |
| TV200C-P | 8 | Enclose | ||||
(Imperial System)
| Table Model | Vibrator | Permission Load (lb) |
Dimentions (W×L×H×G×F) |
Weight (lb) |
Note | |
|---|---|---|---|---|---|---|
| Model | Unit | |||||
| TV200-P | EPV18L | 1 | 22.1 | 7-7/8×7-7/8×8-15/32 | 14.3 | Open |
| TV200C-P | 17.64 | Enclose | ||||
| Table Model | Motor | Vibration Motor Specifications | Permission Load Capacity (kg) |
Weight (kg) |
Note | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Unit | Voltage (V) |
Output (W) |
Current (A) (50Hz/60Hz) |
Frequency (Hz) (50Hz/60Hz) |
Centrifugal Force (kN) (50Hz/60Hz) |
Rating | ||||
| TV200-M | EKM1S-2P | 1 | Single-phase 100V |
10 | 0.26/0.21 | 46.5/56.9 | 0.05/0.07 | Continuous | 5 | 7.2 | Open |
| TV200C-M | 8.5 | Enclose | |||||||||
(Imperial System)
| Table Model | Motor | Vibration Motor Specifications | Permission Load Capacity (lb) |
Weight (lb) |
Note | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Unit | Voltage (V) |
Output (W) |
Current (A) (50Hz/60Hz) |
Frequency (VPM) (50Hz/60Hz) |
Centrifugal Force (lbf) (50Hz/60Hz) |
Rating | ||||
| TV200-M | EKM1S-2P | 1 | Single-phase 100V |
10 | 0.26/0.21 | 2,790/3,414 | 11/16 | Continuous | 11 | 15.9 | Open |
| TV200C-M | 18.7 | Enclose | |||||||||
| Table Model | Vibrator | Permission Load (kg) |
Dimentions (W×L×H) |
Weight (kg) |
Note | |
|---|---|---|---|---|---|---|
| Model | Unit | |||||
| TV300-P | EPV35L | 1 | 20 | 300×300×265 | 12.5 | Open |
| TV300C-P | 15.2 | Enclose | ||||
(Imperial System)
| Table Model | Vibrator | Permission Load (lb) |
Dimentions (W×L×H×G×F) |
Weight (lb) |
Note | |
|---|---|---|---|---|---|---|
| Model | Unit | |||||
| TV300-P | EPV35L | 1 | 44.1 | 11-13/16×11-13/16×10-7/16 | 27.56 | Open |
| TV300C-P | 33.51 | Enclose | ||||
| Model | Vibrator | Vibration Motor Specifications | Permission Load Capacity (kg) |
Allowance Loading weight (kg) |
Note | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Units | Voltage (V) |
Output (W) |
Current (A) (50Hz/60Hz) |
Frequency (Hz) (50Hz/60Hz) |
Centrifugal Force (kN) (50Hz/60Hz) |
Rating | ||||
| TV300-MW | EKM1.1-2P | 2 | 3-phases 200V |
11 | 0.11/0.10 | 45.1/53.3 | 0.07/0.11 | Continuous | 10 | 14.4 | Open |
| TV300C-MW | 17.9 | Enclose | |||||||||
(Imperial System)
| Model | Vibrator | Vibration Motor Specifications | Permission Load Capacity (lb) |
Weight (lb) |
Note | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Units | Voltage (V) |
Output (W) |
Current (A) (50Hz/60Hz) |
Frequency (VPM) (50Hz/60Hz) |
Centrifugal Force (lbf) (50Hz/60Hz) |
Rating | ||||
| TV300-MW | EKM1.1-2P | 2 | 3-phases 200V |
11 | 0.11/0.10 | 2,706/3,198 | 16/25 | Continuous | 22 | 31.7 | Open |
| TV300C-MW | 39.5 | Enclose | |||||||||

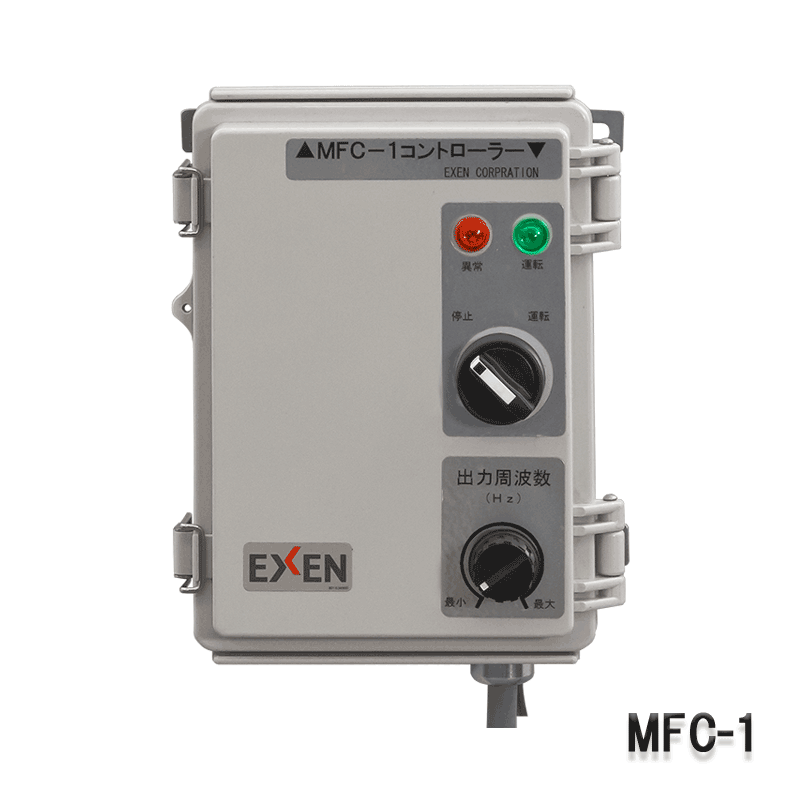

| Model | Input Voltage (V) |
Input Current (A) |
Frequency (Hz) |
Output Voltage (V) |
Output Current (A) |
Output Frequency (Hz) |
|---|---|---|---|---|---|---|
| MFC-1 | Single-phase 100V |
5 | 50/60 | 3-phase 200V |
0.8 | 50～70 |
(Imperial System)
| Model | Input Voltage (V) |
Input Current (A) |
Frequency (Hz) |
Output Voltage (V) |
Output Current (A) |
Output Frequency (Hz) |
|---|---|---|---|---|---|---|
| MFC-1 | Single-phase 100V |
5 | 50/60 | 3-phase 200V |
0.8 | 50～70 |
Note) *Inverter operation panel is dedicated to three-phase 200V vibration motor.
It cannot be used for single-phase 100V vibration motor.
If control panel is necessary, contact EXEN.

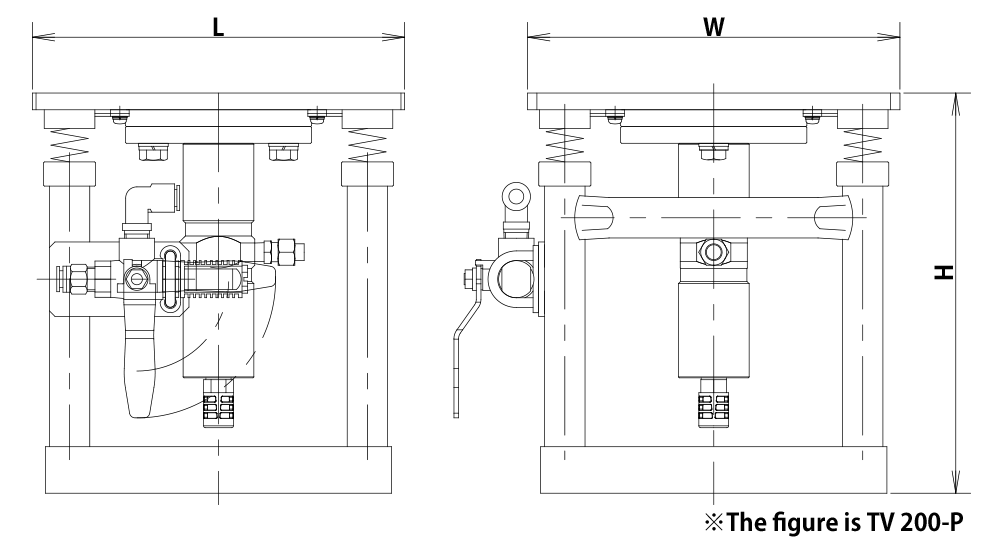

| Model | L | W | H |
|---|---|---|---|
| TV200-P | 200 | 200 | 217 |
| TV200C-P | |||
| TV200-M | 177 | ||
| TV200C-M | |||
(Imperial System)
| Model | L | W | H |
|---|---|---|---|
| TV200-P | 7.9 | 7.9 | 8.5 |
| TV200C-P | |||
| TV200-M | 7 | ||
| TV200C-M |

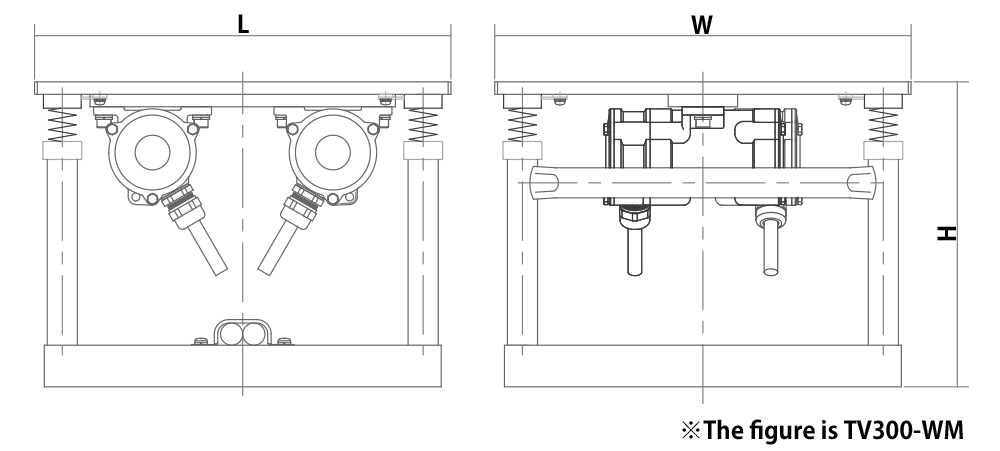

| Model | L | W | H |
|---|---|---|---|
| TV300-P | 300 | 300 | 250 |
| TV300C-P | 254 | ||
| TV300-MW | 192 | ||
| TV300C-MW |
(Imperial System)
| Model | L | W | H |
|---|---|---|---|
| TV300-P | 11.8 | 11.8 | 9.8 |
| TV300C-P | 10 | ||
| TV300-MW | 7.6 | ||
| TV300C-MW |
