Vibration motor EKM-2P series (2pole Single-phase 100V) EKM1S-2P type

  • Vibration motor EKM-2P series (2pole Single-phase 100V) EKM1S-2P type

Vibration motor EKM-2P series (2pole Single-phase 100V) EKM1S-2P type

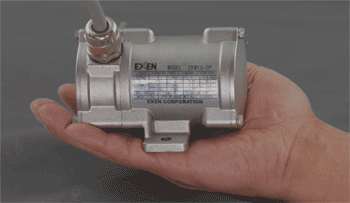

Water washing OK! Vibration motor in size of canned coffee. Easily-used 100V type

This product is used for the following applications:

  • 01Installation to a small hopper in the food plant, to prevent blockage of raw material
  • 02Prevention of clogging at the ejection section in food additive conveyance (screw feeder)
  • 03Used (for arrangement of parts) in the vehicle production line

Used in the following places:

Features

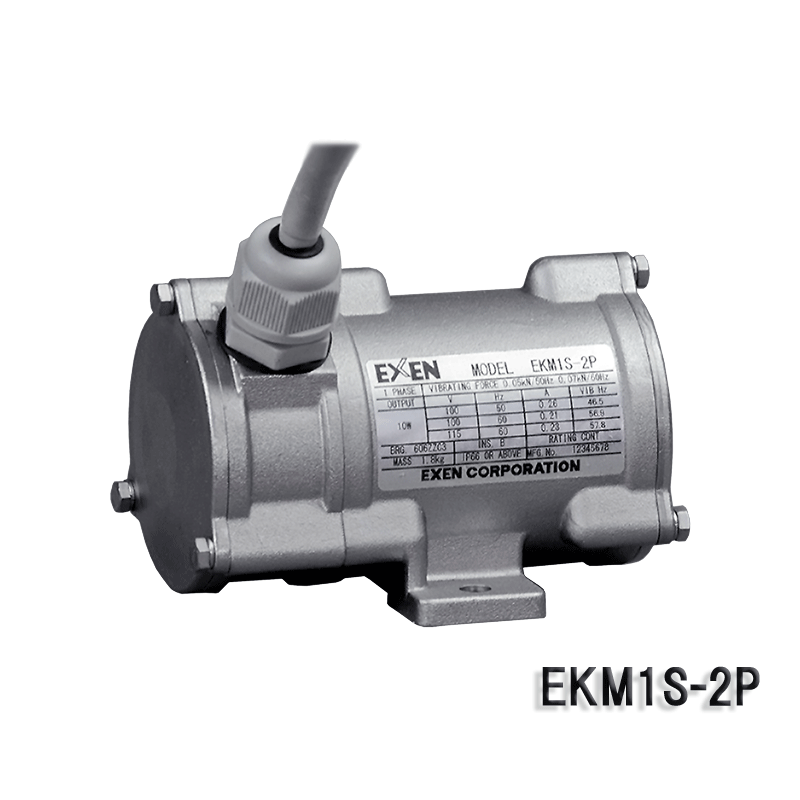

Water-washable EKM1S-2P type with all stainless steel body for preventing adhesion or clogging in a small container or chute in response to the demand of further miniaturization of vibration motor for food, chemical, and pharmaceutical industries. The product body is 110mm in total length and 1.8kg in weight, the smallest size in the series, which is expected to be applied to a small container in each industry.
(Installation is possible with two M6 bolts.) Vibration motor generates a centrifugal force vibration by rotation of eccentric weights at both ends of rotor shaft. 2P series are mainly used for mounting directly to the powder container to prevent the adhesion or blockage or to eliminate the clogging by alleviating compaction, or fused as a table vibration equipment for filling. The product has a totally-enclosed drip-proof structure, and can be installed in any direction and angle. It is low in maintenance cost and is of high durability.


Operable at 100V household power

With single-phase 100VAC, the product can be installed easily for preventing the blockage in the tank, hopper, and chute for powder, and improving the clogging of product in the production line.

Vibration motor EKM-2P series (2pole Single-phase 100V) EKM1S-2P type

Compact and full oil-free

EKM1S-2P type is a compact, full oil-free, and electric-driven vibration motor. It can be used in various fields as a modern version of energy-saving type because air supply is not required.

Vibration motor EKM-2P series (2pole Single-phase 100V) EKM1S-2P type

Stainless steel body excellent in corrosion resistance

All components of the vibration motor EKM1S-2P type, including body and side cover, are made of stainless steel casting. It is suitable to install a site in food and chemical industries and a site where corrosion resistance is required.


Water washing is possible

With the structure with IP code 66 as well as all stainless steel materials, the vibration motor supports water washing complying with sanitary specifications.

Description of IP code 66
Having a totally-enclosed drip-proof structure equivalent of IP code 66, the product can be used safely outdoors.
Display of IP code
IP (International Protection code) means Ingress Protection of electric equipment and cabinet for solid foreign object and water defined in the IEC standards 529.
IP6 (first code) 6 (second code)
The first code 6 means the protection for human body and solid foreign object. The degree of protection is no internal ingress of dust.
The second code 6 means the protection against ingress of water. The degree of protection is that no harmful influence is exerted from ocean waves or direct jet flow of water from any direction.


Support for fall prevention wire

The vibration motor optionally comes with the attaching portion for fall prevention wire to prevent the vibration motor from falling if a mounting bolt is removed or damaged.

Vibration motor EKM-2P series (2pole Single-phase 100V) EKM1S-2P type

Usable in wide range of applications

The vibration motor is generally used for preventing the blockage of powder. Furthermore, it can be installed the equipment that requires vibration in vibration conveyance, vibrational diffusion, and vibration compaction by applying the usage.

List of models

Model Code Number Product Drawing Download
EKM1S-2P 001116000 Product Drawing
Download

Specification

EKM1S-2P

Model Output
(W)
Voltage
(V)
Input
Frequency
(Hz)
Current
(A)
Frequency
(Hz)
Centrifugal
Force
(kN)
Condenser
(μF)
Cable
Length
(m)
Weight
(kg)
EKM1S-2P 10 1φ 100 - 115 50 0.26 46.5 0.05 2.5
(250V)
1 1.8
60 0.21 - 0.23 56.9 - 57.8 0.07

(Imperial System)

Model Output
(W)
Voltage
(V)
Input
Frequency
(Hz)
Current
(A)
Frequency
(Hz)
Centrifugal
Force
(lbf)
Condenser
(μF)
Cable
Length
(ft)
Weight
(lb)
EKM1S-2P 10 1φ 100 - 115 50 0.26 46.5 11.2 2.5
(250V)
3.28 3.97
60 0.21 - 0.23 56.9 - 57.8 15.7

*The weight of cable 1M is included.
*The centrifugal is fixed because the angle of weight cannot be adjusted.
*Japanese specification only.

Dimensions, installation, control panel

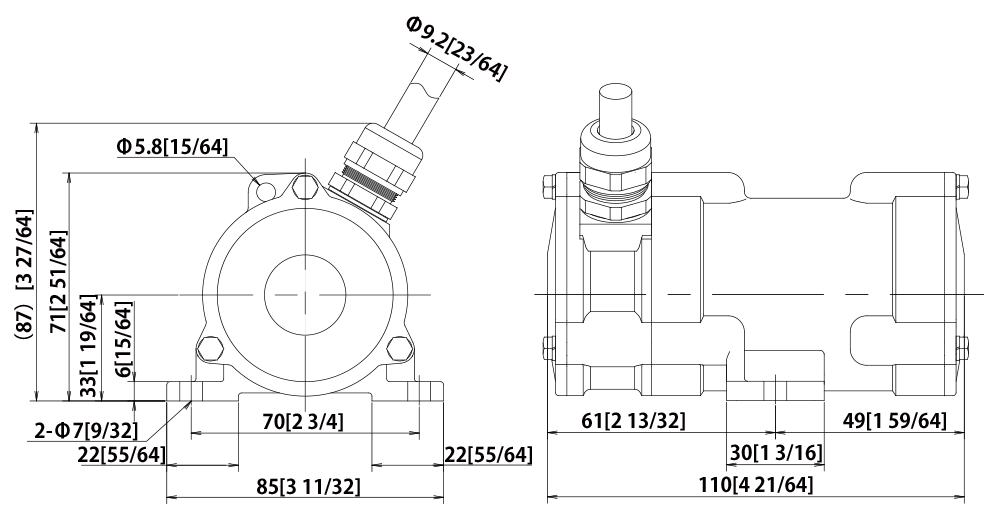

Product dimensional drawings
