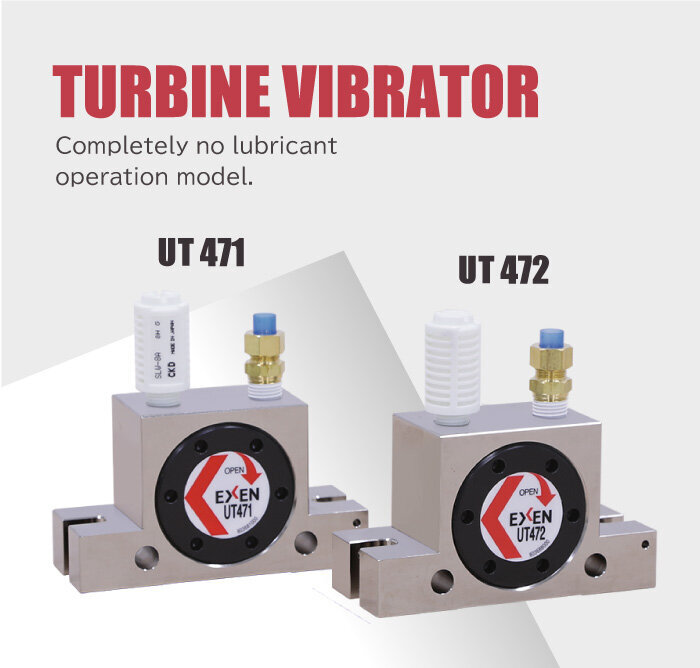

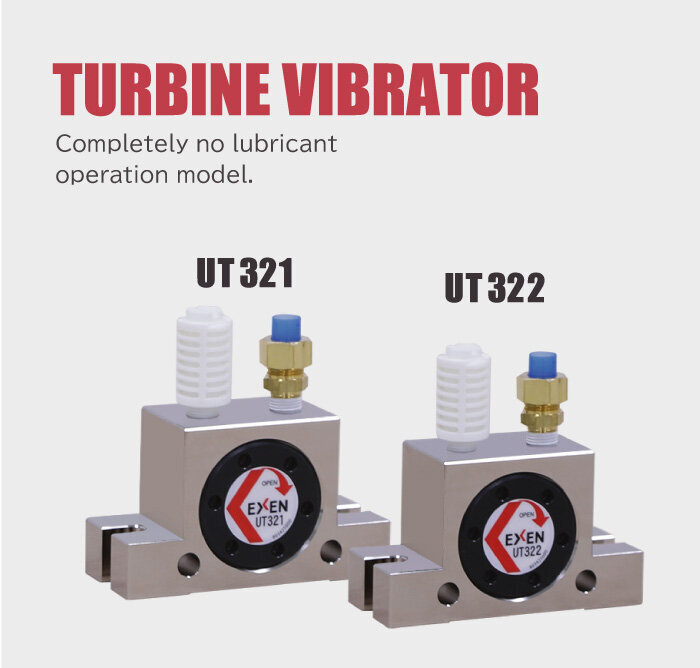

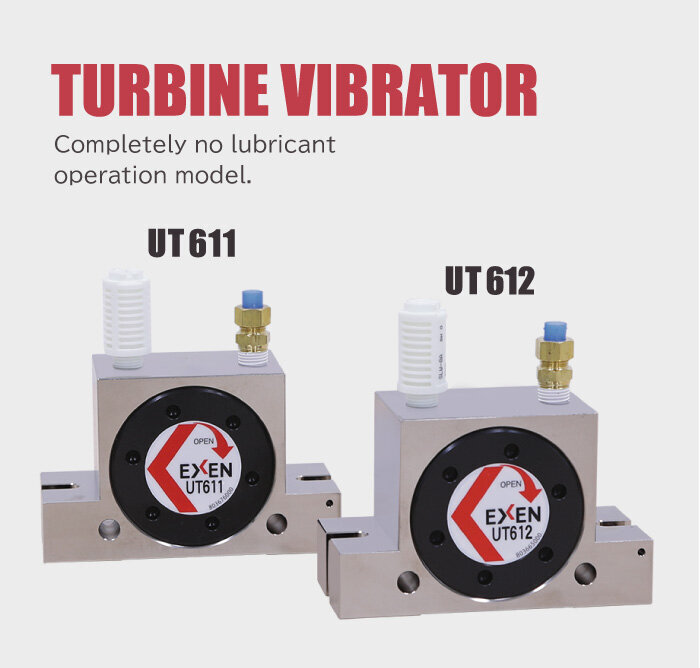

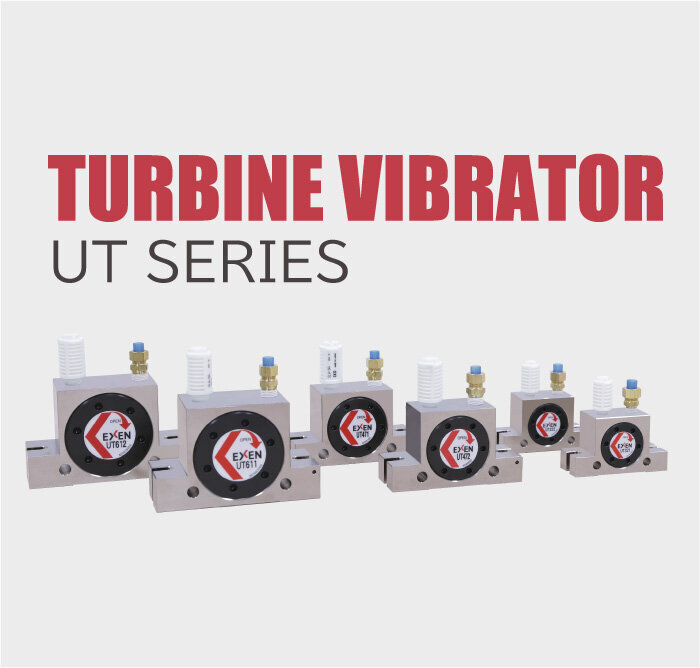

This is a pneumatic turbin vibrator for use in a completely oil-free. This is an easy-to-use vibrator that operates simply by supplying compressed air like a conventional ball vibrator. (Lubrication to supply air is strictly prohibited.)
The high speed rotating turbine part is not in contact with the housing part.For that reason it is an environmentally friendly vibrator with a very low noise level. Its housing is lightweight and highly corrosion resistant material with electroless nickel plating on aluminum.
This vibrator is a product that is effective for preventing clogging of powder and bulk and where minor vibration is required and to prevent clogging of hopper chute.

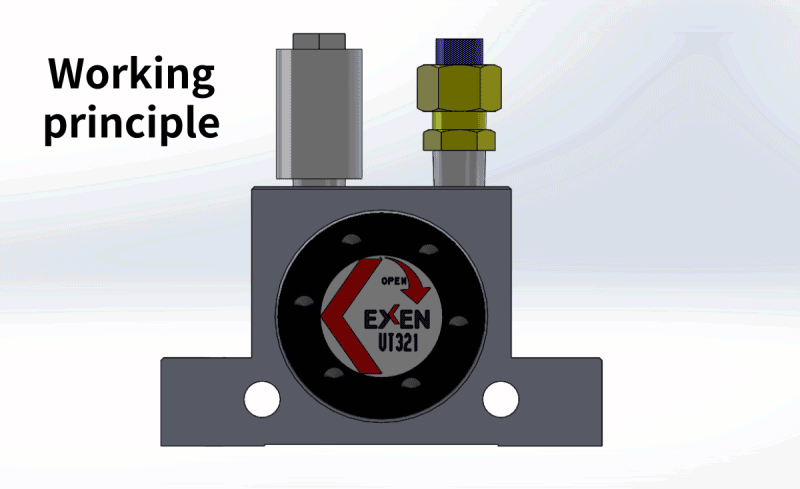

High speed rotated Turbine vibrator is supported by bearing and does not contact with casing.

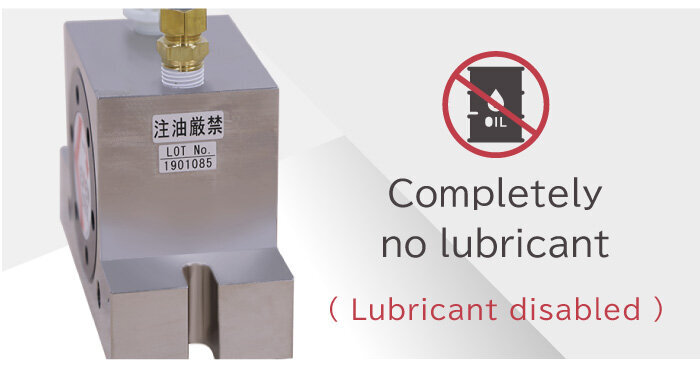

So, it can be used turbine vibrator as completely no lubricant.

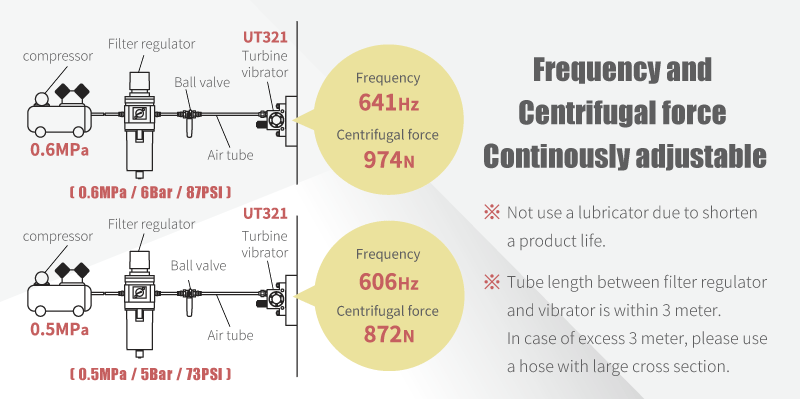

※Not use a lubricator due to shorten a product life.
※Tube length between filter regulator and vibrator is within 3 meter.
In case of excess 3 meter, please use a hose with large cross section.
Aluminum casing with electroless nickel plating finish.

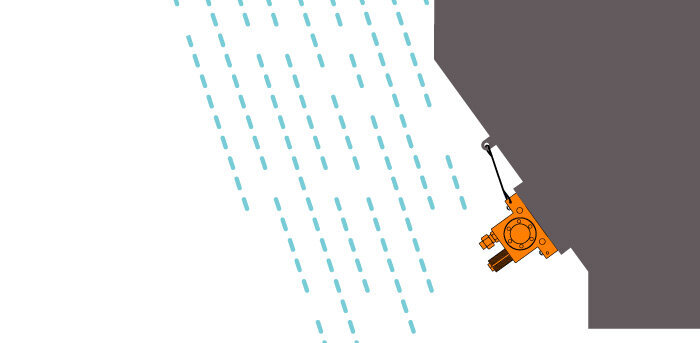

Excellent corrosion resistance can allow to use in places where is exposed to water.

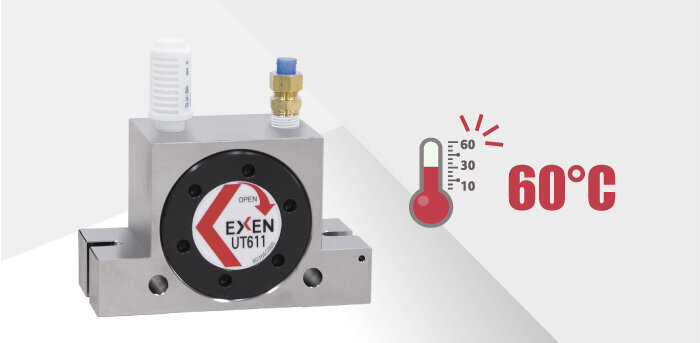

If case of replacement the muffler, tube connector and air tube to heat resistance spec, it can be used up to 80℃.(176℉)

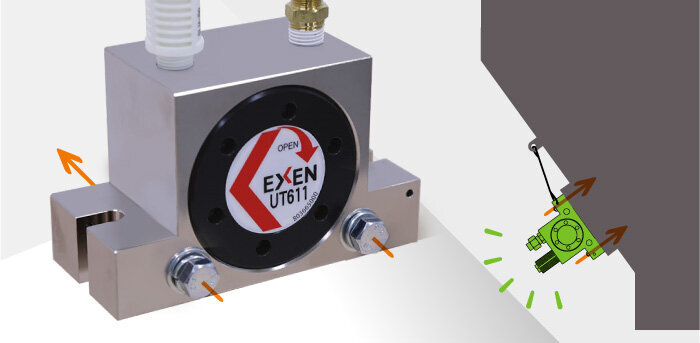

It can be mounted freely according to the mounting shape, space and vibration effect.
Various usage. It can also be used as a vibrator for vibrating table used for filling.
Also, can be used to eliminate stagnation in parts supply in the production line.

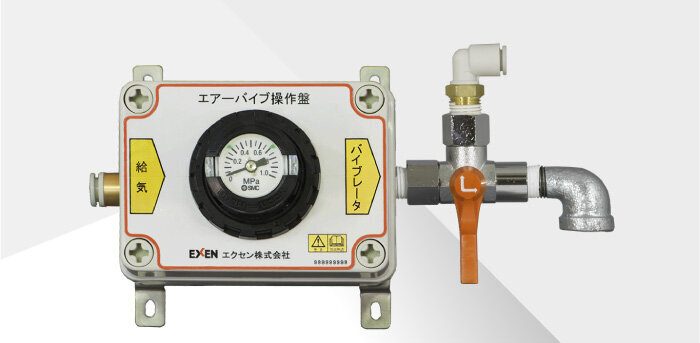

Manual type control panel CA that can be operated immediately without power supply (With pressure gauge) is an available.
*Accessories.

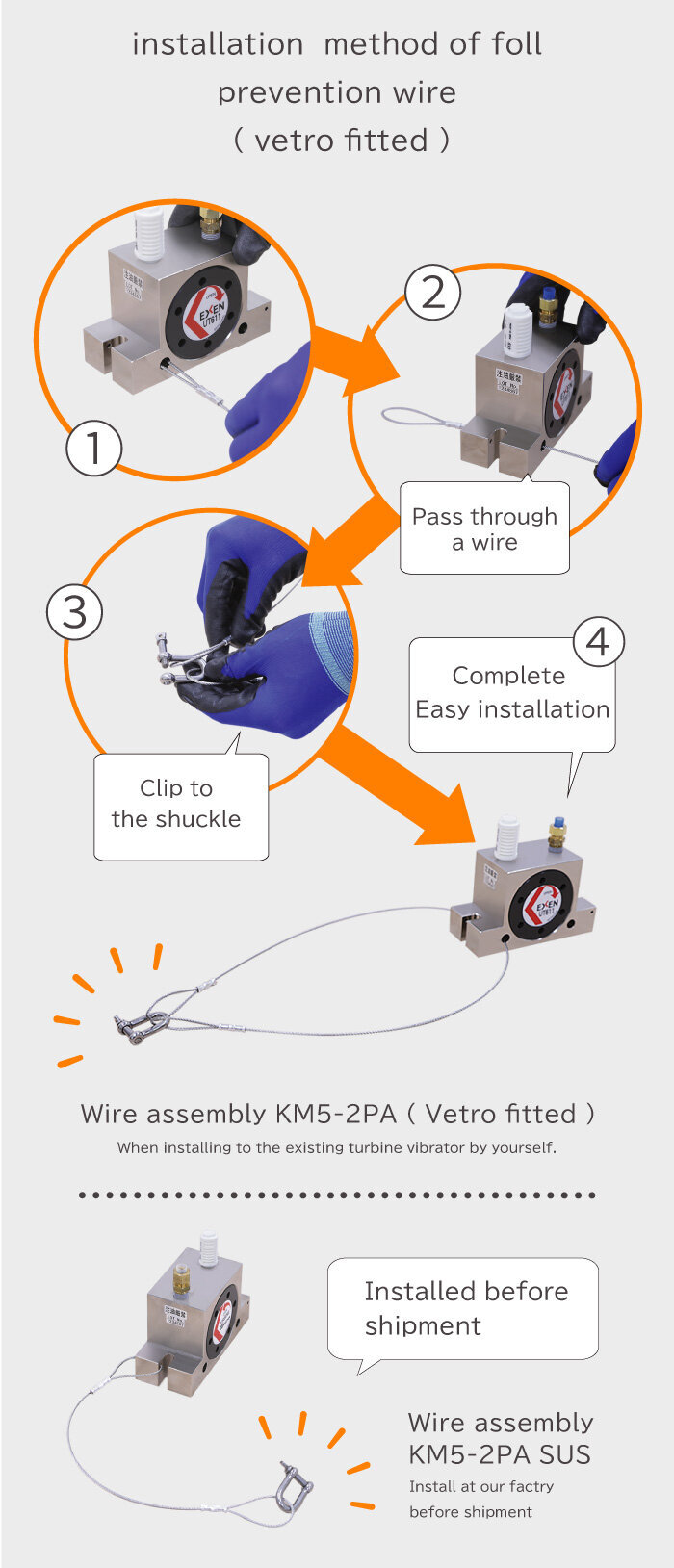

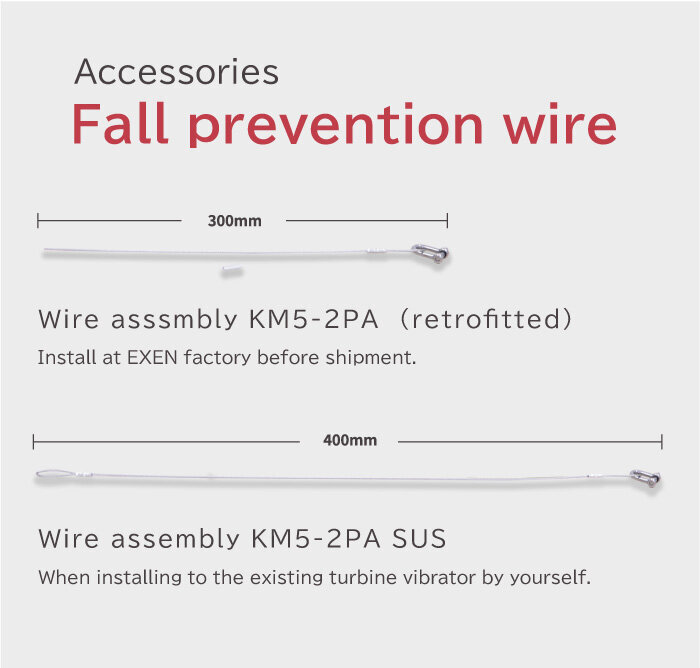

For safety measures, two types of fall prevention wires are available (installed at the time of shipment / retrofitted).
* Accessories
Model | Code Number |
---|---|
UT321 | 001523000 |
UT322 | 001554000 |
UT471 | 001595000 |
UT472 | 001596000 |
UT611 | 001590000 |
UT612 | 001593000 |
Model | Performance | Working pressure (MPa) | Weight (kg) |
||||
---|---|---|---|---|---|---|---|
0.2 | 0.3 | 0.4 | 0.5 | 0.6 | |||
UT321 | Air consumption (L/min(ANR)) |
39 | 51 | 65 | 77 | 88 | 0.25 |
Frequency (Hz) |
454 | 521 | 569 | 606 | 641 | ||
Centrifugal force (N) |
490 | 643 | 767 | 872 | 974 | ||
UT321 | Air consumption (L/min(ANR)) |
39 | 51 | 65 | 77 | 88 | 0.26 |
Frequency (Hz) |
321 | 373 | 418 | 463 | 492 | ||
Centrifugal force (N) |
444 | 604 | 754 | 926 | 1044 | ||
UT471 | Air consumption (L/min(ANR)) |
130 | 173 | 216 | 254 | 294 | 0.56 |
Frequency (Hz) |
322 | 387 | 429 | 462 | 493 | ||
Centrifugal force (N) |
1032 | 1490 | 1824 | 2122 | 2410 | ||
UT472 | Air consumption (L/min(ANR)) |
129 | 172 | 215 | 253 | 294 | 0.58 |
Frequency (Hz) |
239 | 275 | 304 | 329 | 349 | ||
Centrifugal force (N) |
1120 | 1483 | 1804 | 2112 | 2381 | ||
UT611 | Air consumption (L/min(ANR)) |
160 | 216 | 265 | 317 | 371 | 1.15 |
Frequency (Hz) |
195 | 229 | 258 | 280 | 304 | ||
Centrifugal force (N) |
1116 | 1545 | 1962 | 2314 | 2730 | ||
UT612 | Air consumption (L/min(ANR)) |
160 | 216 | 265 | 317 | 371 | 1.16 |
Frequency (Hz) |
146 | 174 | 193 | 208 | 222 | ||
Centrifugal force (N) |
1234 | 1768 | 2168 | 2526 | 2870 |
(Imperial System)
Model | Specification | Working Pressure (PSI) | Weight (lb) |
||||
---|---|---|---|---|---|---|---|
29 | 44 | 58 | 73 | 87 | |||
UT321 | Air Consumption (CFM) |
1.38 | 1.80 | 2.30 | 2.72 | 3.11 | 0.55 |
Frequency (VPM) |
27,240 | 31,260 | 34,140 | 36,360 | 38,460 | ||
Centrifugal Force (lbf) |
110 | 145 | 172 | 196 | 219 | ||
UT322 | Air Consumption (CFM) |
1.38 | 1.80 | 2.30 | 2.72 | 3.11 | 0.57 |
Frequency (VPM) |
19,260 | 22,380 | 25,080 | 27,780 | 29,520 | ||
Centrifugal Force (lbf) |
100 | 136 | 170 | 208 | 235 | ||
UT471 | Air Consumption (CFM) |
4.59 | 6.11 | 7.63 | 8.97 | 10.38 | 1.23 |
Frequency (VPM) |
19,320 | 23,220 | 25,740 | 27,720 | 29,580 | ||
Centrifugal Force (lbf) |
232 | 335 | 410 | 477 | 542 | ||
UT472 | Air Consumption (CFM) |
4.56 | 6.07 | 7.59 | 8.93 | 10.38 | 1.28 |
Frequency (VPM) |
14,340 | 16,500 | 18,240 | 19,740 | 20,940 | ||
Centrifugal Force (lbf) |
252 | 333 | 406 | 475 | 535 | ||
UT611 | Air Consumption (CFM) |
5.65 | 7.63 | 9.36 | 11.19 | 13.10 | 2.54 |
Frequency (VPM) |
11,700 | 13,740 | 15,480 | 16,800 | 18,240 | ||
Centrifugal Force (lbf) |
251 | 347 | 441 | 520 | 614 | ||
UT612 | Air Consumption (CFM) |
5.65 | 7.63 | 9.36 | 11.19 | 13.10 | 2.56 |
Frequency (VPM) |
8,760 | 10,440 | 11,580 | 12,480 | 13,320 | ||
Centrifugal Force (lbf) |
277 | 397 | 487 | 568 | 645 |

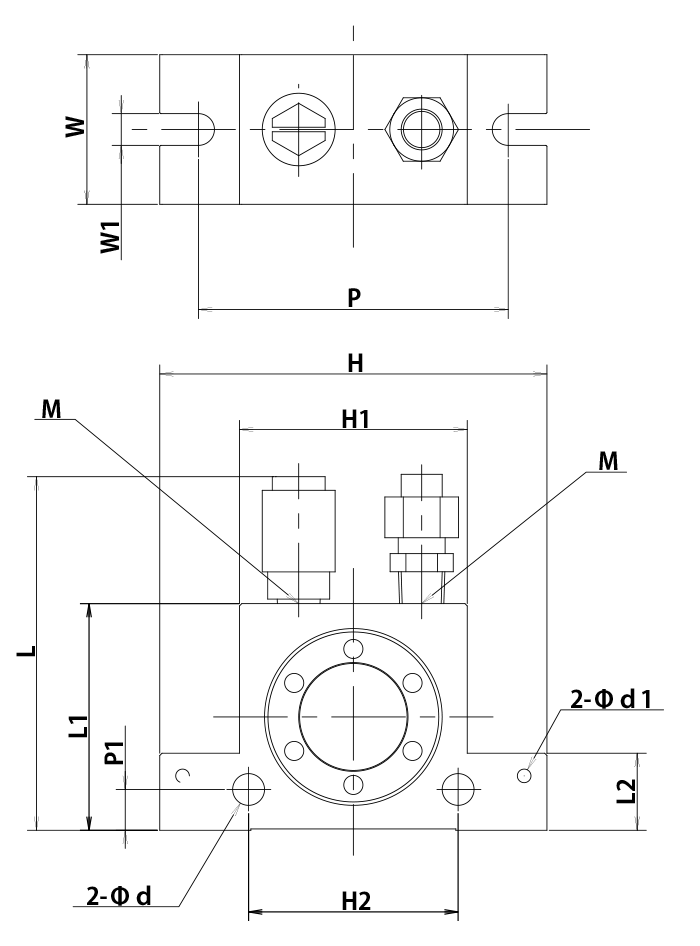

Model | L | L1 | L2 | H | H1 | H2 | W | W1 | P | P1 | φd | φd1 | M | Tube dia. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UT321/322 | 79 | 50 | 17 | 85 | 50 | 46 | 33 | 7 | 68 | 9 | 7 | - | Rp1/8 | φ8×φ6 |
UT471/472 | 103 | 65 | 22 | 113 | 65 | 62 | 43 | 9 | 90 | 11 | 9 | 3 | Rp1/4 | |
UT611/612 | 118 | 80 | 27 | 128 | 80 | 72 | 56 | 9 | 104 | 14 | 9 | 3 |
(Imperial System)
Model | L | L1 | L2 | H | H1 | H2 | W | W1 | P | P1 | φd | φd1 | M | Tube Size |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UT321/322 | 3-7/64 | 1-31/32 | 43/64 | 3-11/32 | 1-31/32 | 1-13/16 | 1-19/64 | 9/32 | 2-11/16 | 23/64 | 9/32 | - | Rp1/8 | φ8×φ6 mm |
UT471/472 | 4-1/16 | 2-9/16 | 55/64 | 4-29/64 | 2-9/16 | 2-7/16 | 1-11/16 | 23/64 | 3-35/64 | 7/16 | 23/64 | 1/8 | Rp1/4 | |
UT611/612 | 4-41/64 | 3-5/32 | 1-1/16 | 5-3/64 | 3-5/32 | 2-53/64 | 2-13/64 | 23/64 | 4-3/32 | 35/64 | 23/64 | 1/8 |
