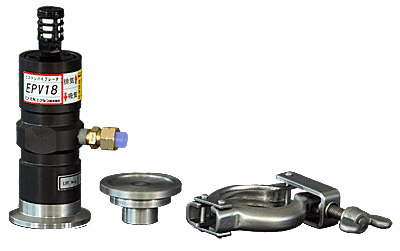

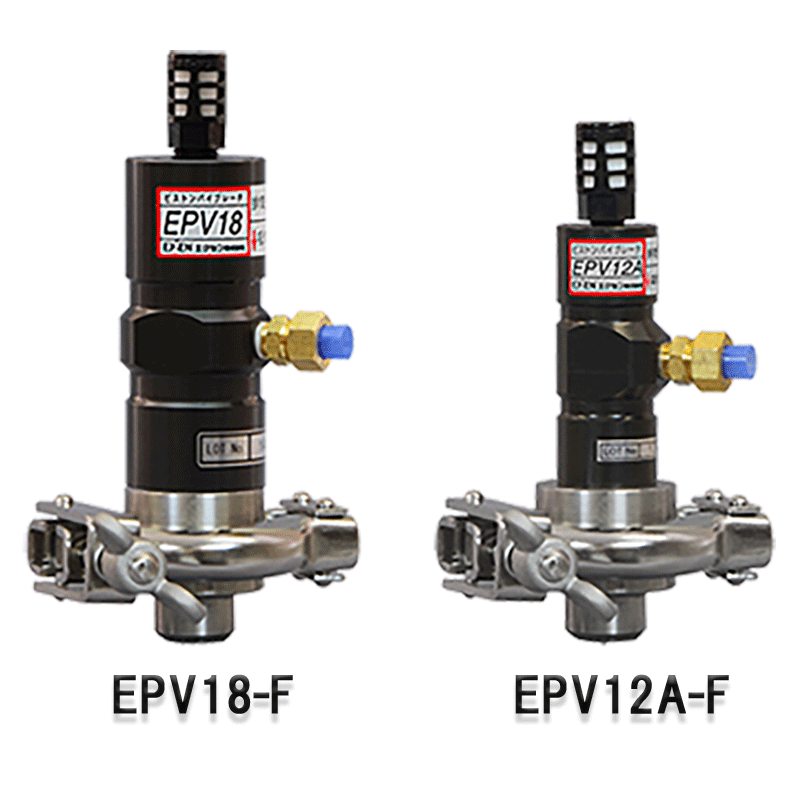

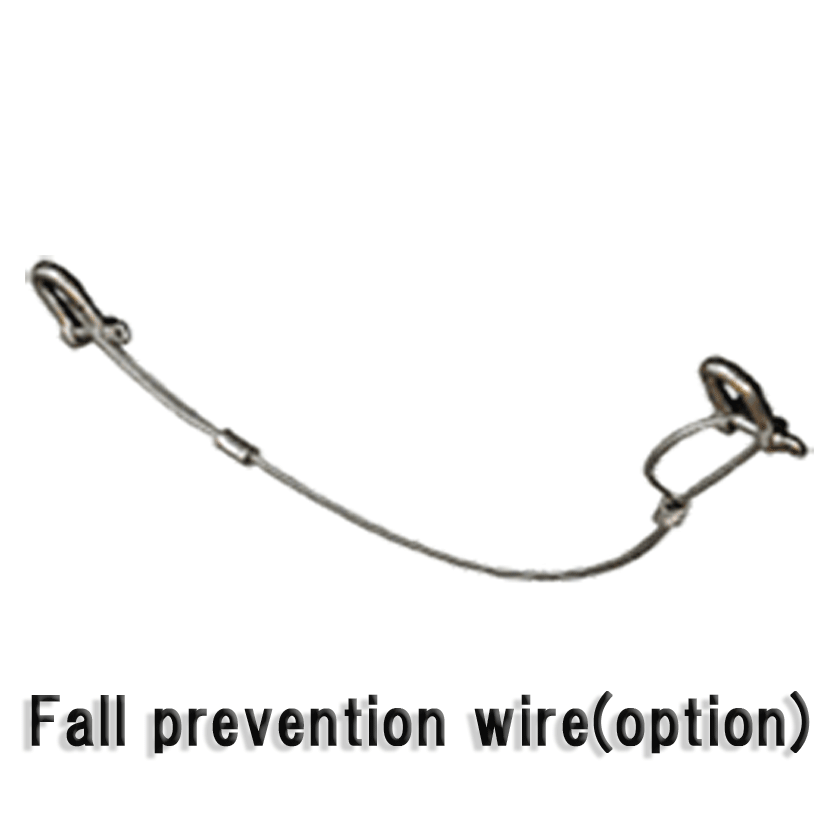

Models EPV12A-F and EPV18-F are vibrators fixed with ferrule band that allows pneumatic piston vibrator series models EPV12A and EPV18 to be detached manually. This piston vibrator is convenient as equipment that prevents blockage and complies with the sanitary specification in food and chemical industries because it can be detached easily by hand during cleaning of container. This is a safe and easy-to-handle piston vibrator that can be easily detached for periodic cleaning to avoid contamination or for water washing of container.

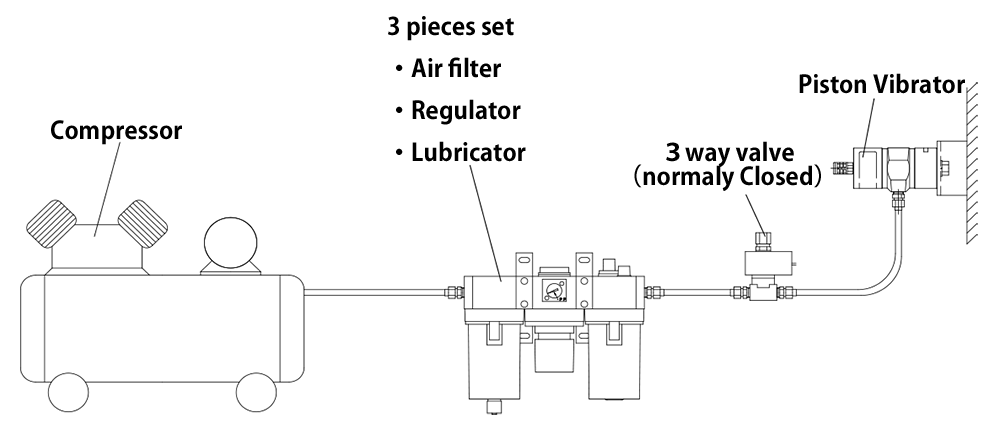

*Use a normally closed three-way valve for control of activation and stop.
Changing the fixation method for the piston vibrator from the conventional bolt type to the ferrule clamp type allows the body to be easily detached from the container, which enables the daily cleaning in a short period of time.
The product uses stainless steel SUS304 for the body mounting section and band, and corrosion-resistant part with aluminum body subjected to hard surface processing for cylinder. Thus, it consists of parts that are lightweight, easy to use, and long-lived.
Equipped with filter as standard and produces less oil mist in exhaust air, this product does not have an adverse effect on workplace and handling products. It can be used in a wide range from general industrial equipment field to food industry. (Note) A long period of use of complete dry air will cause a failure.
This product is designed environmentally friendly, such as low noise with operation sound of approximately 65dB and low air consumption of approximately 9 to 62L/min (ANR). This leads to cost reduction through energy saving and improvement of work environment through low noise.
Because compressor air is used as power source, the product has low ignition capability like electric type. Also, its enclosed structure prevents dust from entering into the cylinder part. It can be used in a place where there is a risk of dust explosion. *Use a normally closed three-way valve for control of activation and stop.
Pneumatic piston vibrator can change the vibration frequency and vibratory force by changing the air pressure. The merit of variable vibration force is to be able to use the same model in a place where the condition of object to which vibrator is installed is different, just by changing the air pressure.
Because the wear-resistant processing of EXEN's unique special technique has been provided for the piston portion in the body, the product takes pride in industry-topping wear resistance.
This product supports simplified water washing by extending the exhaust filter section and installing the filter downward to meet the drip-proof specification.
Piston vibrator can be used as power source of vibrating feeder for vibration conveyance, filling and diffusion, and vibration table, by applying the vibration principle of piston movement.
| Model | Code Number | Product Drawing Download |
|---|---|---|
| EPV12A-F | 001331000(*1) | Product Drawing Download |
| EPV18-F | 001047000 (*1) | Product Drawing Download |
*1 Because this product is a built-to-order product, contact EXEN for information on price and delivery time.
| Model | Working Pressure （MPa） |
Frequency （Hz） |
Centrifugal Force （N） |
Air Consumption （L/min(ANR)） |
Total length （mm） |
Max dia. （mm） |
Attachment way |
Weight （kg） |
|
|---|---|---|---|---|---|---|---|---|---|
| EPV12A-F | With Silencer |
0.2 - 0.6 | 106 - 164 | 29 - 82 | 9 - 24 | 139 | 100 (Ferrule) |
Ferrule clamp IDF/ISO-1.5S |
0.65 |
| EPV18-F | 102 - 149 | 66 - 186 | 17 - 62 | 157 | 0.85 | ||||
（Imperial System）
| Model | Working Pressure （MPa） |
Frequency (VPM) |
Centrifugal Force (lbf) |
Air Consumption (CFM) |
Total length （in） |
Max dia. （in） |
Attachment way |
Weight （lb） |
|
|---|---|---|---|---|---|---|---|---|---|
| EPV12A-F | With Silencer |
29-87 | 6,360-9,840 | 6.52-18.43 | 0.32-0.85 | 5.47 | 3.94 (Ferrule) |
Ferrule clamp IDF/ISO-1.5S |
1.43 |
| EPV18-F | 6,120-8,940 | 14.84-41.81 | 0.60-2.19 | 6.18 | 1.87 | ||||
*Use a normally closed three-way valve for control of activation and stop.
*The weight of ferrule clamp is 0.51Kg.
※ Operating temperature range is 0 ~ 60 ℃.

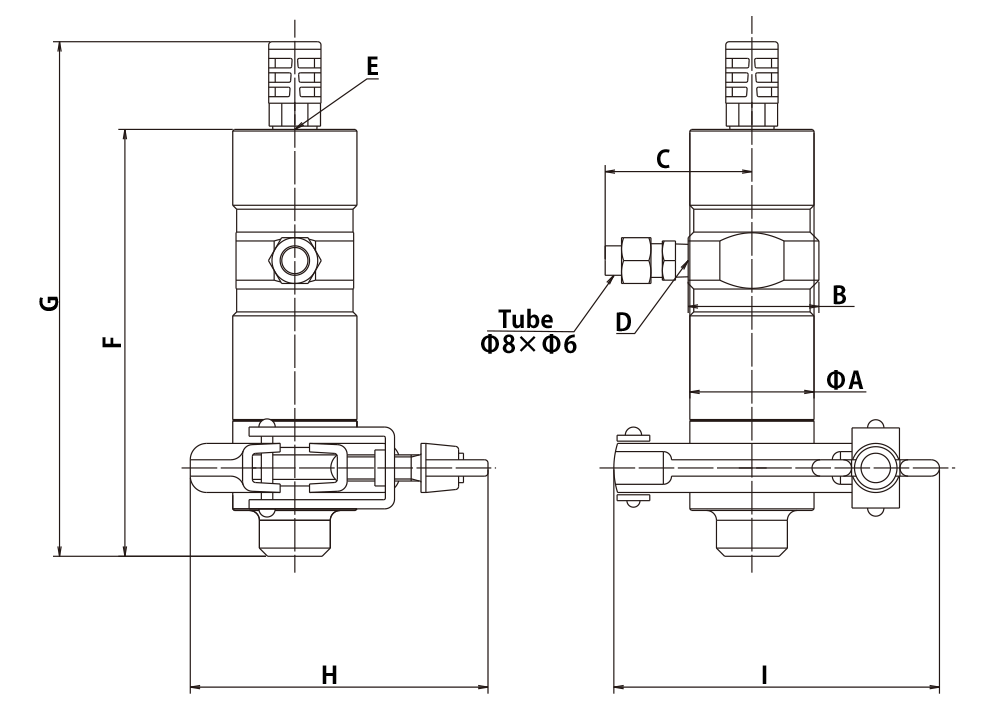

| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| EPV12A-F | φ27 | 29.5 | (41.4) | 1/8 | 1/8 | 110.8 | (139) | (91) | (100) |
| EPV18-F | φ38 | 40 | (44.9) | 1/4 | 130.5 | (157) |
（Imperial System）
| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| EPV12A-F | φ1.06 | 1.17 | (1.63) | 1/8 | 1/8 | 4.36 | (5.47) | (3.58) | (3.94) |
| EPV18-F | φ1.5 | 1.57 | (1.77) | 1/4 | 5.14 | 6.18 |
