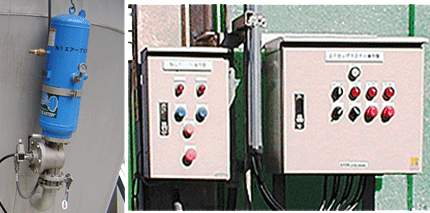

Blaster control panel enables the automatic injection depending on injection cycle, and enables the injection by receiving external signal through non-voltage contact. Automatic type can switch between automatic and manual modes, and can make single-shot inject in manual mode. Selection can be made from a wide range of control panel series, such as the number of blasters, indoor/outdoor, input power of 100V/200V, switching between automatic and manual, manual only, etc. Manufacturing of special product is supported.
BCM (equipment side (manual) type) is a simplified control panel that allows the blaster injection only with a button on site only when needed, depending on the powder blockage situation.
For BCA, it is possible to select manual (machine side) and automatic (remote) operations by the select switch depending on the blockage situation. The manual operation allows the blaster injection only by the operation of push button on machine side. The automatic operation can be made by setting the injection cycle of individual ON and OFF timer.
For model BCA, it is possible to select manual or automatic (cycle/recycle (loop)) arbitrarily by the select switch, which allows operation depending on the blockage situation.
Using external contact (non-voltage contact) enables the remote operation.
Various combination of blasters can be used in built-to-order. Use in explosion-proof are supported in accordance with N2 (Nitrogen) filling specification.
| Model | Code Number |
|---|---|
| BCA1101A | (*1) |
| BCA1102A | (*1) |
| BCA1103A | (*1) |
| BCA1104A | (*1) |
| BCA1106A | (*1) |
| BCA5101A | (*1) |
| BCA5102A | (*1) |
| BCA5103A | (*1) |
| BCA5104A | (*1) |
| BCA5106A | (*1) |
| BCM1102A | (*1) |
| BCM1104A | (*1) |
| BCM5102A | (*1) |
| BCM5104A | (*1) |
*1 Because this product is a built-to-order product, contact EXEN for information on price and delivery time.
| Model | Control method |
Protection level |
Voltage | Number of units can be perated |
Power consumption (W) |
Maximum Electric Comsumption (W) |
Timer's set time |
Weight (kg) |

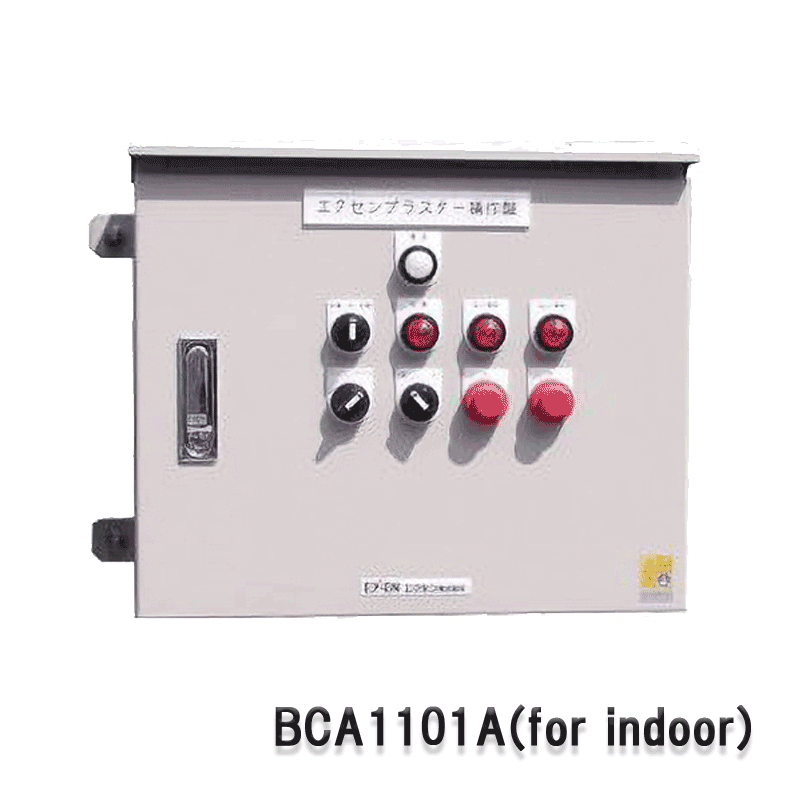

|---|---|---|---|---|---|---|---|---|
| BCA1101A | Automatic control |
IP4X indoor type wall tapestry type |
Shgle phase AC 100V |
1 | 14 | 650 | ON-Timer 0.1～1s OFF-Timer 0.05ｓ～300ｈ |
10 |

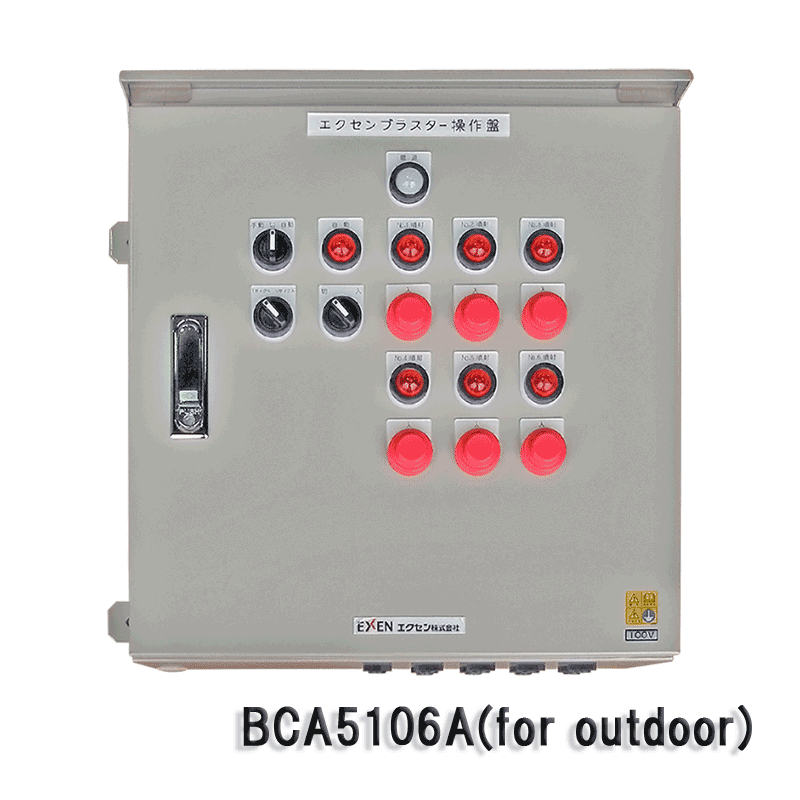

| BCA1102A | 2 | 21 | 12 | |||||
| BCA1103A | 3 | 28 | 15 | |||||
| BCA1104A | 4 | 35 | 18 | |||||
| BCA1106A | 6 | 49 | ||||||
| BCA5101A | IP44 outdoor type wall tapestry type |
1 | 14 | 13 | ||||
| BCA5102A | 2 | 21 | 15 | |||||
| BCA5103A | 3 | 28 | 20 | |||||
| BCA5104A | 4 | 35 | 23 | |||||
| BCA5106A | 6 | 49 | ||||||
| BCM1102A | Manual control |
IP4X indoor type wall tapestry type |
2 | 11 | 420 | ON-Timer 0.1～1s |
8 | |
| BCM1104A | 4 | 20 | 10 | |||||
| BCM5102A | IP44 outdoor type wall tapestry type |
2 | 11 | 13 | ||||
| BCM5104A | 4 | 20 |
（Imperial System）
| Model | Control method |
Protection level |
Voltage | Number of units can be perated |
Power consumption (W) |
Maximum Electric Comsumption (W) |
Timer's set time |
Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| BCA1101A | Automatic control |
IP4X indoor type wall tapestry type |
Shgle phase AC 100V |
1 | 14 | 650 | ON-Timer 0.1～1s OFF-Timer 0.05ｓ～300ｈ |
22.0 |
| BCA1102A | 2 | 21 | 26.5 | |||||
| BCA1103A | 3 | 28 | 33.1 | |||||
| BCA1104A | 4 | 35 | 39.7 | |||||
| BCA1106A | 6 | 49 | ||||||
| BCA5101A | IP44 outdoor type wall tapestry type |
1 | 14 | 28.7 | ||||
| BCA5102A | 2 | 21 | 33.1 | |||||
| BCA5103A | 3 | 28 | 44.1 | |||||
| BCA5104A | 4 | 35 | 50.7 | |||||
| BCA5106A | 6 | 49 | ||||||
| BCM1102A | Manual control |
IP4X indoor type wall tapestry type |
2 | 11 | 420 | ON-Timer 0.1～1s |
17.8 | |
| BCM1104A | 4 | 20 | 22.0 | |||||
| BCM5102A | IP44 outdoor type wall tapestry type |
2 | 11 | 18.7 | ||||
| BCM5104A | 4 | 20 |
The value of power consumption indicates the maximum value including the power consumption of solenoid valve.
All models are built-to-order. For delivery time and price, contact EXEN.
All models with specification of single-phase 200V are manufactured. (Example of model: Model BCA1101 with specification of 200V->Model BCA1201)

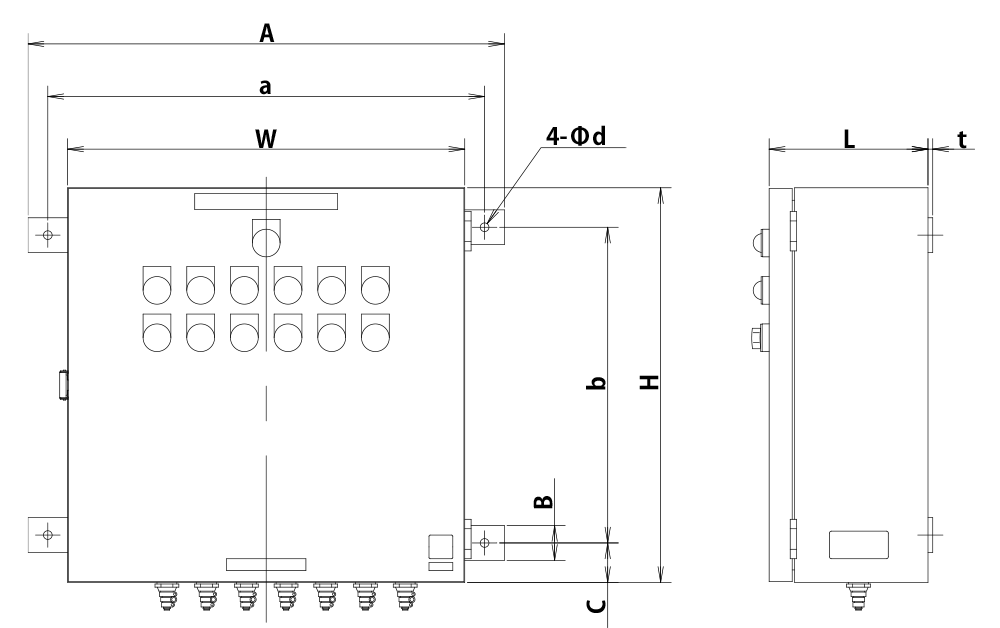

| 型式 | W | H | L | ａ | ｂ | ｃ | φｄ | A | B | ｔ |
|---|---|---|---|---|---|---|---|---|---|---|
| BCA1101A | 400 | 300 | 200 | 450 | 200 | 50 | 11 | 500 | 44 | 6 |
| BCA1102A | 400 | 300 | ||||||||
| BCA1103A | 500 | 550 | 600 | |||||||
| BCA1104A | 500 | 400 | ||||||||
| BCA1106A | ||||||||||
| BCM1102A | 300 | 300 | 350 | 200 | 400 | |||||
| BCM1104A | 400 | 450 | 500 |
（Imperial System）
| 型式 | W | H | L | ａ | ｂ | ｃ | φｄ | A | B | ｔ |
|---|---|---|---|---|---|---|---|---|---|---|
| BCA1101A | 15.75 | 11.81 | 7.87 | 17.72 | 7.87 | 1.97 | 0.43 | 19.69 | 1.73 | 0.24 |
| BCA1102A | 15.75 | 11.81 | ||||||||
| BCA1103A | 19.69 | 21.65 | 23.62 | |||||||
| BCA1104A | 19.69 | 15.75 | ||||||||
| BCA1106A | ||||||||||
| BCM1102A | 11.81 | 11.81 | 13.78 | 7.87 | 15.75 | |||||
| BCM1104A | 15.75 | 17.72 | 19.69 |

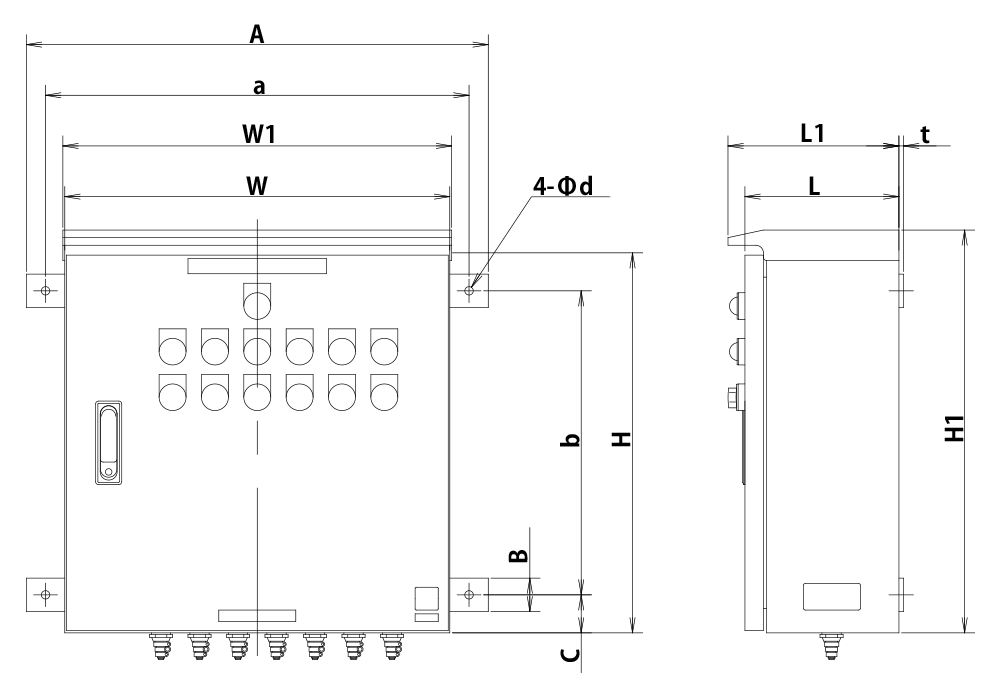

| Model | W | H | L | W1 | H1 | L1 | ａ | ｂ | ｃ | φｄ | A | B | ｔ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCA5101A | 400 | 300 | 200 | 405 | 330 | 222 | 450 | 200 | 50 | 11 | 500 | 44 | 6 |
| BCA5102A | 400 | 430 | 300 | ||||||||||
| BCA5103A | 500 | 505 | 550 | 600 | |||||||||
| BCA5104A | 500 | 530 | 400 | ||||||||||
| BCA5106A | |||||||||||||
| BCM5102A | 400 | 300 | 405 | 330 | 450 | 200 | 500 | ||||||
| BCM5104A |
（Imperial System）
| Model | W | H | L | W1 | H1 | L1 | ａ | ｂ | ｃ | φｄ | A | B | ｔ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BCA5101A | 15.75 | 11.81 | 7.87 | 15.94 | 12.99 | 222 | 17.72 | 7.87 | 1.97 | 0.43 | 19.69 | 1.73 | 0.24 |
| BCA5102A | 15.75 | 16.93 | 11.81 | ||||||||||
| BCA5103A | 19.69 | 19.88 | 21.65 | 23.62 | |||||||||
| BCA5104A | 19.69 | 20.87 | 15.75 | ||||||||||
| BCA5106A | |||||||||||||
| BCM5102A | 15.75 | 11.81 | 15.94 | 12.99 | 17.72 | 7.87 | 19.69 | ||||||
| BCM5104A |
