Lightweight high frequency generator

This generator is designed specifically for high-frequency 48 V vibrators. A white cap is used to protect against mortar adherents, thereby alleviating the burden of maintenance. Equipped Honda engine.

Used in the following places:

Features

This special-purpose generator is designed as a power supply unit for the high-frequency series of vibrators in city areas, mountainous areas, and other locations where commercial mains is unavailable or cannot be led in.


A white cap is used.

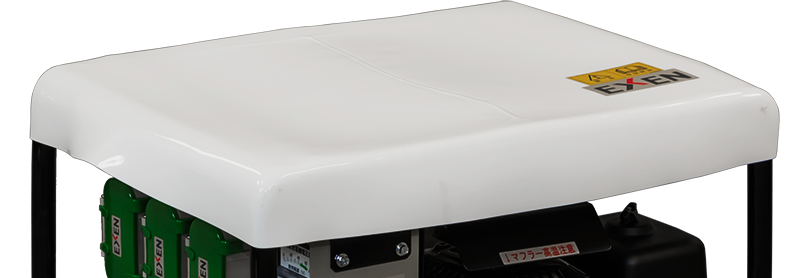

A white cap is used to protect the machine from splashes of concrete when poured on the worksite. This alleviates the burden of after-project maintenance.

Lightweight high frequency generator

Fully enclosed, external fan-type brushless generator

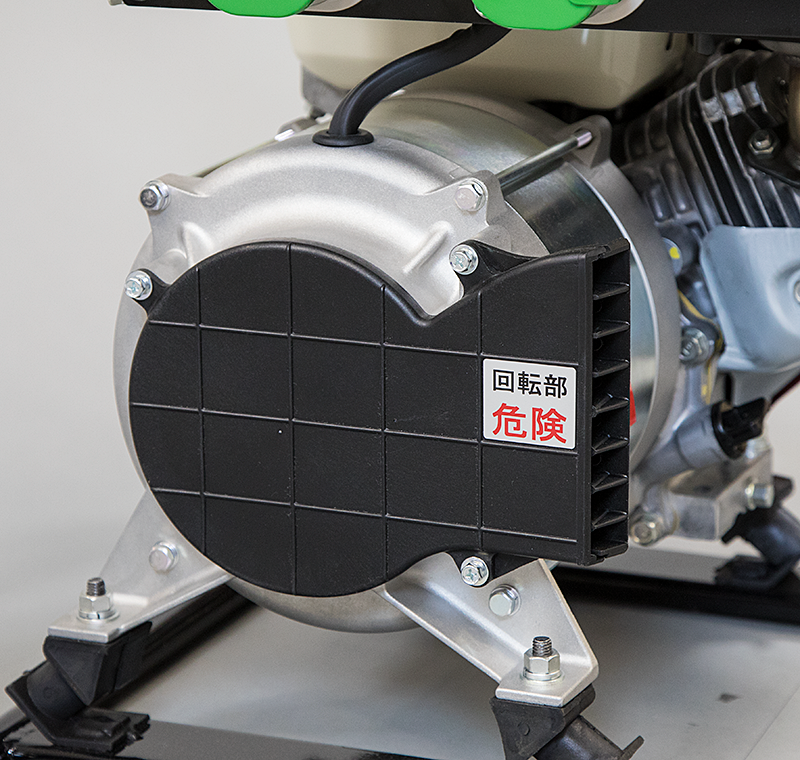

Exen lightweight generators are fully-enclosed, external fan types that protect against the ingress of foreign matter. They are equipped externally with a wind-inducing cover, and a powerful fan is used to realize an even more efficient cooling system.

Lightweight high frequency generator

A stackable frame structure

The frame structures of various models are stackable and easy to manage for different models, and particularly helpful in storage in cramped warehouses.

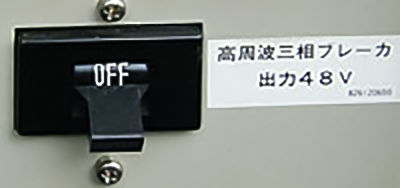

Equipped with a no-fuse circuit-breaker

The models are protected from burns due to vibrator overload and burns on the generator side by installing a no-fuse breaker (NFB) inside the wall outlet box.

Lightweight high frequency generator

An oil sensor as standard equipment

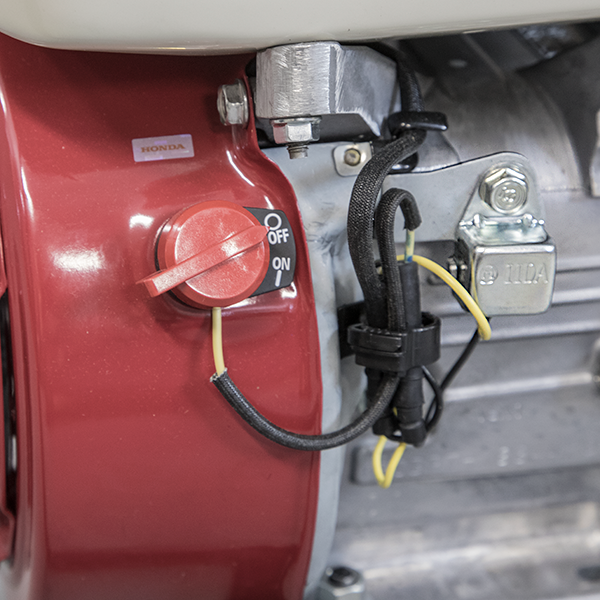

The engine incorporates an oil sensor mechanism (a seizure-prevention automatic engine stopper). If engine oil runs out during operation, the engine stops automatically. *If oil is available to a specified level but the machine is tilted, then the oil sensor mechanism may be activated to stop the engine.

Lightweight high frequency generator

List of models

Model Code Number

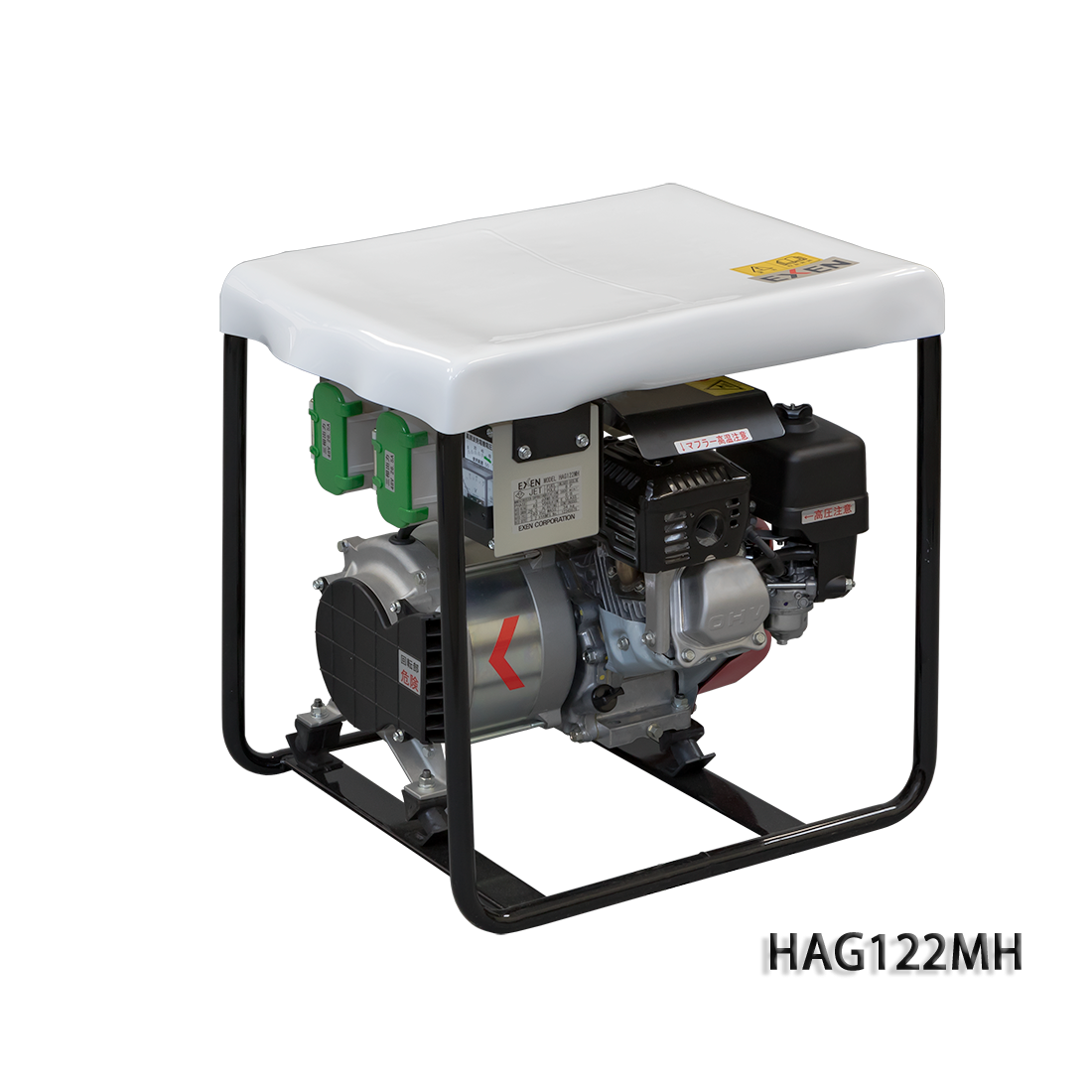

HAG122MH 001391000

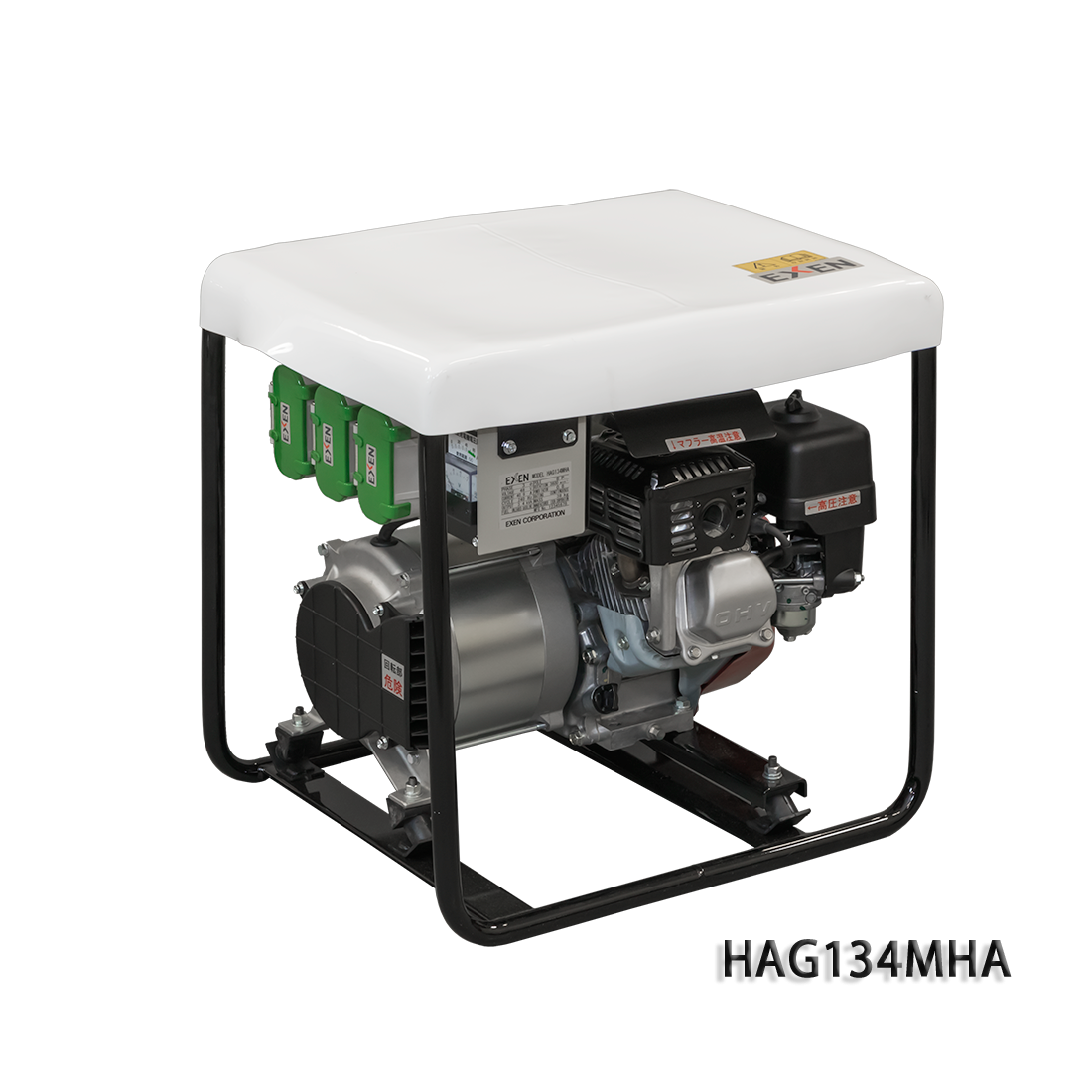

HAG134MHA 001392000

Specification

Model High-frequency engine generator
Output
(kVA)
Voltage
(V)
Current
(A)
Frequency
(Hz)
Engine Nos. of
socket outlet
Weight
(kg)
Model Output
(kW)
Continuous
rated output
(kW/min-1)
HAG122MH 2.2 48 26.5 240 GX160T2 VXJE 3.6 2.9/3600 2 36
HAG134MHA 3.4 40.9 GX200T2 VXJE 4.1 3.7/3600 3 40

(Imperial System)

Model High-frequency engine generator
Output
(kVA)
Voltage
(V)
Current
(A)
Frequency
(Hz)
Engine Nos. of
socket outlet
Weight
(lb)
Model Output
(kW)
Continuous
rated output
(kW/min-1)
HAG122MH 2.2 48 26.5 240 GX160T2 VXJE 3.6 2.9/3600 2 79.3
HAG134MHA 3.4 40.9 GX200T2 VXJE 4.1 3.7/3600 3 88.1

Product masses include that of the engine oil.

Dimensions, installation, control panel

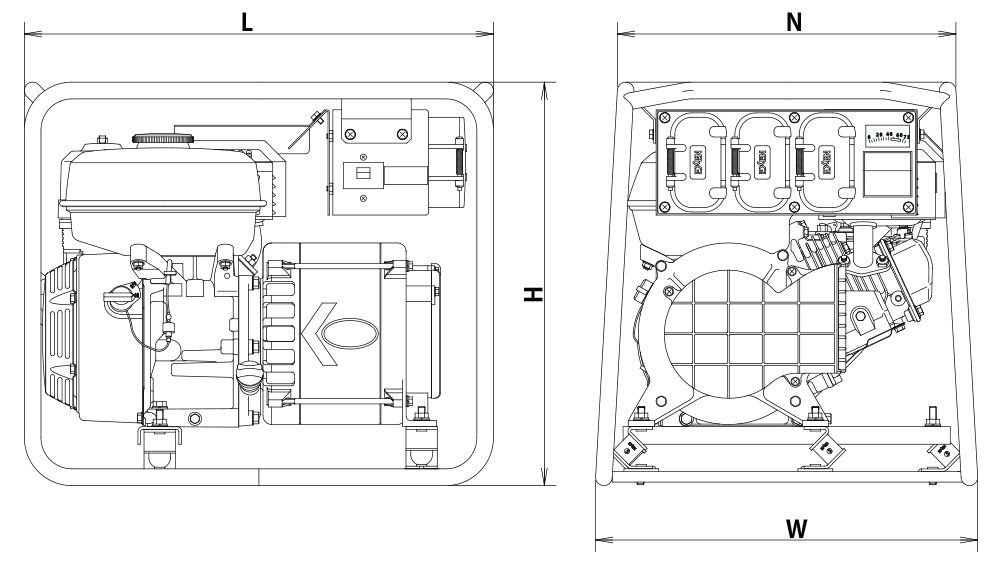

Product dimensional drawings

Product dimensional table

Model L W H N
HAG122MH 540 440 521 390
HAG134MHA

(Imperial System)

Model L W H N
HAG122MH 21.2 17.3 20.5 15.3
HAG134MHA
