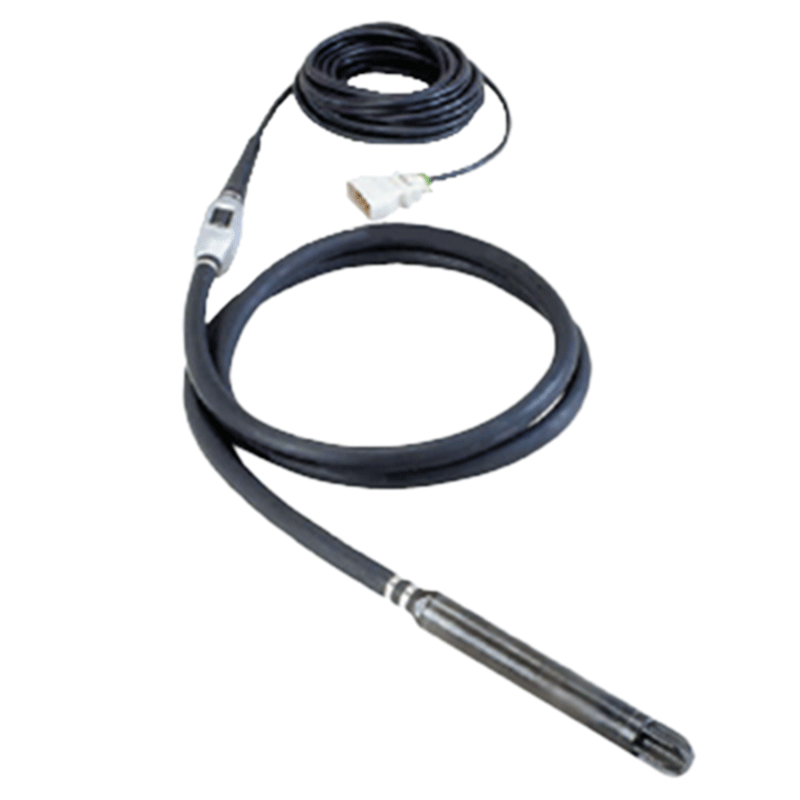

Fin head

Features

The fin head transmits powerful vibration in such a manner as to distribute aggregate equally by removing inner air bubbles and densify the concrete in order to realize strong concrete. The tip is fin-shaped to transmit powerful vibration.

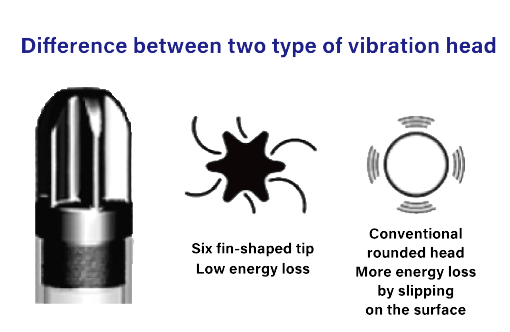

Tip shape: increasing compaction with a fin-shaped tip

Tips of six fin shapes eliminate transmission losses in vibration energy, thereby transmitting vibration more efficiently than general round types. The reshaped tip also aims to reduce scattering of concrete when poured.

Eco-friendly products

The HBM series are eco-friendly.
Cables are particularly eco-friendly, using environmentally friendly material. Cables used in HBM have successfully been reduced in weight by 10%.(From our earlier models.)
*Environmentally friendly materials do not include chlorine or other halogen-based element that may generate harmful substances when incinerated or buried in landfill or a lead component that threatens to harm the human body. Materials used are easy to recycle.

Easy maintenance

The ZX type is a structure where a rotor is integrated with a vibrating shaft (except for the 30ZX).
The VF type has its rotor as a separate part from its vibrating shaft to increase maintainability of the vibrating body.
Both types allow disassembly as the bearings are assembled on the rotor and vibrating shaft, resulting in higher maintainability. The bearings used are filled with a proven, long-lasting grease.

Using a plug with new functions

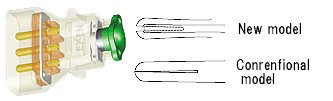

Burns in the motor due to the imperfect contact of the plug are reduced by using a super-tough pin in the developed EP plug. The super-tough pin is semi-permanently elastic, not causing imperfect contact in the plug.

Stable vibration

The unit incorporates a three-phase AC motor with smooth revolution and high output.
(The single-phase AC motor is low in output and susceptible to uneven revolution.) With this, the HBM ensures stable, powerful vibration.

Higher durability

The tip and vibrating body, made of abrasion-resistant materials, are durable.

Reducing vibration at hand

The vibration balance of the HBM is adjusted to minimize vibration at hand. Moreover, the new hose absorbs some of the vibration, thereby reducing vibration at hand.

List of models

Model	Code Number
HBM30ZX 1.5m	000081000 (*1)
HBM30ZX 4m	000156000
HBM30ZX 5m	000269000 (*1)
HBM30ZX 6m	000270000
HBM30ZX 8m	000272000 (*1)
HBM40VF 1.5m	001125000 (*1)
HBM40VF 4m	001165000
HBM40VF 5m	001185000 (*1)
HBM40VF 6m	001166000
HBM40VF 8m	001186000 (*1)
HBM50VF 1.5m	001154000 (*1)
HBM50VF 4m	001175000
HBM50VF 5m	001191000 (*1)
HBM50VF 6m	001176000
HBM50VF 8m	001192000 (*1)
HBM60ZX 1.5m	000277000 (*1)
HBM60ZX 4m	000278000 (*1)
HBM60ZX 5m	000279000 (*1)
HBM60ZX 6m	000280000
HBM60ZX 8m	000282000 (*1)

*Every model is equipped standard with 15 meters of external cord.
Because this product is a built-to-order product, contact EXEN for information of delivery time.

Specification

Fin head specification

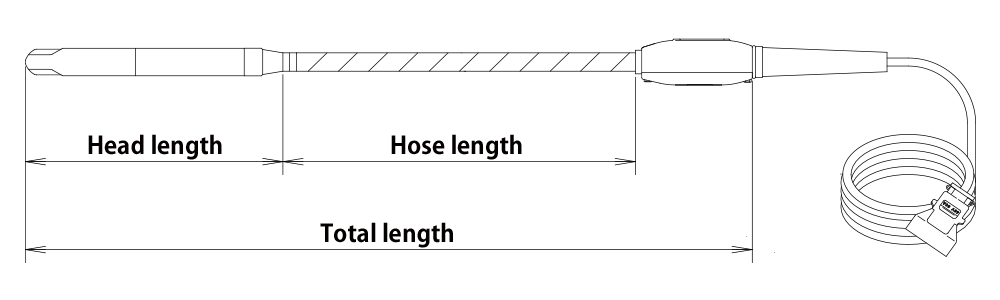

Model	Output （W）	Voltage （V）	Current （A）	Frequency （Hz）	Total length （mm）	Head length (dia×length) (mm)	Hose length (dia×length) (mm)	Weight (kg)
HBM30ZX	130	48	3.5	200/240	6,350	31×376	28×6,000	9.6
HBM40VF	250		5.5		6,502	43×348	33×6,000	12.1
HBM50VF	400		9.0		6,551	52×397	36×6,000	16.1
HBM60ZX	500		13.0		6,569	61×415	36×6,000	17.5

（Imperial System）

Model	Output （W）	Voltage （V）	Current （A）	Frequency （Hz）	Total length （Hz）	Head length (dia×length) (in)	Hose length (dia×length) (in×ft)	Weight (in)
HBM30ZX	130	48	3.5	200/240	21'5"	1.2"×1'3"	11/16"×19'8"	21.2
HBM40VF	250		5.5		21'4"	19/16"×1'2"	1.3×19'8"	26.7
HBM50VF	400		9.0		21'6"	2.0"×1'4"	1.4×19'8"	35.5
HBM60ZX	500		13.0		21'7"	23/8"×1'4"	1.4×19'8"	38.6

*Product masses include that of the external cord (3.8 kg for 30ZX～40VF, 4.9 kg for 50VF～60ZX).
*For "Selecting extension cables" and "Number of high-frequency vibrators that can be used simultaneously," see the relevant page.
