World’s smallest class pneumatic turbine vibrator BTP/ BTS Series.

Quite silent and completely lubricant free design.

EXEN Pneumatic turbine vibrator BTP BTS series is compact size vibrator which can be used completely oil-free.
Since the turbine part inside vibrator that rorates at high speed does not contact with the casing. The noise level is quite low so that it can be improved the operators working environment.
The turbine vibrator's casing, turbine, and air fittings are complied with the Japan Food Sanitation act.
Furthermore, exhaust muffler and side cover of the casing are made of stainless steel, so it can be used safely in the food, daily prodcut, pharmaceutical, chemical and precision parts industry.

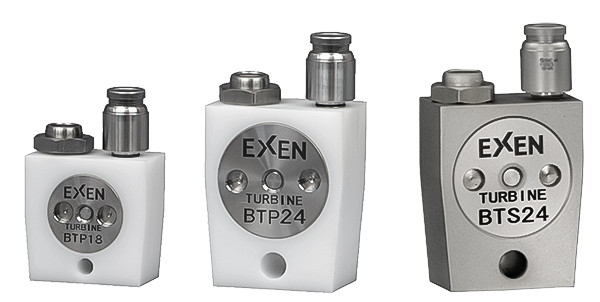

Three types of turbine vibrator are available.BTP type with polyacetal resin ann stainless steel 304.
BTS type with stainless steel casing 304.
Stainless steel are used for all air fittings, exhaust muffler and side cover.
Turbine vibrator BTP/ BTS can be used not only to prevent a clogging of powder and bulk, but also can be used for feeding and filling.

Features

Completely Oil-free design

Since turbine inside turbine vibrator that rotaes at high speed is supported by bearings and rotates without contacting with casing, it can be used as completely oil-free.

World’s smallest and lightest class pneumatic turbine vibrator

The world's smallest and lightest class turbine vibrator. BTP18 model width is only 17 x 32 mm and weight is just 50g. It can be installed to small hopper, chute, pipe and tight spaces that could not be installed with existing vibrator.

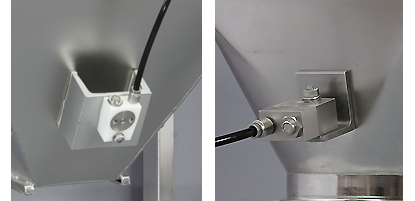

There is one tapped hole on the front and two tapped hole on the bottom. It can be freely attached according to the attachment shape, space, vibration effect and so on.

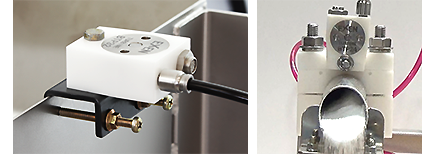

It can be easily attached and detached a vibrator to the objection without welding if uses attachment for fixing according to the site.

Excellent corrosion resistance, can be used in places exposed to water.

Turbine vibrator casing, turbine and air fittings are complied with Japan food sanitation act.

Furthermore, since bearing grease is for food machinery (NSF class H1 certificated), it can be used safely in the food,
pharmaceutical, chemical and presicion parts industry.

Vibration force can be adjusted easily only with adjustment the supply air.

Turbine vibrator can be adjusted the frequency and centrifugal force easily only by adjusting the pressure of supply air (2 - 6 Bar).

More details:

https://www.exen.co.jp/english/industry/prevention_vibrator/BTP/

Free suitable model selection service for your problem.

We are willing to provide the most suitable model, quantity and control method depending on your equipment and current blockage condition.
Please feel free to contact us from this inquiry from.

https://www.exen.co.jp/english/contact/
