Features
This vibration motor is ideal for the fields such as food, pharmaceutical and chemical industries where rust and corrosion due to water and steam must be eliminated. Utilizing strong vibration, it is widely used for eliminating clogging and adhesion inside powder and bulk container (hopper and tank) and for filling equipment.
All metal parts on the outer surface are made of stainless steel.
The outer surface is made of stainless steel, which is most suitable for environments where rust due to water or steam is generated and for sites where corrosion should be prevented.
Designed for water resistant structure
It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.
Molded stator
By fixing the motor stator to the mold, the risk of wire breakage due to vibration is reduced. EVSS 3-100A - EVSS 3-500
List of models
| Model | Code Number |
|---|---|

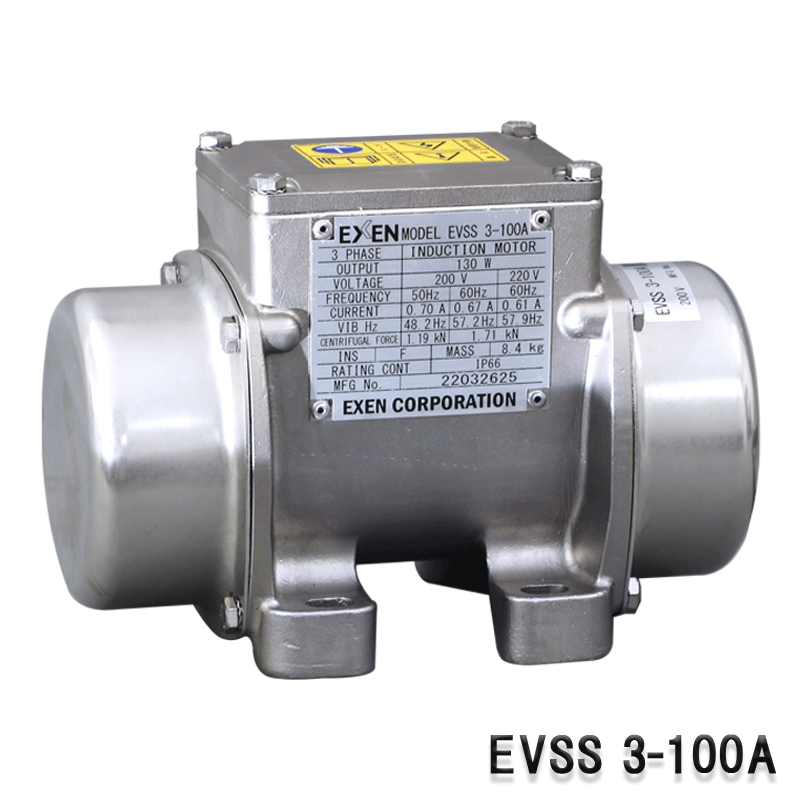

| EVSS 3-100A | 001885000 |

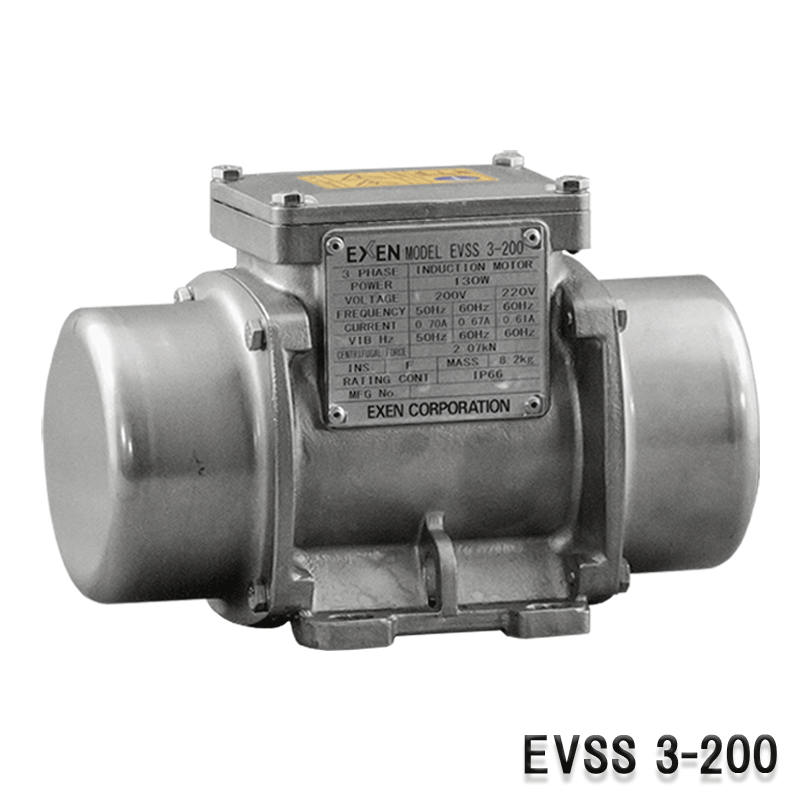

| EVSS 3-200 | 001396000(*1) |

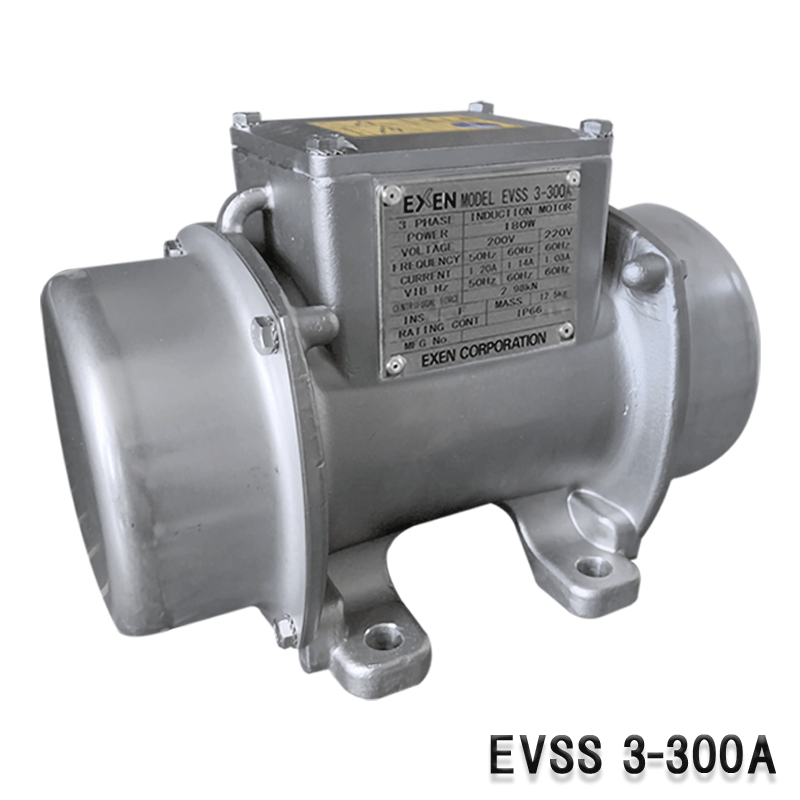

| EVSS 3-300A | 001901000 |

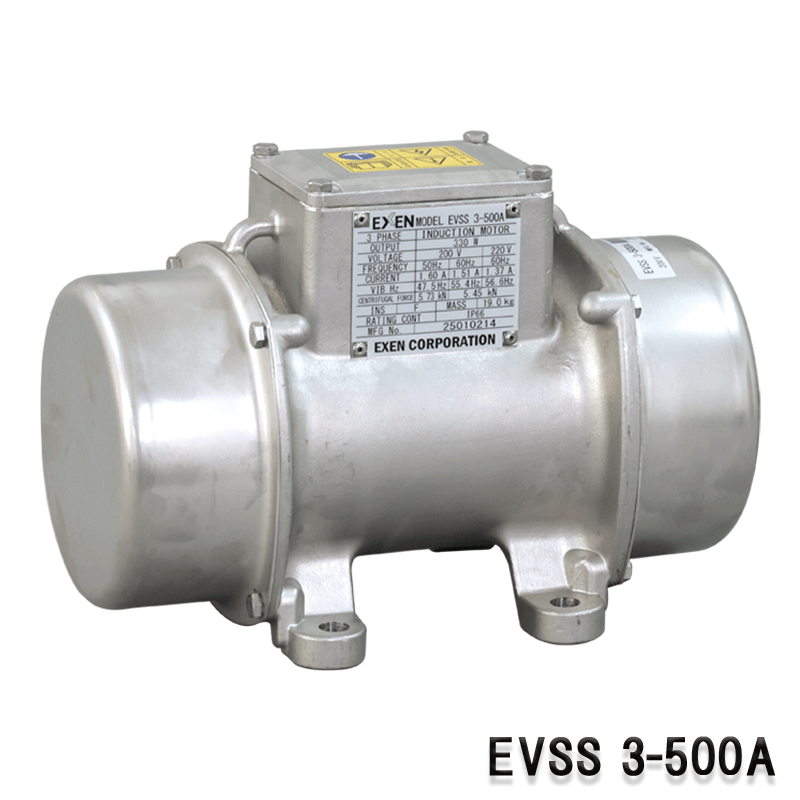

| EVSS 3-500 | 001410000(*1) |
*1 Order made product. For the lead time, please contact.
Specification
EVSS
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current (A） |
Frequency （Hz） |
Centrifugal Force （kN） |
Cable Length (m) |
Weight （kg） |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| EVSS 3-100A | 130 | 200 - 440 | 50/60 | 0.34 - 0.7 | 0.30 - 0.67 | 48.2 - 49.0 | 57.2 - 58.5 | 1.19 | 1.71 | 2 | 8.4 |
| EVSS 3-200 | 47.2 - 48.2 | 56.8 - 58.2 | 2.07 | 1.97 | 8.9 | ||||||
| EVSS 3-300A | 180 | 0.58 - 1.2 | 0.52 - 1.14 | 48.5 - 49.0 | 58.1 - 59.0 | 2.98 | 2.75 | 13.1 | |||
| EVSS 3-500 | 330 | 0.52 - 1.6 | 0.69 - 1.51 | 47.5 - 48.0 | 55.4 - 58.1 | 4.93 | 4.69 | 19.0 | |||
(Imperial System)
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current (A） |
Frequency （Hz） |
Centrifugal Force （lbf） |
Cable Length (ft) |
Weight （lb） |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||
| EVSS 3-100A | 130 | 200 - 440 | 50/60 | 0.34 - 0.7 | 0.30 - 0.67 | 48.2 - 49.0 | 57.2 - 58.5 | 267.5 | 384.4 | 6.56 | 18.5 |
| EVSS 3-200 | 47.2 - 48.2 | 56.8 - 58.2 | 465.4 | 442.9 | 19.8 | ||||||
| EVSS 3-300A | 180 | 0.58 - 1.2 | 0.52 - 1.14 | 48.5 - 49.0 | 58.1 - 59.0 | 669.9 | 618.2 | 28.9 | |||
| EVSS 3-500 | 330 | 0.52 - 1.6 | 0.69 - 1.51 | 47.5 - 48.0 | 55.4 - 58.1 | 1,108.30 | 1,054.40 | 41.9 | |||
Dimensions, installation, control panel

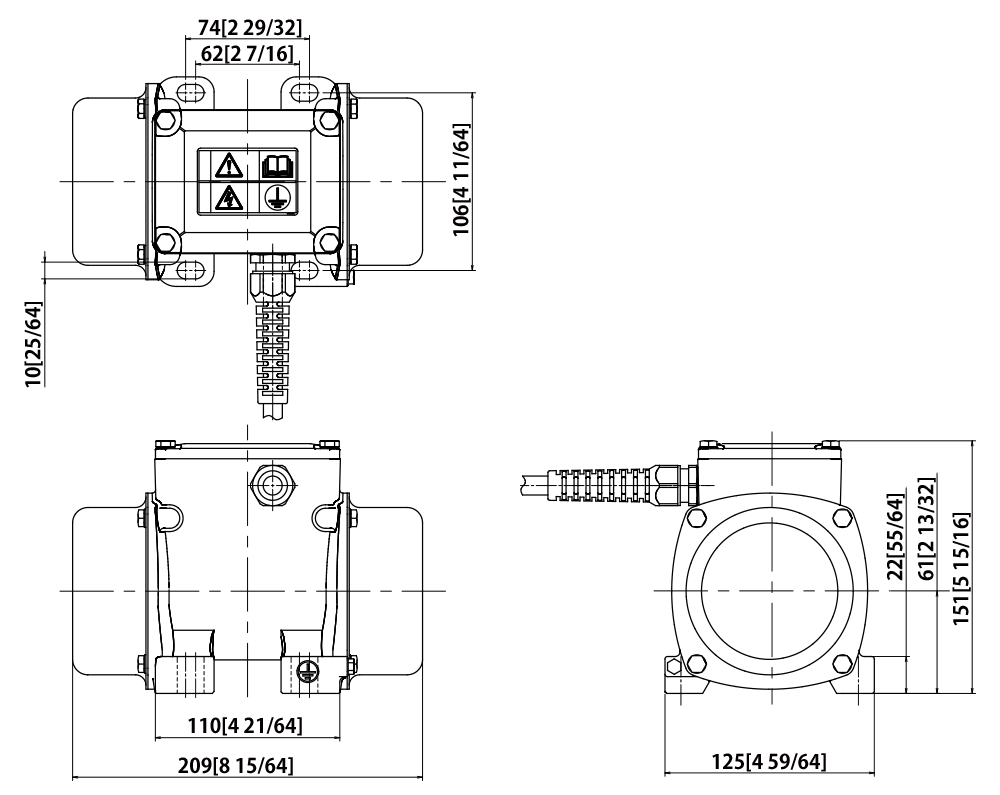

EVSS 3-100A dimensional drawings

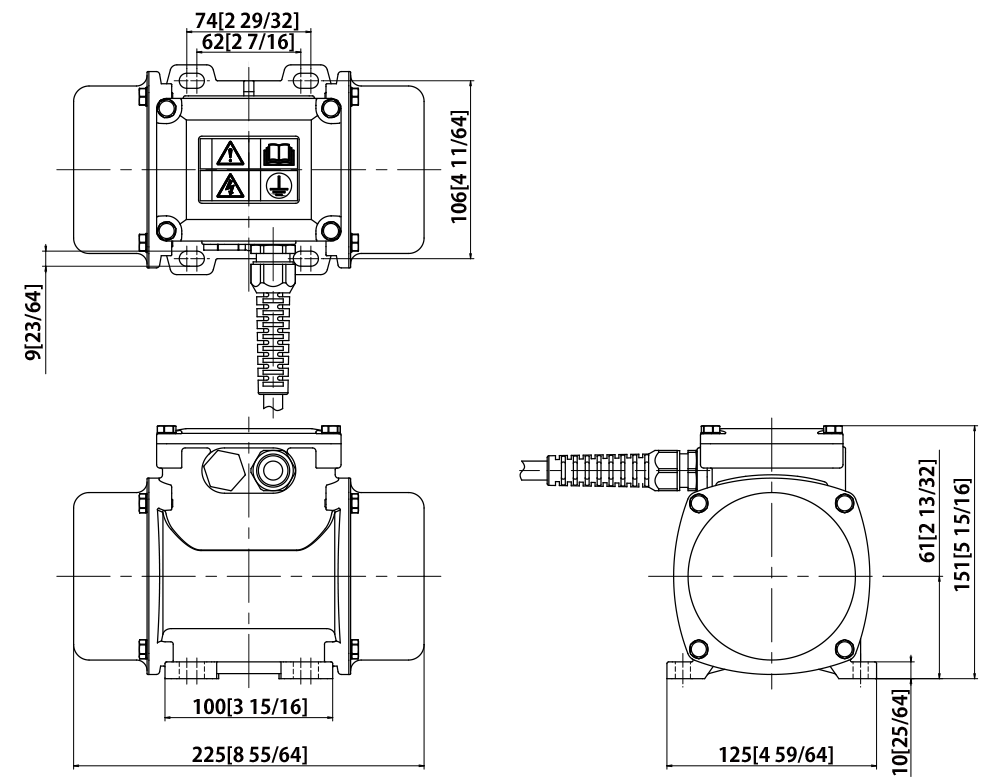

EVSS 3-200 dimensional drawings
EVSS 3-300A dimensional drawings

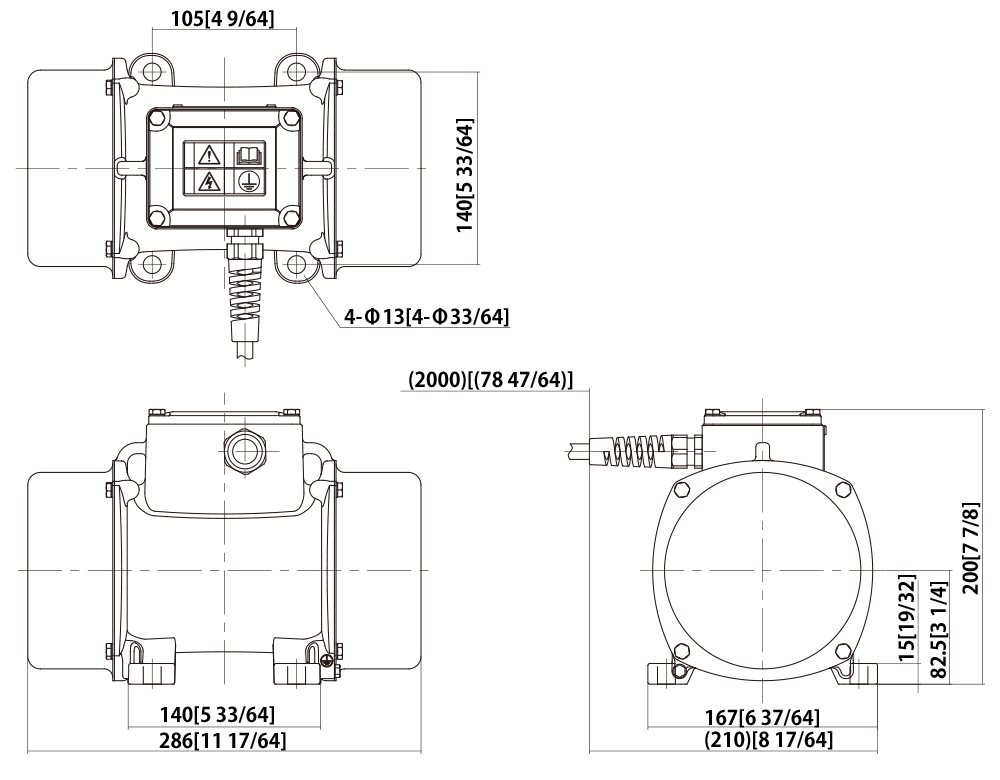

EVSS 3-500 dimensional drawings
