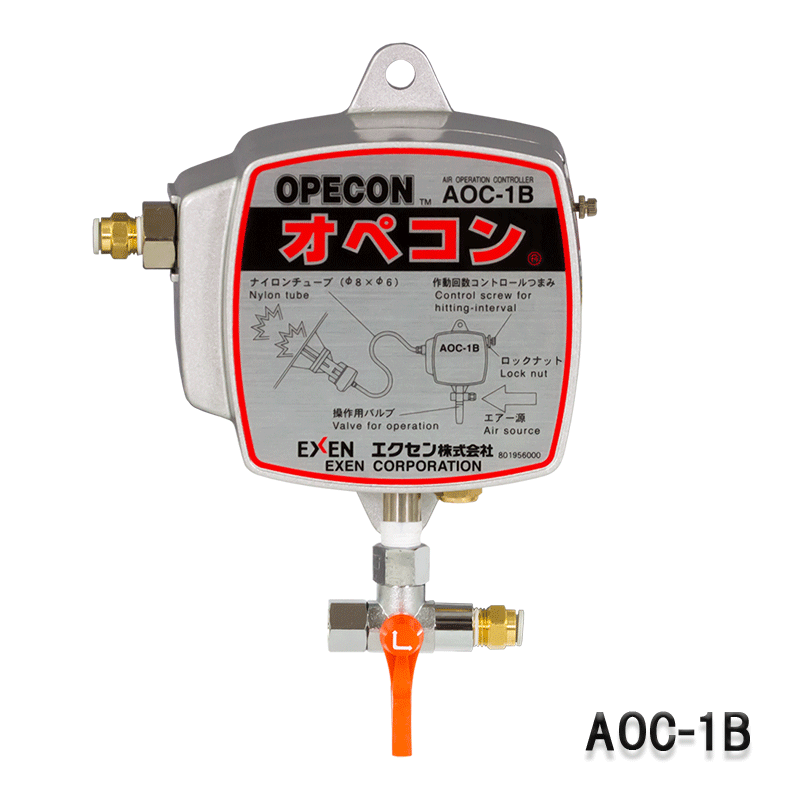

OPECON (AOC-1B) air operation controller is the simplest control panel that allows the number of ON/OFF impacts of the relay knocker and Mini Blaster to be set only by pneumatic control, without electric connection and electric timer device.
OPECON (AOC-1B) air operation control is a control panel that can be operated only by air supply. One-time operation of the manual valve in this equipment allows the relay knocker and Mini Blaster to be operated continuously without electric timer.
Pneumatic Operation Controller (Opecon AOC-1B) is a control panel that is convenient for easy continuous run by manual operation if, for example, takes time before electric work. It is an inexpensive and simple control panel that allows the air knocker to be operated only by pneumatic control.

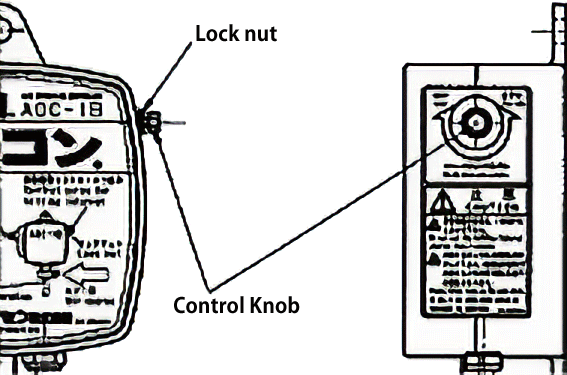

The time interval between actuation of Air Operation Controller (AOC-1B) can be set with the control knob of the number of times for Air Operation Controller while knocker or blaster is actuated. Because the adjustment can be made during operation, the actuation time can be changed while the operation sound is heard.

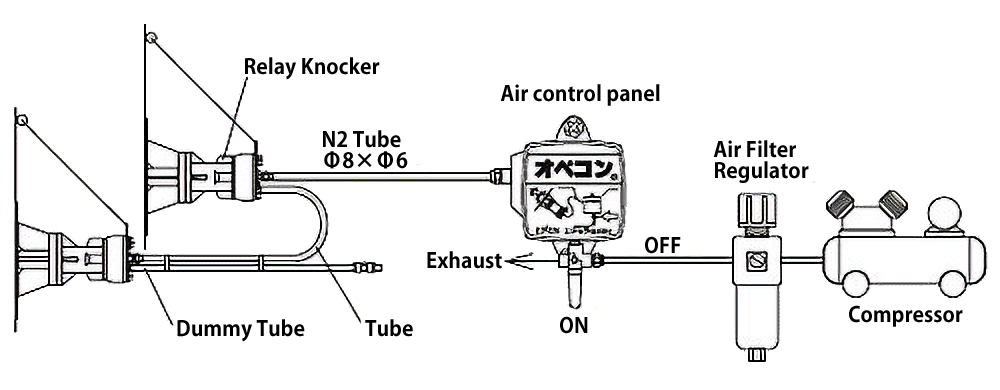

Although one control panel can drive one air knocker in the conventional piping, it can drive up to three air knockers via relay piping. Thus, several air knockers mounted on the same hopper can be driven by one control panel, which reduces the expenses.
*For the combination of flow aid system, also refer to "Flow aid equipment combination".
OPECON (AOC-1B) can be used safely in any work environment regardless of indoors or outdoors.
| Model | Code Number | Product Drawing Download |
|---|---|---|
| AOC-1B | 000704000 | Product Drawing Download |
| Model | Installation Scope |
Power Supply (MSI) |
Working Pressure (MPa) |
Working Fluid Temperature (℃) |
Working Times Per/min. |

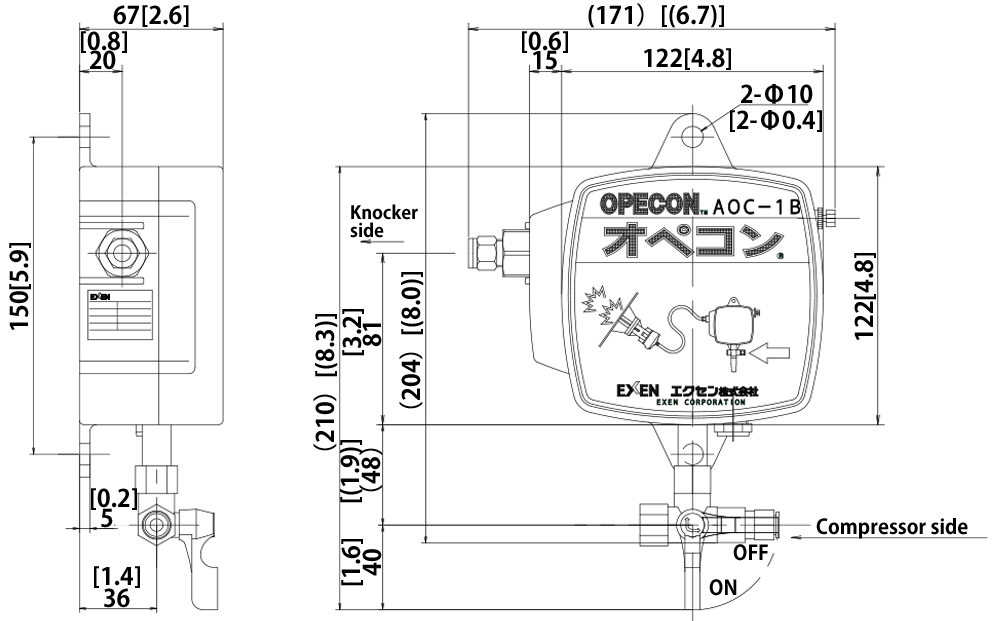

Approx. Dimension (L×W×H) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| AOC-1B | Indoor,Outdoor | Air Control | 0.3-0.7 | 5-50 | 12-60 | 171×67×200 | 1.4 |
（Imperial System）
| Model | Installation Scope |
Power Supply (MSI) |
Working Pressure (PSI) |
Working Fluid Temperature (°F) |
Working Times Per/min. |
Approx. Dimension (L×W×H) (Inch) |
Weight (ib) |
|---|---|---|---|---|---|---|---|
| AOC-1B | Indoor,Outdoor | Air Control | 44-102 | 41-122 | 12-60 | (6-47/64×2-41/64×8-17/64) | 3.1 |
*There may be a variation in the number of actuations because this product is pneumatically controlled.
