Features
The vibrator for boiler tube removes dust adhered to the tube by giving strong vibration to the water tube. Since this vibrator's motor is a dual insulated and anti-vibration structure made of robust aluminum die cast, it can be used with confidence. This is a product specifically developed for cleaning a boiler tube, so it can not be used as a concrete vibrator.
Reduce the burden of water pipe cleaning work Reduce wokers burden for cleaning the boiler tube.

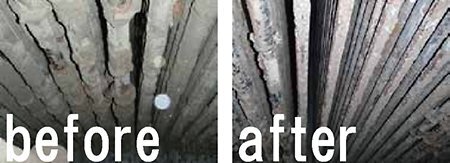

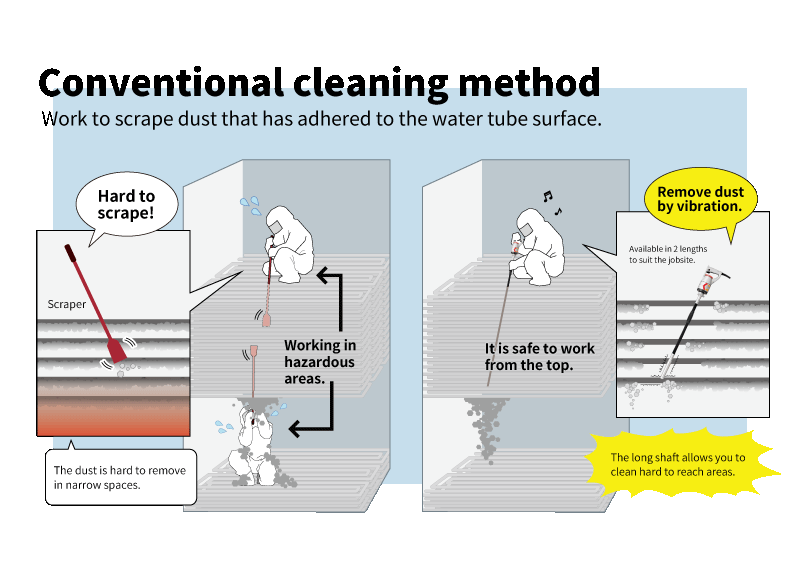

Incinerators operating at various facilities such as incineration plants are equipped with boilers for waste heat utilization such as power generation and heat recovery. Water tube boilers that use incinerator heat to obtain high-temperature, high-pressure steam are subjected to regular water tube cleaning work to prevent heat recovery efficiency degradation due to the fly ash in the combustion gas adhering to the water tube surface. The conventional cleaning method of removing dust using scraper is hard work and needed to stop equipment for cleaning. This vibrator for cleaning water tube reduces the current hard work and provides more efficient cleaning method for workers. Furthermore, the length of the vibrator shaft allows for greater reach so dust can be removed completely. The work efficiency greatly reduces factory down time, and can be expected with the heat recovery efficiency due to the excellent dust removal performance.
List of models
| Model | Code Number |
|---|---|

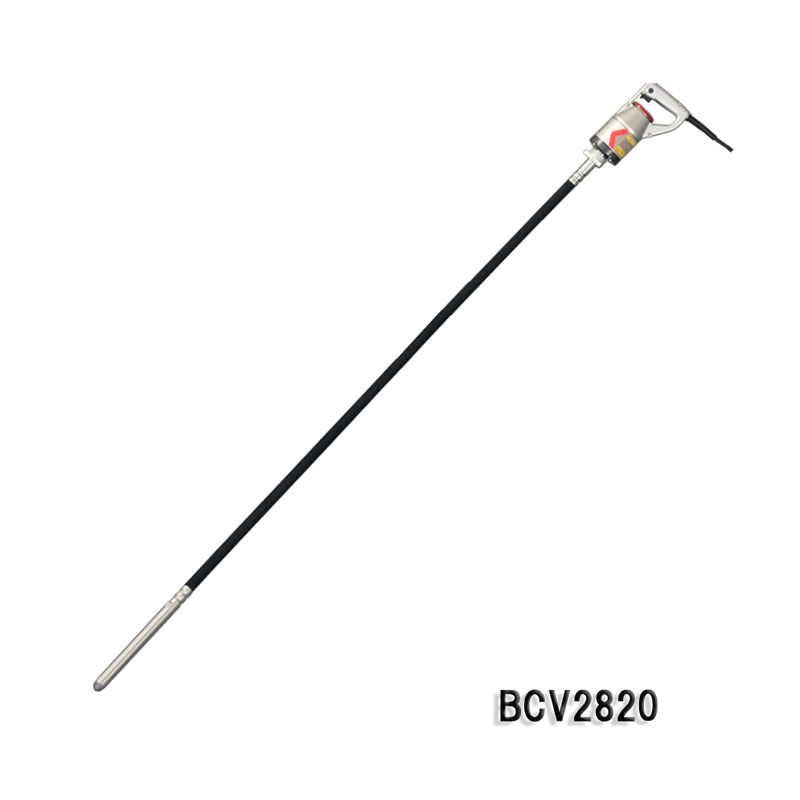

| BCV2820 | 001567000 |

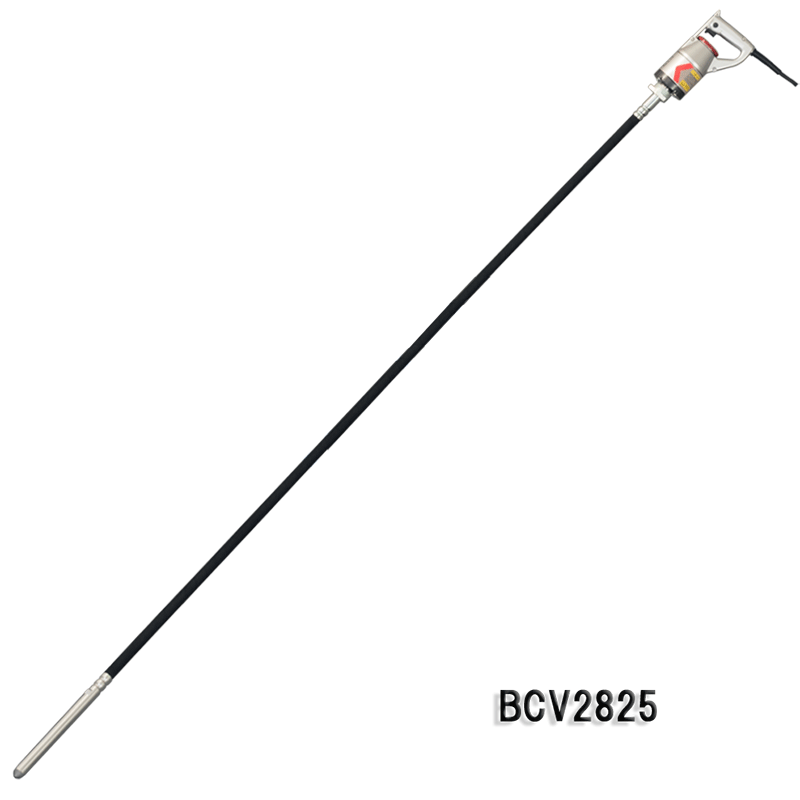

| BCV2825 | 001568000 |
Specification
| Model | Flexible length (m) |
Output (W) |
Voltage (V) |
Current (A) |
Frequency (Hz) |
Total length (mm) |
Head length Diameter×Length (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| BCV2820 | 1.5 | 280 | 100 | 5 | 220～280 | 2028 | φ28×232 | 6.6 |
| BCV2825 | 2.0 | 2528 | 7.4 |
（Imperial System）
| Model | Flexible length (ft) |
Output (W) |
Voltage (V) |
Current (A) |
Frequency (Hz) |
Total length (ft) |
Head length Diameter×Length (in) |
Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| BCV2820 | 4.9 | 280 | 100 | 5 | 220～280 | 6.7 | φ1 1/16×9 9/64 | 14.5 |
| BCV2825 | 6.6 | 8.3 | 16.3 |
Dimensions, installation, control panel

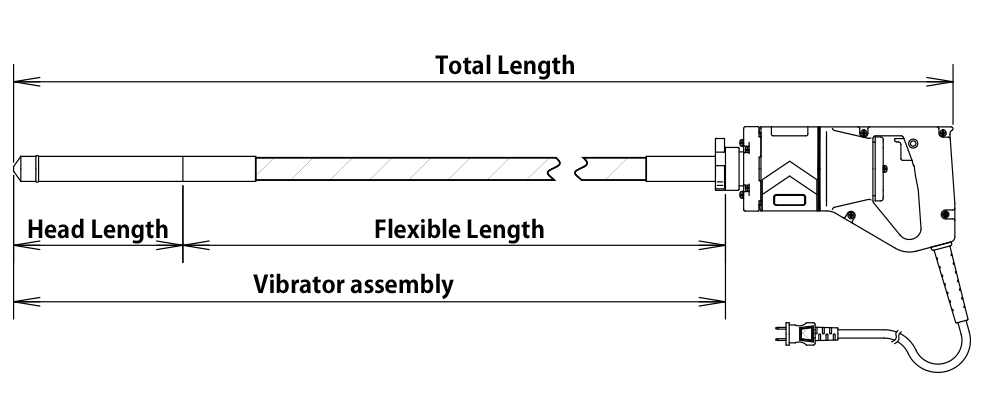

Product dimensional drawings
Product dimensional table
| Model | Flexible length (m) |
Total length (mm) |
Head length Diameter×Length (mm) |
Vibrator assembly (mm) |
|---|---|---|---|---|
| BCV2820 | 1.5 | 2028 | φ28×232 | 1774 |
| BCV2825 | 2.0 | 2528 | 2274 |
（Imperial System）
| Model | Flexible length (ft) |
Total length (ft) |
Head length Diameter×Length (in) |
Vibrator assembly (ft) |
|---|---|---|---|---|
| BCV2820 | 4.9 | 6.7 | φ1 1/16×9 9/64 | 5.8 |
| BCV2825 | 6.6 | 8.3 | 7.5 |
