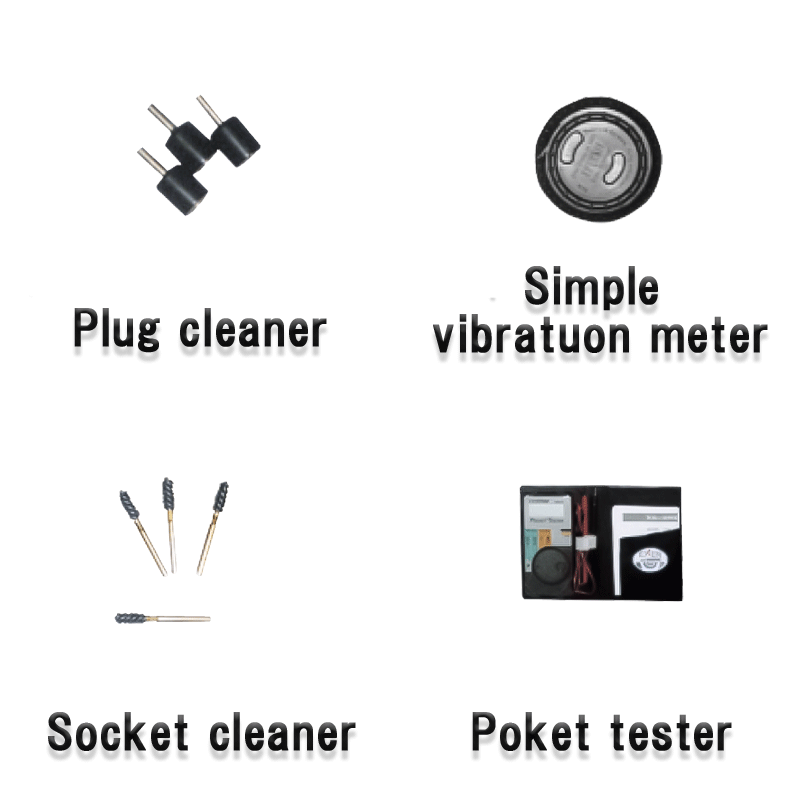

A lineup of various items of maintenance equipment
This product is used for the following applications:
- Vibrator maintenance
Used in the following places:
Features
A kit of various service instruments for high-frequency vibrators suited for worksites

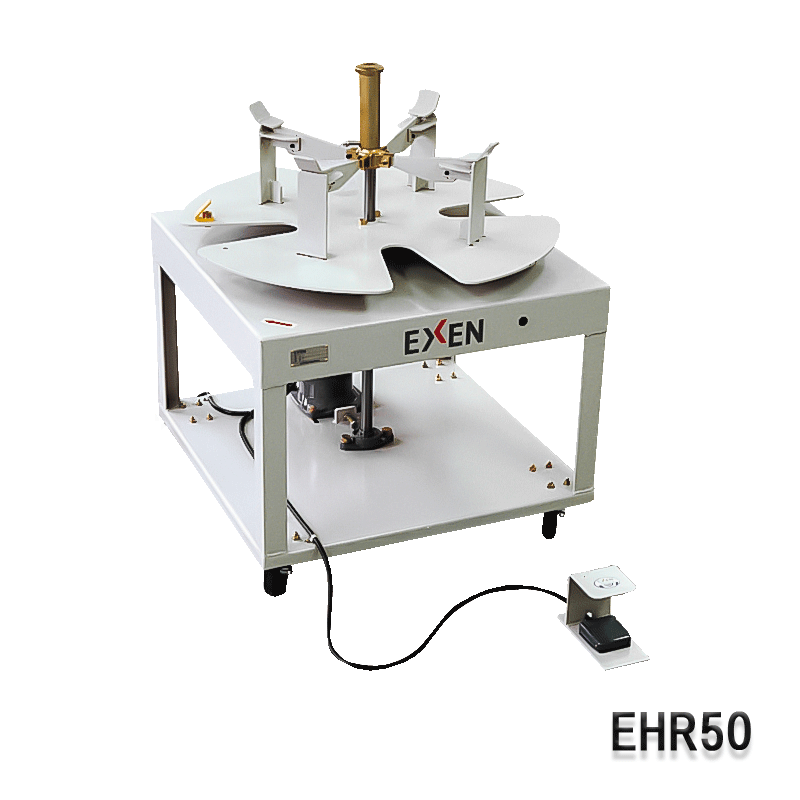

Winding-up after the repairs and cleaning of internal vibrators is manually conducted. For the EHR50 (hose windup machine), this winding-up has been mechanized. This machine is designed to increase work efficiency, conduct equal winding-up, and alleviate the workload. The source of power is a single-phase 100V gear motor (with brakes). Pressing the foot switch causes winding-up, while releasing it activates the brakes, stopping the machine immediately. Safety is thereby ensured. After the winding-up, you can push down the slide knob to detach the vibrator easily from the winding-up panel.
Internal checker
Measurement of the current balance of the internal vibrator
Multiple internal checker MIC-1
Measurement of the current balance, insulation between phases, and general insulation
Simple vibration meter
Measurement with a simple mobile frequency meter
Frequency meter EVM / tachometer EVM-S
The machine is powered with a single commercially available 9 V manganese cell. This frequency meter / tachometer can be used without an external power supply.
EP plug cleaner
Waterproof plug terminal polisher for high-frequency
Pocket tester
Measurement of voltage and conduction
List of models
| Model | Code Number |
|---|---|
| EHR50 | 093020050(*1) |
| Internal checker | 000945000 |
| Simple vibration meter | 571000010 |
| EP plug cleaner | 300854000 |
| EC socket cleaner | 300853000 |
| Pocket tester | SW0000010(*1) |
*1 Because this product is a built-to-order product, contact EXEN for information of delivery time.
Specification
EHR50
| Model | Drive motor | Winding section | Weight （kg） |
|||||
|---|---|---|---|---|---|---|---|---|
| Voltage （V） |
Output (W) |
Frequency （Hz） |
Power cable length (m) |
The winding inner diameter (mm) |
Rotational speed (min-1) |
|||
| EHR50 | 100 | 200 | 50 | 5 | 500 | 16.5 | 96 | |
| 60 | 19.0 | |||||||
（Imperial System）
| Model | Drive motor | Winding section | Weight （lb） |
|||||
|---|---|---|---|---|---|---|---|---|
| Voltage （V） |
Output (W) |
Frequency （Hz） |
Power cable length (ft) |
The winding inner diameter (ft) |
Rotational speed (min-1) |
|||
| EHR50 | 100 | 200 | 50 | 16'5" | 1'8" | 16.5 | 211.6 | |
| 60 | 19.0 | |||||||
Dimensions, installation, control panel

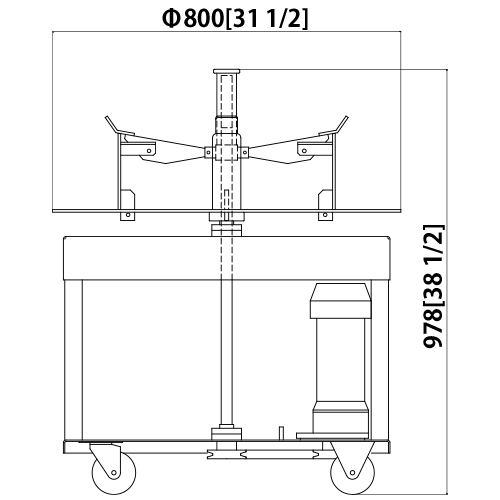

EHR50 dimensional drawings
