Suited for various worksite environments

This product is used for the following applications:

  • Concrete placement in general

Used in the following places:

Features

By extension and distribution, this optional high-frequency equipment increases work efficiency. When a high-frequency vibrator is used, secondary power is extended and distributed at its destinations to ensure an even more effective work environment according to a specific worksite condition.


Stackable(DB3/ER8030)

A power distribution box and a cord reel are used to use more than one internal vibrator. The DB3 is for three vibrators, while the ER8030 comes equipped with a 30-meter cabtyre cord on a cord reel. All models are stackable for storage.


An EP plug and an EC outlet prevent imperfect contact

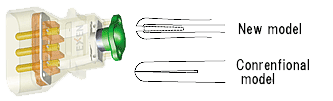

Exen's original new plug (Super Tough Pin, patented) prevents imperfect contact, which used to be responsible for the highest incidence of failure in all high-frequency vibrators, thereby dramatically reducing failures due to single-phase operation. With a new plug and an outlet, you can now loan vibrators to different worksites with peace of mind.

Power distribution box / Intermediate cord / Cord reel

An EC outlet cover

Accidental disconnection is prevented by using special claws to fix the vibrator to the EP plug completely. This prevents work trouble.

Power distribution box / Intermediate cord / Cord reel

Intermediate cord (used for DB3 types)

This worksite cord is used to extend the line for the internal vibrator. It is used in combination with a DB3 switchbox.

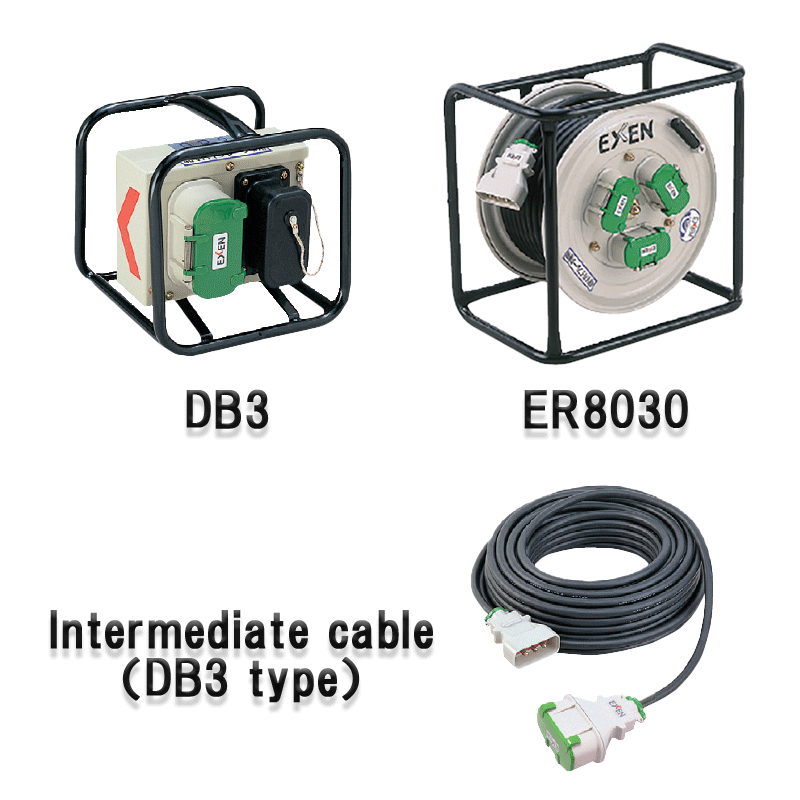

List of models

Model Code Number
DB3 000371000
ER8030 000514000
C5520M 000879000
C8020M 000881000

Specification

Distribution box specification

Model Output
(W)
Input
(V)
Output
current
(A)
Nos.of
Input socket
outlet
Nos.of
output socket
outlet
Dimension
L×W×H
(mm)
Weight
(kg)
DB3 48 48 30 1 3 253×217×238 3.5

(Imperial System)

Model Output
(W)
Input
(V)
Output
current
(A)
Nos.of
Input socket
outlet
Nos.of
output socket
outlet
Dimension
L×W×H
(in)
Weight
(lb)
DB3 48 48 30 1 3 10.0×8.5×9.4 7.7

Cord reel specification

Model Input voltage
(W)
Output
voltage
(V)
Output
current
(A)
Nos. of
Intput plug
Nos. of
Output socket
outlet
Weight
(kg)
ER8030 48 48 30 1 3 27.2

(Imperial System)

Model Input voltage
(W)
Output
voltage
(V)
Output
current
(A)
Nos. of
Intput plug
Nos. of
Output socket
outlet
Weight
(lb)
ER8030 48 48 30 1 3 59.84

Dimensions, installation, control panel

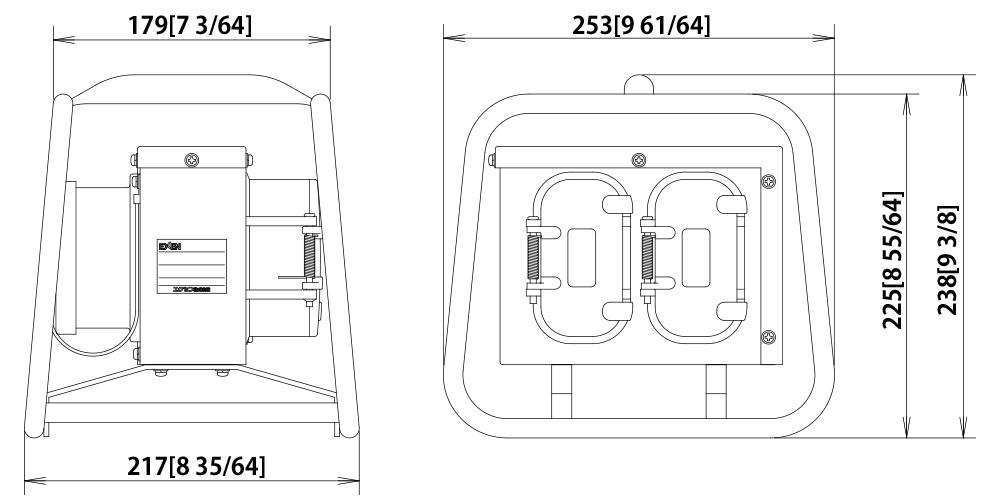

DB3 dimensional drawings

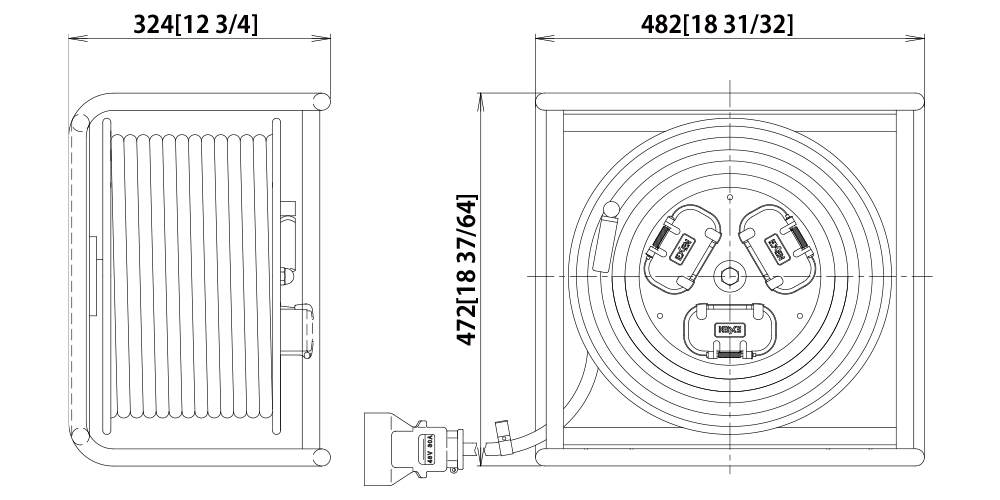

ER8030 dimensional drawings

Installation method

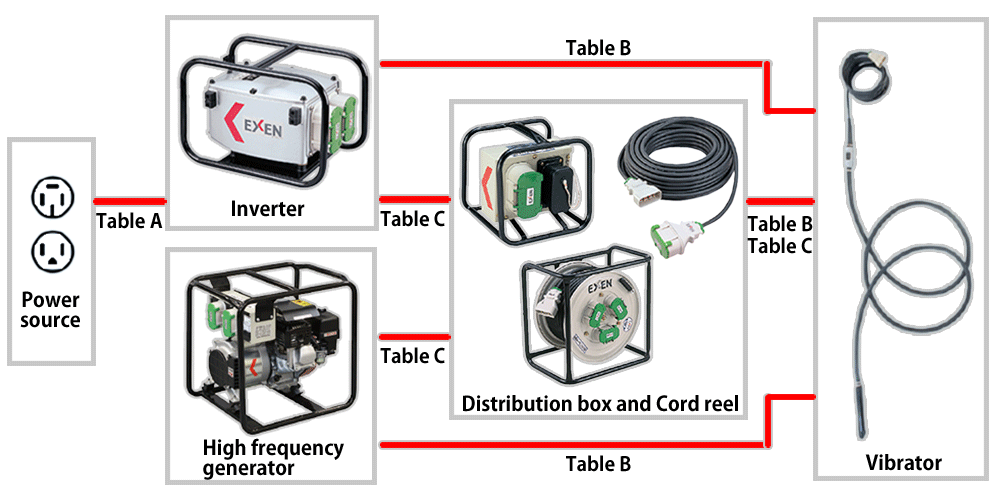

*In the above figure (Table A) ~ value (Table C), please refer to the " Selecting extension cables" and " Number of high-frequency vibrators that can be used simultaneously,".
