Features
Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.
Vibrator with high placing capability
3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.
A shaft and an axle hole are long-life lives
Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.
Power source is selectable
Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.
Attach and Detach is one-motion
Flexible shaft can be connected to the power source in one motion without using any tool.
Adoption of a special bearing
Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.
Light and Easy
They are light and easy to use.
Frame

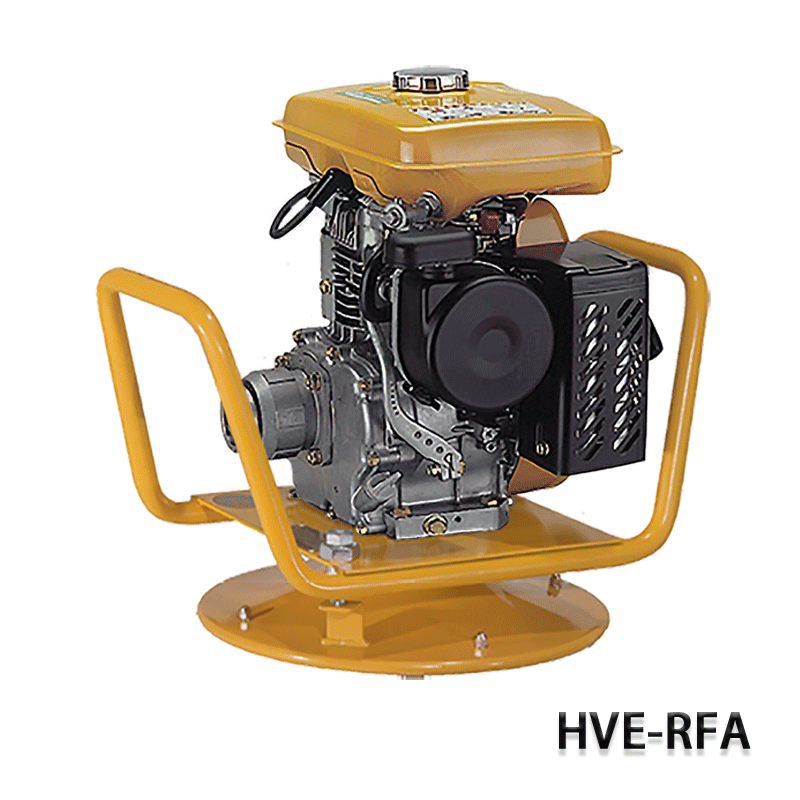

The engine comes with frame or rotary table.
Application
The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.
List of models

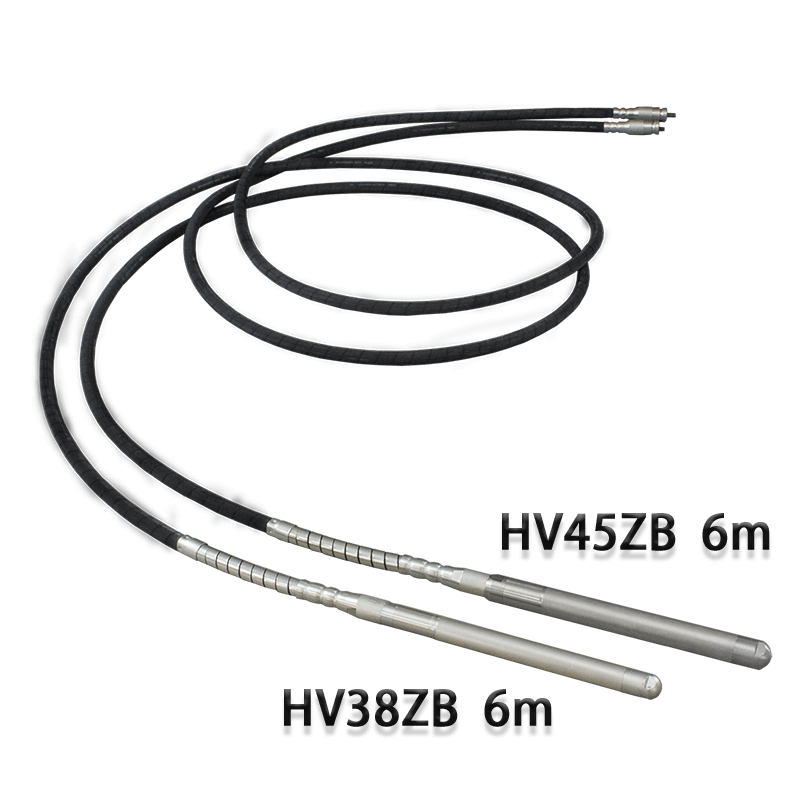

| Model | Code Number |
|---|---|
| HV28ZB 6M | 033066280 |
| HV32ZB 6M | 033066320 |
| HV38ZB 6M | 033066380 |
| HV45ZB 6M | 033066450 |
| HV60ZB 6M | 033066600 |
| HVE-HS | 001393000 |
| HVE-RFA | 001606000 |
| HVNFA | 001367000 |
Specification
HV Vibrator specification(Hose 6M)
| Model | Hose length (m) |
Frequency (Hz) |
Overall length (mm) |
Head(Dia,×L) （mm) |
Weight (kg) |
|---|---|---|---|---|---|
| HV28ZB | 6 | 158～200 | 6559 | 28×420 | 14.1 |
| HV32ZB | 6562 | 32×423 | |||
| HV38ZB | 6585 | 38×440 | 15.2 | ||
| HV45ZB | 6596 | 45×451 | 16.1 | ||
| HV60ZB | 150～200 | 6593 | 60×448 | 19.1 |
(Imperial System)
| Model | Hose length (ft) |
Frequency (Hz) |
Overall length (ft) |
Head (Dia,×L) （in×ft) |
Weight (lb) |
|---|---|---|---|---|---|
| HV28ZB | 19'8" | 158～200 | 21'6" | 1.1×1'5" | 31.1 |
| HV32ZB | 158～201 | 1.3×1'5" | |||
| HV38ZB | 158～202 | 21'7" | 1.5×1'5" | 33.5 | |
| HV45ZB | 158～203 | 21'8" | 1.8×1'6" | 35.5 | |
| HV60ZB | 150～200 | 2.4×1'6" | 42.1 |
HVEｰHS Specification
| Model | Engine model | Output (max) (kW) |
Continuous rated output (kW/rpm-1) |
Weight (kg) |
|---|---|---|---|---|
| HVE-HS | GX160H2 KHJE | 3.6 | 2.8/3,400 | 25 |
(Imperial System)
| Model | Engine model | Output (max) (kW) |
Continuous rated output (kW/rpm-1) |
Weight （lb） |
|---|---|---|---|---|
| HVE-HS | GX160H2 KHJE | 3.6 | 2.8/3,400 | 55.1 |
HVEｰRFA Specification
| Model | Engine model | Continuous rated output (kW/min-１) |
Weight (kg) |
|---|---|---|---|
| HVE-RFA | EY203DC0450 | 2.5/3,400 | 25 |
(Imperial System)
| Model | Engine model | Continuous rated output (kW/min-１) |
Weight (Ib) |
|---|---|---|---|
| HVE-RFA | EY203DC0450 | 2.5/3,400 | 55.1 |
HVNFA Specification
| Model | Output （W） |
Voltage （V） |
Current （A） |
Frequency （Hz） |
Revolution （min-1） |
Weight （kg） |
|---|---|---|---|---|---|---|
| HVNFA | 1000 | 200 | 4.3 | 50/60 | 2850/3350 | 15.5 |
(Imperial System)
| Model | Output （W） |
Voltage （V） |
Current （A） |
Frequency （Hz） |
Revolution （min-1） |
Weight （lb） |
|---|---|---|---|---|---|---|
| HVNFA | 1000 | 200 | 4.3 | 50/60 | 2850/3350 | 34.2 |
Dimensions, installation, control panel

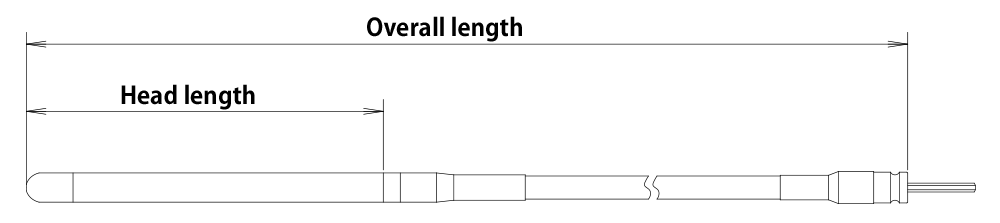

HV-ZB dimensional drawings
HV-ZB dimensional table
| Model | Hose length (m) |
Overall length (mm) |
Head (Dia,×L) （mm) |
|---|---|---|---|
| HV28ZB | 6 | 6559 | 28×420 |
| HV32ZB | 6562 | 32×423 | |
| HV38ZB | 6585 | 38×440 | |
| HV45ZB | 6596 | 45×451 | |
| HV60ZB | 6593 | 60×448 |
(Imperial System)
| Model | Hose length (ft) |
Overall length (ft) |
Head (Dia,×L) （in×ｆｔ) |
|---|---|---|---|
| HV28ZB | 19'8" | 21'6" | 1.1×1'5" |
| HV32ZB | 1.3×1'5" | ||
| HV38ZB | 21'7" | 1.5×1'5" | |
| HV45ZB | 21'8" | 1.8×1'6" | |
| HV60ZB | 2.4×1'6" |
HVE-HS dimensional drawings
HVE-RFA dimensional drawings

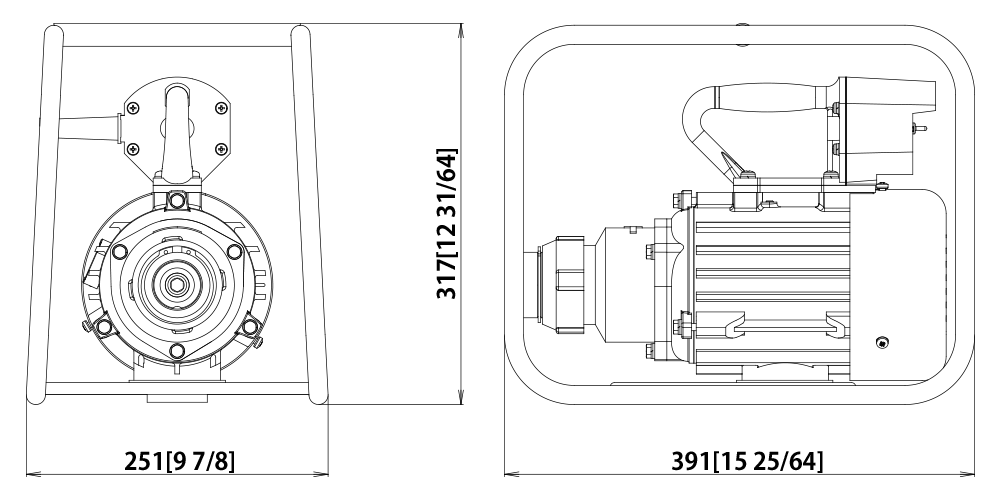

HVNFA dimensional drawings
