Hydraulic internal vibrators HIB75H are small, powerful vibrators with a built-in hydraulic motor for use in many uses in mass concreting works. These products are designed for worksites that cannot effectively be managed by conventional electrical vibrators in pouring large masses of concrete, such as restoration and disaster-fighting enterprises. These effective internal vibrators have outer-diameter opposite sides of 75 mm at the hexagonal tip of the vibrating unit, with a centrifugal force of about 8 kN. With their ingenious ideas, contractors can use these machines in various concreting applications, including breakwaters, sand control dams, revetment walls, and other mass concrete worksites, along with precast concrete armor units. Also possible is the pouring of concrete with applications for a single-vibrator use and for two-vibrator use with a circuit-breaker circuit for a backhoe, and mounting a hydraulic unit on a gondola, and suspending it with a crane; another possible process is concreting by using aerial vehicles. These machines thus allow you to propose various methods suited for the particular worksites. We are now presenting models with a nominal outer diameter of 75 mm and with effective concreting lengths of 600 m and 1,000 m. In addition to these, we are ready to provide proven L-shaped hydraulic vibrators used in airport aprons and runways, vibrators for continuous on-site concreting for highway division zones, and other vibrators 65 mm in outer diameter as custom-made items. Thus, versatile vibrators are characterized by the fact that we machine manufacturers do not limit ourselves to certain methods for operation and are ready to create effective applications based on your realistic proposals.

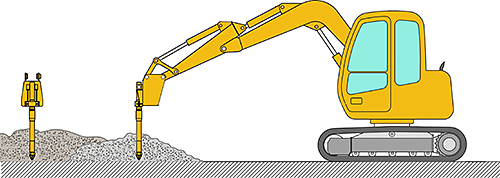

Equipped with one back-hoe mounted vibrator: breakwaters, sand control dams, revetment walls, and precast concrete armor units.

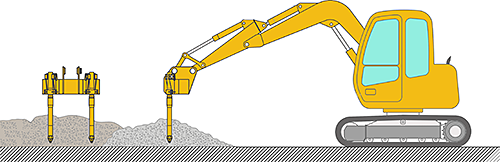

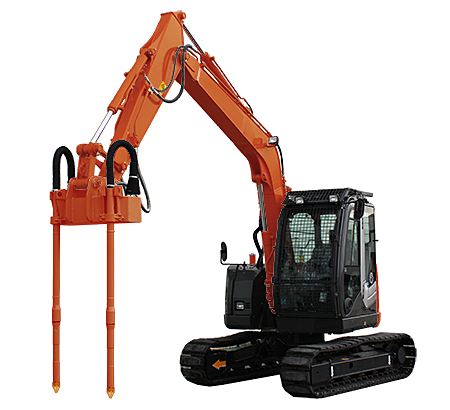

Equipped with two backhoes: large breakwaters, sand control dams, revetment wall works, etc.

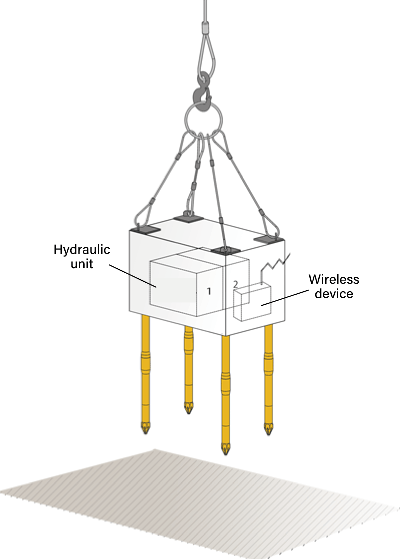

Gondola suspension, radio systems: mass concrete worksites, revetment walls
Equipped with special-purpose machinery: high-strength concreting for airport runways

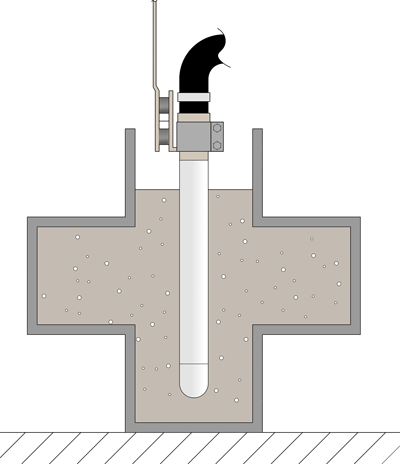

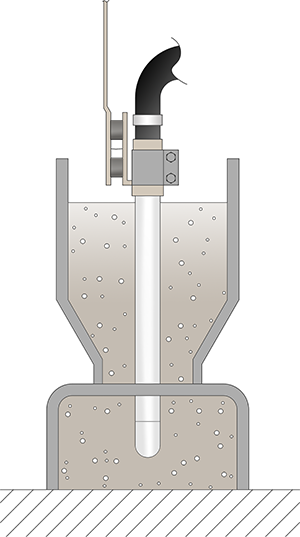

Typical installation of elevators: precast concrete armor units

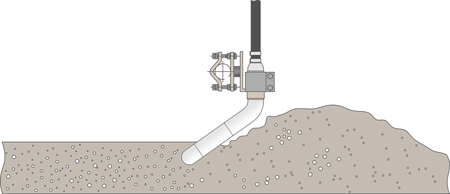

Equipped with a special-purpose mold: for continuous worksite concreting for highway division zones
Hydraulic inner vibrators with a built-in hydraulic motor are more powerful than electrical models. Able to secure a great centrifugal force, they can, despite their small sizes, produce a great concreting capacity (with a centrifugal force of 6.2 to 8.8 kN).
With an oil pressure flow of 10 to 12 L/min, each unit produces a frequency of 125 Hz to 150 Hz. You can therefore run it with a small hydraulic volume.
Being hexagonal, the tip slips less on concrete than round tips, thereby being effective in transmitting vibration.

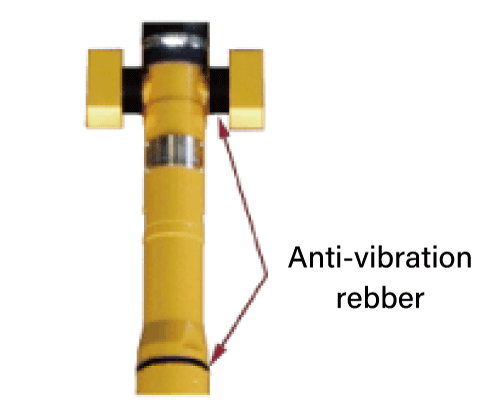

Transmission of vibration to heavy machinery is alleviated by a cylindrical rubber damper on the vibrating unit and extension pipe, and by a special-purpose intermediate rubber damper for the mount of heavy machinery (such as backhoes).

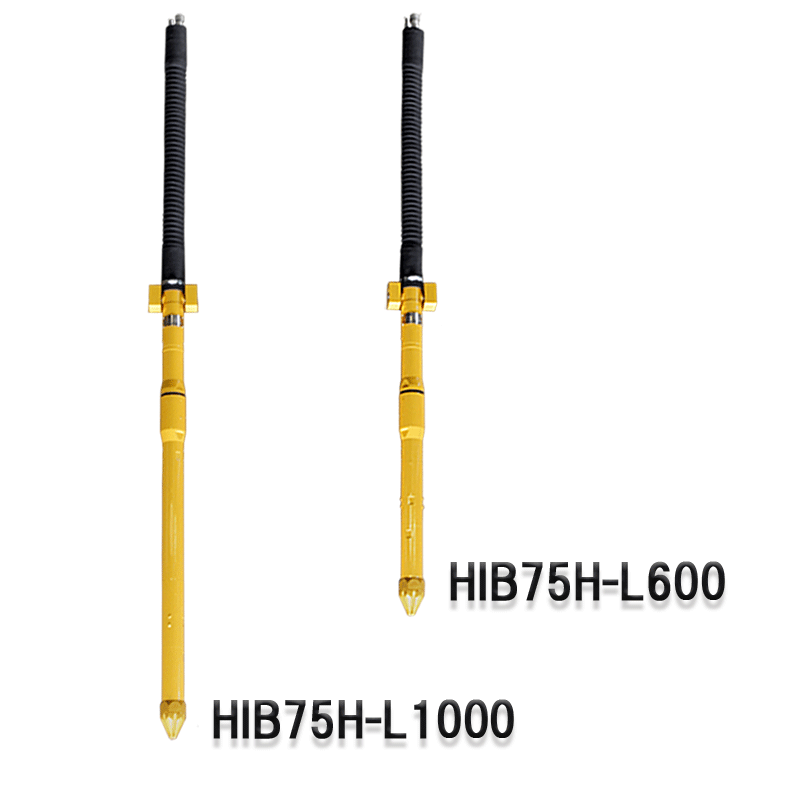

| Model | Code Number |
|---|---|
| HIB75H-L600 | (*1) |
| HIB75H-L1000 | (*1) |
*1 Because this product is a built-to-order product, contact EXEN for information on price and delivery time.
| Model | Frequency （Hz） |
Centrifugal Force （kN) |
Maximum use pressure （MPa） |
Oil flow rate （L/min） |
Head length (dia×length) （mm） |
Effecive range （m） |
Weight （kg） |
|---|---|---|---|---|---|---|---|

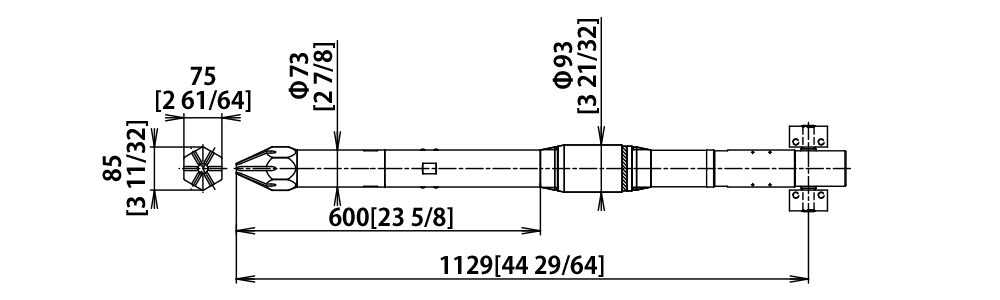

| HIB75H-L600 | 125～150 | 6.2～8.8 | 17.2 | 10～12 | φ73X600 | 0.6 | 32 |

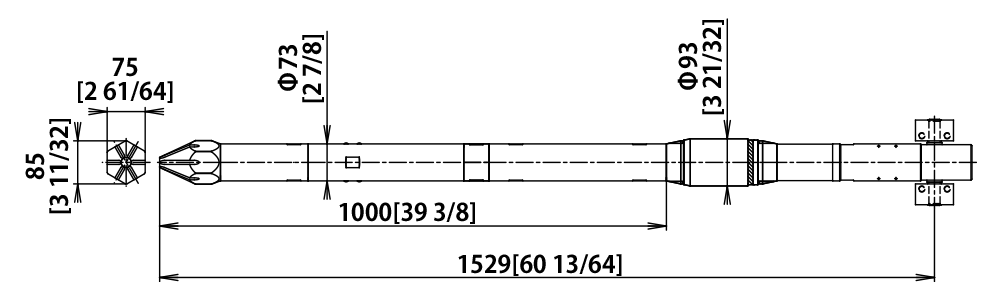

| HIB75H-L1000 | φ73X1000 | 37 |
(Imperial System)
| Model | Frequency （Hz） |
Centrifugal Force （lbf) |
Maximum use pressure （Psi） |
Oil flow rate （gal/min） |
Head length (dia×length) （in×ft） |
Effecive range （ft） |
Weight （lb） |
|---|---|---|---|---|---|---|---|
| HIB75H-L600 | 125～150 | 1,394～1,978 | 2,494.7 | 2.6～3.2 | φ2.9X2'0" | 2'0" | 70.5 |
| HIB75H-L1000 | φ2.9X3'3" | 81.6 |
