EFP submersible pump
EFP submersible pump
Priming-free engine-type submersible pump
This product is used for the following applications:
- Emergency drainage on construction sites
A small, lightweight submersible pump driven by an HVE engine. Dividable into engine, flexible hose shaft assembly, and pump unit, this submersible pump is easy to house and carry and requires no priming.

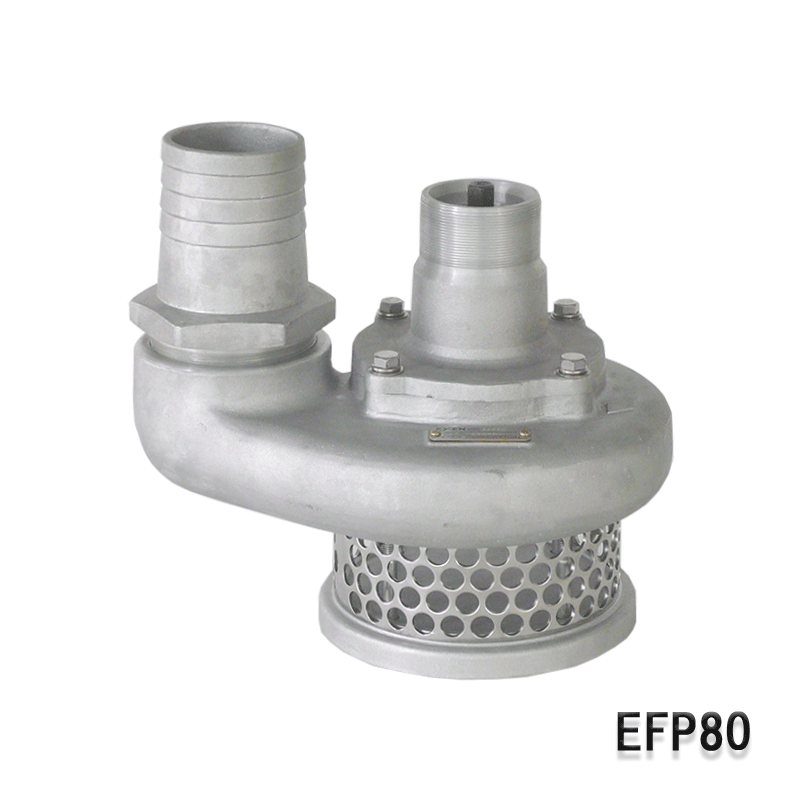

For the pumping unit, its hitherto abrasion-prone casing and casing plate are now made of abrasion-resistant material. Mechanical seal protects the shaft from the ingress of muddy water to make the bearings last longer. Hitherto divided into a clean water type and a muddy water type, the EFP is now more durable than before and usable in both applications.

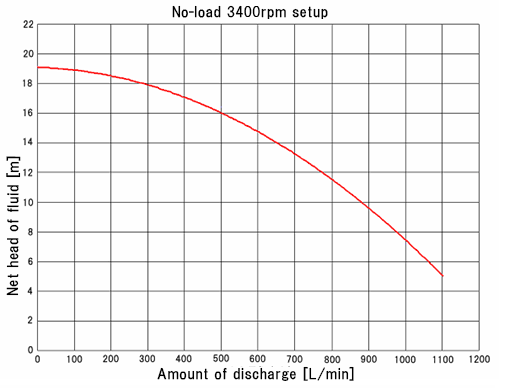

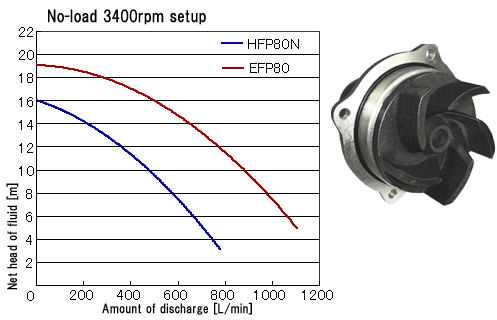

The impeller has been reshaped from its current three-vane type into a five-vane one to increase the head and discharge. As a result, for a discharge of 200 L/min, the head used to be 16 m and can now rise to nearly 19 m. (Maximum head has gone up by 19% and maximum discharge by 42% from our earlier HFP models.) Wear that is increased by the higher performance is combatted by using wear-resistant material.
The flexible hose shaft assembly is of a simple hexagonal joint system that facilitates detachment and reattachment. The pump, on the other hand, is equipped with an oil-sealed holder joint to prevent reverse water flow into the shaft. The result is longer lives of the shaft and the bearings in the pump.
A shaft break by bending is prevented by using an outliner in the middle of the flexible hose shaft assembly.
Strainers in older models used to be of SS400. Corrosion-prone, they used to be a cause of damage. The EFP and its successors, however, are made of stainless steel, resulting in considerably higher corrosion resistance. With a changed opening area, the new model has risen in suction rate.
Discharge pipes, which used to be of glass-fiber-reinforced nylon, are now of aluminum. As a result, they are easier to sort out at disposal.

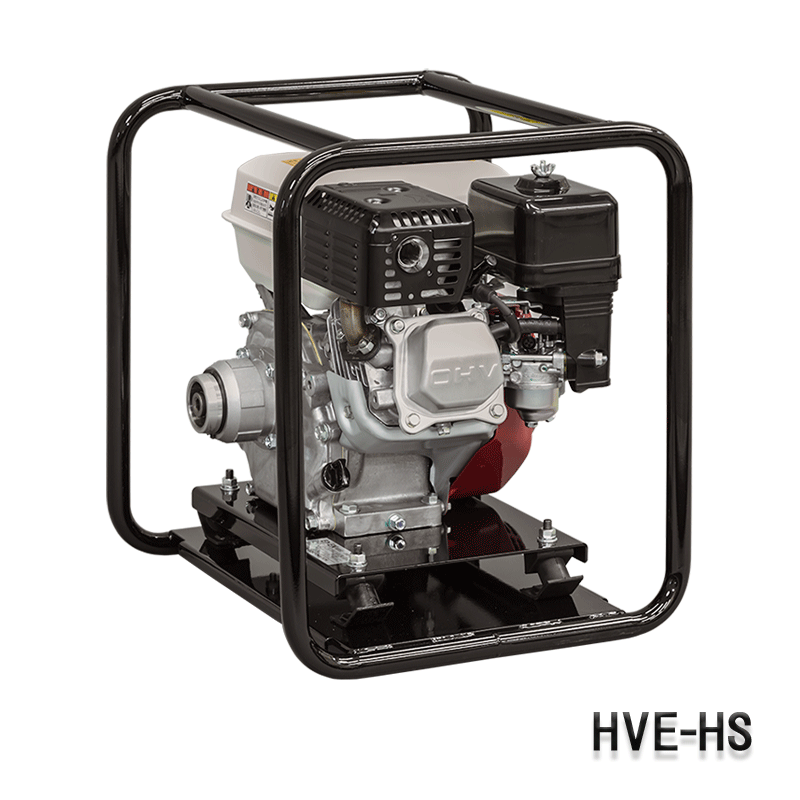

The frame structure of the HVE - HS engine can be stacked and can be stored compactly in a warehouse.

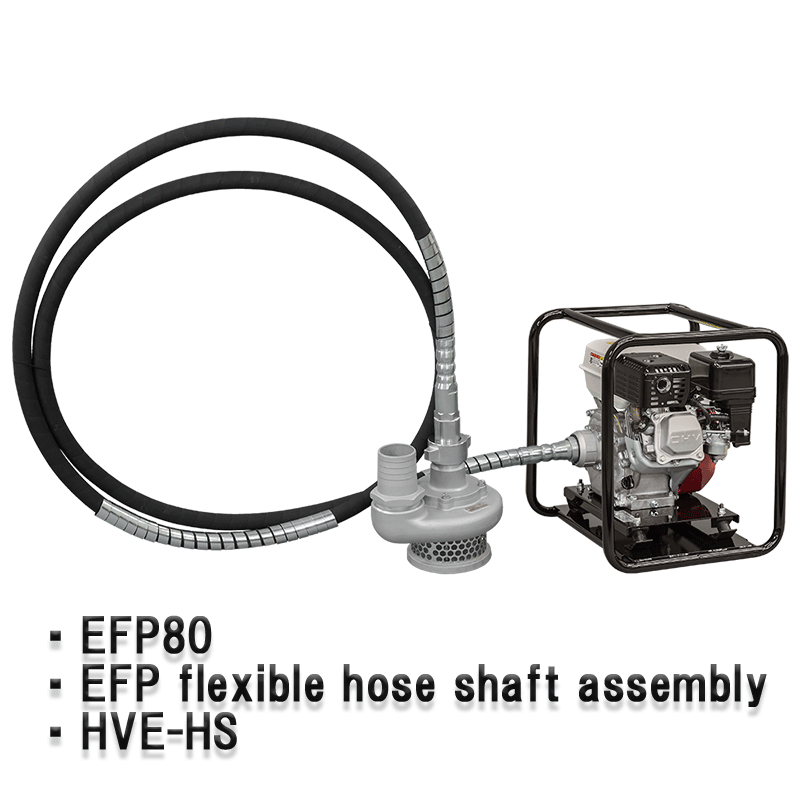

Model | Code Number |
---|---|
EFP80 | 000910000 |
EFP flexible hose shaft assembly | 001054000 |
HVE-HS | 001393000 |
HVE-RFA | 001606000 |
Model | Hose Length (m) |
Discharge port diameter (mm) |
Max. stroke (m) |
Max.drain capacity (L/min) |
Prime mover | Revolution (min-1) |
Weight(kg) | ||
---|---|---|---|---|---|---|---|---|---|
Pump | Flexible hose | Total | |||||||
EFP80 | 6 | 76 (3in) |
19 | 1100 | HVE engine |
3400 | 6.9 | 18.2 | 25.1 |
(Imperial System)
Model | Hose Length (ft) |
Discharge port diameter (in) |
Max. stroke (ft) |
Max.drain capacity (ga/min) |
Prime mover | Revolution (min-1) |
Weight(lb) | ||
---|---|---|---|---|---|---|---|---|---|
Pump | Flexible hose | Total | |||||||
EFP80 | 19'8" | 3.0 | 62'4" | 209.6 | HVE engine |
3400 | 15.2 | 40.1 | 55.3 |
*The weight of the engine is not included.

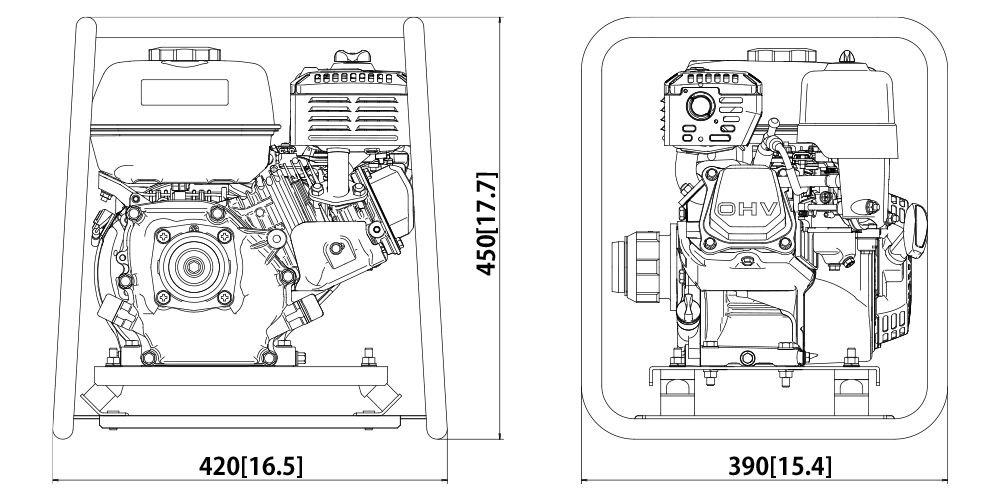

Model | Engine model | Output (max) (kW) |
Continuous rated output (kW/rpm-1) |
Weight (kg) |
---|---|---|---|---|
HVE-HS | GX160H2 KHJE | 3.6 | 2.8/3,400 | 25 |
(Imperial System)
Model | Engine model | Output (max) (kW) |
Continuous rated output (kW/rpm-1) |
Weight (lb) |
---|---|---|---|---|
HVE-HS | GX160H2 KHJE | 3.6 | 2.8/3,400 | 55.1 |
*The weight of the engine oil is not included.

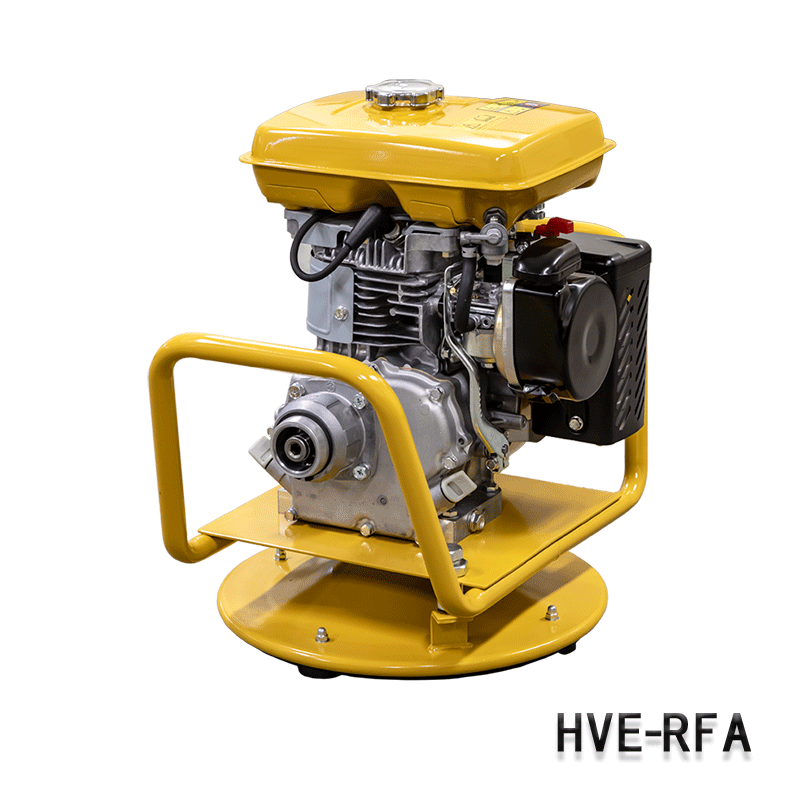

Model | Engine model | Continuous rated output (kW/min-1) |
Weight (kg) |
---|---|---|---|
HVE-RFA | EY203DC0450 | 2.5/3,400 | 25 |
(Imperial System)
Model | Engine model | Continuous rated output (kW/min-1) |
Weight (Ib) |
---|---|---|---|
HVE-RFA | EY203DC0450 | 2.5/3,400 | 55.1 |
*The weight of the engine oil is not included.
