Features

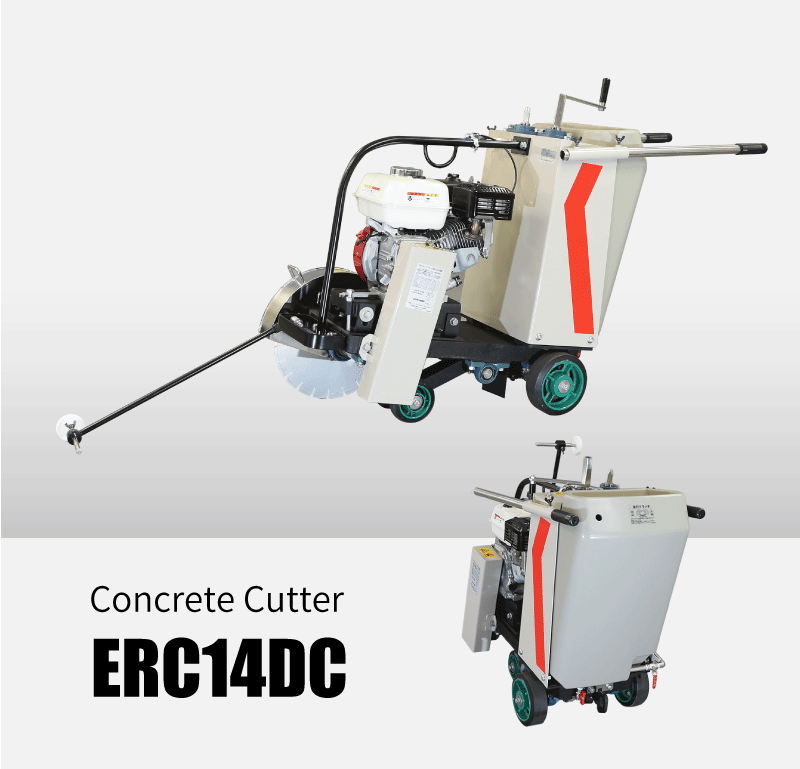

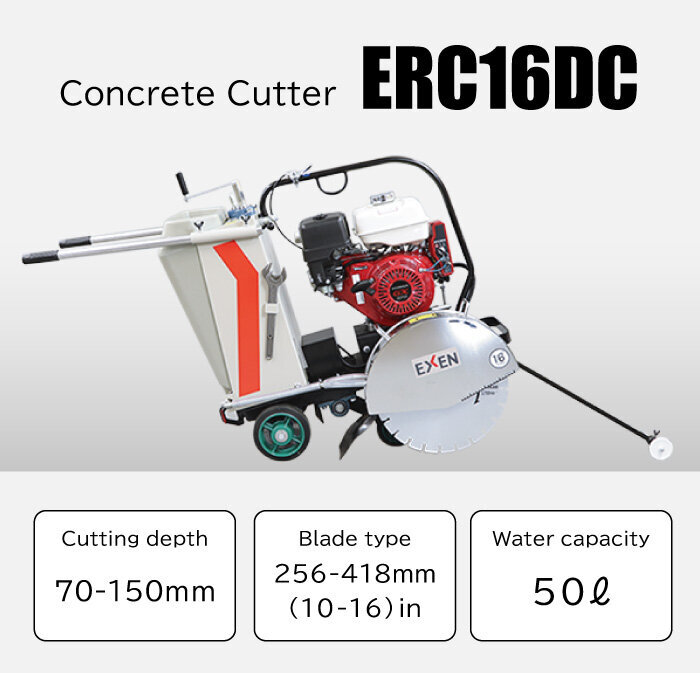

This Exen Semi-self-propelled concrete saw emphasizes cutting performance, durability, rust‐prevention, and safety. With the chassis of ECR14DC to 18DSC made of ductile cast iron, these products are machined with high precision, high rigidity, and low center of gravity to achieve stable operability and excellent cutting capacity. This concrete cutter achieves particularly high worker safety by being designed to meet adequately the safety requirements for JIS-compliant road works machinery. Also available are optional blades (for asphalt and concrete), diamond blades (P/C series), designed specifically for the ERC series.

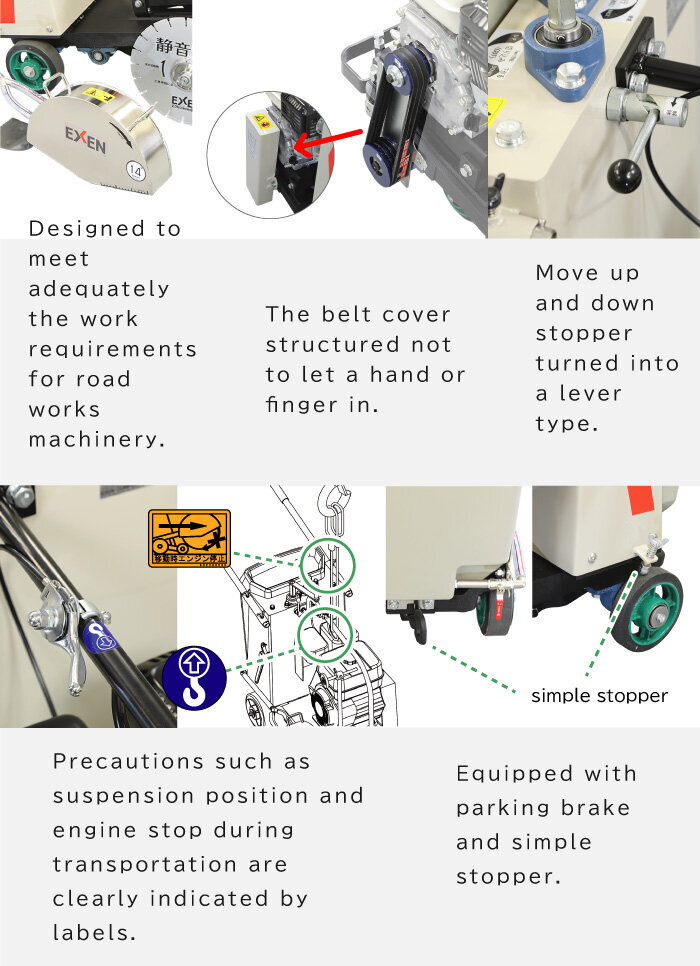

Designed to meet adequately the work requirements for road works machinery
Safely designed according to the requirements of the safety standards for JIS-compliant road works machinery, achieve high work safety.

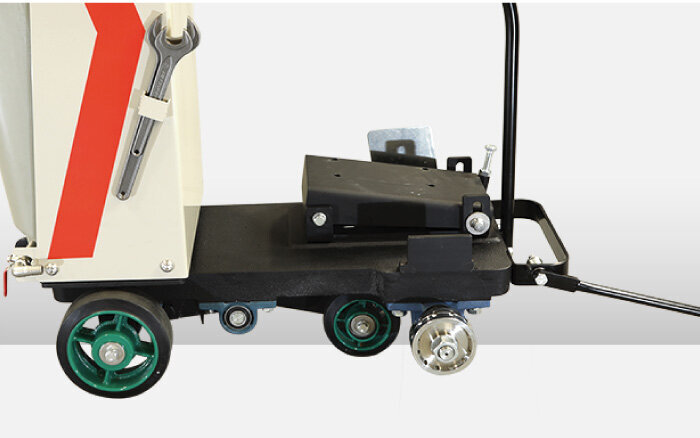

Excellent cutting performance
Ductile cast iron is used for the most important chassis that supports the vehicle body, and high-precision processing is applied to increase rigidity and lower the center of gravity, achieving stable operability and excellent cutting performance.

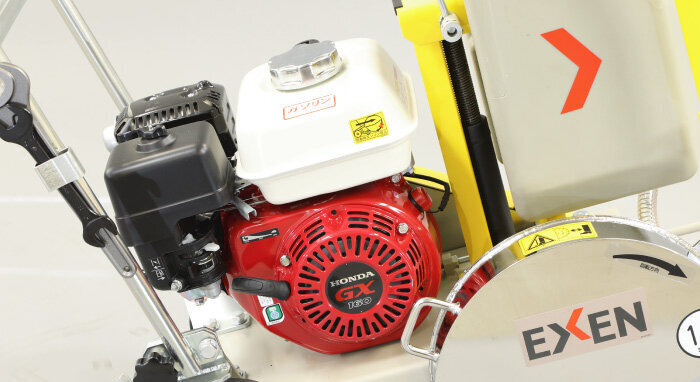

Eco-friendly engine
Equipped with "High Power HONDA GX", an eco-friendly engine that complies with the self-imposed control of exhaust gas.

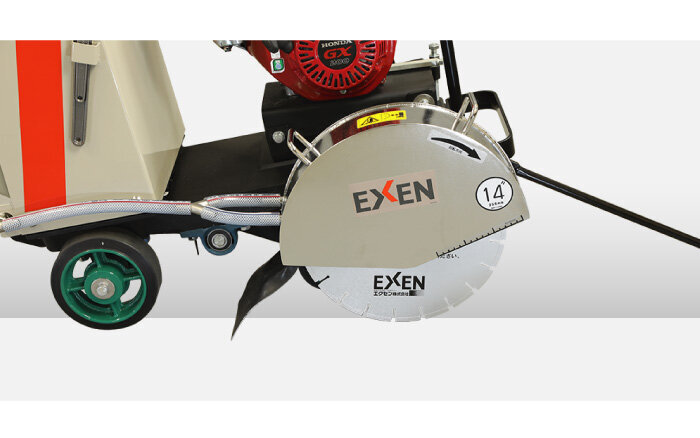

In pursuit of durability and rust‐prevention
Rust-resistant stainless steel (SUS) is used for the blade case to pursue durability and rust prevention.

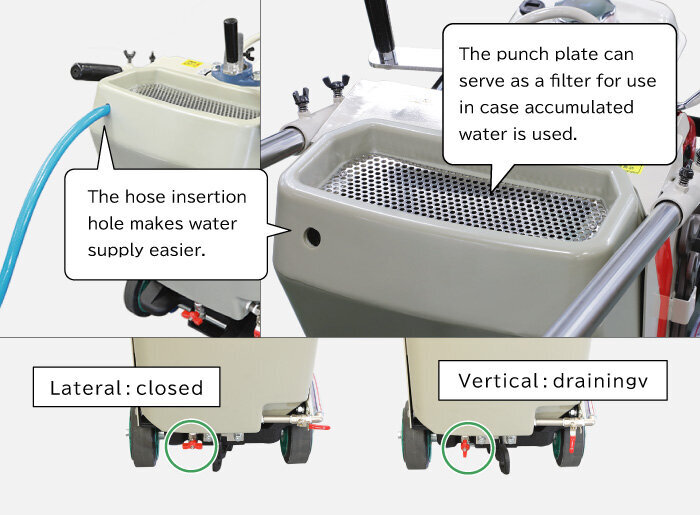

Equipped with a large-capacity water tank (with a punch plate)
These products come equipped with a large-capacity polypropylene tank of the largest order of its class, robust and durable, which cannot gather rust and allows disconnection without keeping a hose attached from outside at all times.

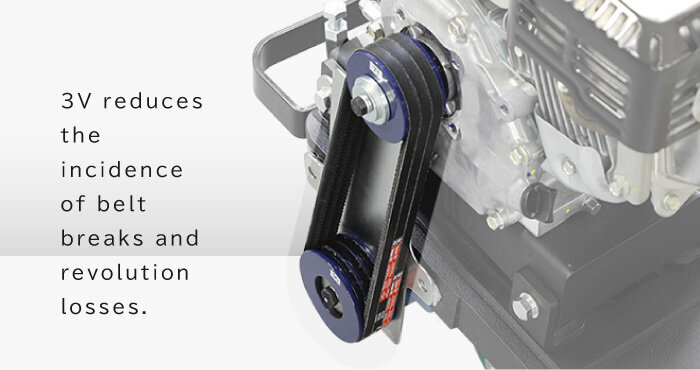

Equipped with a 3VX
3V reduces the incidence of belt breaks and revolution losses.

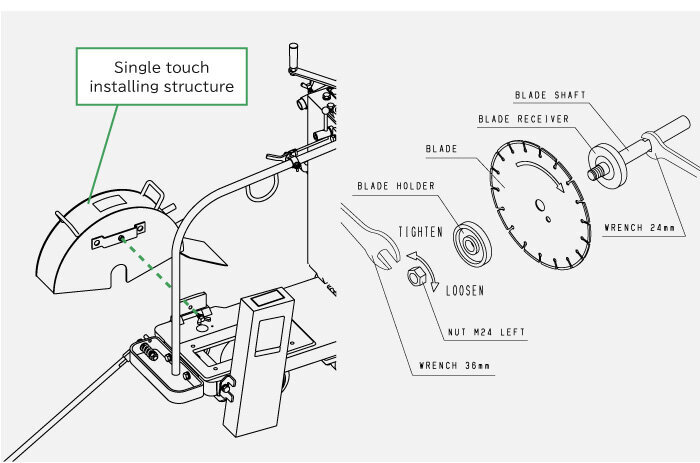

Blade attachment made easy

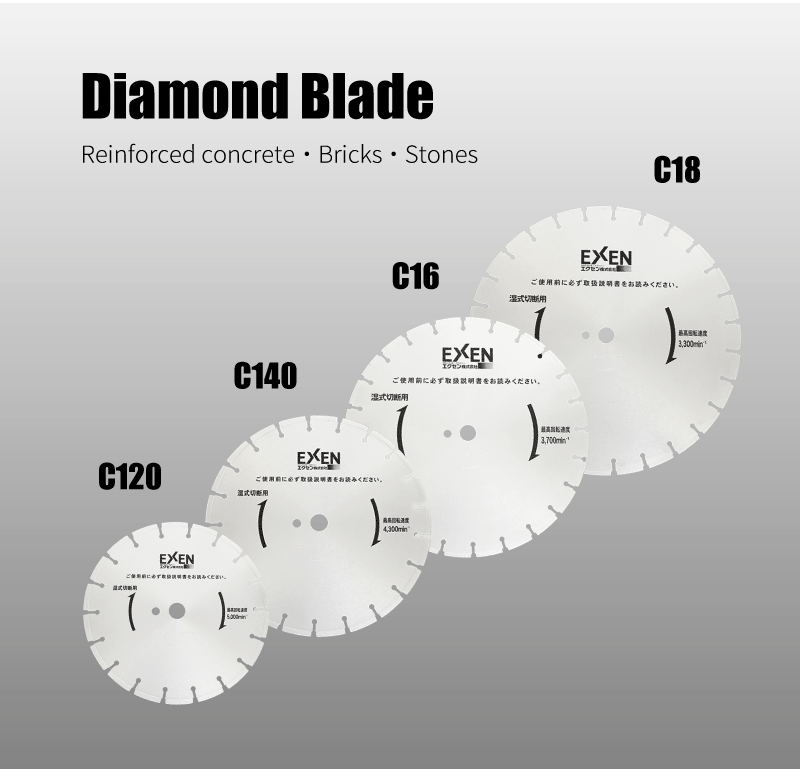

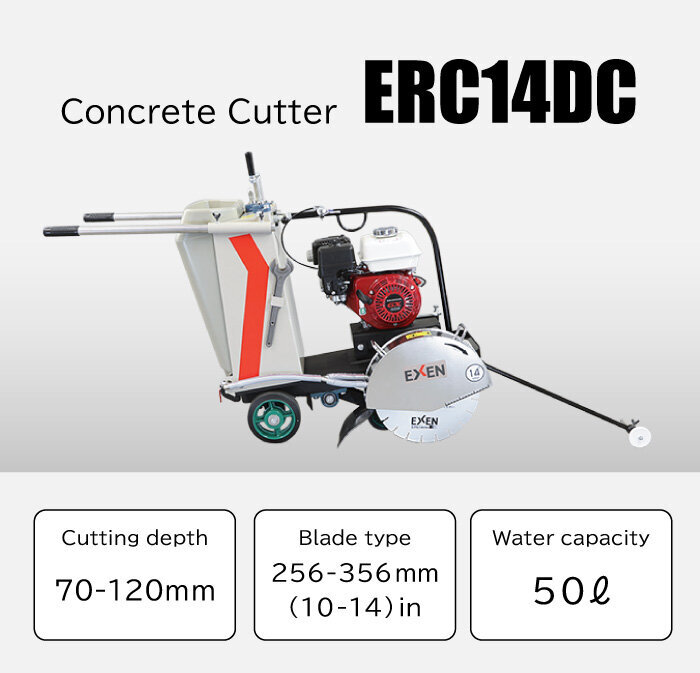

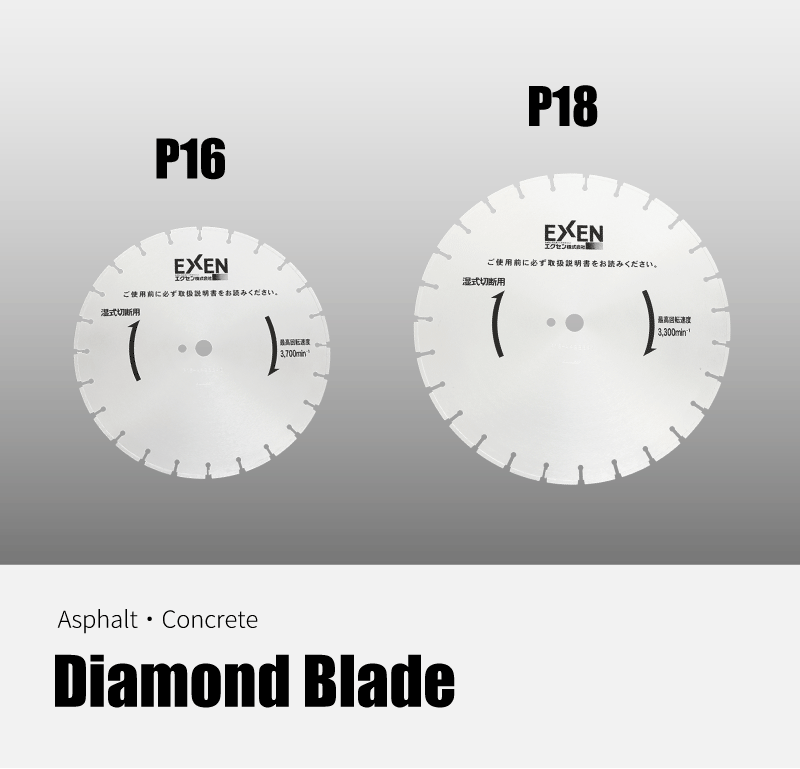

Note) The model number is the size of the maximum diamond blade that can be installed to it (in inches). (Example: ERC14DC = 14 inch blade can be installed.) In addition, the diamond blade P / C series (for asphalt / concrete) exclusively for the ERC series is available. (Sold separately)

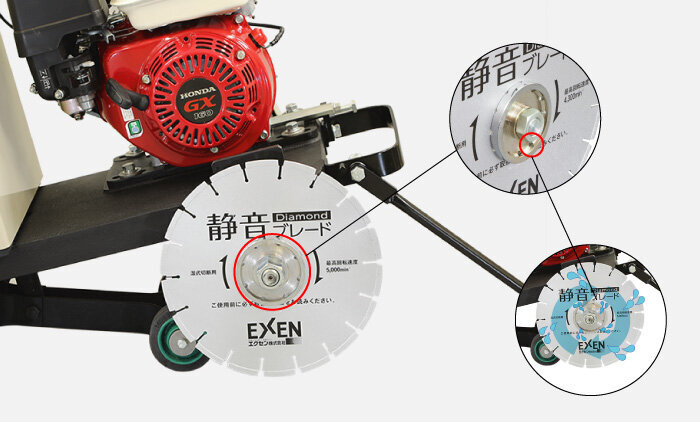

Improved blade cooling efficiency by centrifugal water discharge
The blade holder is of the centrifugally dispersion type that allows cooling water to reach all corners of the blade by centrifugal force. This increases cooling effect, along with cutting performance and blade life.

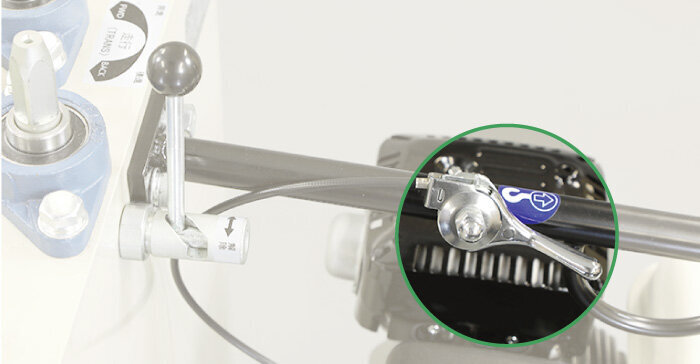

Equipped with engine throttle lever as standard
Equipped with a throttle lever that can adjust the engine rotation at hand as standard.

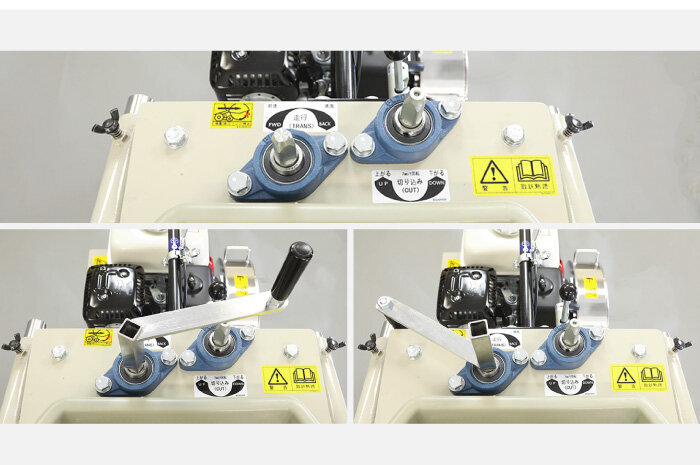

Freely controlled with a single handle
Designed based on the concept that the cutter can be moved up and down, run, and stopped with a single operation handle.The stainless steel operation handle can be easily replaced for the up/down shaft and the traveling shaft.When the operation handle is inserted in the opposite direction, it works as a brake when parking.

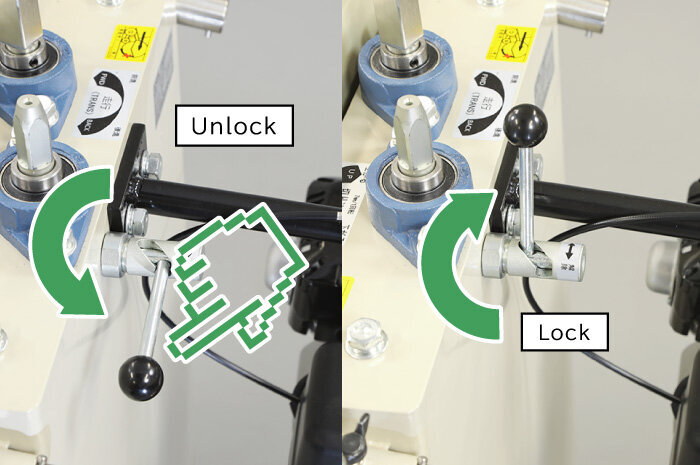

Fix cutting depth with the up/down shaft stopper
When cutting depth determined, you have only to tilt the stopper lever in the fixing direction to fix depth.

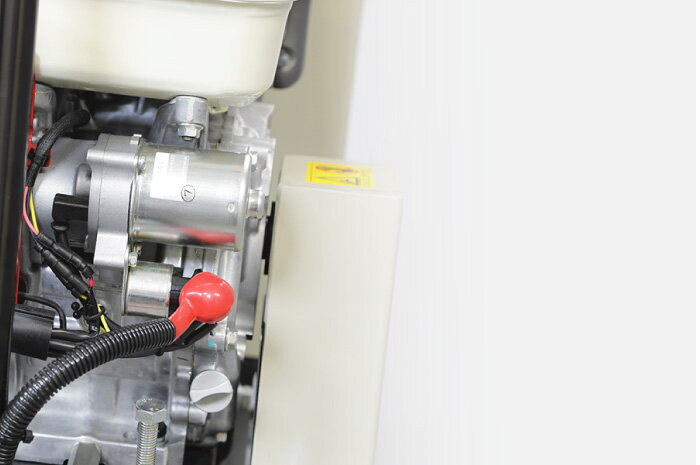

Equipped with a cell starter

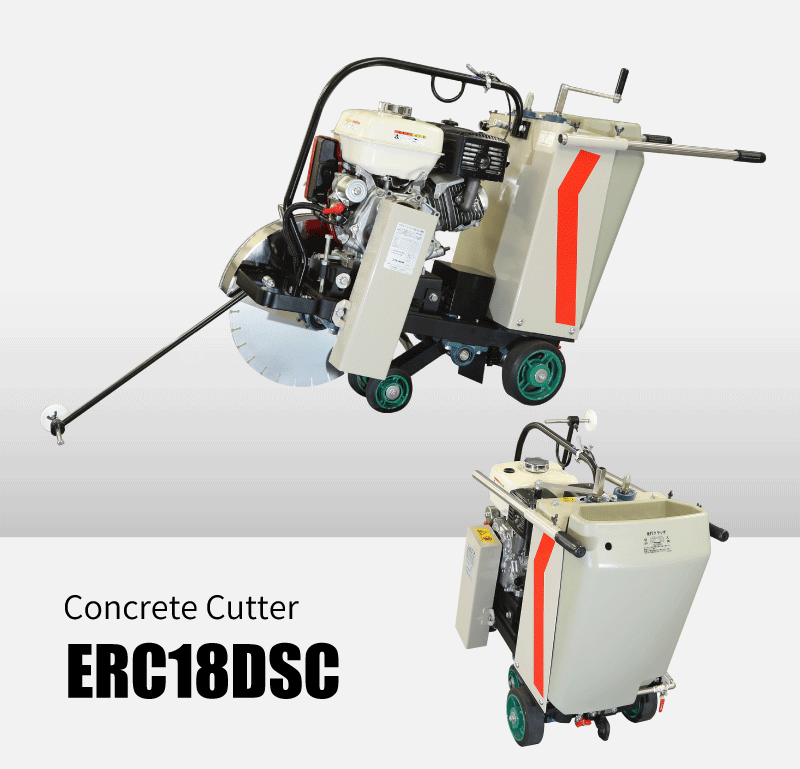

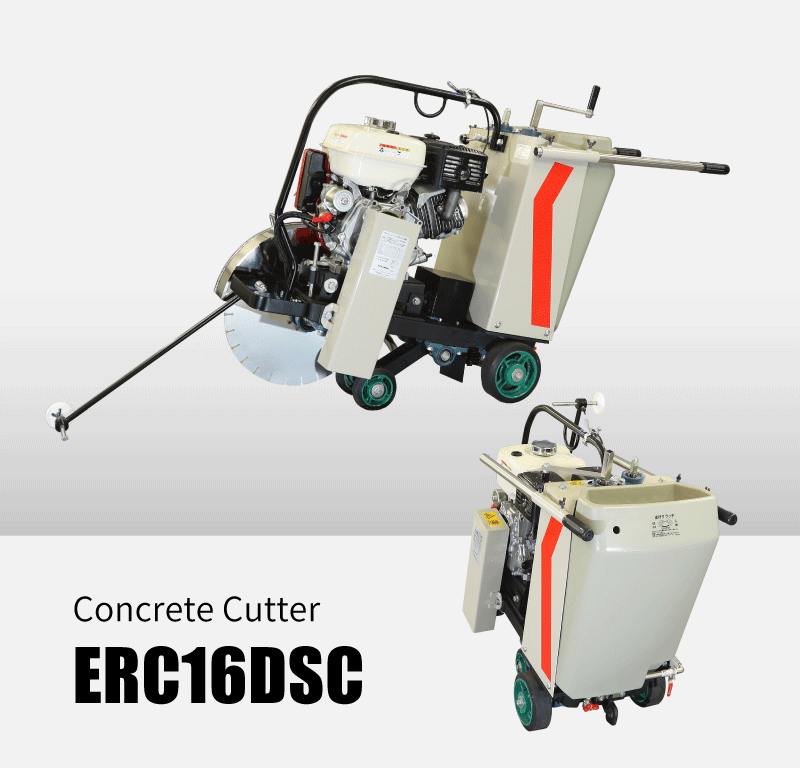

The two models, ERC16DSC and ERC18DSC, are equipped with a cell starter (equipped with a battery), and the engine can be started with the starter key, just like a passenger car.
List of models
| Model | Code Number |
|---|---|
| ERC14DC | 001497000 |
| ERC16DSC | 001499000 |
| ERC18DSC | 001504000 |
Specification
| Model | Performance | ||||||
|---|---|---|---|---|---|---|---|
| Blade (mm) |
Blade hole （mm） |
Max.cutting depth （mm） |
Cutting depth adjustment |
Travel system | Blade cooling system |
water tank capacity （L） |
|
| ERC14DC | 256-356 (10-14in) |
27 | 70-120 | Hand screw type |
Handle run |
Gravity feed water system |
50 |
| ERC16DSC | 256-418 (10-16in) |
70-150 | |||||
| ERC18DSC | 256-469 (10-18in) |
70-175 | |||||
| Model | Dimension | Engine | ||||||
|---|---|---|---|---|---|---|---|---|
| Overall lenght （mm） |
Overall width （mm） |
Overall height （mm） |
Weight （kg） |
Model | Max.output （kW） |
Continuous rated output (kW/min-1） |
Starting system |
|
| ERC14DC | 950 | 515 | 840 | 131 | GX200T2 SHJE |
4.1 | 3.7/3600 | Recoil |
| ERC16DSC | 1000 | 148 | GX270T2 SHEE |
6.3 | 5.1/3600 | Recoil/ Sell starting |
||
| ERC18DSC | 149 | |||||||
（Imperial System）
| Model | Performance | ||||||
|---|---|---|---|---|---|---|---|
| Blade (in) |
Blade hole (in) |
Max.cutting depth (in) |
Cutting depth adjustment |
Travel system | Blade cooling system |
water tank capacity （gal） |
|
| ERC14DC | 10.1～14.0 (10-14in) |
1.1 | 2.8～4.7 | Hand screw type |
Handle run |
Gravity feed water system |
13.2 |
| ERC16DSC | 10.1～16.5 (10-16in) |
2.8～5.9 | |||||
| ERC18DSC | 10.1～18.5 (10-18in) |
2.8～6.9 | |||||
| Model | Dimension | Engine | ||||||
|---|---|---|---|---|---|---|---|---|
| Overall length (in) |
Overall width (in) |
Overall height (in) |
Weight （lb） |
Model | Max.output （kW） |
Continuous rated output (kW/min-1） |
Starting system |
|
| ERC14DC | 3'1" | 1'8" | 2'9" | 288.8 | GX200T2 SHJE |
4.1 | 3.7/3600 | Recoil |
| ERC16DSC | 3'3" | 326.3 | GX270T2 SHEE |
6.3 | 5.1/3600 | Recoil/ Sell starting |
||
| ERC18DSC | 328.5 | |||||||
*Product masses include that of the engine oil.
Dimensions, installation, control panel

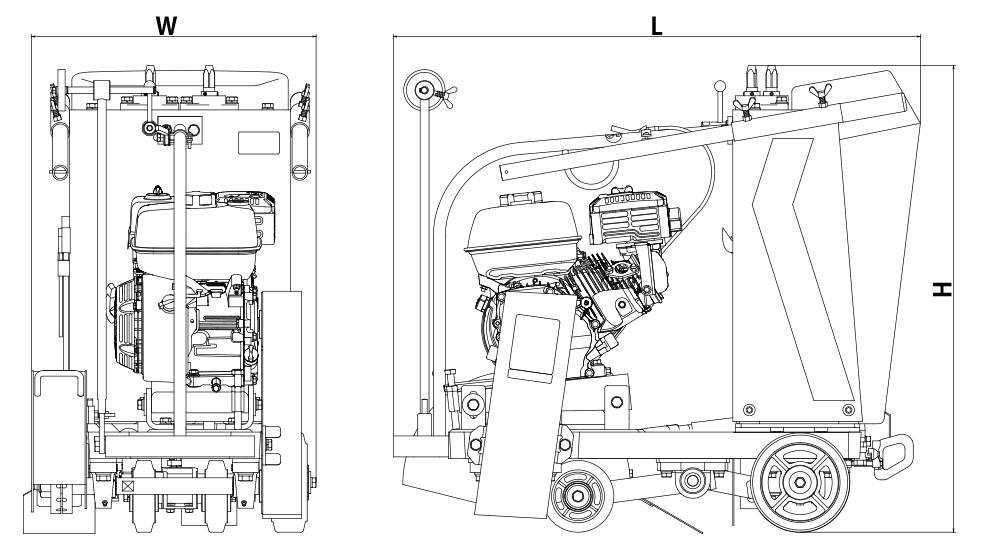

ERC14DC dimensional drawings
ERC14DC dimensional table
| Model | Dimension(Storage) | ||
|---|---|---|---|
| L | W | H | |
| ERC14DC | 950 | 515 | 840 |
（Imperial System）
| Model | Dimension(Storage) | ||
|---|---|---|---|
| L | W | H | |
| ERC14DC | 3'1" | 1'8" | 2'9" |
ERC16DSC / ERC18DSC dimensional drawings
ERC16DSC / ERC18DSC dimensional table
| Model | Dimension(Storage) | ||
|---|---|---|---|
| L | W | H | |
| ERC16DSC | 1000 | 515 | 840 |
| ERC18DSC | |||
（Imperial System）
| Model | Dimension(Storage) | ||
|---|---|---|---|
| L | W | H | |
| ERC16DSC | 3'3" | 1'8" | 2'9" |
| ERC18DSC | |||
