At the present time, the standard about the vibrator of Japan has "JISA8610 poker style concrete vibrator", "JISA8611 concrete mold vibrator. It is standardized that more than 50Hz (3,000v.p.m) is mold vibrator and more than 133.3Hz (8,000v.p.m) is poker vibrator.
Moreover, although ISO-ization is also advancing, since the product performs far exceeding this is supplied by first-class vibrator makers, here we summarize why "high frequency vibrator" became the product mainly used now.

(A)

(B)

Fig. 1 shows that objects that have different weights are influenced variously when they are given different frequency.

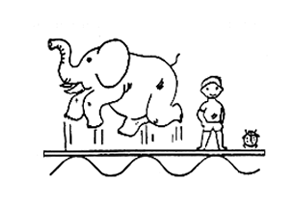

There are an elephant, a boy and a ladybug from which mass (weight) is different on one board. And although (A) shows the influence of a low vibration of frequency and the elephant with big weight is considerably shaken among this figure but, a light boy and a light ladybug are hardly affected.

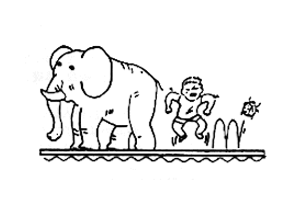

To it, (B) shows the influence of high frequency, and the boy received a remarkable vibration and the ladybug is influenced very big while the elephant is calm.

Thus, with regards to the mass of a vibrated substance, a light object understands that vibration of high frequency is effective for the influence of vibration. This is also applied to influence for fresh concrete. Low frequency of 25Hz (1,500vpm) for large aggregate, frequency of 50-100Hz (3,000-6,000vpm) for small aggregate and 150-240Hz (9,000-14,400vpm) high frequency for fine aggregate or cement paste are effective.

In the past, revolution speed of a small gasoline engine was accelerated by a v-belt (type E-MF) or a pendulum vibrator with 3-4 rebounding movements per rotation was driven a heavy 2-pole induction motor (type HVP) to obtain the high frequency. Today, frequency conversion equipment that changes a commercial power supply into high frequency and a vibrator that build a special motor in head has been developed.

The voltage between the power supply and the vibrator is suppressed to 48 volt.

Ministry of Labor safe rule
The 333rd article (prevention of the electric shock by short circuit), and the 334th article
(Exclusion of application) Ministry of International Trade and Industry Electrical Appliance and Material Control Law attached table 8th (common matter, structure)

(Exclusion of application) Ministry of International Trade and Industry Electrical
Appliance and Material Control Law attached table 8th (common matter, structure)

The Ministry of International Trade and Industry electricity equipment technical standard of Section 4, the 28th article (steel board of a machine instrument, and grounding of an outside box)
And the article 41 (Institution of the ground fault interception equipment)

It is not necessary to ground (in a some cases, grounding can cause danger) since the regulation above, and the many features, such as the lightweight compared with the conventional model. Furthermore, the HBM fin head, which is an industrial new design prevents the vibration transfer loss to concrete with original vibration head form, and brings the best result to making good concrete.
