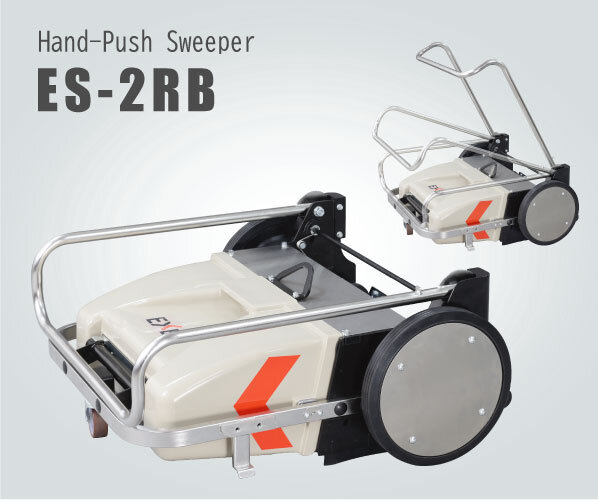

Features
Equipped with ABS-made dust box which is high rust and dirt resistance.

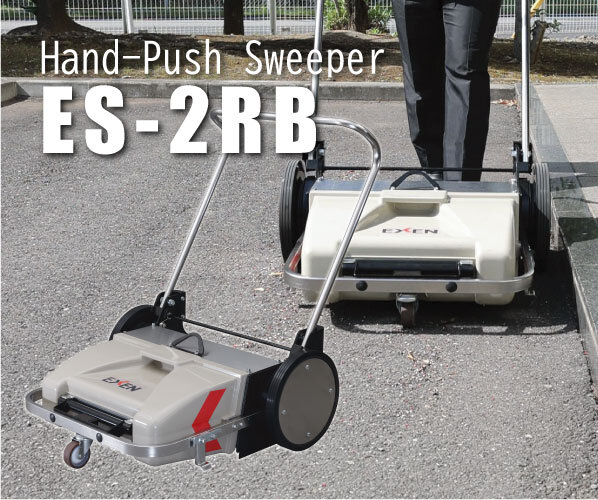

Suitable for cleaning large space such as factory, warehouse, construction site, car park, sidewalk and so on.
Even small dust can be caught and collected to the large capacity dust case.
The roll brush driven by 2 large side wheels collects the dust efficiently, even the small size dust.
＊ Optional side brush improves dust collection efficiency.

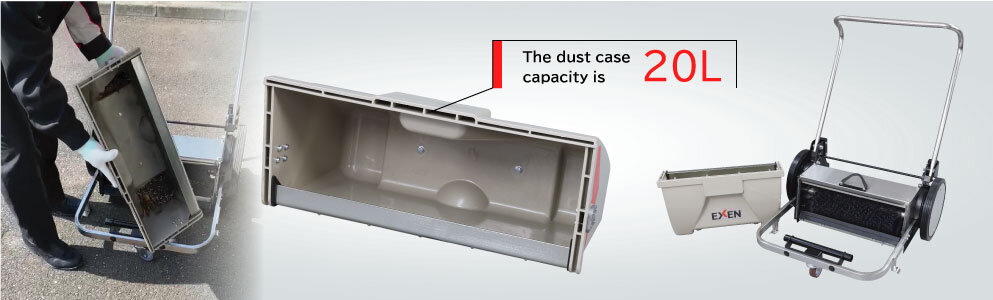

The dust case of excellent durability and usability.
The large size dust case (20 liters) made of ABS realized excellent durability and impact resistance. One-touch removable for easy dust disposal and also washable.
Never fails to catch the dust - even it is large or small.

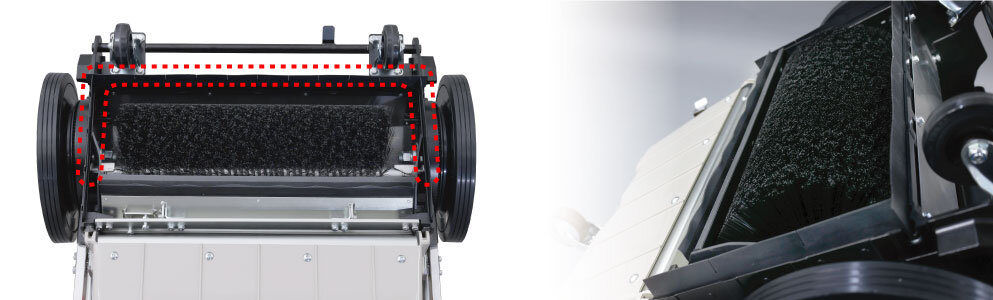

The unique plate surrounding roll brush (side and rear) prevents dust-scatter and guides the dust to dust box smoothly and efficiently.

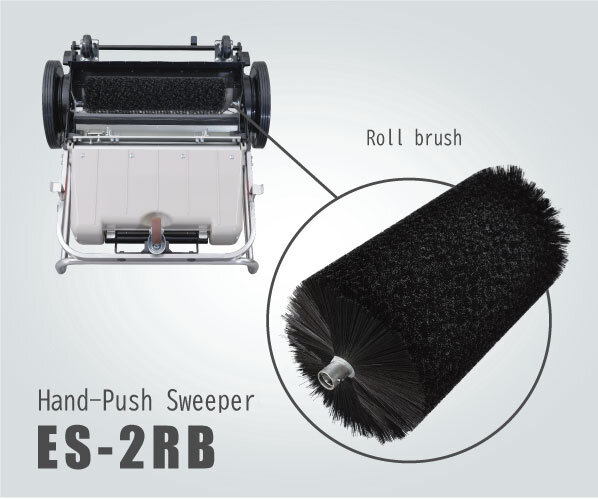

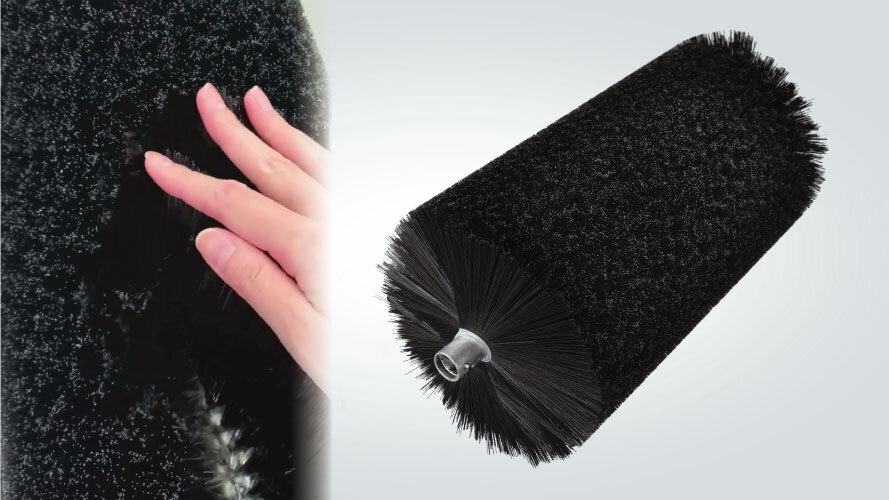

High density roll brush.
High density roll brush made of Polypropylene (PP) which has outstanding wear resistance, bending recov ery, resiliency and heat tolerance catches even the small dust and guide them to dust case.
The stainless steel handle prevents rattling when moving.

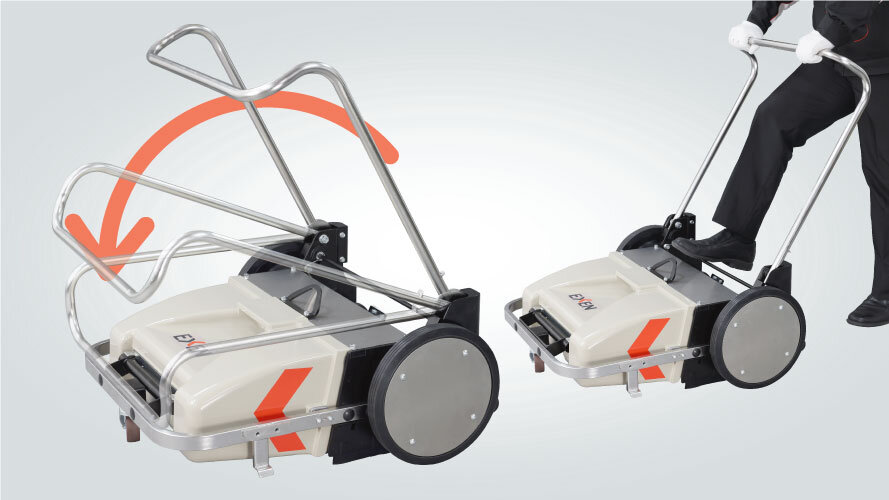

Scratch and rust resistant stainless steel handle is designed for easy-grip and prevents rattling while moving. The handle is easily folded by stepping the unlocking bar.

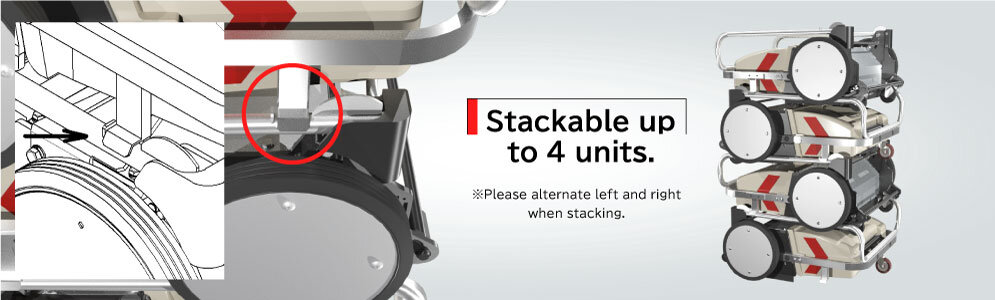

Stackable for efficient storage
Stackable up to 4 units by folding the handle. Compact and save storage space.

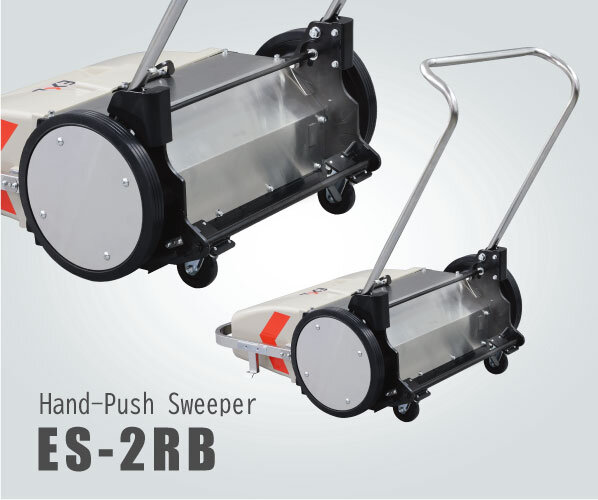

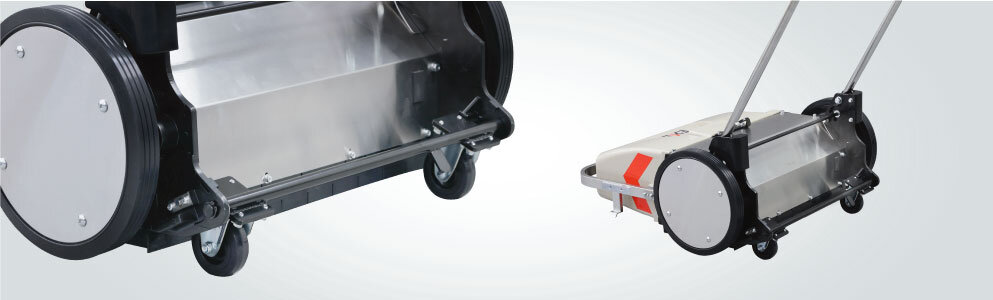

Caster allows to transport the sweeper easier.
The caster keeps the roll brush untouched to ground and allows easy transport of the sweeper without brush resistance. Also it prevents the brush deformation while storage.

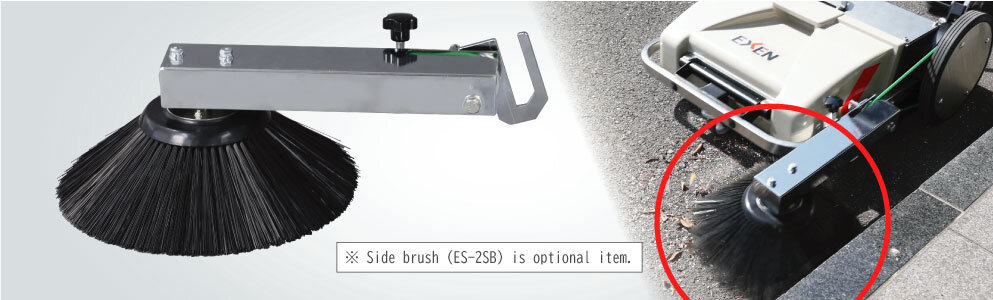

Collects the dust just by the wall neatly.

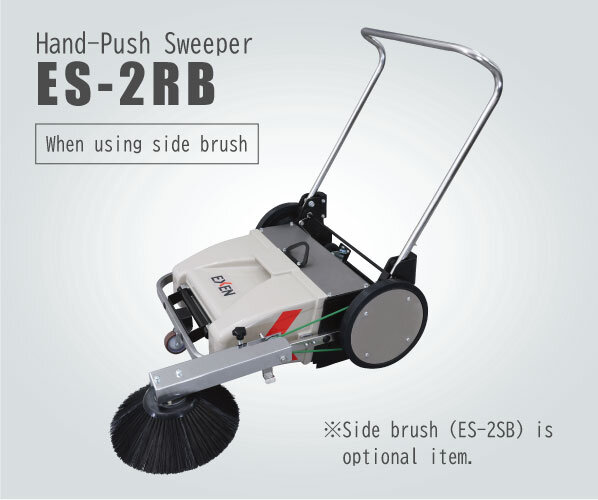

The dust just by the wall can be collected neatly with optional side brush. The side brush is attachable without any tools.

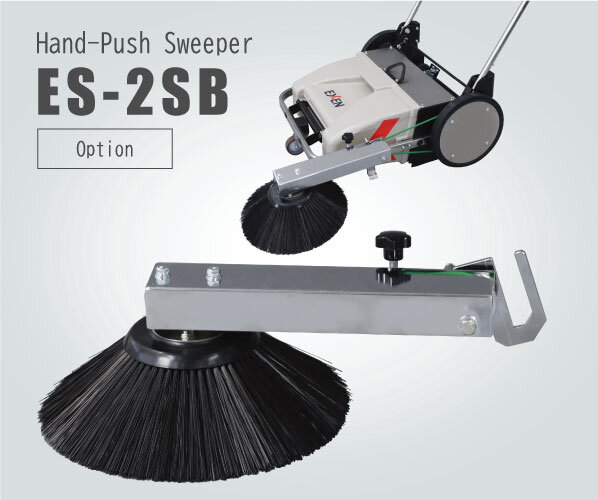

(*) Side brush (ES-2SB) is optional item.

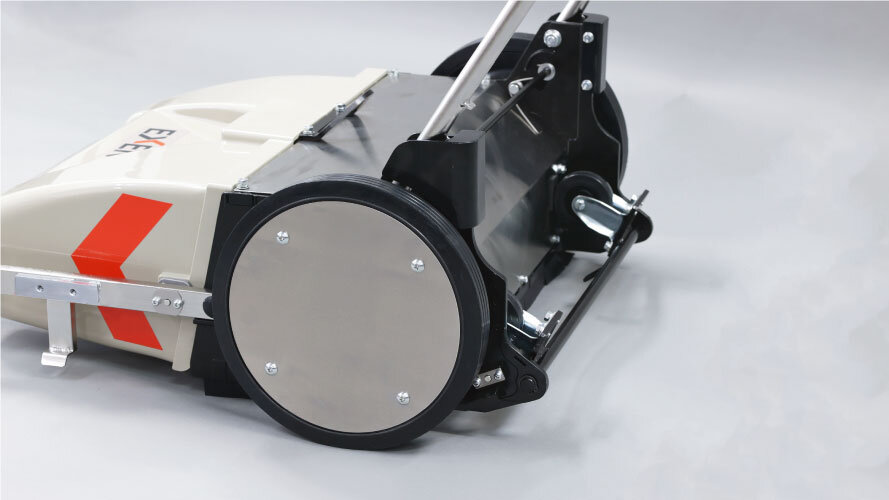

Stable drive tires.
Tires and wheels with a diameter of 280 mm are durable and supports smooth and stable driving.
List of models
| Model | Code Number |
|---|---|
| ES-2RB | 001884000 |
| ES-2SB(Side brush) | 001883000 |
Specification

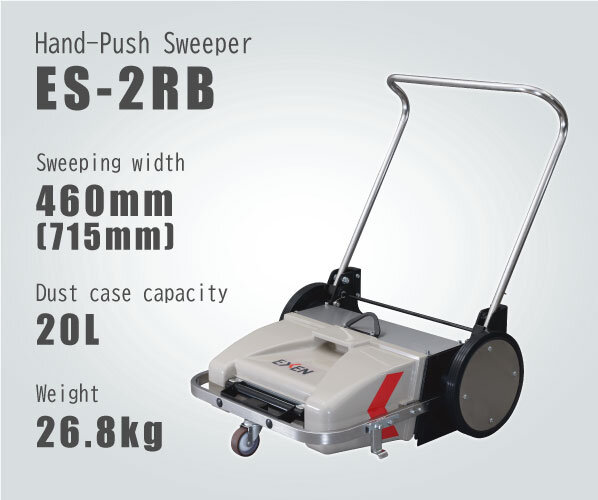

ES-2RB
| Model | ES-2RB () With side brush |
|---|---|
| Sweeping width | 460mm(715mm) |
| Sweeping performance (In the case of 3.5km/h) |
1600m2/h (2500m2/h) |
| Dust case capacity | 20L |

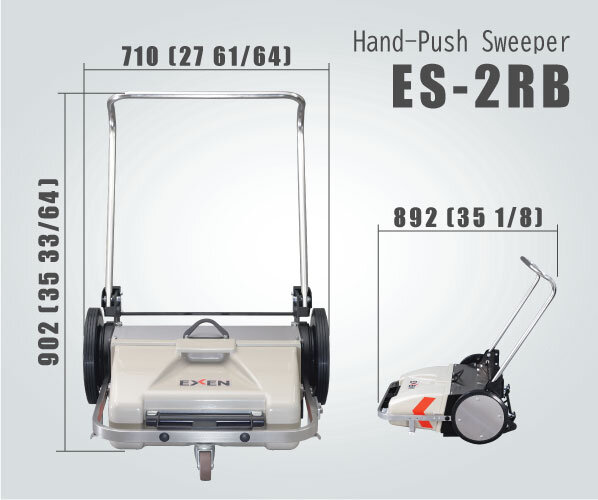

| Body size | 892(1132)×710(864)×902mm |
| Body size(When folded) | 741(981)×710(864)×337mm |
| Weight | 26.8 (29.0)kg |
(Imperial System)
| Model | ES-2RB () With side brush |
|---|---|
| Sweeping width | 18.1in(28.1in) |
| Sweeping performance (In the case of 3.5km/h) |
1914yd2/h(2990yd2/h) |
| Dust case capacity | 5.3gal |
| Body size | 35.1(44.6)×28.0(34.0)×35.5in |
| Body size(When folded) | 29.2(38.6)×28.0(34.0)×13.3in |
| Weight | 26.8(29.0)kg |
Dimensions, installation, control panel

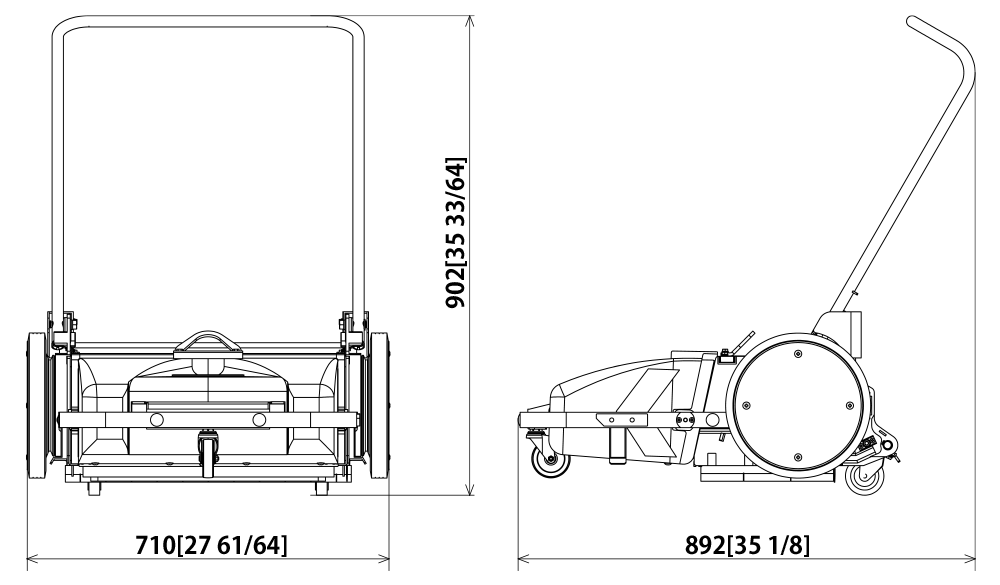

Product dimensional drawings
